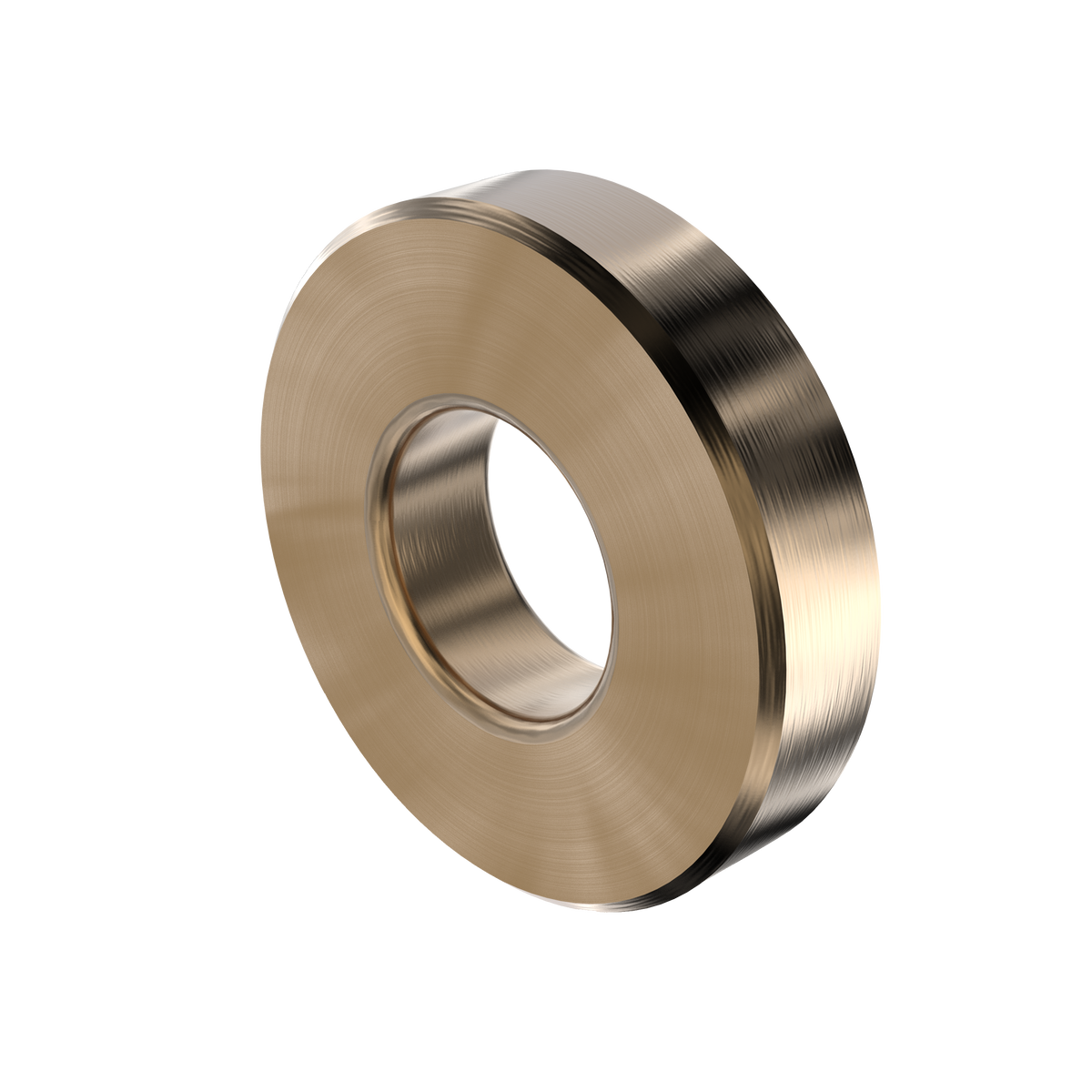

23522903 Bushing | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bushing from the Marine Propulsion group, weighing 0.286 kg and listed for 21 applications across DPH, D and DPI series engines and drives. It supersedes part number 888264.

🚤 Compatibility

• Engine Family: DPH, D, DPI
• HP Range: 150-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Bushing from the Marine Propulsion group
• 0.286 kg
• Supersedes 888264
• Listed for 21 applications across DPH, D and DPI series engines and drives

🔌 Function

Gives a renewable bearing surface between two parts, carrying the load and locating the shaft or pin that runs in it so the housing itself does not wear.

⚠️ Common Signs of Failure

• Play, knock or a clonk felt when the connected part is moved by hand
• Heavy, notchy or uneven movement in the linkage it supports
• Bushing found ovalled, scored or worn through its liner
• Corrosion seizing the bushing into its housing
• Water and grit found where the grease should be

🛠️ Service Notes

• Check the shaft or pin that runs in it - a worn bushing normally means the mating surface is worn too
• Renew the seals that keep water out of the bore at the same time

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23522903 → Supersedes 888264 → Supersedes 3863216

OEM / Related Numbers

• 888264 earlier number superseded by this part
• 3863216 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-400A-F, D6-480A-G
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta DPI-A
