23537716 Adjusting Washer | Genuine Volvo Penta Part

🔧 Product Description

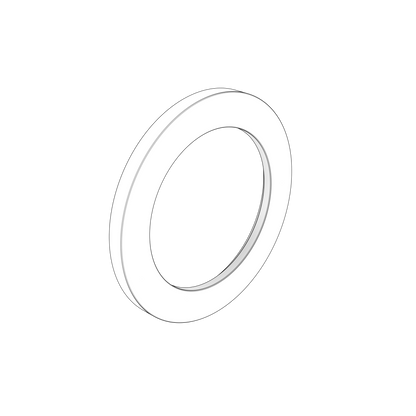

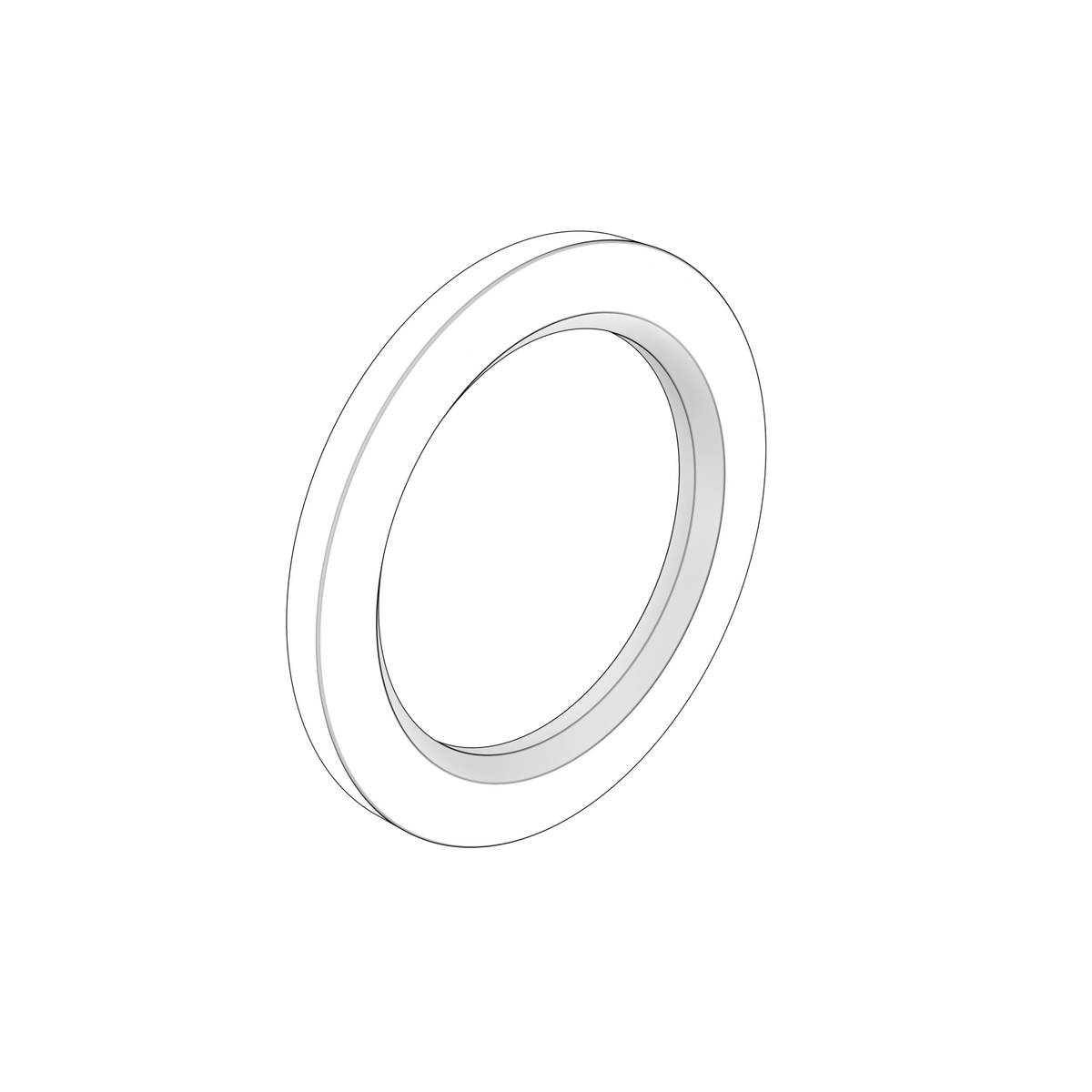

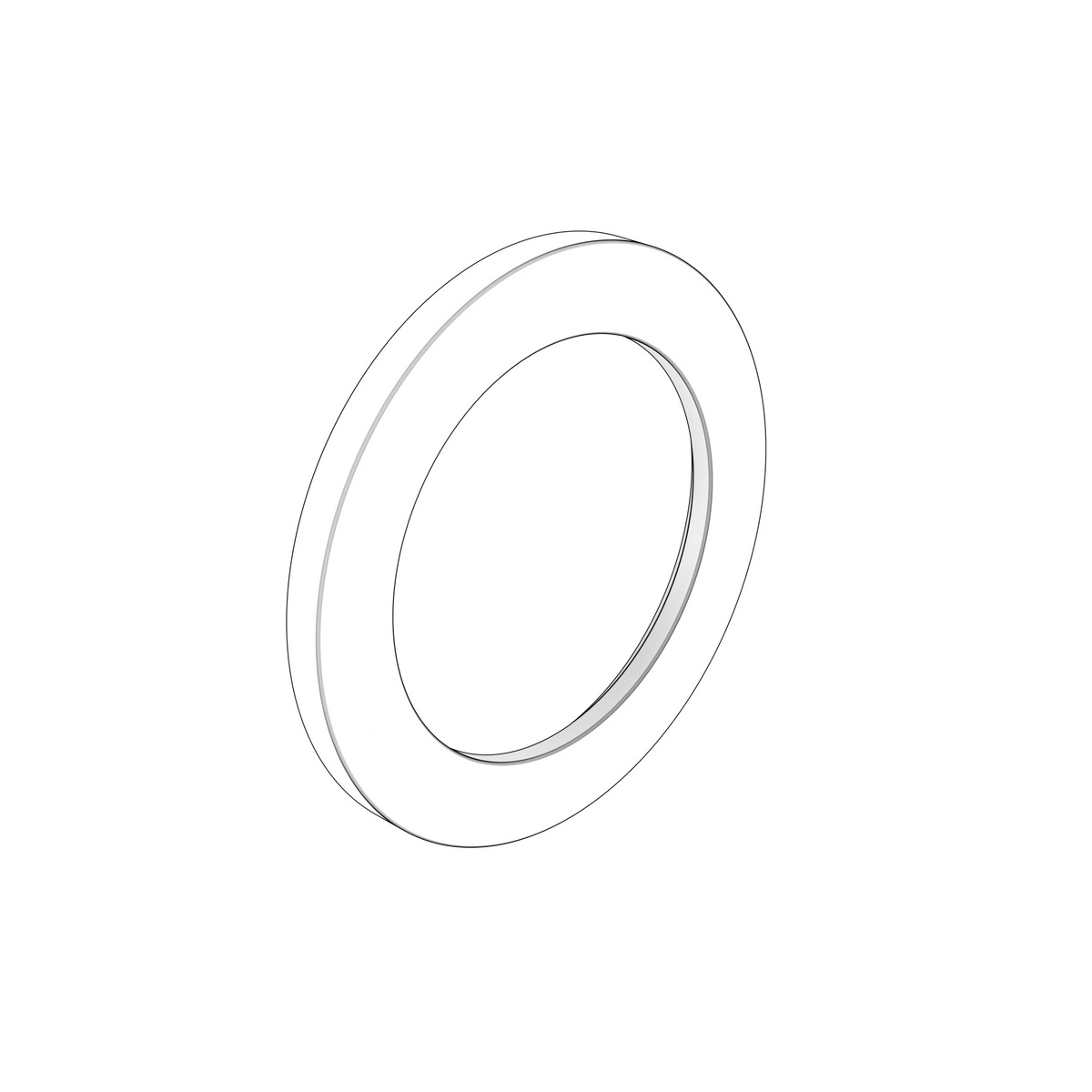

Genuine Volvo Penta adjusting washer 3.15 mm thick, weighing 0.036 kg and listed for 12 applications across D, DPH and DPI series engines and drives. Five thicknesses cover these applications, so measure the clearance to choose.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: D, DPH, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• 3.15 mm thick
• 0.036 kg
• Listed for 12 applications across D, DPH and DPI series engines and drives
• Five thicknesses cover these applications

🔌 Function

Takes up a measured part of the gap in a shaft assembly so the bearings run at the clearance the specification requires.

⚠️ Common Signs of Failure

• Gear whine or rumble that changes with load
• Detectable shaft play or a knock on take-up
• Bearings discoloured or running hot
• Washer face polished, stepped or picked up
• Endfloat found outside specification on measurement

🛠️ Service Notes

• Choose by measurement rather than by engine - 23537717 is only 0.05 mm thicker and 23537715 is 0.35 mm thinner
• Check the mating bearing and thrust face for wear at the same time, since a worn face changes the shim needed

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
