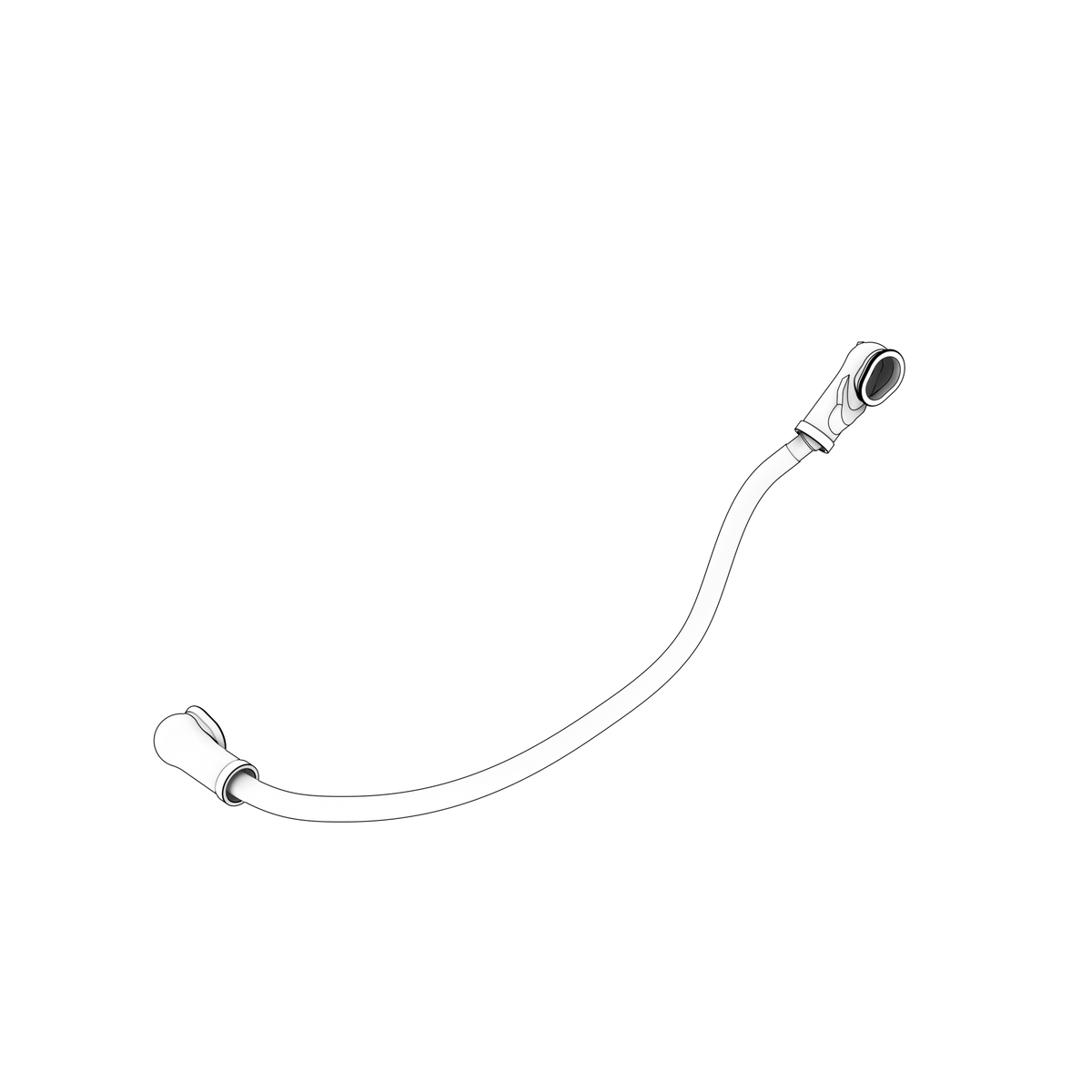

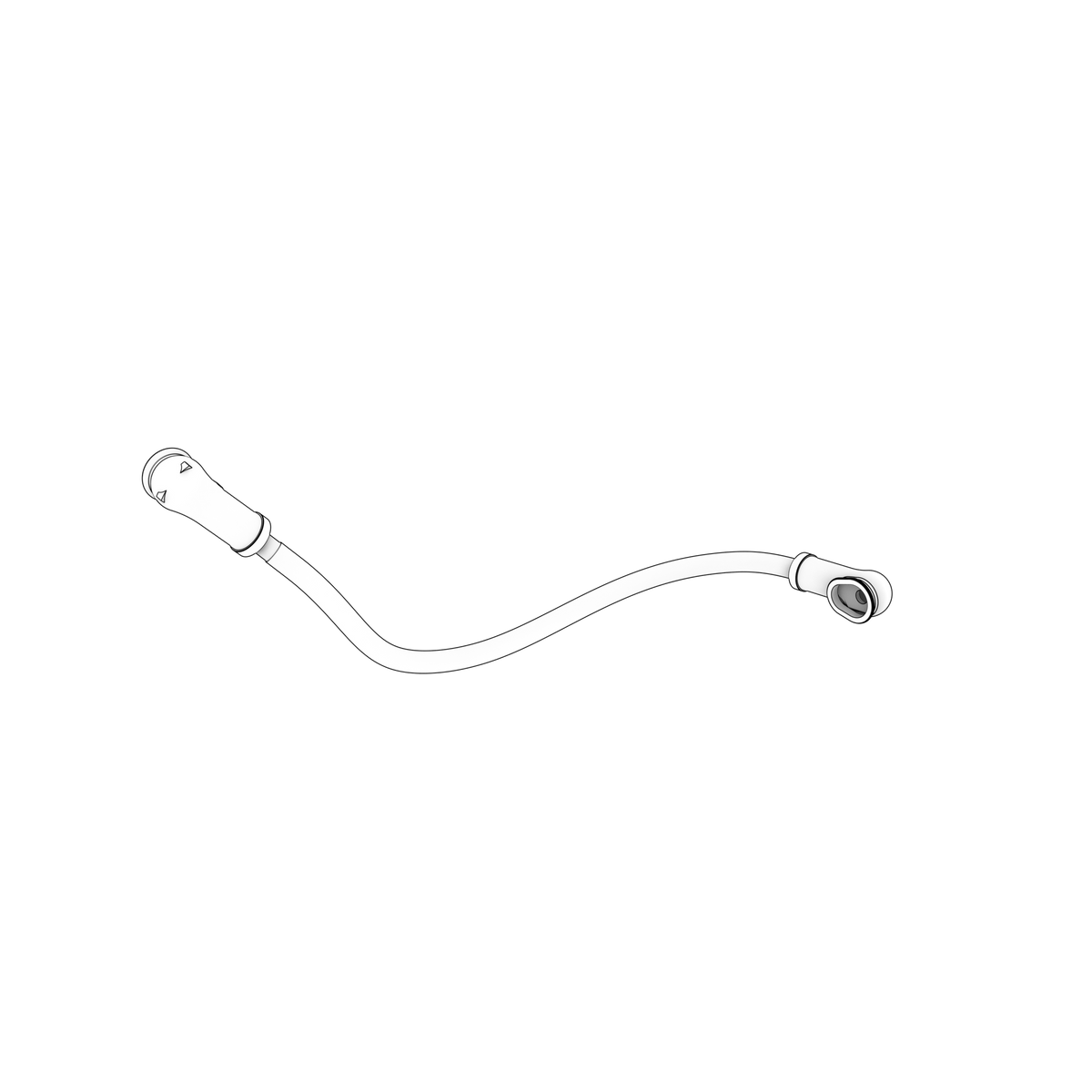

23543007 Power Cable | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta negative pole power cable, weighing 0.374 kg and listed for 28 D series engine applications. It is the negative counterpart to cable 23543005 and must not be substituted for it. It supersedes 23031490.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Negative pole cable
• 0.374 kg
• Listed for 28 D series engine applications
• Supersedes 23031490, catalogued earlier as a wiring harness
• Counterpart to the positive cable 23543005 and not interchangeable with it

🔌 Function

Provides the negative return path between the equipment and the battery, completing the circuit the positive cable feeds.

⚠️ Common Signs of Failure

• Slow or reluctant cranking with the batteries known good
• Cable or terminal hot after cranking
• Corrosion built up at the terminal or earth point
• Insulation cut, chafed or melted along the run
• Large voltage drop measured across the cable under load

🛠️ Service Notes

• Do not substitute the positive cable 23543005 - polarity and routing are not interchangeable
• Clean the earth point back to bright metal; a poor earth causes faults that look electronic
• Check for chafe along the run and refit the clips as the old cable was routed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23543007 → Supersedes 23031490

OEM / Related Numbers

• 23031490 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
