23561738 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

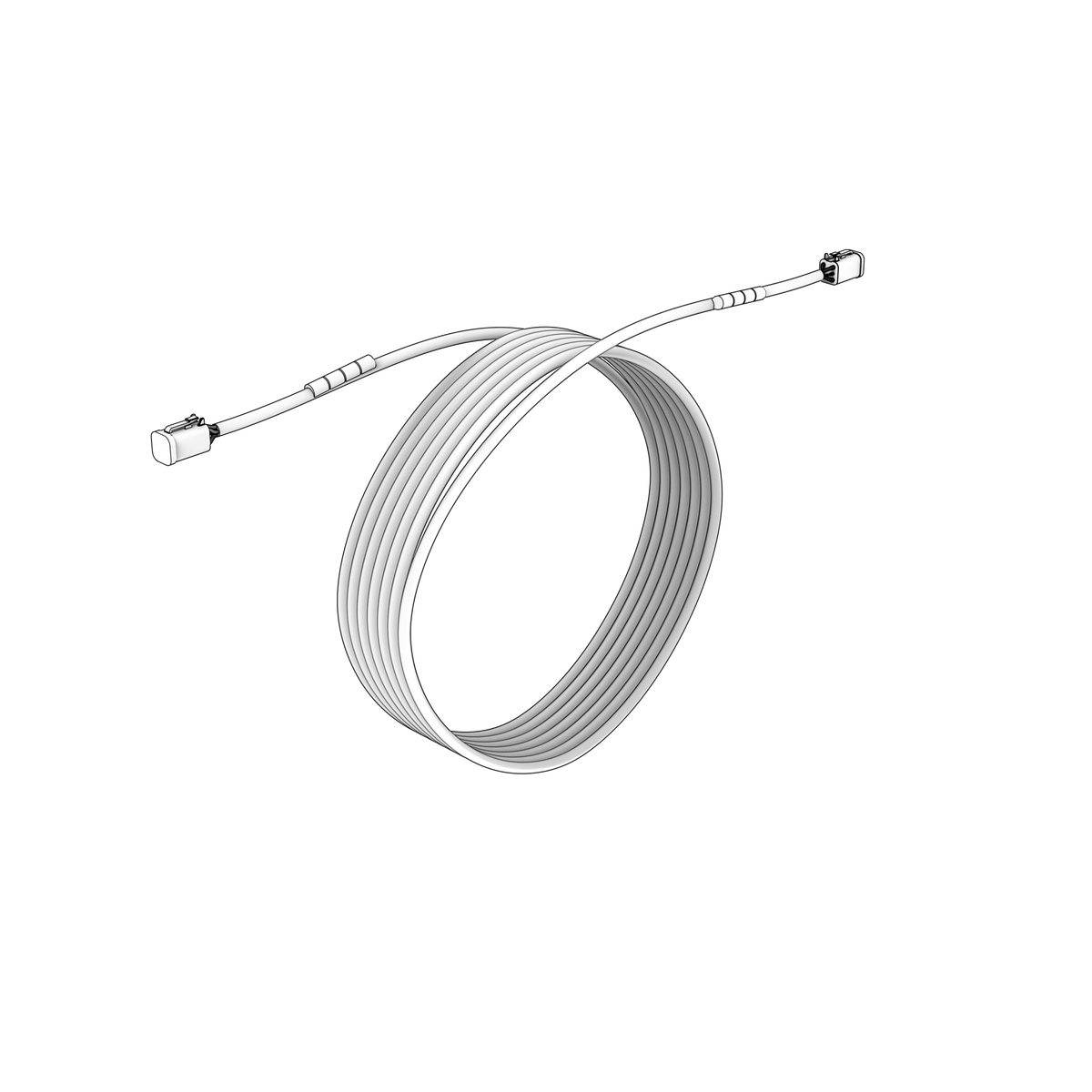

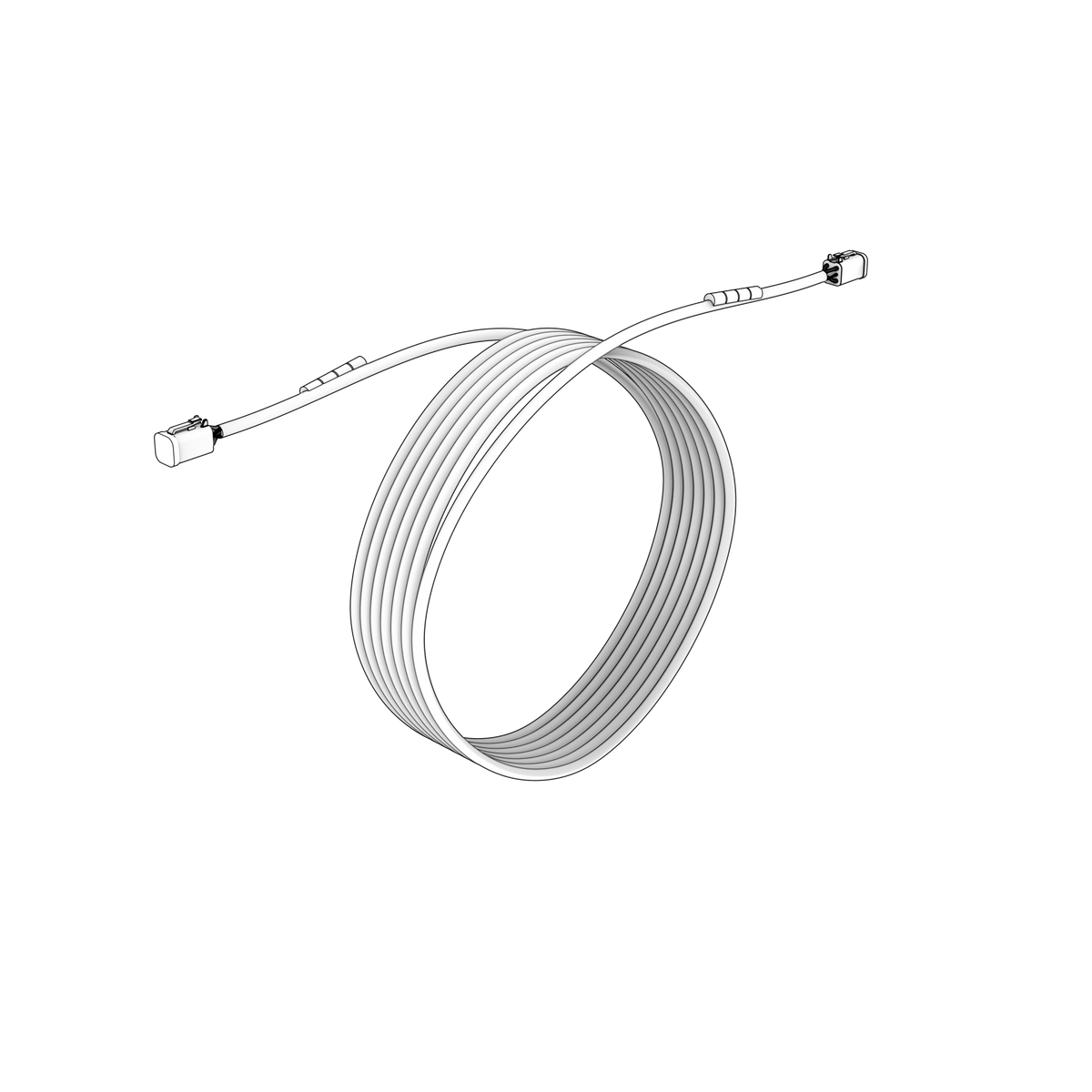

Genuine Volvo Penta 6-pin bus cable, 7.0 metres long, weighing 1.120 kg and listed for 272 applications across D, V and VMM series engines. It supersedes 889550. It doubles as the 6-pole cable of the Boat Trim System, where one cable is needed per installation and the length is selected from the 5, 7, 9, 11 and 13 metre range.

🚤 Compatibility

• Engine Family: D, V, VMM
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 6-pin bus cable, 7.0 metres long
• The 6-pole Boat Trim System cable, one per installation
• 1.120 kg
• Listed for 272 applications across D, V and VMM series engines
• Supersedes 889550
• 6-pole, 7 m long
• One per installation, at every kit size and helm station count
• Length selected from 5, 7, 9, 11 and 13 metres
• Poles: 6
• Length: 7 m
• Fits: Volvo Penta Boat Trim System installations

🔌 Function

Links system units over a 7.0 metre run, carrying network signal and supply on the EVC bus and serving as the 6-pole Boat Trim System cable.

⚠️ Common Signs of Failure

• Station or interceptor dropping off the bus and returning by itself
• Communication fault codes that move with vibration or when the cable is flexed
• Moisture or corrosion inside a connector
• Locking ring failing to seat so the plug loosens
• Sheath found chafed where it crosses a bracket or bulkhead

🛠️ Service Notes

• Order by the routed length rather than the straight-line distance - 5.0 m is 23561737 and 9.0 m is 23561739
• Do not splice or extend a bus cable; step up to the next standard length
• The other lengths are 23561737 at 5 m, 23561739 at 9 m, 23561740 at 11 m, 23561741 at 13 m - measure the routed run before ordering
• The 5 m cable is supplied in the 300 mm kit 21914554 and the 9 m cable in the 450 mm kit 23983555

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23561738 → Supersedes 889550

OEM / Related Numbers

• 889550 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-D, D6-330D-E, D6-370D-E, D6-330A-F, D6-370A-F, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-D, D6-310D-E, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-E, D6-400A-F, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-480A-G
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-D, D4-300D-E, D4-300D-F, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-225A-D, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-300-E-B, V8-320-CE-B, V8-300-CE-B, V8-320-E-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-J, V8-225-CE-B, V8-270-E-B, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-E MG, D13B-E MG (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-J MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C1-B MG, D13C3-B MG, D13C4-B MG, D13C2-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP
• Volvo Penta D3-220I-G, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D9A2J, D9A2L MH, D9A2F, D9A2K, D9A2M MP, D9A2E
• Volvo Penta D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta 527, 577S, 627SV
• Volvo Penta VMM-A
