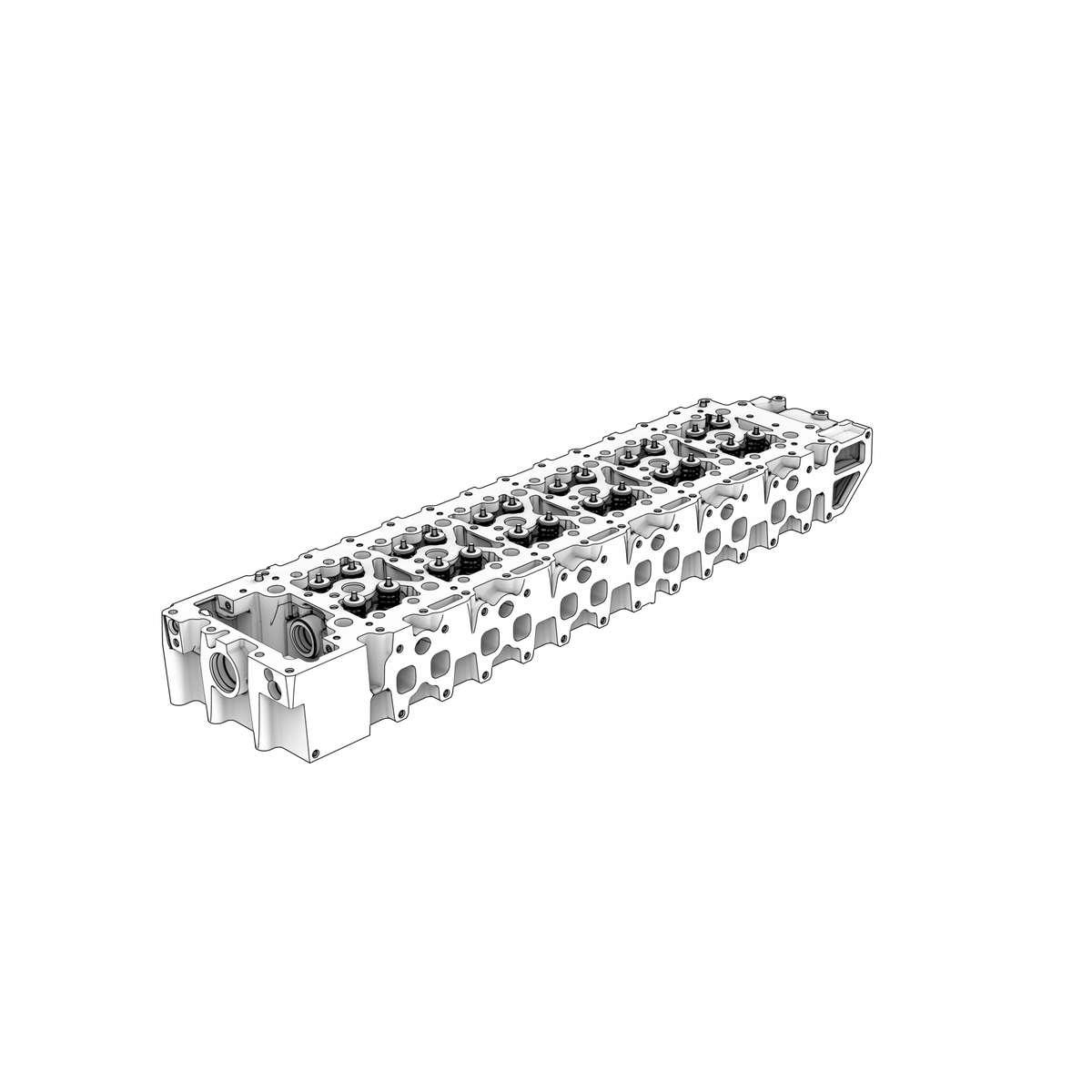

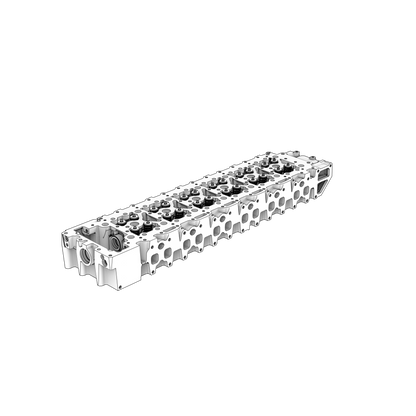

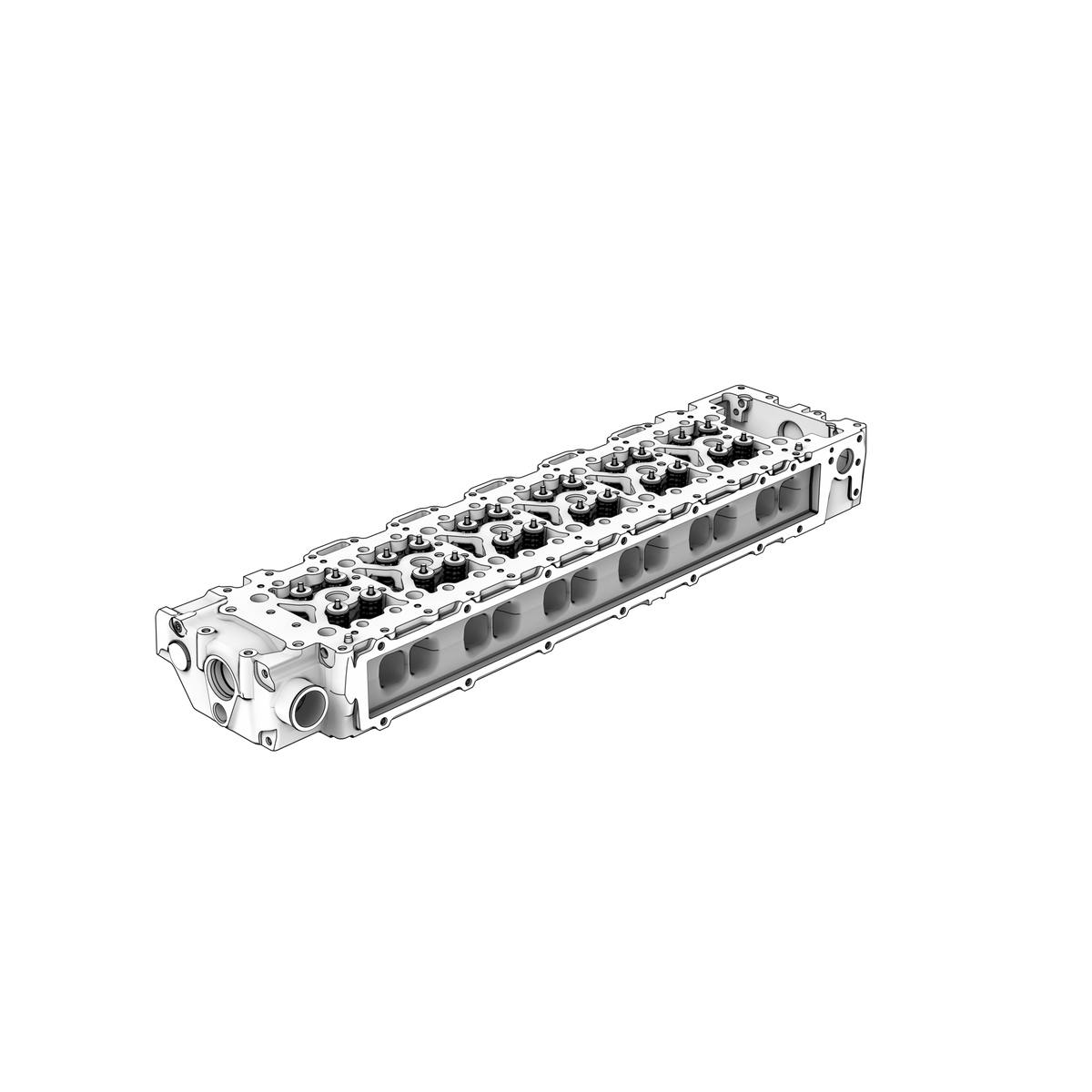

23562115 Cylinder Head | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta cylinder head from the Engine group, weighing 68.04 kg and listed for nine D series engine applications. It supersedes 22814378. Four heads in this group range from 55 to 97.5 kg, so order strictly by part number.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D6-330D-F
• Volvo Penta D6-370D-F
• Volvo Penta D6-300A-F
• Volvo Penta D6-300D-F
• Volvo Penta D6-300I-F
• Volvo Penta D6-330I-F
• Volvo Penta D6-370I-F

• Engine Family: D
• HP Range: 300-370 HP

⚙️ Key Features

• Cylinder head from the Engine group
• 68.04 kg
• Listed for nine D series engine applications
• Supersedes 22814378
• One of four heads here spanning 55.00 kg to 97.50 kg

🔌 Function

Closes the top of the cylinders and carries the valves, seats, guides and injector bores, forming the combustion chambers and the inlet and exhaust ports.

⚠️ Common Signs of Failure

• White smoke from the exhaust and coolant loss with no external leak
• Mayonnaise-like emulsion under the oil filler cap
• Bubbling or pressurisation in the expansion tank
• Loss of compression on one cylinder, showing as rough running or hard starting
• Cracks found between valve seats, or the face measured warped, on strip-down

🛠️ Service Notes

• The four heads here range from 55.00 kg to 97.50 kg and share a name, so order strictly by part number against the engine
• Renew the head gasket and head bolts and check the liner protrusion before fitting
• A head at this weight needs lifting support, and the face should be checked for flatness before it goes on

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23562115 → Supersedes 22814378 → Supersedes 22728585 → Supersedes 21254767

OEM / Related Numbers

• 22814378 earlier number superseded by this part
• 22728585 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
