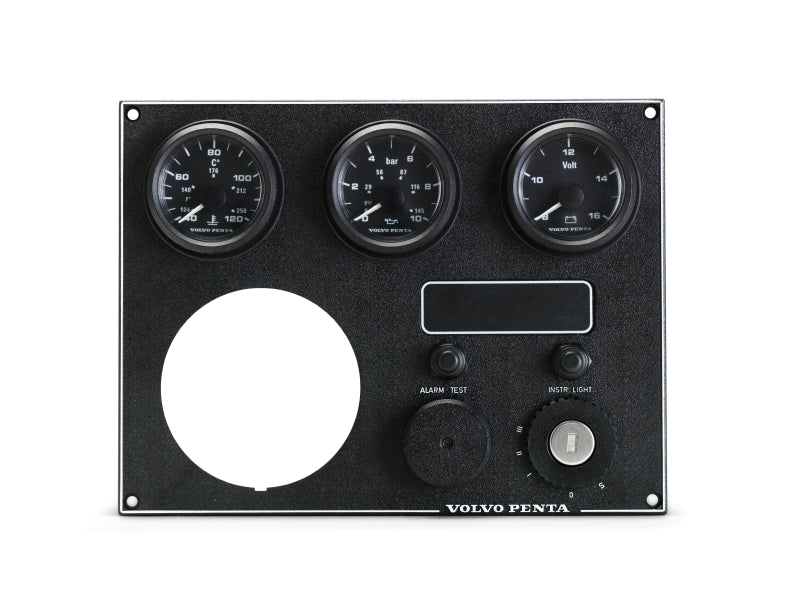

23577080 Instrument Panel Main | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. The main station kit is available in two versions, 12 V and 24 V, and measures 250 x 190 mm. Add a 4000 rpm or 6000 rpm tachometer for a complete installation. This is the 24V version.

🚤 Compatibility

Typically suits:

• Volvo Penta AQD70B
• Volvo Penta D2-55
• Volvo Penta D2-55B
• Volvo Penta D2-55C
• Volvo Penta D2-75
• Volvo Penta D2-75F
• Volvo Penta D2-60F
• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D5A-TA
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7A-TA
• Volvo Penta D7C-B TA
• Volvo Penta D7C-TA
• Volvo Penta MD2010
• Volvo Penta MD2010B

• Engine Family: AQD, D, MD
• HP Range: 55-75 HP

⚙️ Key Features

• Main station instrument panel kit, 24 V
• 250 x 190 mm
• Includes panel with alarm display, coolant temperature gauge 40-120°C, oil pressure gauge 0-10 bar, 18-32 V voltmeter and key-lock starter switch
• Tachometer ordered separately
• 1.22 kg
• Listed for 17 applications across AQD, D and MD series engines
• Supersedes 3587075
• Instrument panel, main, 24V
• Instrument panel with alarm display
• Coolant temperature gauge, engine, 40°C-120°C
• Oil pressure gauge, engine, 0-10 bar
• Voltmeter, 18-32V
• Starter switch, key lock
• Kit contents: Instrument panel with alarm display; Coolant temperature gauge, engine, 40°C-120°C; Oil pressure gauge, engine, 0-10 bar; Voltmeter, 18-32V; Starter switch, key lock
• System voltage: 24V
• 24V system
• Add a 4000 rpm or 6000 rpm tachometer for a complete installation
• Dimensions: 250 x 190 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 859063, 859100, 864041, 864051 and 864336

📋 Kit Contents

• Instrument panel with alarm display
• Coolant temperature gauge, engine, 40°C-120°C
• Oil pressure gauge, engine, 0-10 bar
• Voltmeter, 18-32V
• Starter switch, key lock

🔌 Function

Gives the main helm position a complete instrument panel with gauges, alarm display and starter switch, so the engine can be started and monitored from the primary station.

⚠️ Common Signs of Failure

• Gauges dead, sticking or reading erratically
• Warning lamps failing to prove at key-on
• Panel lighting dim, flickering or out
• Alarm buzzer not sounding when a fault is active
• Corrosion on the connectors or behind the bezel from water ingress

🛠️ Service Notes

• This is the 24 V kit and carries the 18-32 V voltmeter; the 12 V kit 23577077 is otherwise the same panel and is within grams of it, so confirm the system voltage and order by part number
• A tachometer is not included — add the 4000 rpm or 6000 rpm instrument
• Check supply, earth and sender before replacing the panel — several gauges misreading together usually means the earth, not the gauges
• A 4000 rpm or 6000 rpm tachometer is ordered separately for a complete installation - it is not part of this panel kit
• The gauges in this range are designed to fit Volvo Penta instrument panels; where a gauge goes into a panel from outside this range the panel hole diameter may need modifying to suit
• The tachometer is not included - add a 4000 rpm or 6000 rpm unit
• Match the system voltage: 23577077 is the 12 V kit
• Cover plate 858648 covers the tachometer opening where no tachometer is fitted

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23577080 → Supersedes 3587075 → Supersedes 21095053

OEM / Related Numbers

• 3587075 earlier number superseded by this part
• 873591 earlier number superseded by this part
• 21095053 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
