23577084 Instrument Panel Second | Genuine Volvo Penta Part

🔧 Product Description

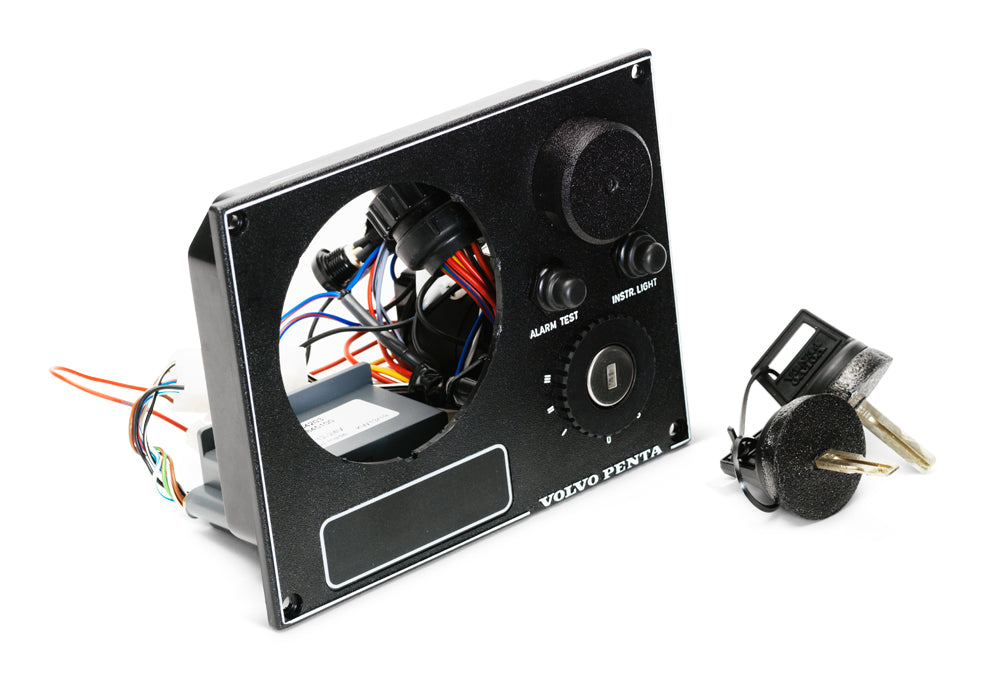

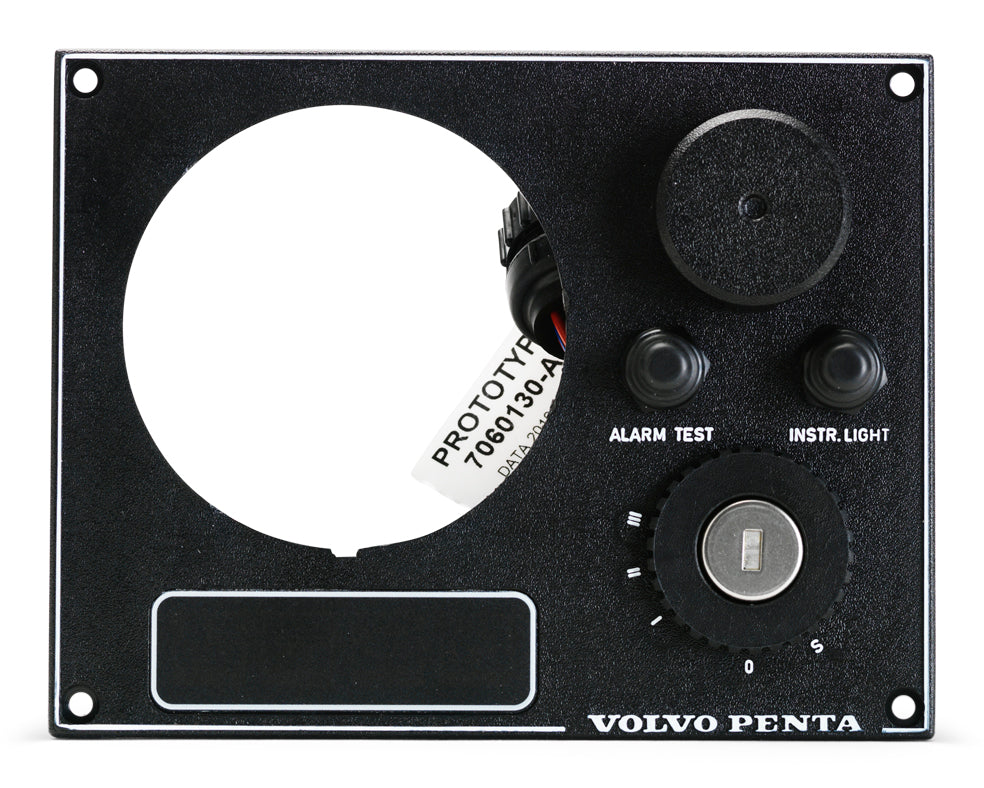

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. The secondary station kit is a flybridge or secondary station panel with alarm display and starter switch, measuring 180 x 140 mm. Add a 4000 rpm or 6000 rpm tachometer for a complete installation.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7C-B TA

• Engine Family: D

⚙️ Key Features

• Secondary station instrument panel kit, 12 or 24 V
• 180 x 140 mm
• Includes alarm display and starter switch
• Tachometer ordered separately
• 0.705 kg
• Listed for five D series engine applications
• Consolidates 3587076, 3587077, 873594 and 888565
• Instrument panel, second, 12V-24V
• Flybridge or secondary station panel with alarm display and starter switch
• Kit contents: Flybridge or secondary station panel with alarm display and starter switch
• System voltage: 12V-24V
• 12/24 V
• Add a 4000 rpm or 6000 rpm tachometer for a complete installation
• Dimensions: 180 x 140 mm
• Voltage: 12/24 V
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 21095067, 858868, 858870, 859057, 864043, 864047, 864052, 872951, 873137, 873175 and 873592

🔌 Function

Equips a second control station with its own alarm display and starter switch so the engine can be started and its warnings watched from the flybridge or an alternative helm.

⚠️ Common Signs of Failure

• Second station dead while the main station reads correctly
• Warning lamps not proving at key-on
• Starter switch worn, sticking or turning without engaging
• Panel illumination dim or out
• Corrosion at the station connector or behind the bezel from water ingress

🛠️ Service Notes

• Being dual-voltage it suits either a 12 V or a 24 V system, which removes the voltage choice that applies to the main station kits 23577077 and 23577080
• The kit carries the alarm display and starter switch — add a 4000 rpm or 6000 rpm tachometer for a complete installation
• Trace the connection back to the main station harness before condemning the panel — a secondary station fault is usually in the run between the two
• The gauges in this range are designed to fit Volvo Penta instrument panels; where a gauge goes into a panel from outside this range the panel hole diameter may need modifying to suit
• The tachometer is not included
• Cover plate 858648 covers the tachometer opening where no tachometer is fitted

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23577084 → Supersedes 3587077 → Supersedes 21095066

OEM / Related Numbers

• 3587076 earlier number superseded by this part
• 873594 earlier number superseded by this part
• 888565 earlier number superseded by this part
• 3587077 earlier number superseded by this part
• 873593 earlier number superseded by this part
• 21095066 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
