23577084 Volvo Penta Instrument Panel Assy | Genuine Used Part

🔧 Product Description

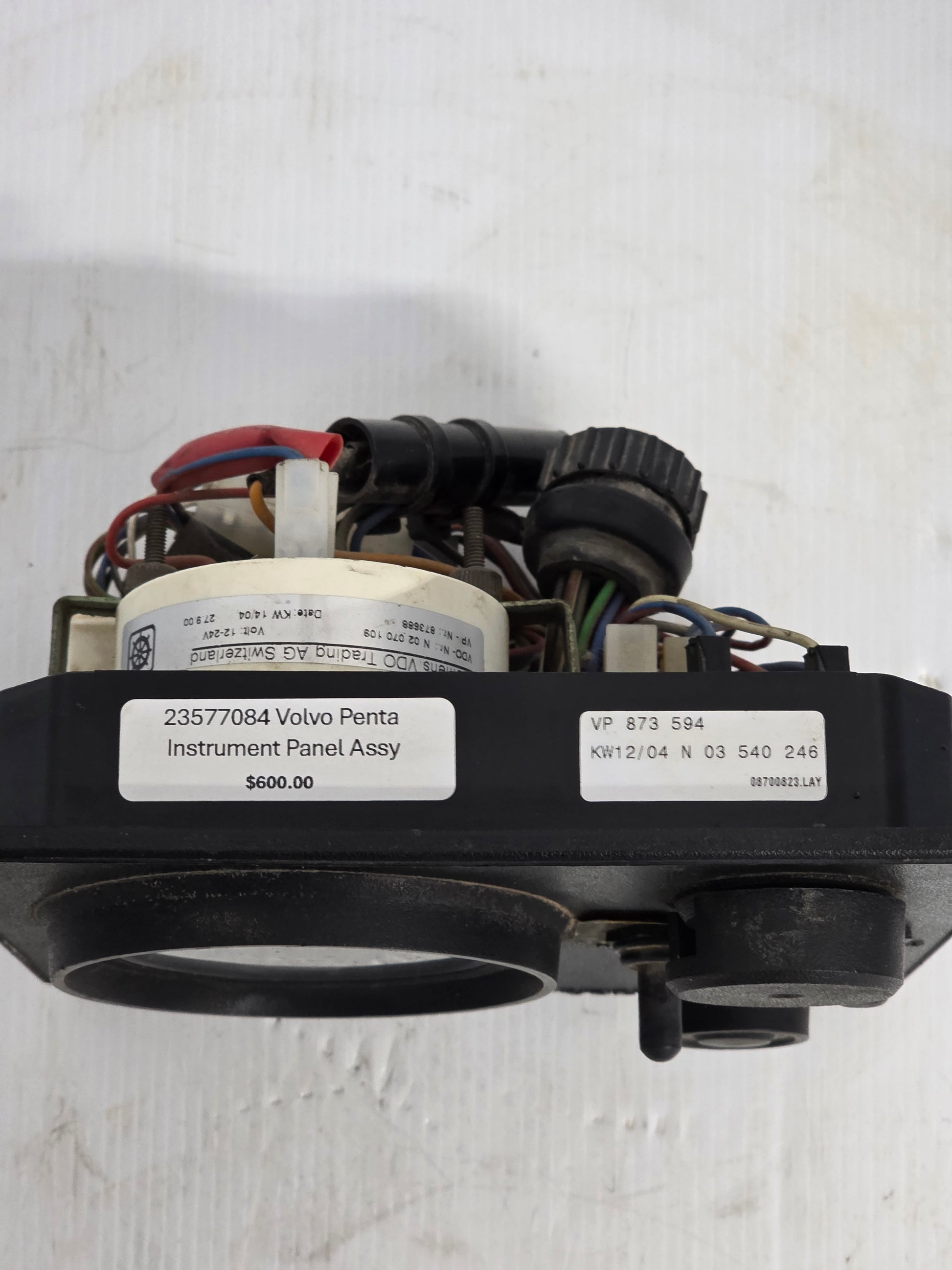

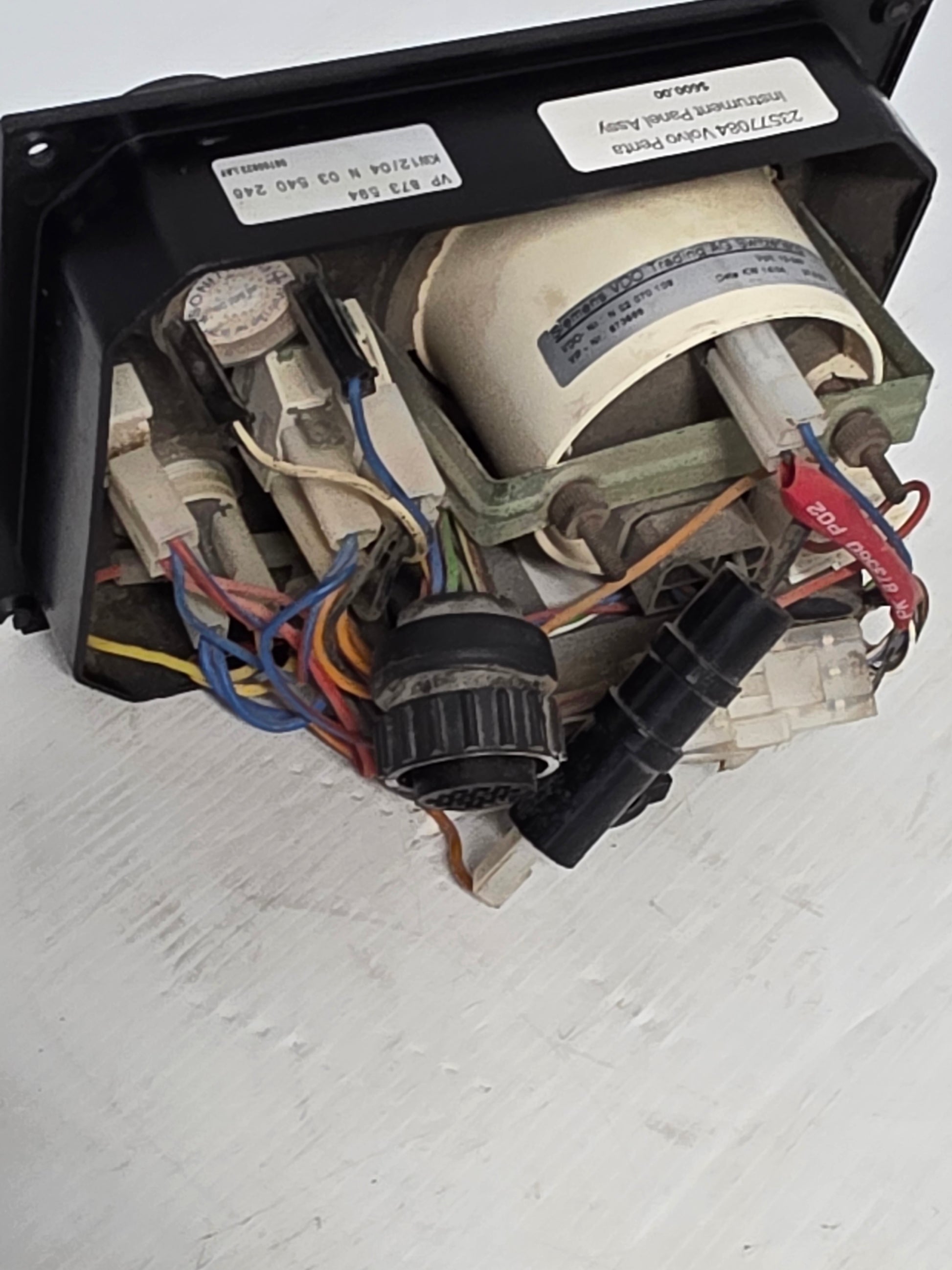

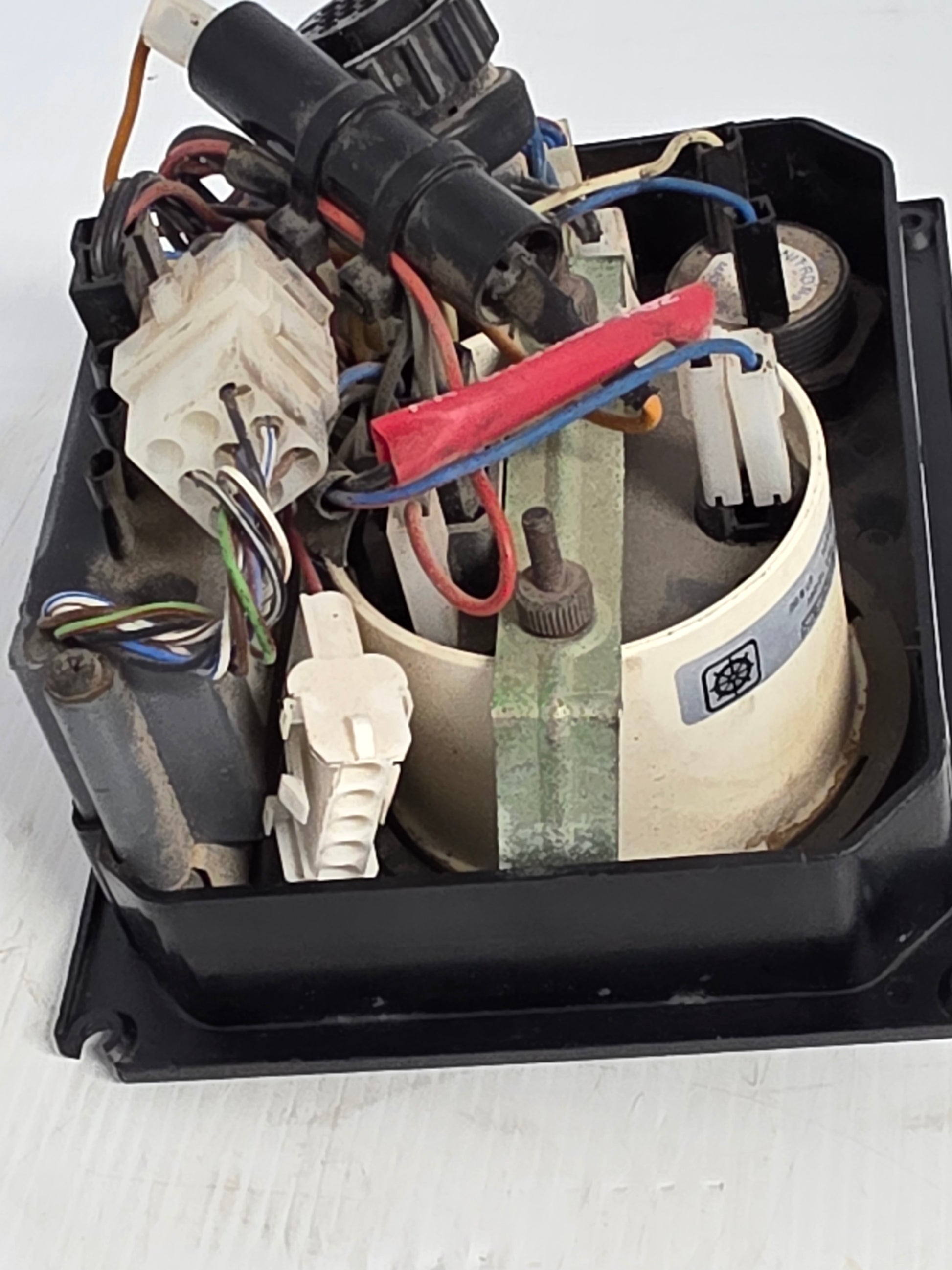

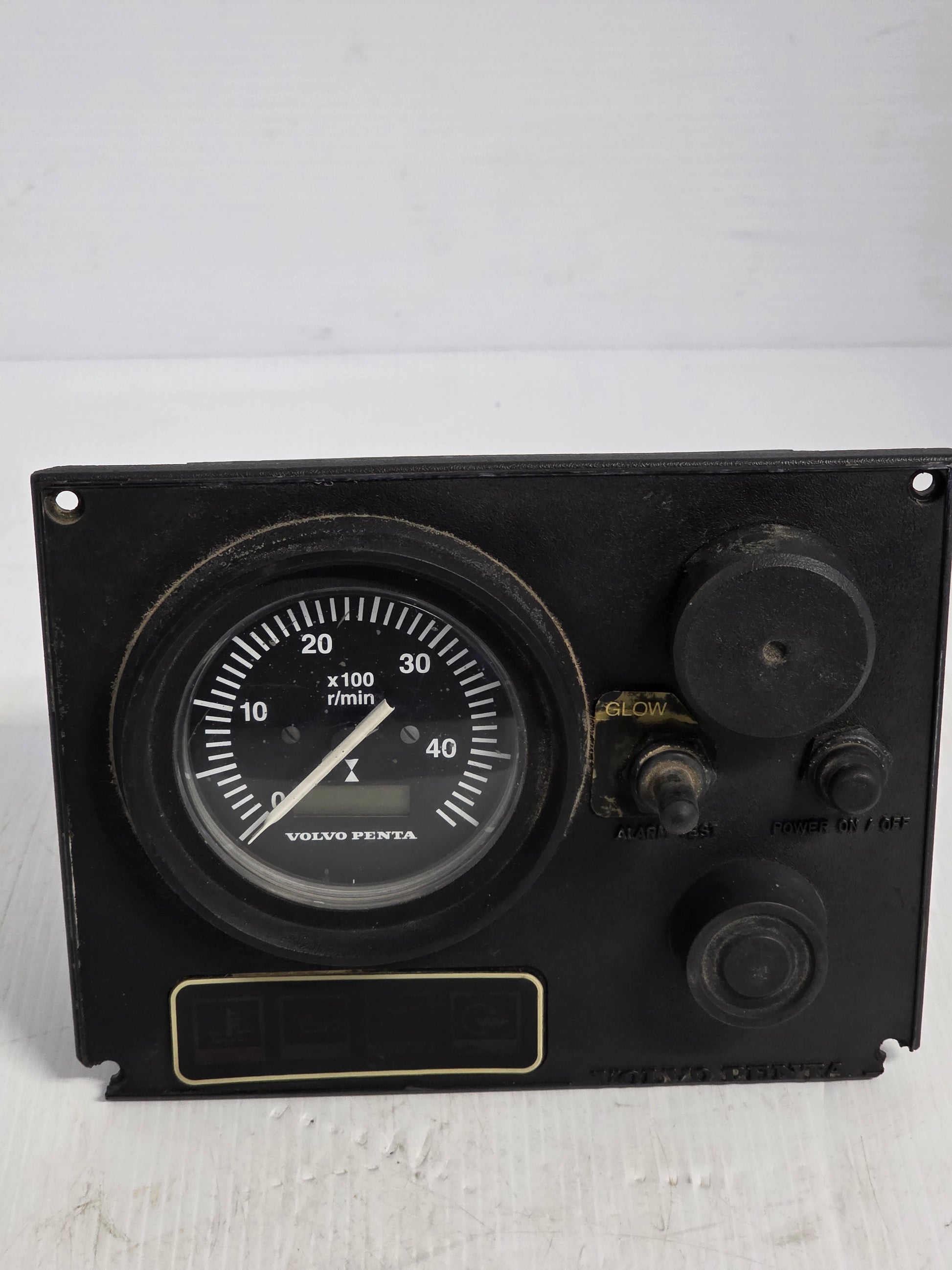

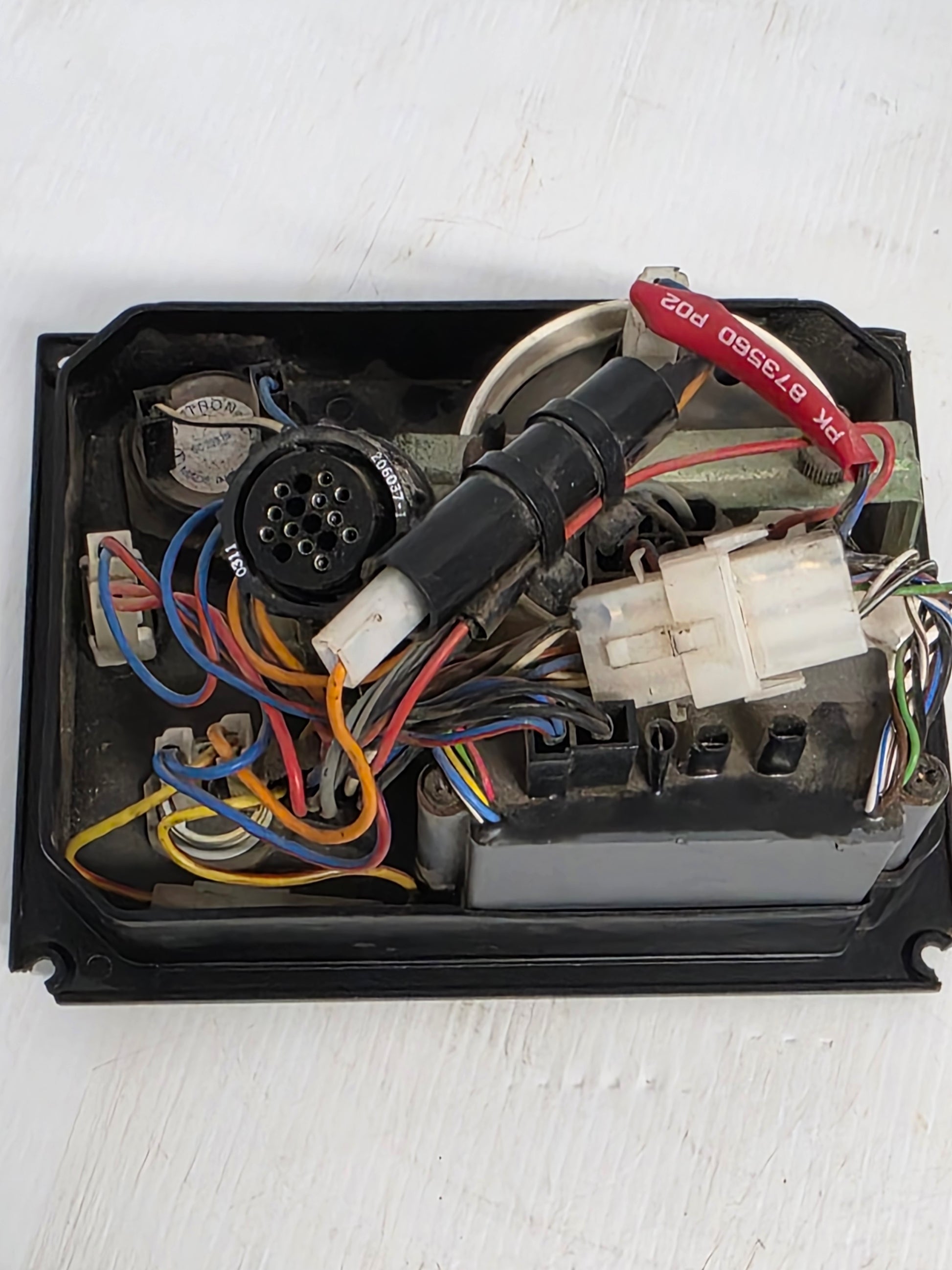

Genuine Volvo Penta Secondary-Station Instrument Panel Assembly - Part Number: 23577084

A genuine Volvo Penta secondary or flybridge instrument panel assembly for non-EVC diesel-engine installations.

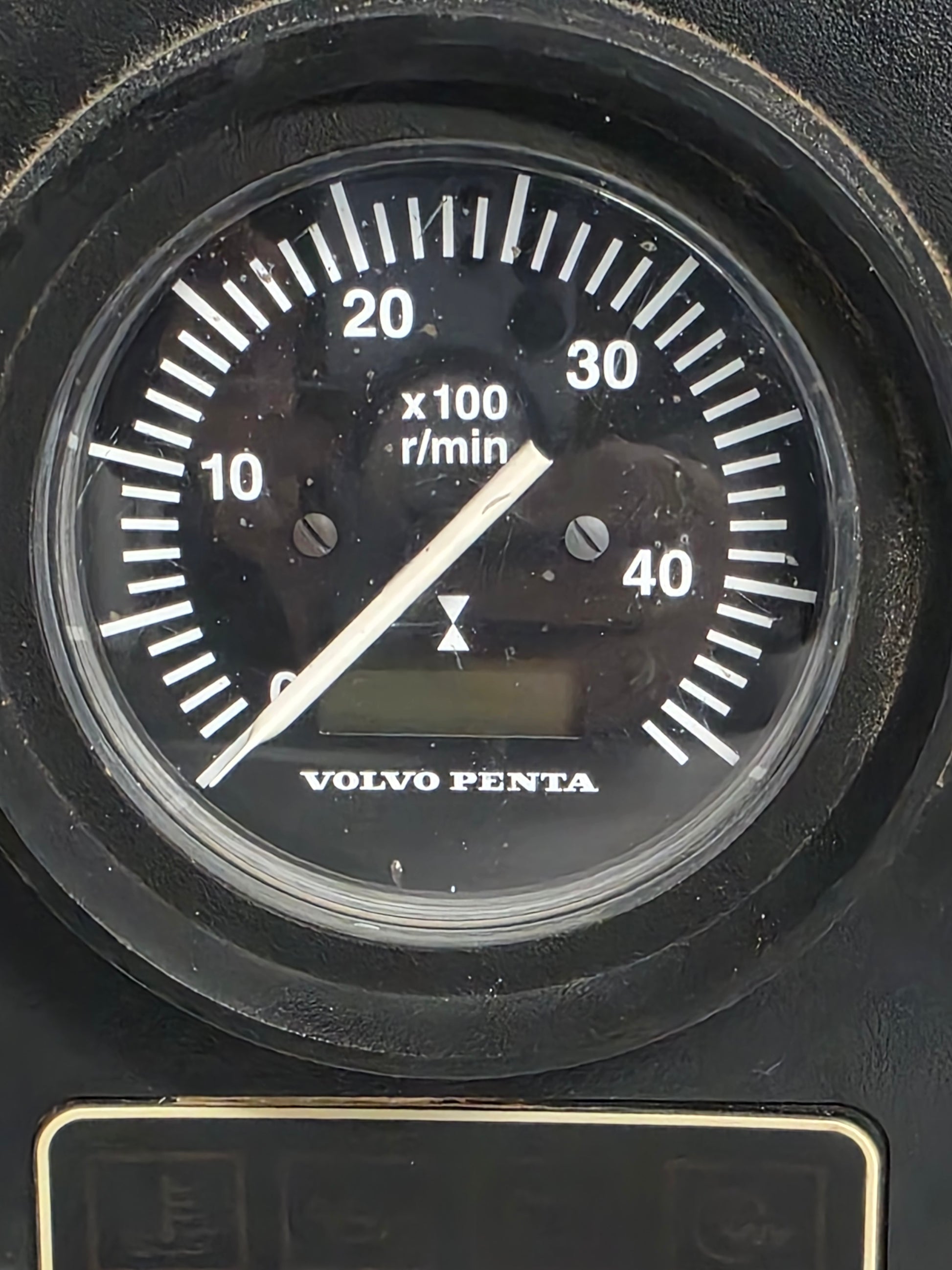

The panel provides the second control station with an engine start or ignition switch, alarm display and provision for a 4000 RPM or 6000 RPM tachometer. The exact included instruments and key-switch configuration are determined by the assembly supplied.

Current part number 23577084 replaces several earlier Volvo Penta instrument-panel numbers.

⚙️ Key Features

• Genuine Volvo Penta OEM secondary-station panel
• Correct current part number 23577084
• Flybridge or second-helm application

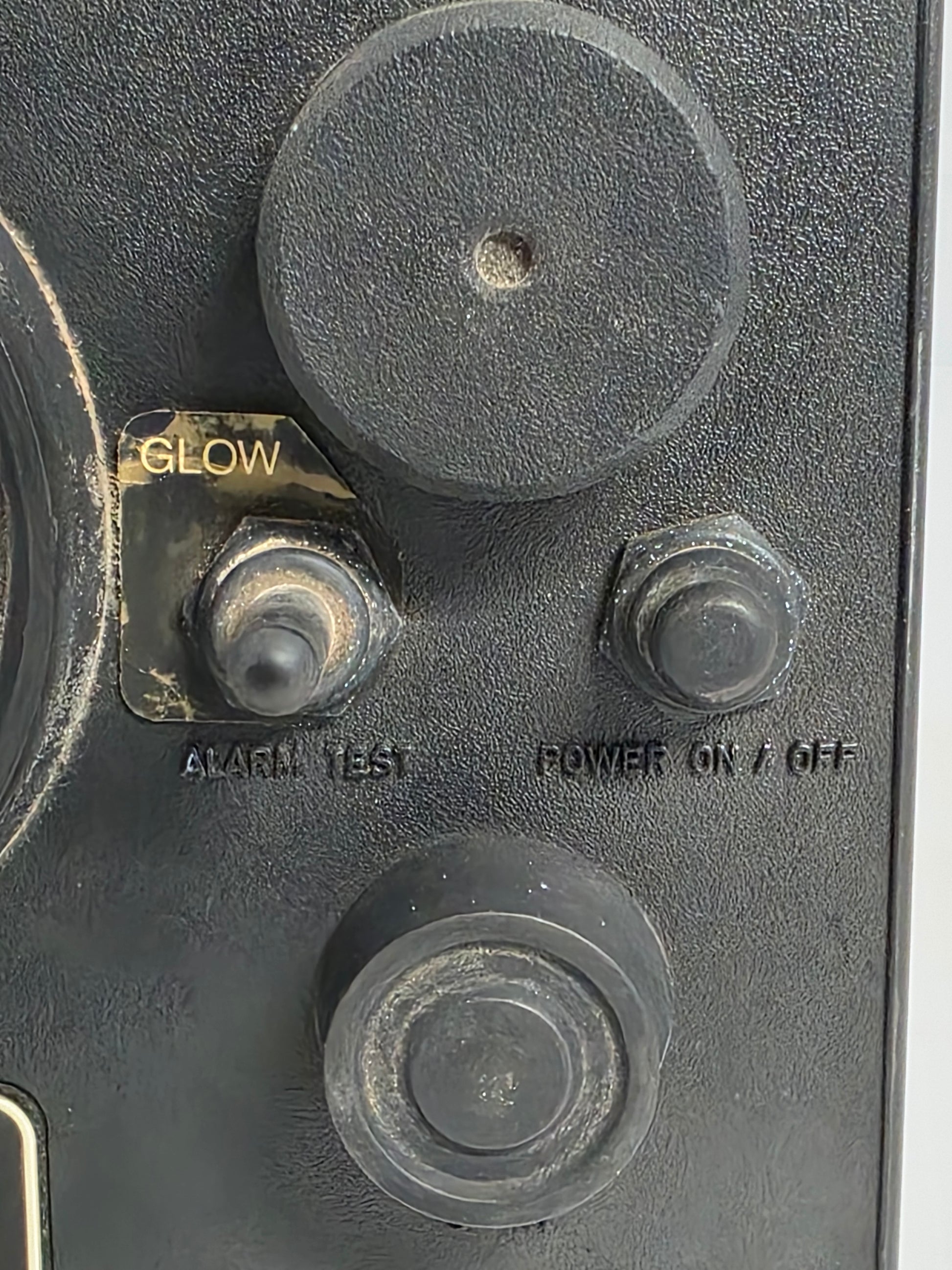

• Alarm display and starter or key-switch provision
• Approximately 180 mm x 140 mm panel dimensions
• Also supersedes Volvo part numbers 21095067, 3587076, 858868, 858870, 859057, 864043, 864047, 864052, 872951, 873137, 873175 and 873592

🚤 Compatibility

Commonly used on

• Volvo Penta non-EVC diesel engines
• Flybridge and secondary control stations
• 12-volt and selected 24-volt conventional instrument systems

Typically suits panel families used with

• Volvo Penta 2001, 2001B, 2002D and 2003D
• Volvo Penta MD2010, MD2020, MD2030 and MD2040 variants
• Volvo Penta D1-13A, D1-20A and D1-30A
• Volvo Penta D2-40A, D2-55A/B/C and D2-75A
• Other non-EVC Volvo Penta diesels using the 872798 / 873594 instrument-panel system
• Panel Type: Secondary / flybridge engine panel
• Instrument System: Conventional non-EVC
• Approximate Dimensions: 180 mm x 140 mm
• Fitment Control: Harness plug, voltage, start-switch type and tachometer range

🔌 Function

The panel provides engine starting and stopping control, audible and visual alarm indication and a mounting location for the tachometer at a secondary helm station.

⚠️ Common Signs of Failure

• Engine cannot be started from the second station
• Alarm lamps or buzzer do not complete their self-test
• Key or starter switch operates intermittently
• Panel connector or extension harness is corroded
• Tachometer or hour display loses power
• Panel face is cracked or weather damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23577084 → Supersedes 873594
• 23577084 → Supersedes 872798
• 23577084 → Supersedes 3587077
• 23577084 also cross-references with 873593 and 888565 in applicable panel listings

OEM / Related Numbers

• 23577084
• VOP23577084
• 873594
• 872798
• 3587077
• 873593
• 888565
• 858645 related symbol strip
• 22354203 / 828783 related electronic alarm control unit
• Related 4000 RPM or 6000 RPM tachometer
• Related panel-to-engine extension harness

Aftermarket / Verified Equivalents

• No complete direct aftermarket equivalent with the original Volvo Penta panel, alarm electronics and harness connections
• Individual switches, alarms and gauges can be replaced separately
• Genuine Volvo Penta 23577084 is the verified complete replacement

📦 Condition

• Genuine used part
• Switches, keys, tachometer and harness included only where shown
• In good working condition unless otherwise stated
