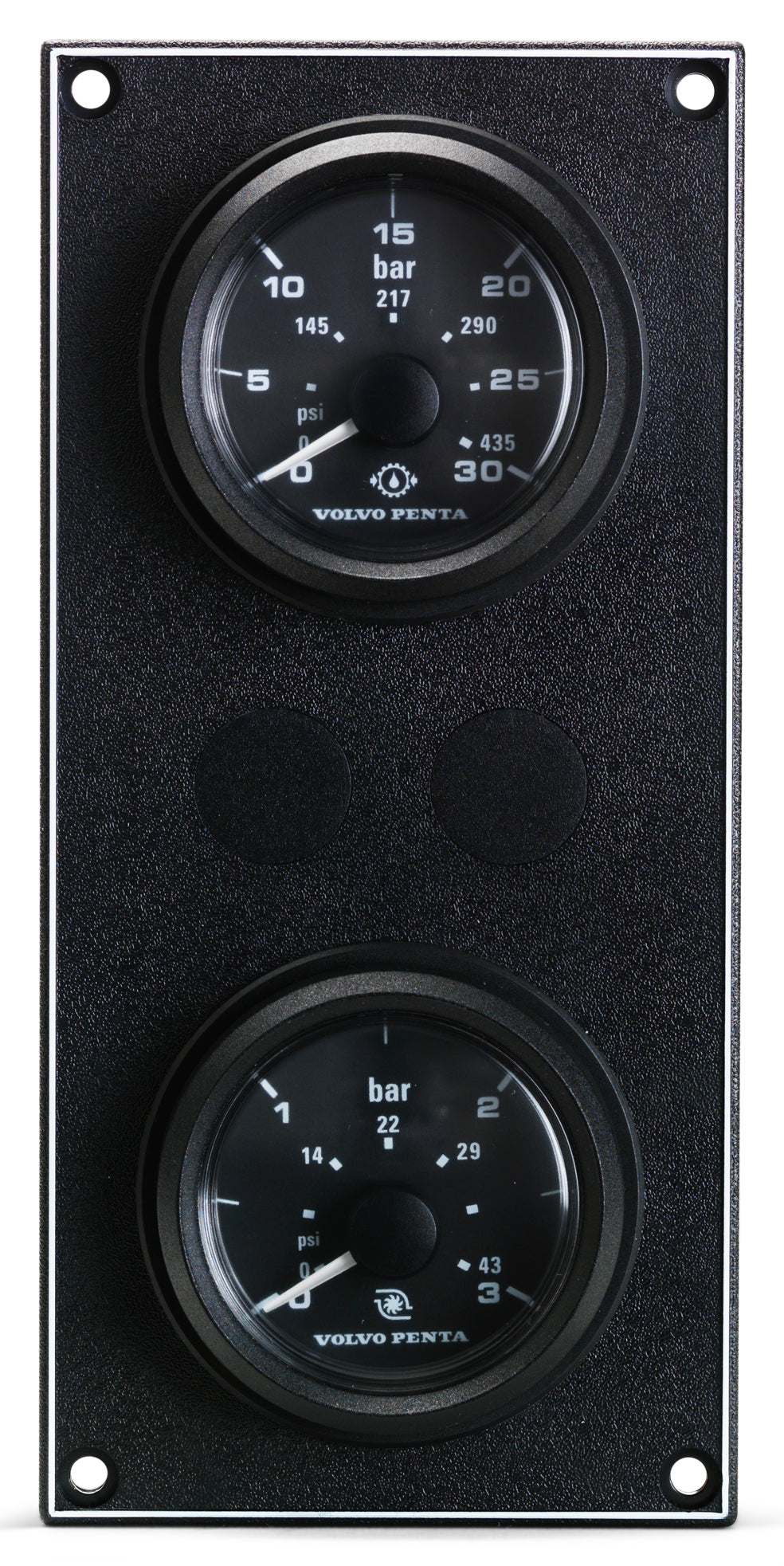

23577092 Instrument Panel Extra | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta instrument panel, extra, 12v-24v. The kit includes instrument panel; oil pressure gauge, gear box 30 bar; turbo pressure gauge, 3 bar. It belongs to Volvo Penta's range of new instruments for non-EVC diesel and gasoline engines, which offers a modern appearance and a high level of readability.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D5A-TA
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7A-TA
• Volvo Penta D7C-B TA
• Volvo Penta D7C-TA
• Volvo Penta MD2010
• Volvo Penta MD2010B

• Engine Family: D, MD

⚙️ Key Features

• Oil and turbo pressure instrument panel kit, 12 or 24 V
• 90 x 190 mm
• Includes panel, gearbox oil pressure gauge 30 bar and turbo pressure gauge 3 bar
• 0.395 kg
• Listed for ten applications across D and MD series engines
• Consolidates 864053 and 872282
• Instrument panel, extra, 12V-24V
• Oil pressure gauge, gear box 30 bar
• Turbo pressure gauge, 3 bar
• Kit contents: Instrument panel; Oil pressure gauge, gear box 30 bar; Turbo pressure gauge, 3 bar
• System voltage: 12V-24V
• 12/24 V
• Dimensions: 90 x 190 mm
• Voltage: 12/24 V
• Fits: Volvo Penta non-EVC diesel and gasoline engines

📋 Kit Contents

• Instrument panel
• Oil pressure gauge, gear box, 30 bar
• Turbo pressure gauge, 3 bar

🔌 Function

Adds gearbox oil pressure and turbocharger boost readings on their own small panel, giving direct figures rather than warning lamps alone.

⚠️ Common Signs of Failure

• One or both gauges reading zero or pegged at full scale
• Needle jumping or drifting with no matching change in engine behaviour
• Gauge illumination dead while the rest of the panel lights
• Corrosion found at the gauge terminals or in the sender connector

🛠️ Service Notes

• The oil pressure gauge in this kit reads gearbox pressure to 30 bar, not engine oil pressure, so check which reading the boat needs before ordering
• It suits both 12 V and 24 V systems, so voltage is not the selection detail here
• Check the sender and its wiring before condemning a gauge, and confirm actual pressure with a mechanical gauge before acting on a low reading
• The gauges in this range are designed to fit Volvo Penta instrument panels; where a gauge goes into a panel from outside this range the panel hole diameter may need modifying to suit
• Panel dimensions are 90 x 190 mm - check the console cut-out before ordering

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23577092 → Supersedes 864053

OEM / Related Numbers

• 872282 earlier number superseded by this part
• 864053 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
