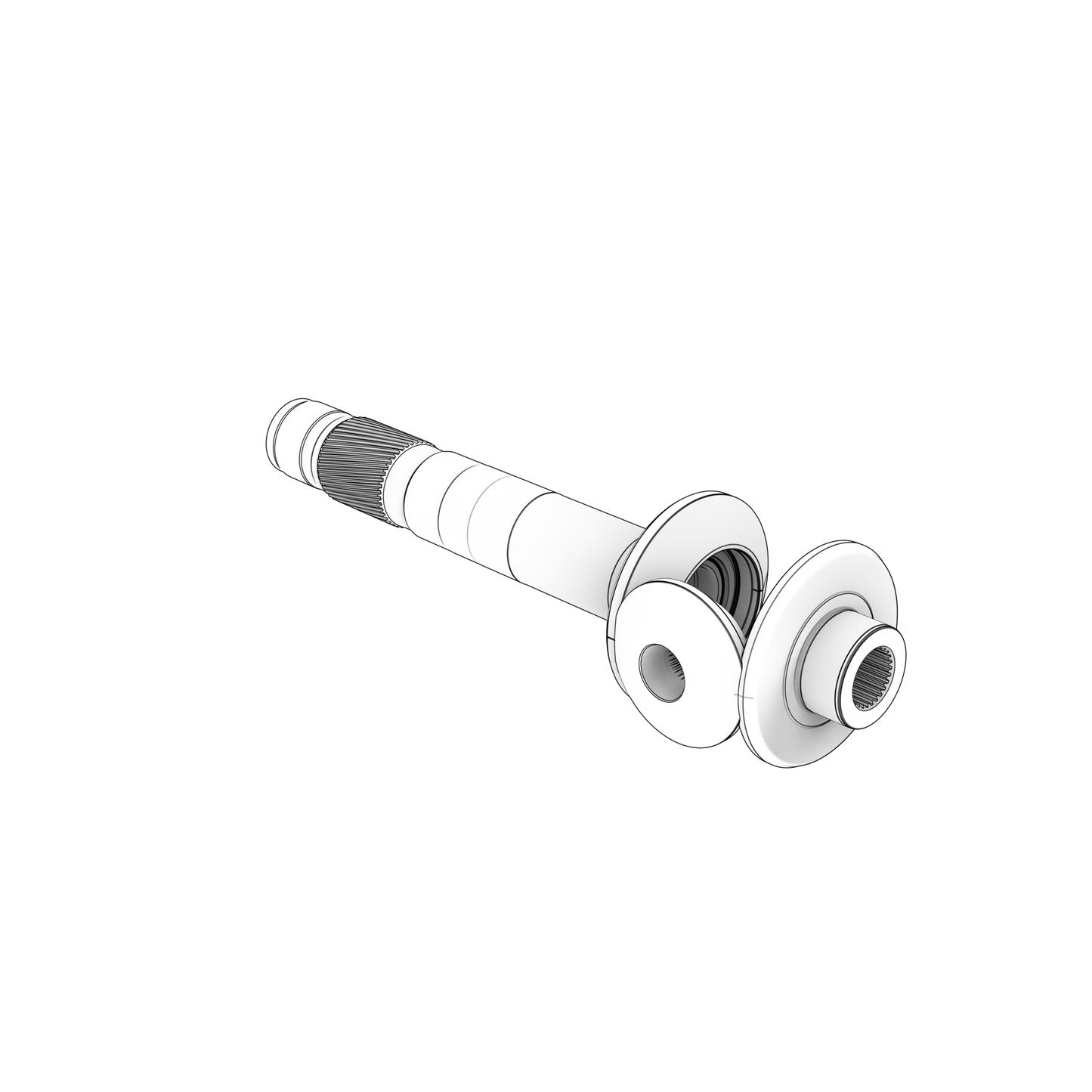

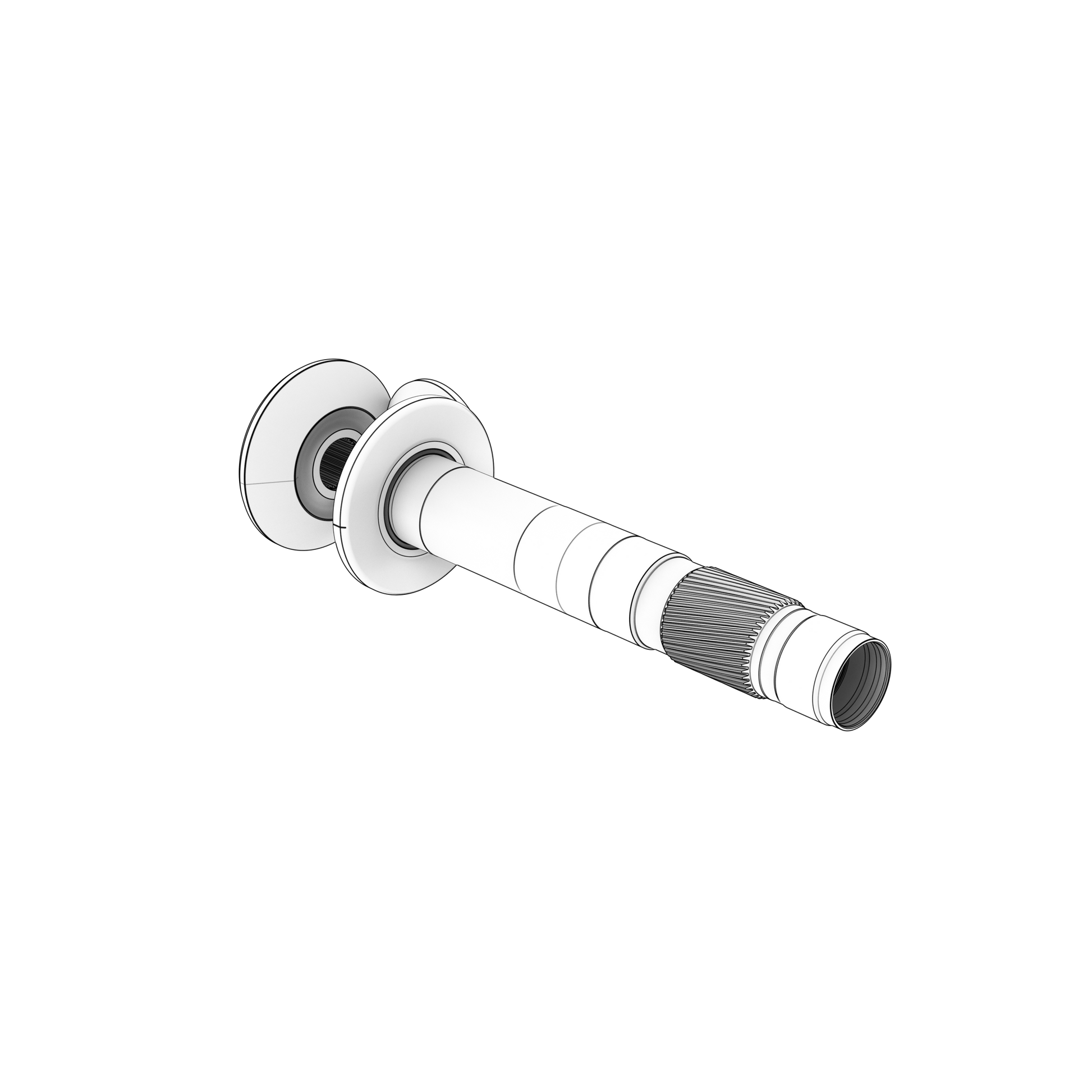

23615101 Gear Set | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta gear set with a 1.59:1 ratio, weighing 4.987 kg and listed for nine applications across D series engines and DPH drives. Seven ratios are catalogued here within 370 grams of each other, so the ratio must be read rather than the weight. It supersedes 22123612.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta D6-400A-G
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-300A-G

• Engine Family: D, DPH
• HP Range: 150-400 HP

⚙️ Key Features

• Gear set with a 1.59:1 ratio
• Weighs 4.987 kg
• Listed for nine applications across D series engines and DPH drives
• Supersedes 22123612
• The smallest ratio of the seven sets catalogued here

🔌 Function

Sets the reduction between the drive's input and output, the matched pinion and crown wheel turning engine speed into propeller shaft speed at the marked ratio.

⚠️ Common Signs of Failure

• Whine or growl from the drive that changes with load rather than with engine speed
• Clunk when taking up drive or changing direction
• Metallic glitter or flakes in the drained drive oil
• Teeth found pitted, chipped or with the hardened surface breaking away
• Contact pattern found off the centre of the tooth on strip-down

🛠️ Service Notes

• Order by ratio - the seven sets here fall inside 370 grams of one another, so weight separates nothing
• Supplied as a matched pinion and crown wheel; fit them as a pair and never mix halves from different sets
• Renew the bearings, shims and seals with the set, and set backlash and contact pattern on assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23615101 → Supersedes 22123612 → Supersedes 21511544

OEM / Related Numbers

• 22123612 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
