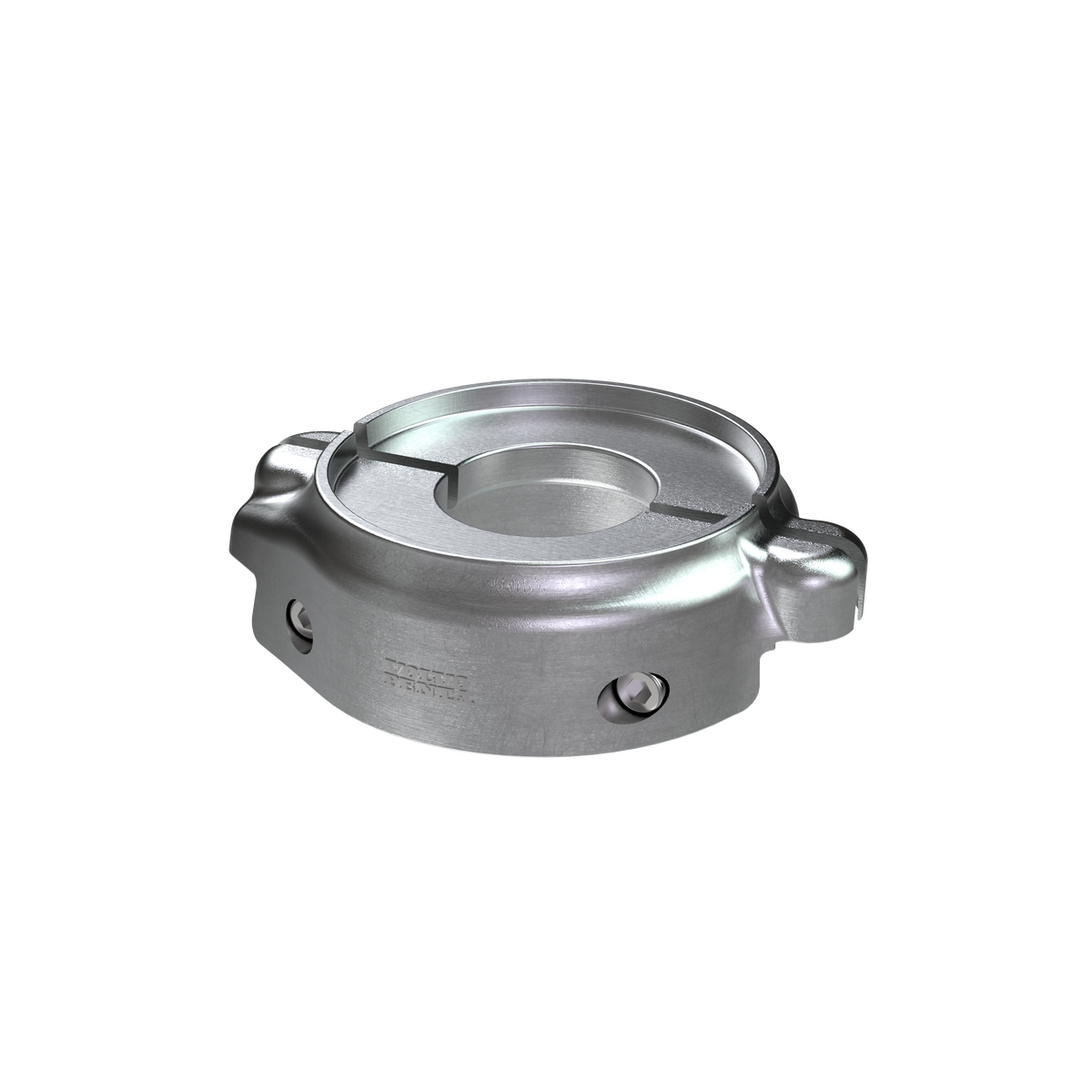

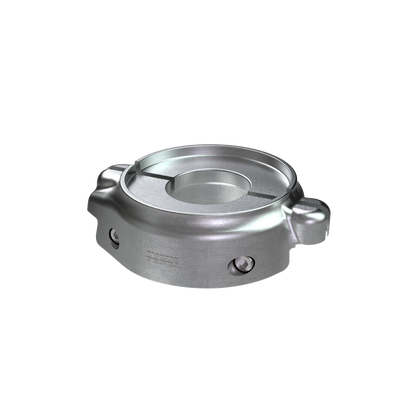

23615636 Anode Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta anodes are made to sacrifice themselves in order to protect the drive and propeller from galvanic corrosion. Volvo Penta now recommends aluminium anodes in salt and brackish water instead of the zinc previously recommended for salt water, and is gradually phasing out and replacing most of its zinc anodes with aluminium ones. Aluminium anodes give 30% higher corrosion protection capacity, up to 20-40% longer life span in salt water compared with similarly sized zinc anodes, a lower environmental impact, and are the better choice for brackish water too. Magnesium is the material listed for fresh water. This is the aluminium anode listed for lower gear, S-drive 130S, 150S (two-piece anode), supplied for salt and brackish water.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40F
• Volvo Penta D2-55F
• Volvo Penta D2-50F
• Volvo Penta D2-75F
• Volvo Penta D2-60F
• Volvo Penta D1-30F
• Volvo Penta 130SR-C
• Volvo Penta 130S-C
• Volvo Penta D1-13F
• Volvo Penta D1-20F
• Volvo Penta 130S-D
• Volvo Penta 130SR-D
• Volvo Penta 150S-D
• Volvo Penta 150SR-D
• Volvo Penta 150S-C
• Volvo Penta 150SR-C

• Engine Family: D
• HP Range: 13-75 HP

⚙️ Key Features

• Lower gear anode for the 130S and 150S saildrives
• Two-piece collar, as specified for these drives
• Aluminium, for salt and brackish water
• 0.662 kg
• Fresh water equivalent is magnesium anode 22651247
• Aluminium anode for Lower gear, S-drive 130S, 150S (two-piece anode).
• Listed for salt and brackish water.
• Aluminium anodes give 30% higher corrosion protection capacity than a similarly sized zinc anode.
• Up to 20-40% longer life span in salt water than a similarly sized zinc anode.
• Lower environmental impact, and the better choice for brackish water as well as salt.
• Aluminium anodes can be used for all types of hull material.
• Volvo Penta anodes feature, where needed, an internal reinforcement made from an alloy that does not erode, which also ensures a reliable electrical connection between the anode and the drive.
• Material: aluminium
• Fits: Lower gear, S-drive 130S, 150S (two-piece anode)
• Aluminium sacrificial anode for the lower gear position
• Fits the 130S and 150S saildrives, supplied as a two-piece anode
• Position: lower gear
• Water type: Salt and brackish water
• Form: Two-piece anode
• Fits: the 130S and 150S saildrives, supplied as a two-piece anode

📋 Kit Contents

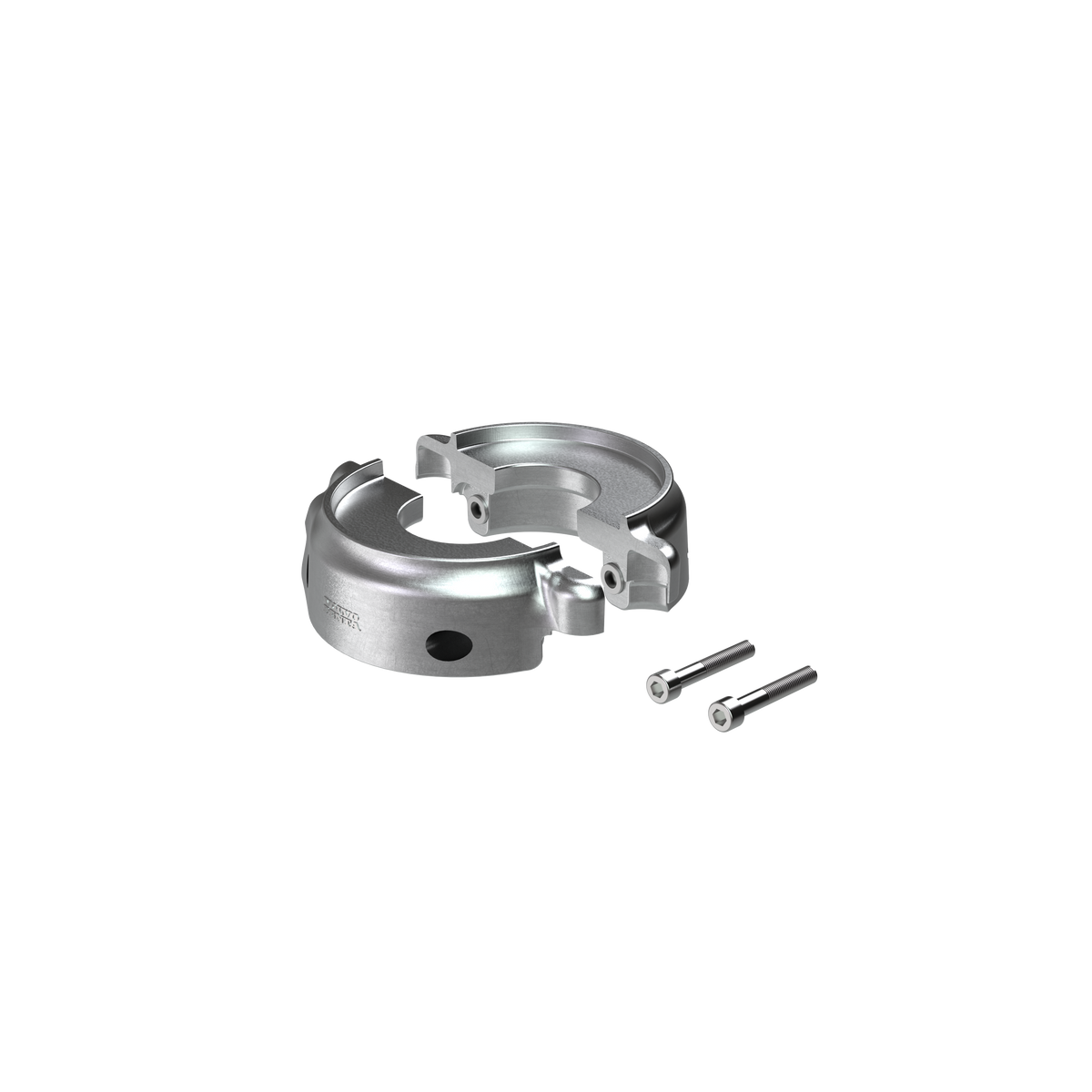

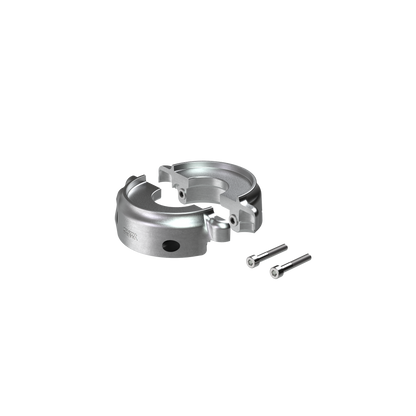

• 2 × split aluminium saildrive anode half - serviced as kit 23615636
• 2 × matched anode mounting screw - supplied under 23615636

🔌 Function

Corrodes preferentially to the saildrive housing and the underwater metals bonded to it.

⚠️ Common Signs of Failure

• Anode consumed to around half its original size
• Pitting or paint blistering on the drive housing
• Anode painted, coated or otherwise electrically isolated
• Unusually rapid consumption, which points to stray current
• Uneven wastage between the two halves

🛠️ Service Notes

• Both halves must sit on clean bare metal - a good electrical connection between anode and drive is the whole point of the fitting
• If the anode has been stored dry for a long time, abrade it with emery paper to break the passivating film before launch, and keep steel tools and wire brushes away from it
• Life span varies with water flow, salinity, temperature, pollution and stray current, so inspect at every lift rather than to a fixed interval
• Salt and brackish water: aluminium (or, on some older drives, cadmium-free zinc marked Zn). Fresh water: magnesium.
• When installing a new anode it is important to have good contact between the anode and the surface to which it is connected.
• If an anode has been exposed to air for a long time it can be covered by a passivating surface film that prevents it working properly; consider reactivating it with emery paper before launching. Do not use sandpaper, a wire brush or other steel tools when cleaning, as these may damage the galvanic protection.
• Read the operator's manual for detailed information on maintaining and replacing anodes.
• Volvo Penta now recommends aluminium anodes in salt and brackish water, in place of the zinc previously recommended for salt water
• Aluminium anodes are listed as giving 30% higher corrosion protection capacity and up to 20-40% longer life in salt water than similarly sized zinc anodes, with lower environmental impact, and as the better choice for brackish water too
• Magnesium is the material listed for fresh water
• For some older drives, cadmium-free zinc anodes, marked Zn, are supplied for salt and brackish water instead of aluminium
• Volvo Penta anodes carry, where needed, an internal reinforcement in an alloy that does not erode, which also keeps a reliable electrical connection between the anode and the drive
• An anode that has been exposed to air for a long time can be covered by a passivating surface film that stops it working properly; consider reactivating it with emery paper before launching the boat
• Refer to the Operator's Manual for maintenance and replacement detail for your own product

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23615636 → Supersedes 22651246 → Supersedes 3888305 → Supersedes 3586963

OEM / Related Numbers

• 22651246 earlier number superseded by this part
• 3888305 earlier number superseded by this part
• 3586963 earlier number superseded by this part
• 22651247 magnesium fresh-water alternative
• Parts4Engines: aluminium Volvo Penta 130S / 150S saildrive anode kit

Other-Brand OEM Numbers

• VOE23615636

Aftermarket / Verified Equivalents

• Tecnoseal: application-matched aluminium 130S / 150S split anode
• Recmar: REC22651246AL

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
