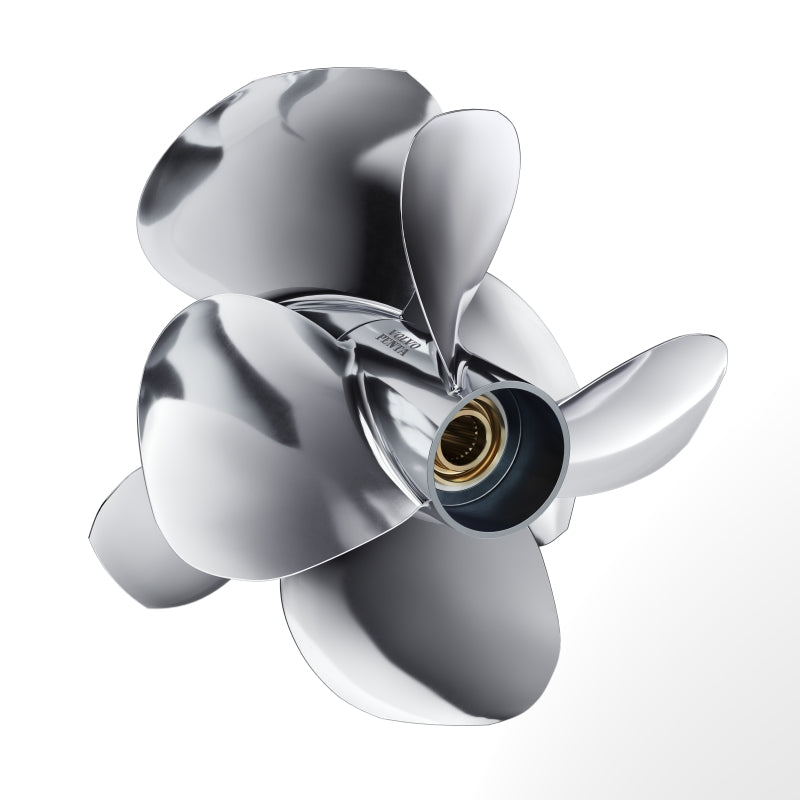

23623063 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type H is the stainless steel Duoprop range for the Aquamatic DPH and DPI drives, designed to capture the tremendous torque from the new generation D4 and D6 engines. The patented blade geometry gives optimal interaction between the front and rear propellers for outstanding efficiency and smooth, comfortable operation, and the large blade area provides maximum grip and manoeuvrability. A shock-absorbing rubber bushing and galvanic isolation make it a matched fit for the DPI and DPH drive. This is the H3 rear propeller; the matching front propeller is 23623053, and the pair is also listed as set 22754003. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

⚙️ Key Features

• Type H3 rear propeller, stainless steel
• 11 kg, the same published weight as the H3 front propeller
• Supersedes 22753983
• Matching front propeller 23623053; the complete set is 22754003
• 12 applications across the D4 and D6 ranges and the DPH-E and DPI-A drives
• Fits DPH and DPI drives
• Patented blade geometry, outstanding efficiency and comfort.
• Excellent durability, minimal marine growth.
• Made of high strength stainless steel alloy.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Shock-absorbing rubber bushing reduces vibrations and stress on the drivetrain.
• Three-blade front propeller and four-blade rear propeller.
• Material: stainless steel
• Fits: DPH and DPI
• Type: H3
• Set contains: set 22754003, front 23623053

🔌 Function

Works in the wake of the front propeller as the trailing half of the counter-rotating H3 pair, recovering rotational energy and cancelling the steering torque the front propeller makes.

⚠️ Common Signs of Failure

• Vibration through the hull that grows with boat speed
• Steering pulling to one side as the counter-rotating balance is lost
• Chipped, curled or bent blade edges
• Fishing line or weed wound in at the hub, with a damaged seal behind it
• Blade faces pitted or eroded by cavitation on strip-down

🛠️ Service Notes

• Front and rear share a published weight in this size, so identify them by part number - rear 23623063, front 23623053
• Coming from type G propellers, the size carries across one for one but the propeller cone must be changed as well, using cone kit 23000185
• Never mix type G and type H, or two different sizes, on a drive - and in a twin installation both drives must match
• Upgrading from Type G to Type H on DPH drives keeps the same sizing - a G6 propeller corresponds to an H6 propeller.
• Do not mix Type G and Type H propellers. Always use propellers of the same type and size on the drive, or on both drives in twin installations.
• Installation hardware, type H: propeller cone kit 23000185 including lock bolt M12, lock bolt M12 991609, front propeller nut 23952642 and line cutter 23777877.
• The line cutter 23777877 for Type H propellers is 95 mm / 3.7 in, 316 stainless steel, and is included as standard on DPI drives.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23623063 → Supersedes 22753983

OEM / Related Numbers

• 22753983 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
