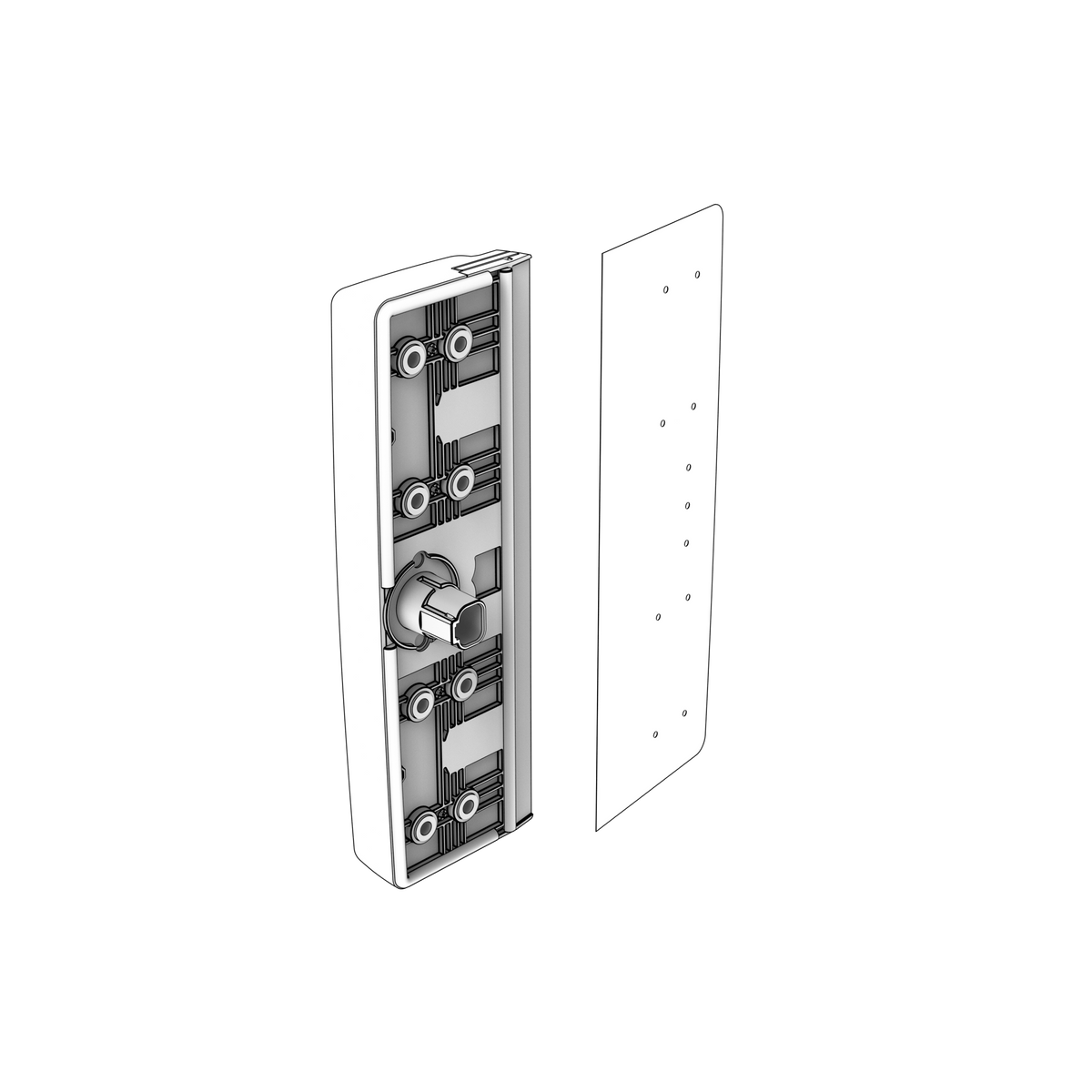

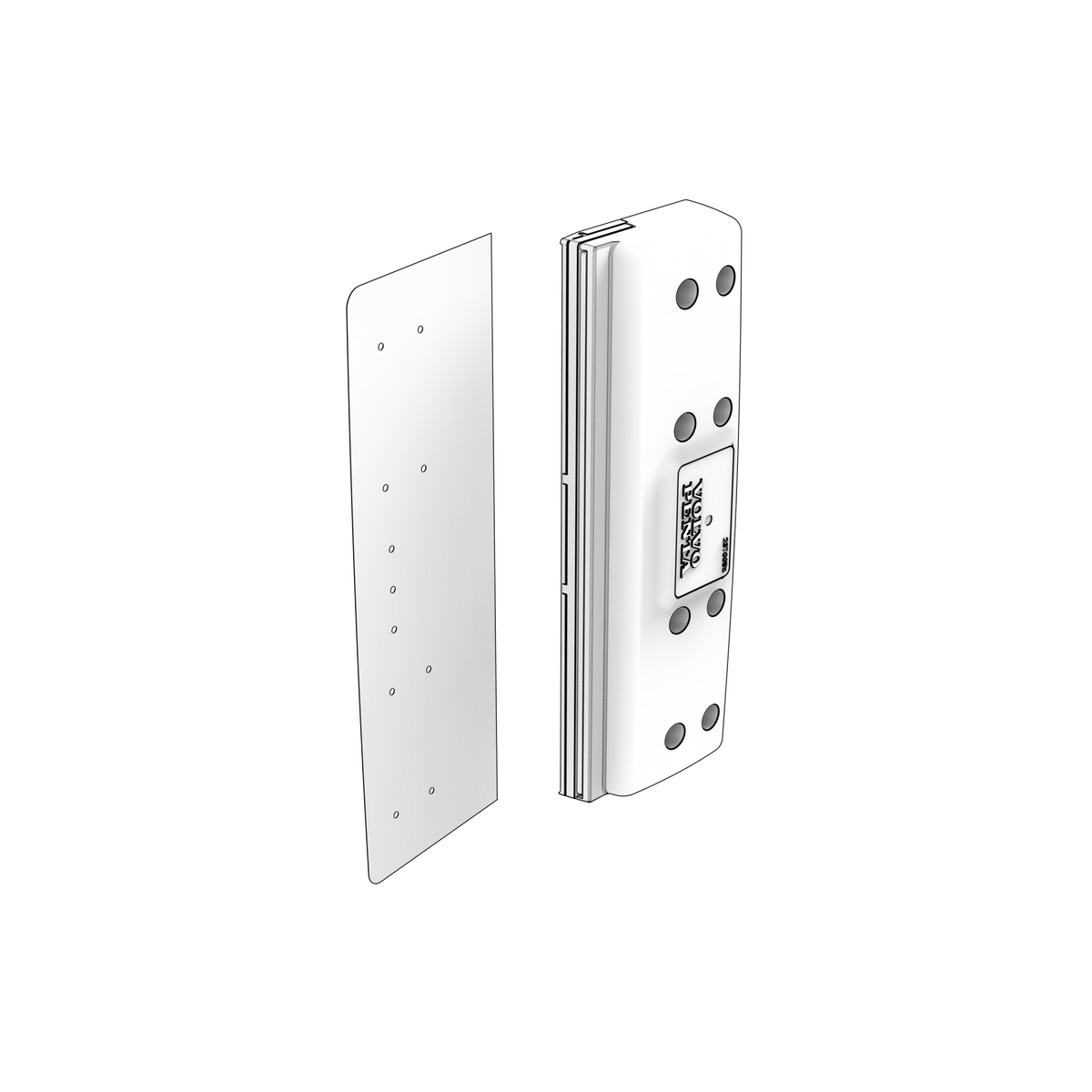

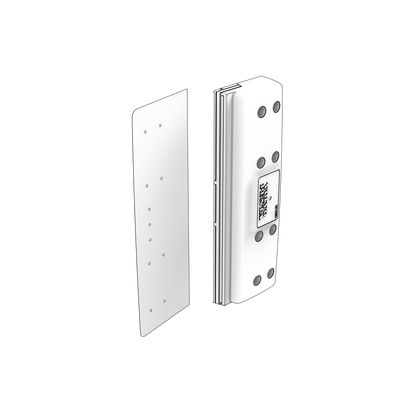

23700511 Flap | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta flap for 300 mm Interceptor units, weighing 1.064 kg and listed for 97 applications across D and V series engines. It supersedes 22656800. Flap 23700513 is the heavier alternative for the same units.

🚤 Compatibility

• Engine Family: D, V
• HP Range: 110-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Flap for 300 mm Interceptor units
• 1.064 kg
• Listed for 97 applications across D and V series engines
• Supersedes 22656800
• Flap 23700513 is the heavier alternative for the same units
• Also supersedes Volvo part number 21237826

🔌 Function

Is the moving blade of the interceptor, driven down into the water flow under the hull to generate trim correction and hold the boat level.

⚠️ Common Signs of Failure

• Trim correction slow, weak or uneven side to side
• Flap sticking part way or not retracting fully
• Grinding or scraping as the flap travels
• Blade found scored, bent or with growth and fouling in the slot
• Corrosion or wear at the guides and seals

🛠️ Service Notes

• Two flaps are listed for the 300 mm units, so confirm which one the installation takes before ordering
• Clear growth and debris from the slot and check the seals before condemning a flap that is sticking
• Renew the flaps as a pair so both sides respond alike

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23700511 → Supersedes 22656800 → Supersedes 21914551 → Supersedes 21527471 → Supersedes 21175600 → Supersedes 1140714

OEM / Related Numbers

• 22656800 earlier number superseded by this part
• 21914551 earlier number superseded by this part
• 21527471 earlier number superseded by this part
• 21478577 earlier number superseded by this part
• 21175600 earlier number superseded by this part
• 1140714 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-250-P, V6-250-C-P, V6-280-P, V6-280-C-P, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-280-R, V6-280-C-R
• Volvo Penta V8-350-C-R, V8-380-C-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-350-C-P, V8-380-C-P, V8-430-C-P, V8-300-C-J, V8-300-CE-J, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-300-C-S, V8-350-C-S
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11B3-A MP, D11B1-A MP
