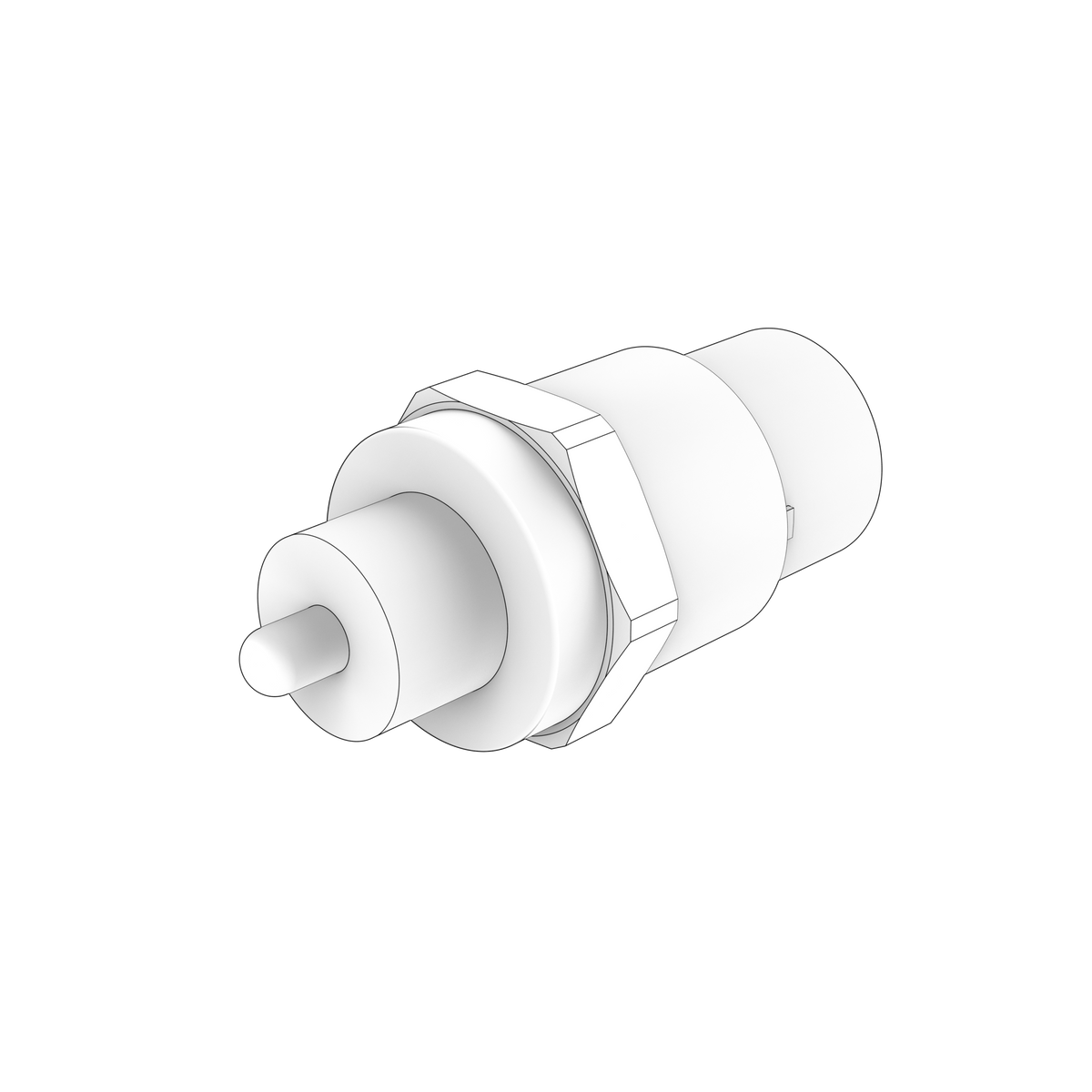

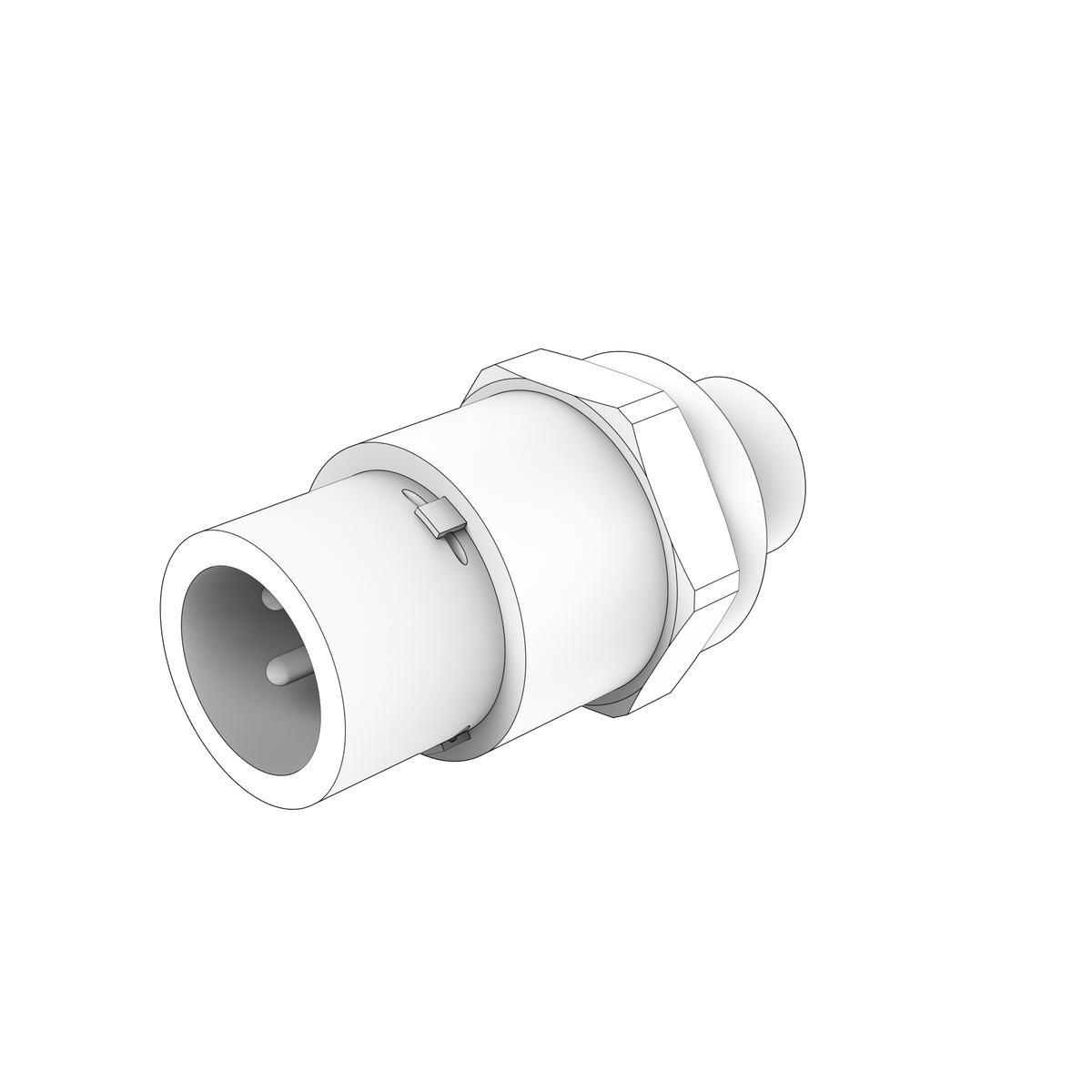

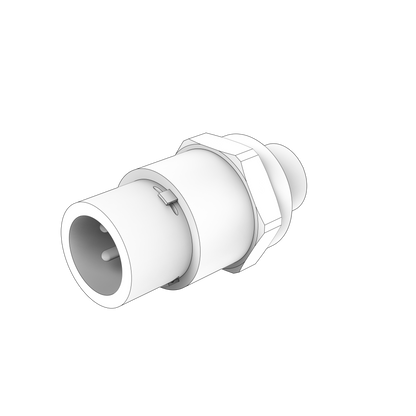

23713682 Sensor | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta combined pressure and temperature sensor weighing 0.127 kg, listed for 31 applications across IPS pod drives and D series engines. It supersedes 22992495 and covers far more applications than the 0.104 kg version. also cross-listed as Volvo Penta 874313.

🚤 Compatibility

• Engine Family: IPS, D
• HP Range: 300-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Instruments group combined pressure and temperature sensor
• 0.127 kg
• Listed for 31 applications across IPS pod drives and D series engines
• Supersedes 22992495
• Much the wider fitment of the two combined sensors here

🔌 Function

Reads both pressure and temperature at one point and sends both values to the control system, so two readings come from a single tapping.

⚠️ Common Signs of Failure

• Reading stuck, drifting or obviously wrong at the display
• One of the two values reading correctly while the other does not
• Intermittent fault codes for the sensor circuit
• Corrosion or damp found in the connector
• Weeping around the sensor boss where it seals in

🛠️ Service Notes

• Sensor 23713681 is the other combined unit here and is not the same part, so order by part number
• Check the connector, harness and earth before condemning the sensor
• Renew the sealing washer or O-ring at the boss on refitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23713682 → Supersedes 22992495 → Supersedes 874313

OEM / Related Numbers

• 22992495 earlier number superseded by this part
• 874313 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C4-B MP, D13C5-B MP, D13C7-B MP, D13C8-B MP, D13B-N MH, D13C1-A MH
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A4-A MP, D8A3-A MP, D8A7-A MP, D8A8-A MP
• Volvo Penta D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP
• Volvo Penta D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta IPS10-B
• Volvo Penta IPS15-C
• Volvo Penta IPS20-E
• Volvo Penta IPS30-E
