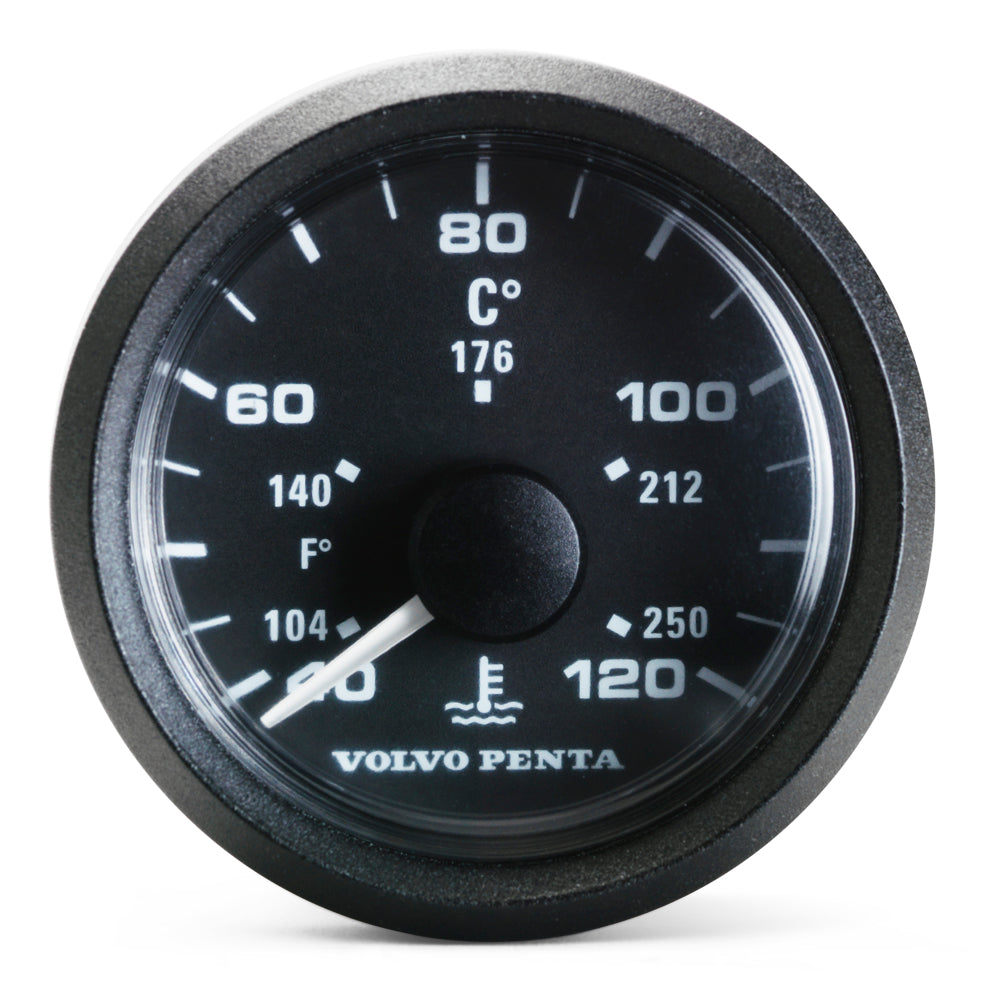

23715849 Thermometer | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. Scale 40°-120° C. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7C-B TA
• Volvo Penta TWD1683VE

• Engine Family: D, TWD

⚙️ Key Features

• Engine coolant temperature gauge, 52 mm, scaled 40 to 120°C
• For 12 V and 24 V systems
• Input signal range 287 to 22.7 ohms
• Adapter cable and wiring harness, mounting kit and front ring included
• 0.143 kg
• Listed for six applications across D and TWD series engines
• Consolidates seven earlier thermometer references
• Thermometer kit, coolant 40°C-120°C
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Reading: 40°C - 120°C
• Scale 40°-120° C
• Adapter cable / wiring harness, mounting kit and front ring are included
• Input signal: 287 - 22,7 Ω
• Scale: 40°-120° C
• Input signal: 287 - 22,7 Ω
• Voltage: 12/24 V
• Diameter: 52 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 863932, 863933 and 873287

🔌 Function

Displays engine coolant temperature at the helm, reading the resistance of the sender in the engine and moving the needle against the scale.

⚠️ Common Signs of Failure

• Needle reading high, low or hard against a stop
• Reading that does not change as the engine warms
• Needle flickering or jumping with engine speed
• Backlight dim or dead while the needle still works
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• The sender must match the 287 to 22.7 ohm signal range, so confirm it before fitting
• The kit includes its mounting parts and front ring, unlike the EVC gauges, which take a separately ordered ring
• It replaces seven earlier thermometer references, so an older gauge on the boat may not look the same
• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Adapter cable / wiring harness, mounting kit and front ring are included with this gauge, unlike the EVC instrument range where the ring is a separate order
• Match the system voltage where the gauge is voltage-specific

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715849 → Supersedes 23576811

OEM / Related Numbers

• 856811 earlier number superseded by this part
• 849848 earlier number superseded by this part
• 862076 earlier number superseded by this part
• 873624 earlier number superseded by this part
• 873196 earlier number superseded by this part
• 873195 earlier number superseded by this part
• 23576811 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
