23715875 Tachometer | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. The tachometer has engine hours in the LCD display and is available in 4000 rpm and 6000 rpm. This is the 6000 rpm version. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

• Engine Family: D
• HP Range: 55-190 HP

Full model list at the end of this description.

⚙️ Key Features

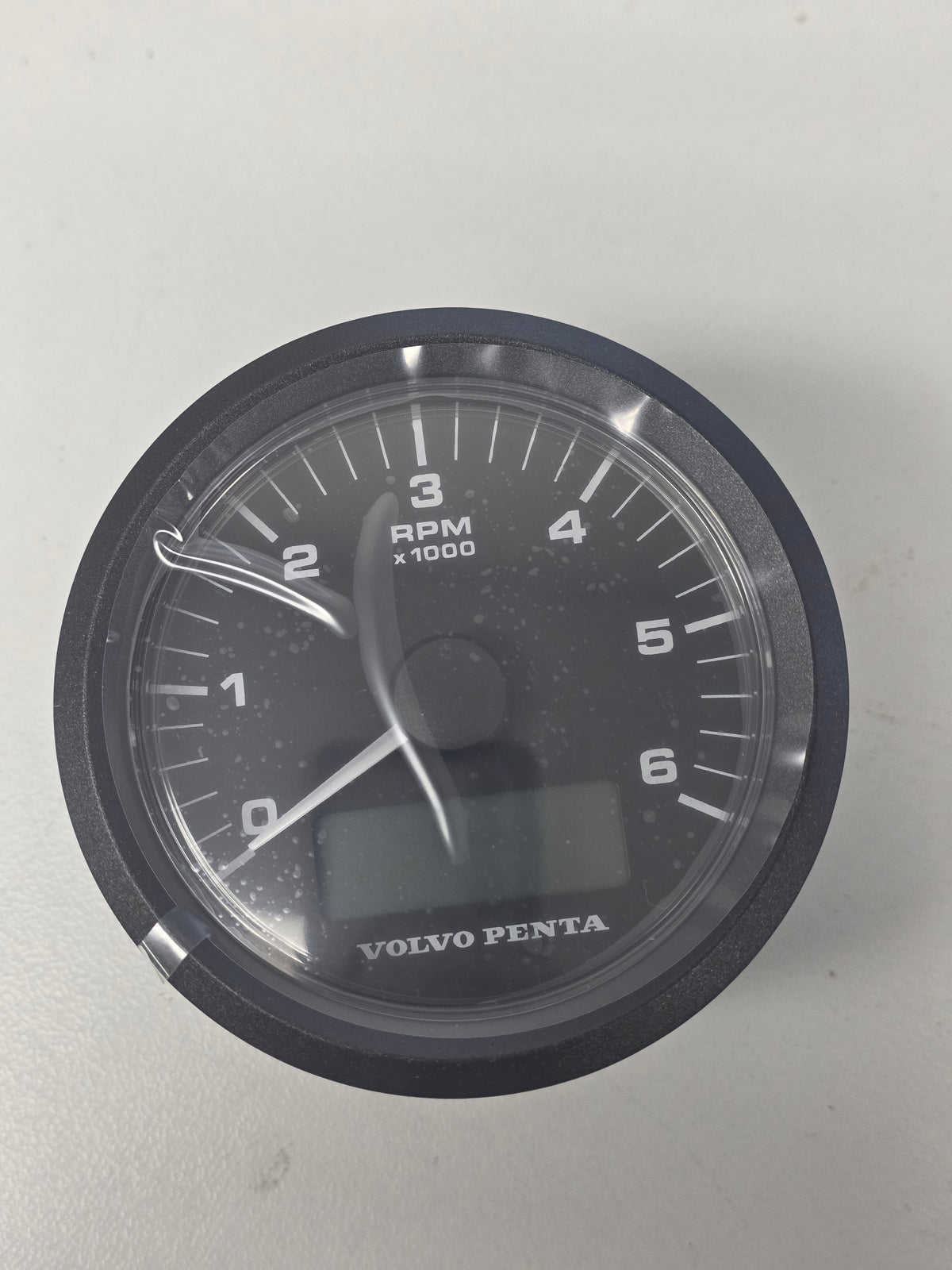

• Tachometer kit, 85 mm, 0 to 6000 rpm
• For 12 V and 24 V systems
• Engine hours in the LCD display

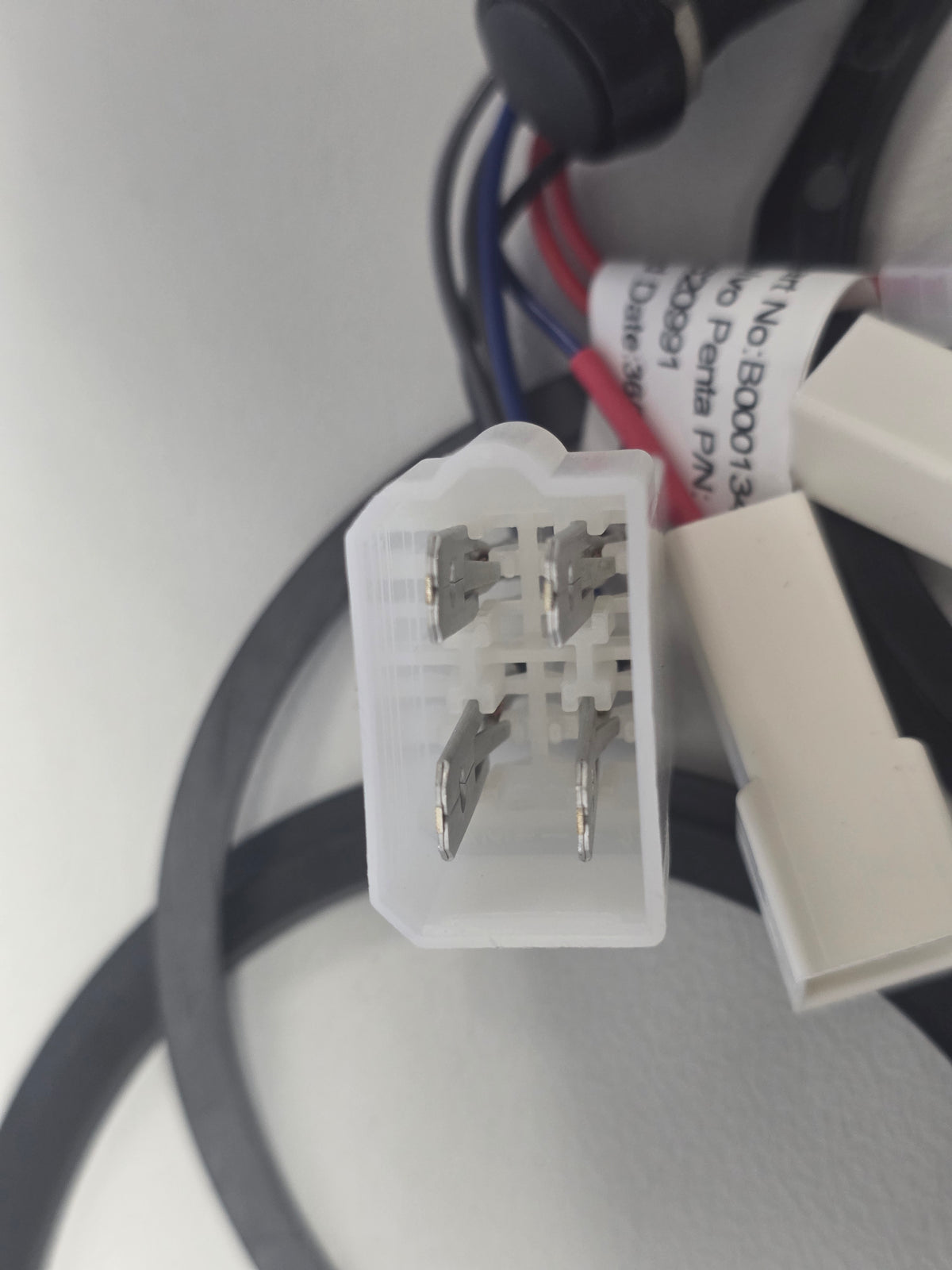

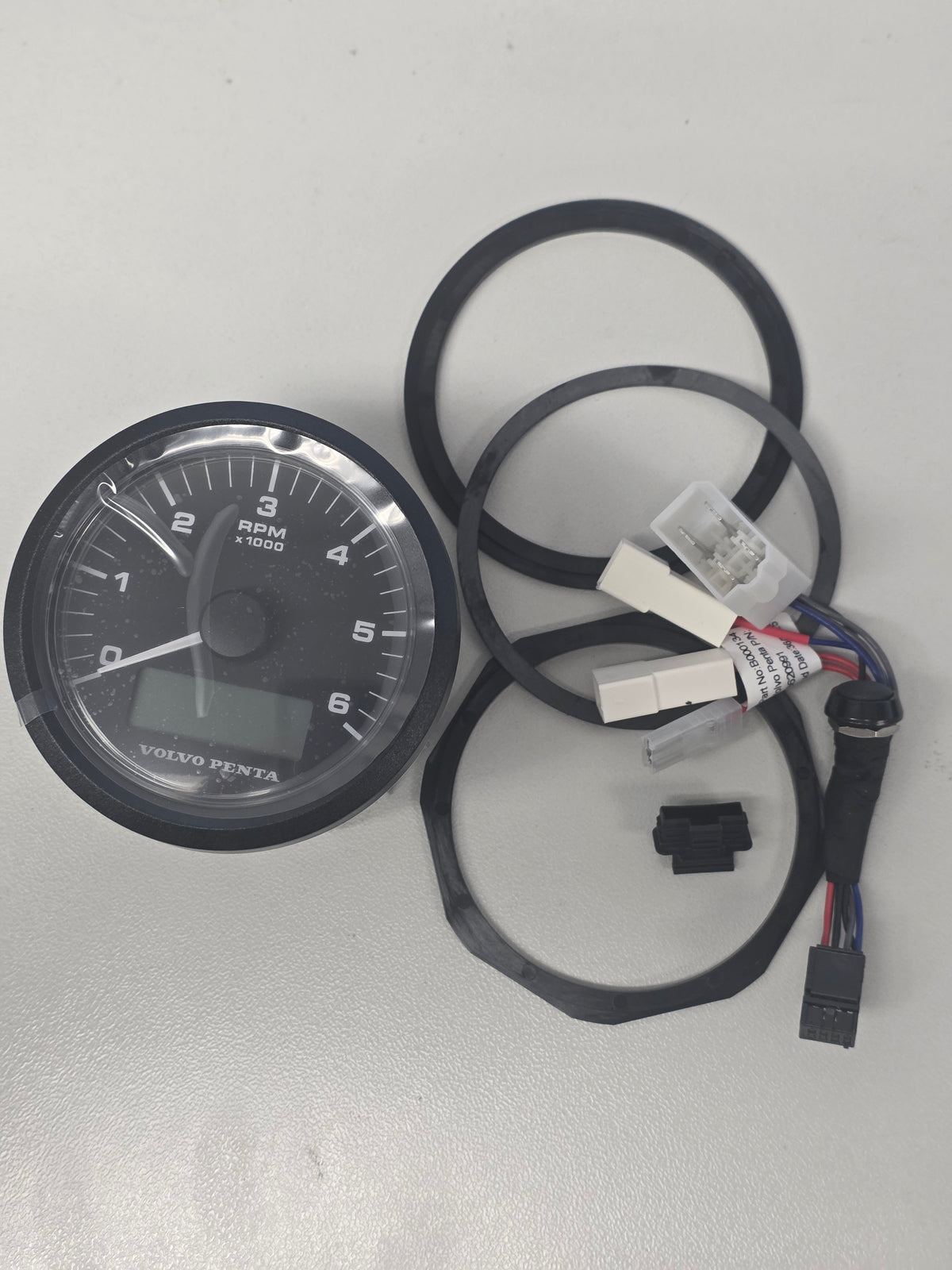

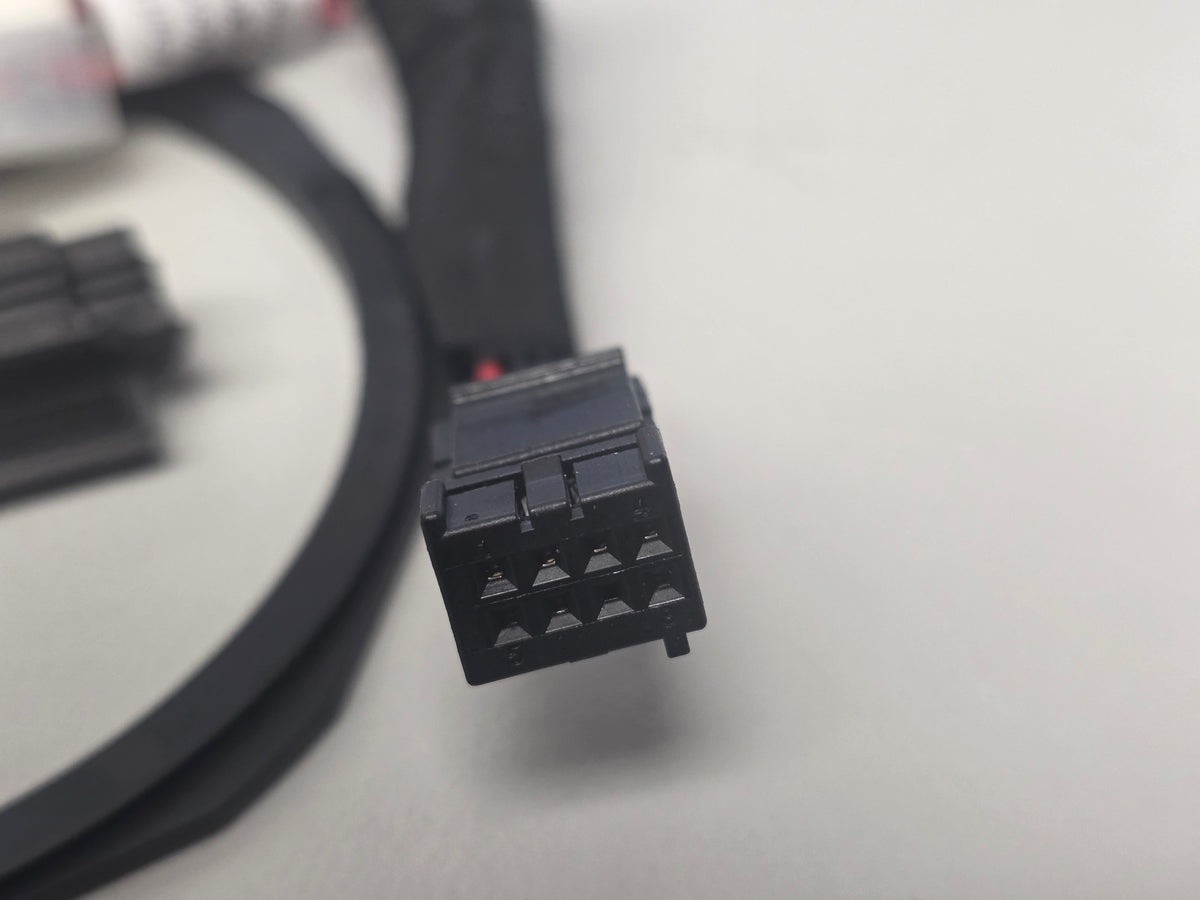

• Adapter cable and wiring harness, mounting kit and front ring included
• 0.245 kg
• Listed for 31 D series engine applications
• Consolidates 3855604, 873990 and 873992
• Tachometer kit, 6000 rpm, 12V-24V
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Scale: 6000 rpm
• System voltage: 12V-24V
• 85 mm, 6000 rpm scale
• 12/24 V
• Adapter cable / wiring harness, mounting kit and front ring are included
• Compatible with non-EVC diesel and gasoline engines
• The tachometer can read several input signal types; installation instructions with a code table for setting the correct rpm depending on engine family are supplied with the kit
• Ignition pulse: 4, 6 and 8-cylinder gasoline engines
• Alternator W pulse: 2001-2003T, MD2010-MD2040, MD/TMD/TAMD22, D30-40, D31/32/41/42/43
• Inductive pulse: MD5, MD6, MD7, MD11, MD17, D1-13/20/30 (without MDI), D2-40/55/75 (without MDI), MD21/32, AQD21/32, KAD/KAMD44/300
• Diameter: 85 mm
• Voltage: 12/24 V
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 873830 and 876751

🔌 Function

Displays engine speed at the helm on a non-EVC installation, reading an ignition pulse, an alternator W pulse or an inductive pulse depending on the engine.

⚠️ Common Signs of Failure

• Needle reading high, low or not at all
• Reading jumping or unsteady at a constant engine speed
• Hour counter stopped while the needle still works
• Backlight dim or dead
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• It matches the 4000 rpm tachometer 23715874 in size and weight, so the scale and the part number are what separate them
• The instrument can read an ignition pulse, an alternator W pulse or an inductive pulse, and the installation instructions supplied with the kit carry the code table for setting the correct rpm for the engine family
• Check the signal source, the earth and the gauge supply before condemning the instrument

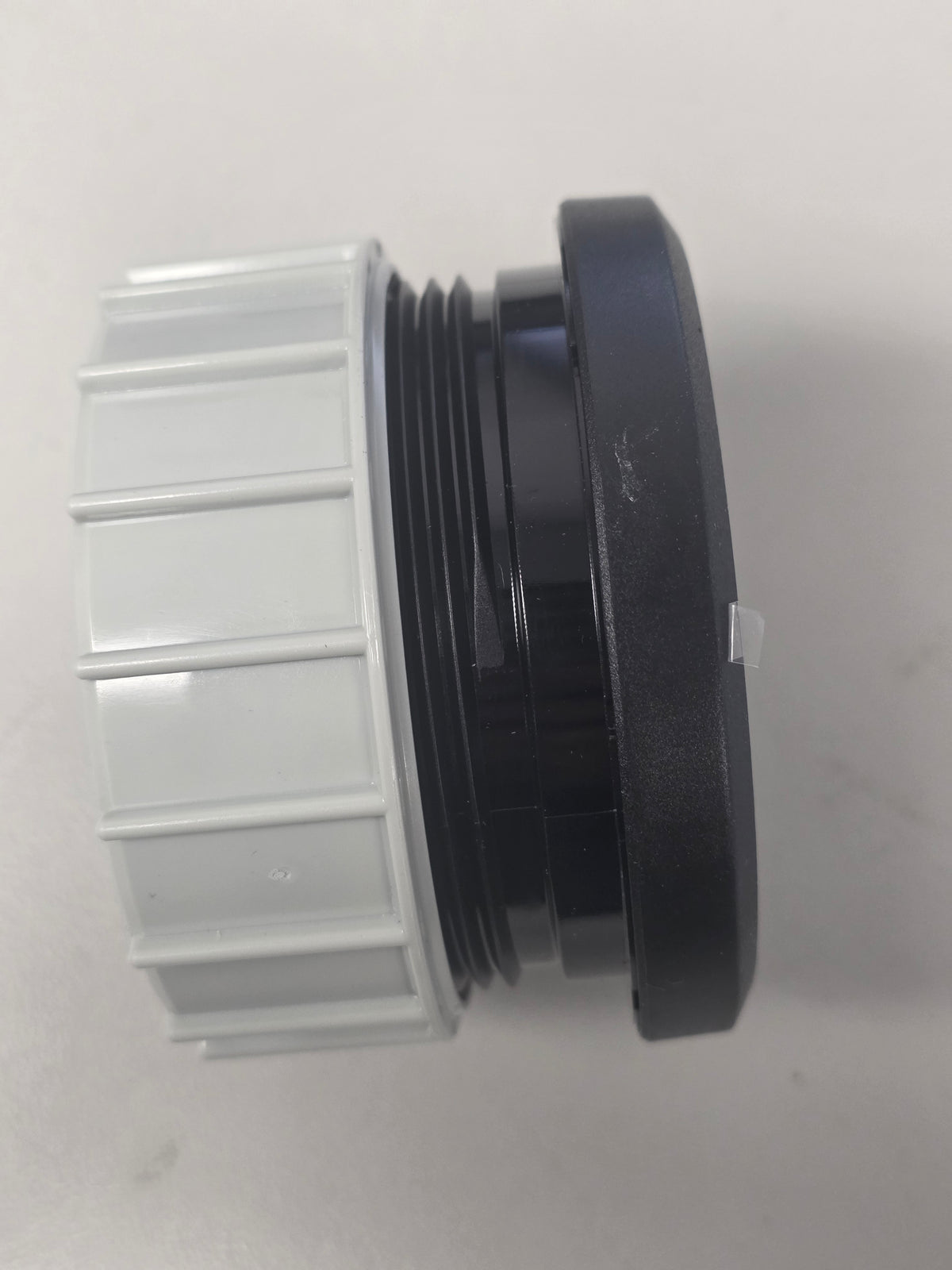

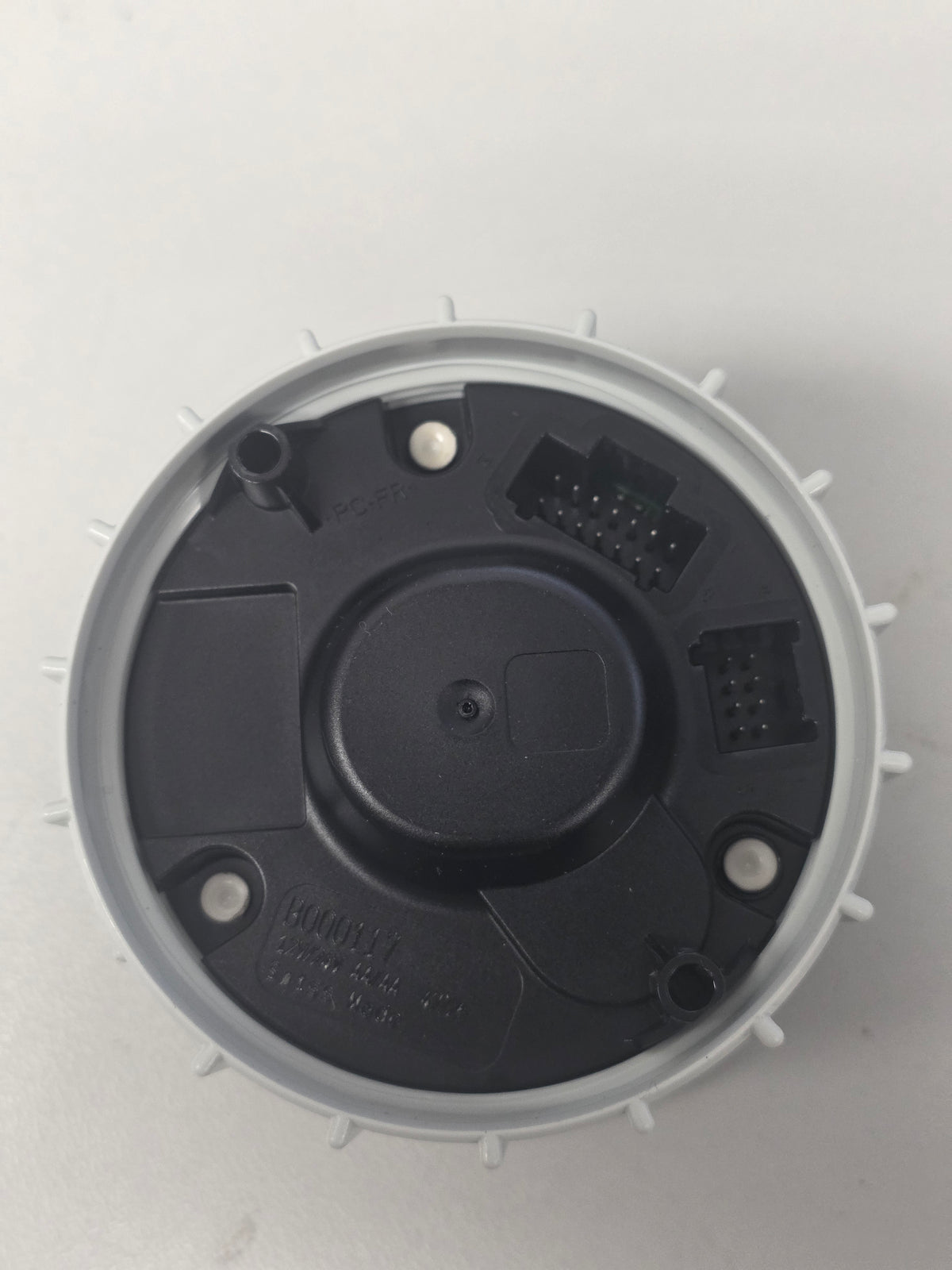

• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Two rpm scales are listed: 23715874 is the 4000 rpm kit
• Set the correct rpm for the engine family using the code table supplied with the kit

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715875 → Supersedes 3855604 → Supersedes 3851969 → Supersedes 3851347 → Supersedes 872358

OEM / Related Numbers

• 3855604 earlier number superseded by this part
• 3851969 earlier number superseded by this part
• 3851347 earlier number superseded by this part
• 872358 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-160I-C, D3-190I-B, D3-190I-C, D3-130I-B, D3-160I-B
• Volvo Penta D2-55, D2-55B, D2-55C, D2-75, D2-75F, D2-60F
• Volvo Penta D7A-B TA, D7A-T, D7C-B TA
• Volvo Penta D5A-B TA, D5A-T
