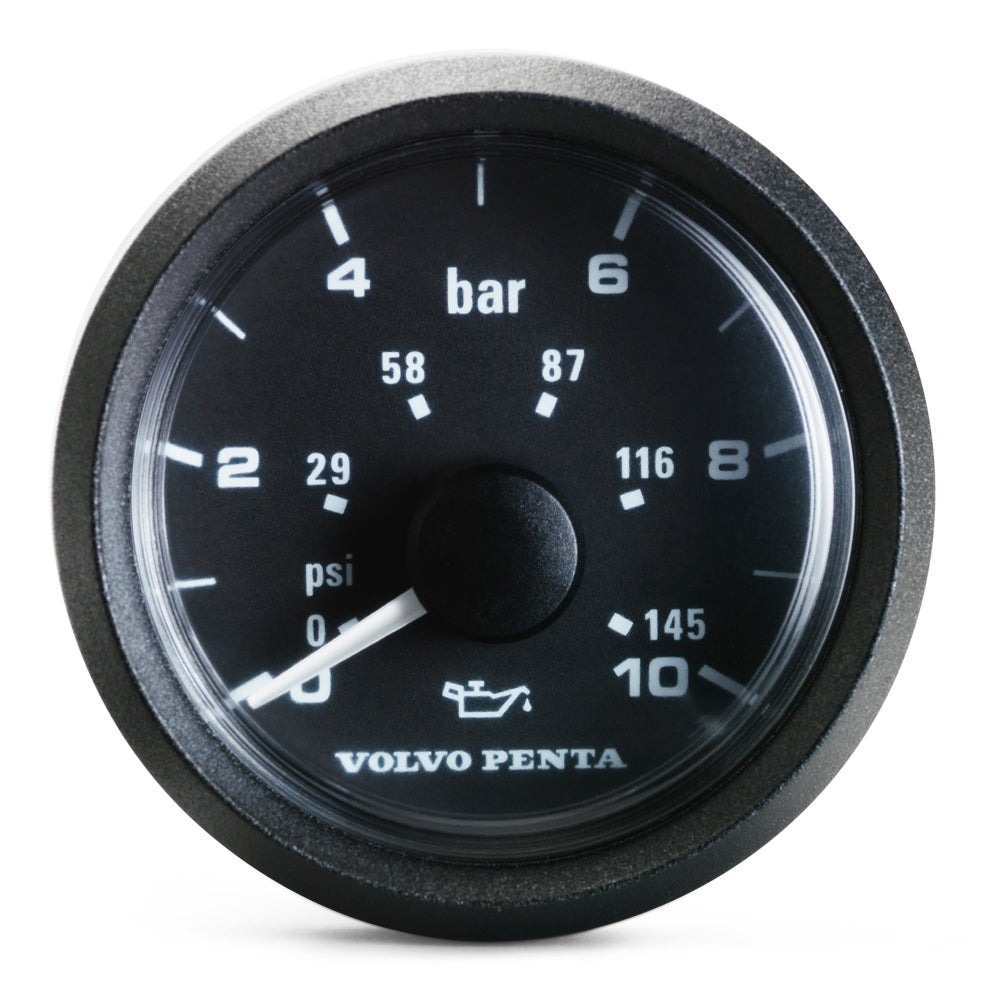

23715880 Oil Pressure Gauge | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. Scale 10 bar. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

• Engine Family: D, TAMD, TWD, MD
• HP Range: 55-75 HP

Full model list at the end of this description.

⚙️ Key Features

• Engine oil pressure gauge, 52 mm, reading 0 to 10 bar
• For 12 V and 24 V systems
• Input signal range 10 to 184 ohms
• Adapter cable and wiring harness, mounting kit and front ring included
• The engine oil pressure gauge used in the main station instrument panel kit
• 0.136 kg
• Listed for 23 applications across D, TAMD, TWD and MD series engines
• Consolidates six earlier references
• Oil pressure gauge kit, engine 0-10 bar
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Circuit: Engine oil pressure
• Reading: 0 - 10 bar
• Scale 10 bar
• Adapter cable / wiring harness, mounting kit and front ring are included
• Input signal: 10 - 184 Ω
• Scale: 10 bar
• Input signal: 10 - 184 Ω
• Voltage: 12/24 V
• Diameter: 52 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 837757, 863934, 863935 and 873287

🔌 Function

Displays engine oil pressure at the helm, reading the resistance of the pressure sender and moving the needle against the scale.

⚠️ Common Signs of Failure

• Needle reading high, low or hard against a stop
• Pressure reading that does not fall as the engine idles hot
• Needle flickering or jumping with engine speed
• Backlight dim or dead while the needle still works
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• The gearbox gauge 23715885 uses a 10 to 211 ohm range and reads to 30 bar, and is not interchangeable with this one
• The harness, mounting kit and front ring are in the box, so no separate ring is needed
• Check the sender, the earth and the gauge supply, and confirm the real pressure with a mechanical gauge before condemning the instrument
• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Adapter cable / wiring harness, mounting kit and front ring are included with this gauge, unlike the EVC instrument range where the ring is a separate order
• Match the system voltage where the gauge is voltage-specific

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715880 → Supersedes 23576907

OEM / Related Numbers

• 849849 earlier number superseded by this part
• 862082 earlier number superseded by this part
• 873625 earlier number superseded by this part
• 873197 earlier number superseded by this part
• 873198 earlier number superseded by this part
• 23576907 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta D2-55, D2-55B, D2-55C, D2-75
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162C, TAMD162C-B
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta MD2010, MD2010B
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD163A-A
• Volvo Penta TAMD74A
• Volvo Penta TWD1683VE
