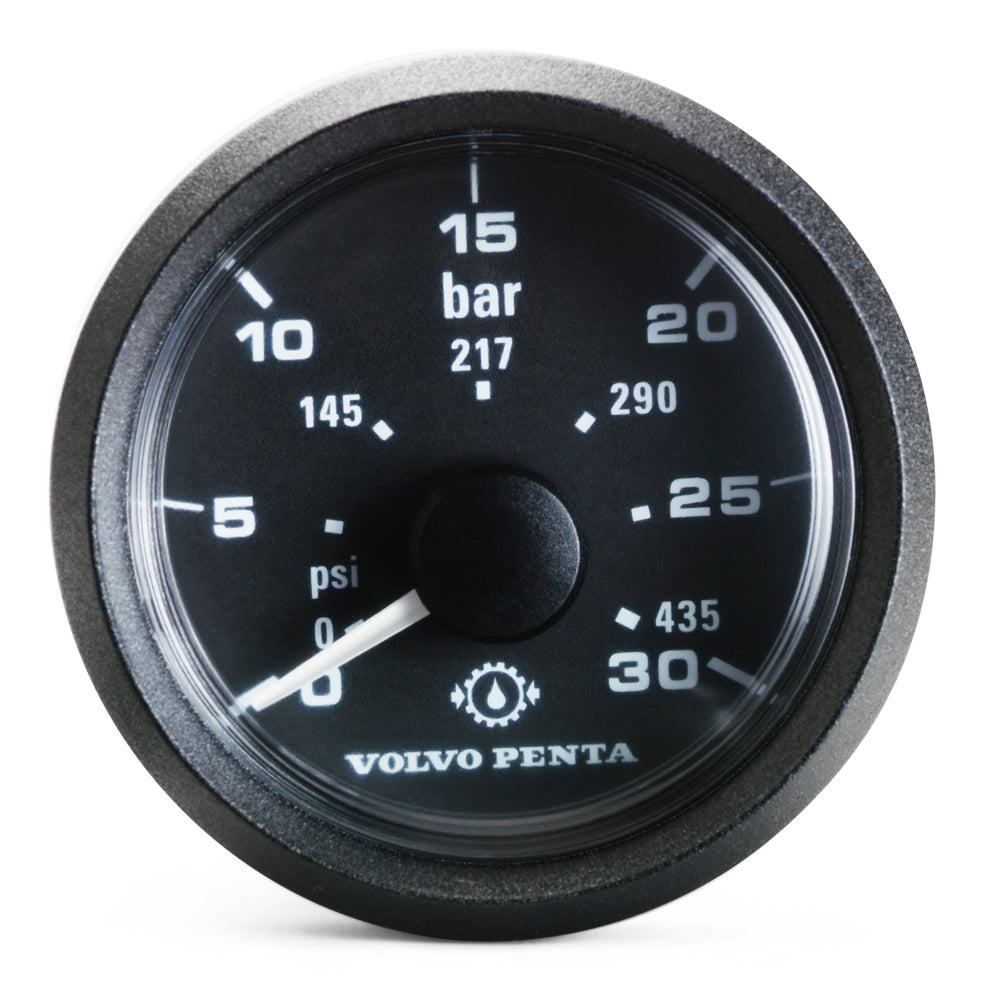

23715885 Oil Pressure Gauge | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. Scale 30 bar. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7C-B TA

• Engine Family: D

⚙️ Key Features

• Gearbox oil pressure gauge, 52 mm, reading to 30 bar
• For 12 V and 24 V systems
• Input signal range 10 to 211 ohms
• Adapter cable and wiring harness, mounting kit and front ring included
• One of the two gauges in the 90 by 190 mm oil and turbo pressure panel kit
• 0.147 kg
• Listed for five D series engine applications
• Supersedes 23576978
• Oil pressure gauge kit, gear 30 bar, 12V-24V
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Circuit: Reverse gear oil pressure
• Reading: 30 bar
• System voltage: 12V-24V
• Scale 30 bar
• Adapter cable / wiring harness, mounting kit and front ring are included
• Input signal: 10 - 211 Ω
• Scale: 30 bar
• Input signal: 10 - 211 Ω
• Voltage: 12/24 V
• Diameter: 52 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 863936 and 873288

🔌 Function

Displays gearbox oil pressure at the helm, reading the resistance of the transmission pressure sender and moving the needle against the scale.

⚠️ Common Signs of Failure

• Needle reading high, low or hard against a stop
• Pressure reading that does not respond to gear selection
• Needle flickering or jumping
• Backlight dim or dead while the needle still works
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• Its 10 to 211 ohm range is distinct from the engine oil pressure gauge 23715880, so the two must not be substituted
• Turbo pressure gauge 23715887 is the other half of the oil and turbo panel if you are rebuilding the whole panel
• Confirm the real pressure with a mechanical gauge before condemning the instrument, and check the sender and earth
• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Adapter cable / wiring harness, mounting kit and front ring are included with this gauge, unlike the EVC instrument range where the ring is a separate order
• Match the system voltage where the gauge is voltage-specific

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715885 → Supersedes 23576978 → Supersedes 873202 → Supersedes 863937 → Supersedes 828622

OEM / Related Numbers

• 23576978 earlier number superseded by this part
• 873201 earlier number superseded by this part
• 873202 earlier number superseded by this part
• 873290 earlier number superseded by this part
• 873289 earlier number superseded by this part
• 863937 earlier number superseded by this part
• 828622 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
