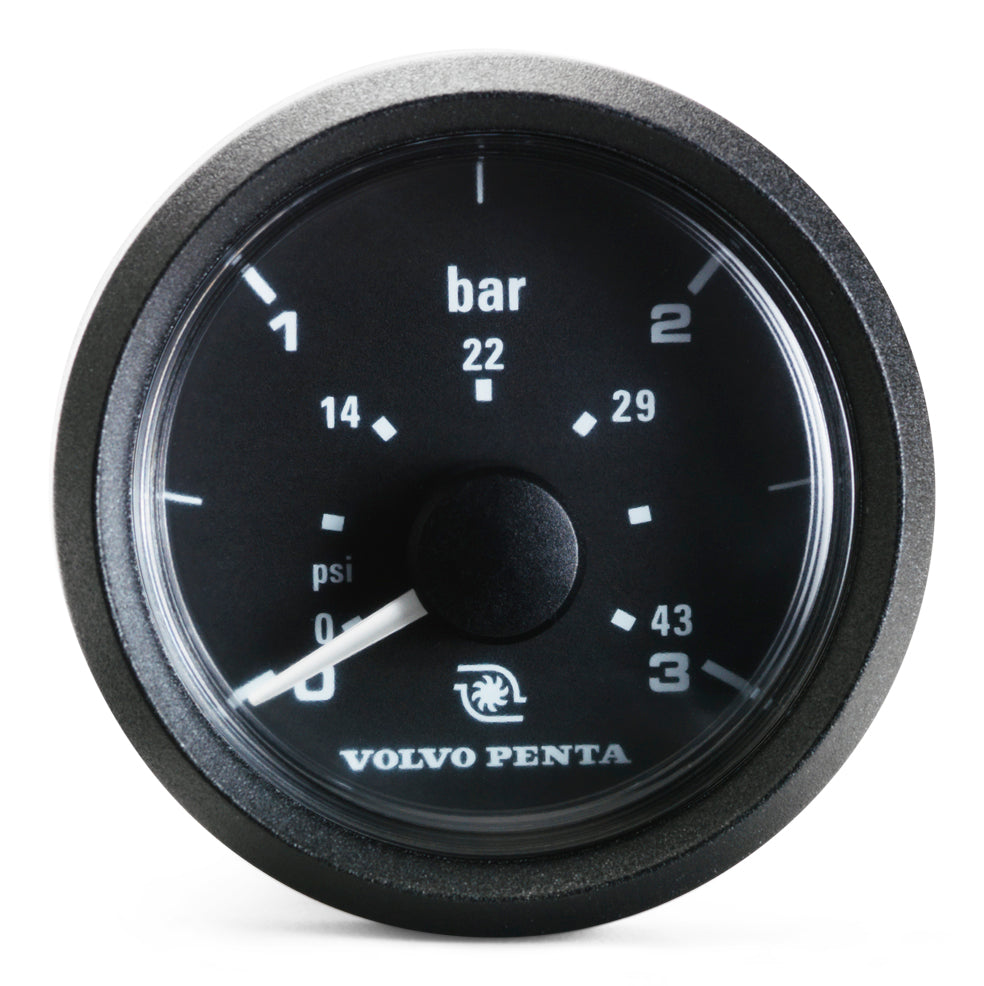

23715887 Turbo Pressure Gauge | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. Scale 3 bar. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7C-B TA

• Engine Family: D

⚙️ Key Features

• Turbo pressure gauge, 52 mm, reading to 3 bar
• For 12 V and 24 V systems
• Input signal range 10 to 181 ohms
• Adapter cable and wiring harness, mounting kit and front ring included
• One of the two gauges in the 90 by 190 mm oil and turbo pressure panel kit
• 0.134 kg
• Listed for five D series engine applications
• Consolidates 23576981, 873205 and 873206
• Turbo pressure gauge kit, 3 bar, 12V-24V
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Circuit: Turbo pressure
• Reading: 3 bar
• System voltage: 12V-24V
• Scale 3 bar
• Adapter cable / wiring harness, mounting kit and front ring are included
• Input signal: 10 - 181 Ω
• Scale: 3 bar
• Input signal: 10 - 181 Ω
• Voltage: 12/24 V
• Diameter: 52 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines
• Also supersedes Volvo part numbers 864018, 872195, 873288 and 873289

🔌 Function

Displays turbocharger boost pressure at the helm, reading its sender and moving the needle against the scale so the charge pressure can be watched under load.

⚠️ Common Signs of Failure

• Needle reading high, low or hard against a stop
• Boost reading that does not rise as the engine is loaded
• Needle flickering or jumping
• Backlight dim or dead while the needle still works
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• The signal range is 10 to 181 ohms, close to but not the same as the other 52 mm pressure gauges here, so order by part number
• Gearbox oil pressure gauge 23715885 is the other gauge in the same panel kit
• Check the sender, the earth and the gauge supply before condemning the instrument
• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Adapter cable / wiring harness, mounting kit and front ring are included with this gauge, unlike the EVC instrument range where the ring is a separate order
• Match the system voltage where the gauge is voltage-specific

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715887 → Supersedes 23576981

OEM / Related Numbers

• 873205 earlier number superseded by this part
• 873206 earlier number superseded by this part
• 23576981 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
