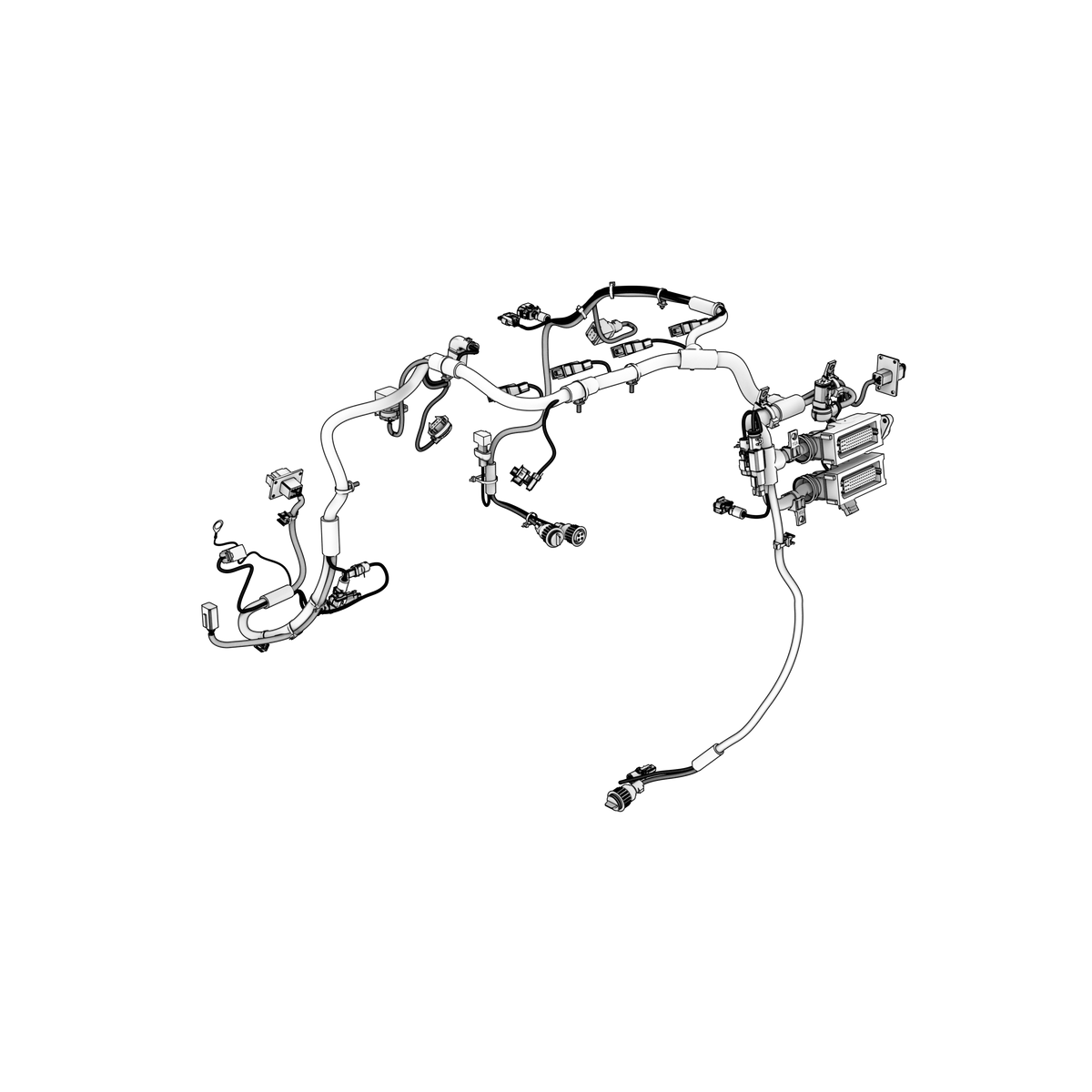

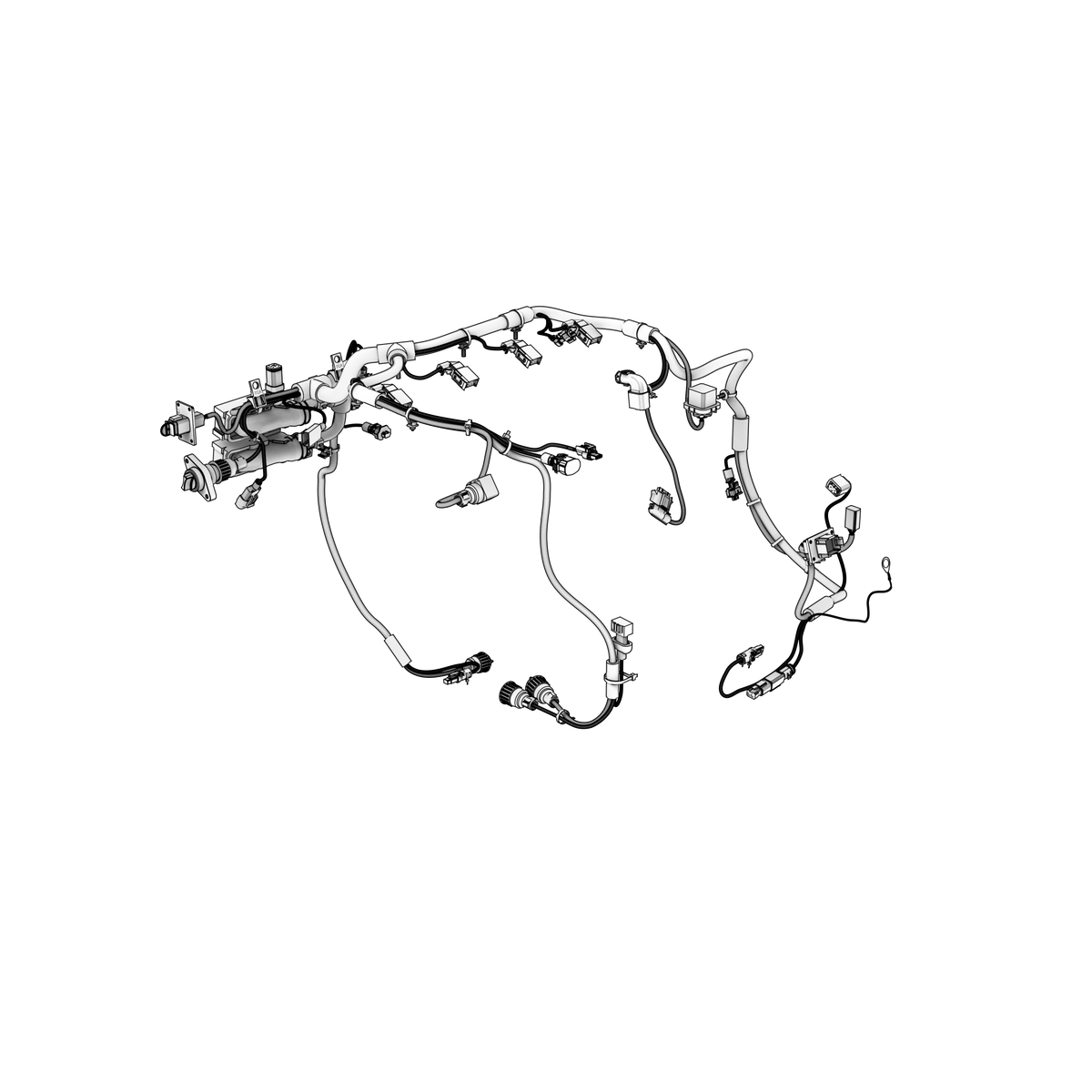

23748287 Wiring Harness | Genuine Volvo Penta Part

23748287 Wiring Harness | Genuine Volvo Penta Part

$4,515.86 AUD
$4,515.86 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta wiring harness weighing 2.257 kg, listed for 11 D series engine applications and superseding part number 23559375.

🚤 Compatibility

Typically suits:

  • Volvo Penta D4-175I-G
  • Volvo Penta D4-230I-G
  • Volvo Penta D4-270I-G
  • Volvo Penta D4-320I-G
  • Volvo Penta D4-300I-G
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-320A-G
  • Volvo Penta D4-300A-G
  • Volvo Penta D4-145I-G
  • Engine Family: D
  • HP Range: 145-320 HP

⚙️ Key Features

  • Wiring harness, 2.257 kg
  • Listed for 11 D series engine applications
  • Supersedes 23559375
  • Harness 23748284 is the 2.583 kg reference covering 18 D series applications

🔌 Function

Routes and carries the engine's electrical connections in a single loom with the correct branch lengths and connectors.

⚠️ Common Signs of Failure

  • Faults that come and go as the engine vibrates
  • Unrelated fault codes appearing together
  • Corrosion or moisture inside a connector shell
  • Chafed or heat-damaged insulation where the loom is clipped
  • A broken core inside sound-looking insulation, found on testing

🛠️ Service Notes

  • The neighbouring harness is 23748284 - confirm the number before ordering
  • Test the connectors and earths before condemning the whole loom

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 23748287 → Supersedes 23559375 → Supersedes 23419732 → Supersedes 22841375

OEM / Related Numbers

  • 23559375 earlier number superseded by this part
  • 23419732 earlier number superseded by this part
  • 22841377 earlier number superseded by this part
  • 22841375 earlier number superseded by this part

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
