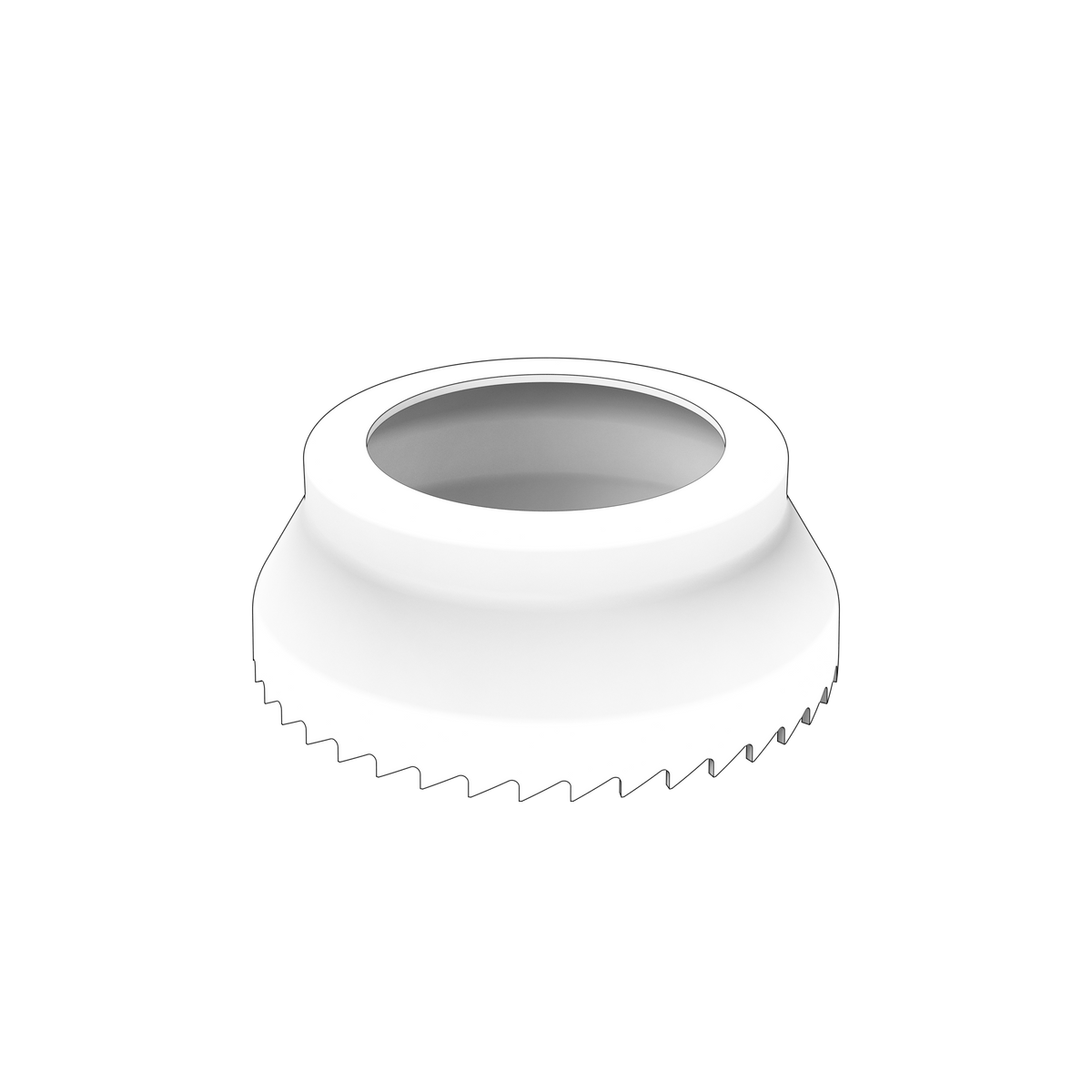

23777877 Line Cutter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta line cutter. The folder lists it as installation hardware, Duoprop type H, DPH and DPI drives.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: D, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• Line cutter for DPH and DPI drives with Type H propellers
• 316 stainless steel
• Installs between the propellers using the existing propeller nut
• Fitted as standard on DPI drives
• 0.081 kg
• Supersedes 22827022
• Line cutter.
• Installation hardware, Duoprop type H, DPH and DPI drives.
• 95 mm / 3.7 in diameter.
• 316 stainless steel.
• Quantity 1.
• Included as standard on DPI drives.
• Cuts up ropes, fishing lines, plastic bags etc.
• Protects propeller shaft sealing.
• Easy to install using existing bolts.
• Requires no drilling.
• Adds no drag or fuel consumption.
• Material: stainless steel
• Fits: Volvo Penta DPH and DPI drives with type H propellers

🔌 Function

Sits between the front and rear propellers and cuts rope, net, line and plastic before it can reach the propeller shaft seal.

⚠️ Common Signs of Failure

• Rope or weed wrapping the shaft where it used to be cut free
• Cutting edges blunted, chipped or rolled over
• Cutter loose on the shaft, or its fixings backed off
• Corrosion or pitting across the blade faces
• Vibration at speed from a cutter that has shifted out of true

🛠️ Service Notes

• Volvo Penta lists it against Type H propellers, so check what is on the drive before ordering
• A DPH drive is the usual retrofit, since a DPI drive already left the factory with one
• Inspect the propeller shaft seal at the same time - anything that got past the cutter will have been working at it
• Included as standard on DPI drives.
• The line cutter is installed between the propellers using the existing propeller nut, requires no drilling, and adds no drag or fuel consumption.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23777877 → Supersedes 22827022

OEM / Related Numbers

• 22827022 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
