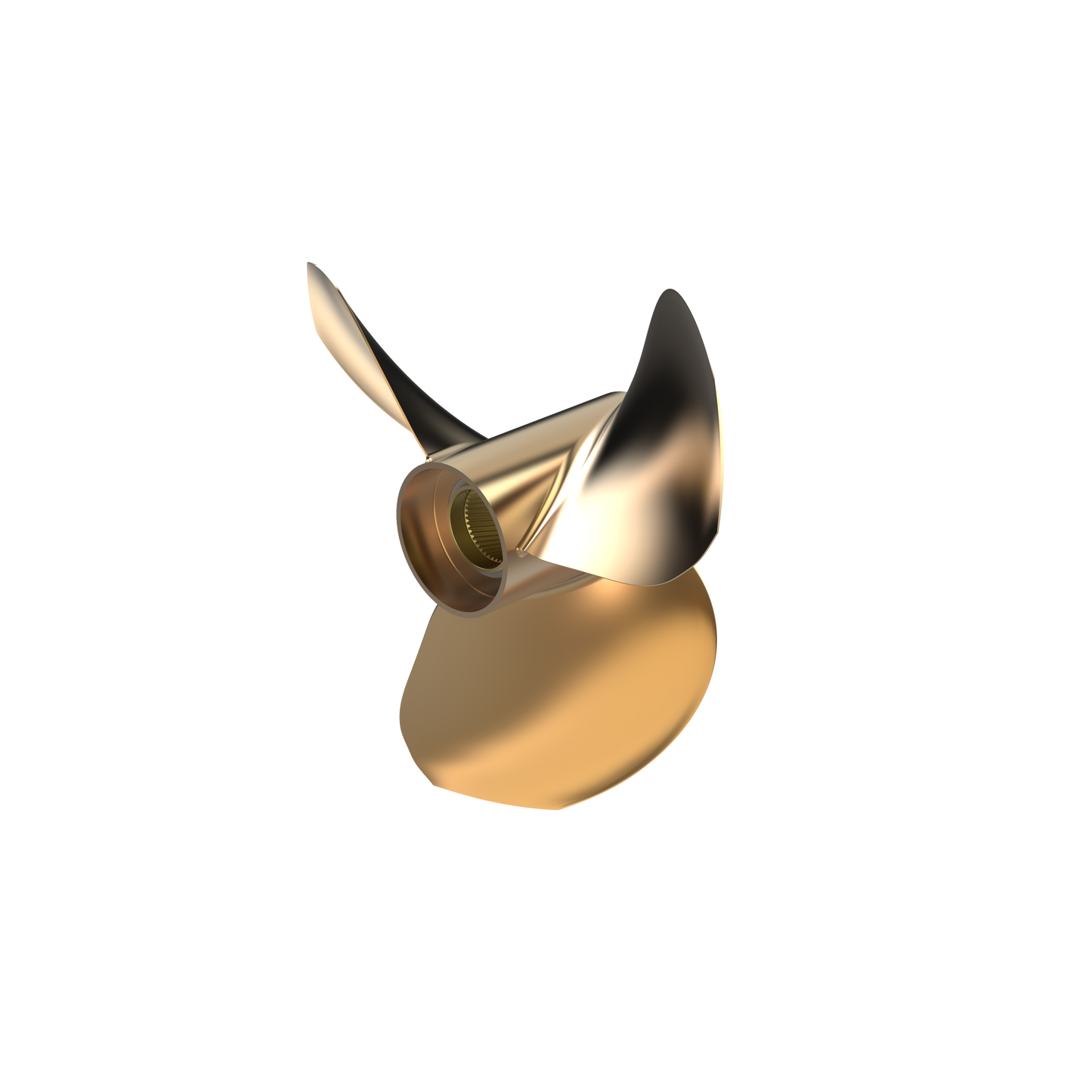

23795438 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

Type G is the Nibral (nickel-bronze-aluminium) Duoprop range for the Aquamatic DPH drive. The patented blade geometry gives optimal interaction between the front and rear propellers for outstanding efficiency and smooth, comfortable operation, and the extremely strong nibral alloy gives excellent durability with minimal marine growth. A shock-absorbing rubber bushing and galvanic isolation make it a matched fit for the DPH drive. This is the G8 front propeller; the matching rear propeller is 23795448 - no complete set number is listed in this dimension. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

⚙️ Key Features

• Type G8 front propeller
• Nibral, for DPH drives
• 7.818 kg
• Sold individually - the matching rear propeller is 23795448
• Shock-absorbing rubber bushing with galvanic isolation
• Patented blade geometry, outstanding efficiency and comfort.
• Excellent durability, minimal marine growth.
• Extremely strong nibral (nickel-bronze-aluminium) alloy.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Three-blade front propeller and four-blade rear propeller.
• Material: nibral
• Fits: DPH
• Type: G8
• Set contains: rear 23795448
• Also supersedes Volvo part number 22548198

📋 Kit Contents

• 1 × G8 front propeller - 23795438
• Matching rear propeller, cone, nuts, locking hardware and installation tools are not included

🔌 Function

Takes the first bite of undisturbed water as the leading half of the counter-rotating G8 pair, turning engine torque into thrust.

⚠️ Common Signs of Failure

• Vibration through the hull that grows with boat speed
• Blade tips chipped, bent or curled after contact with the ground or debris
• Engine revving higher than normal for the thrust it gives, which points to the rubber bushing having slipped
• Loss of top speed, or the engine no longer reaching its rated speed
• Rope, weed or fishing line wound in tightly behind the hub

🛠️ Service Notes

• Front and rear must carry the same size code, and type G and type H propellers must never be mixed - use the same type and size on the drive, and on both drives in a twin installation
• Moving to the stainless steel type H propellers keeps the same size, so a G8 corresponds to an H8, but the propeller cone has to be changed as well, using cone kit 23000185
• Clean and grease the propeller shaft splines on refit and check the bushing for any sign of having slipped
• Type G propeller sets have been replaced by either Type H propeller sets or by individually sold Type G front and rear propellers - no complete Type G set number is listed.
• Upgrading from Type G to Type H keeps the same sizing: a G6 propeller corresponds to an H6 propeller. The propeller cone must be replaced to fit Type H propellers (kit 23000185).
• Do not mix Type G and Type H propellers. Always use propellers of the same type and size on the drive, or on both drives in twin installations.
• Installation hardware, type G: propeller cone kit 21829326, lock bolt M12 991609, rear propeller nut 3863213 and front propeller nut 23952642.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23795438 → Supersedes 22898628 → Supersedes 22547308 → Supersedes 3587400 → Supersedes 3863024

OEM / Related Numbers

• 22898648 earlier number superseded by this part
• 22898628 earlier number superseded by this part
• 22547308 earlier number superseded by this part
• 3587400 earlier number superseded by this part
• 3863024 earlier number superseded by this part
• Matching G8 rear propeller: 23795448
• H8 upgrade set: 22754008
• H8 front/rear: 23623058
• H8 front/rear: 23623068

Aftermarket / Verified Equivalents

• H-series conversion cone kit: 23000185

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
