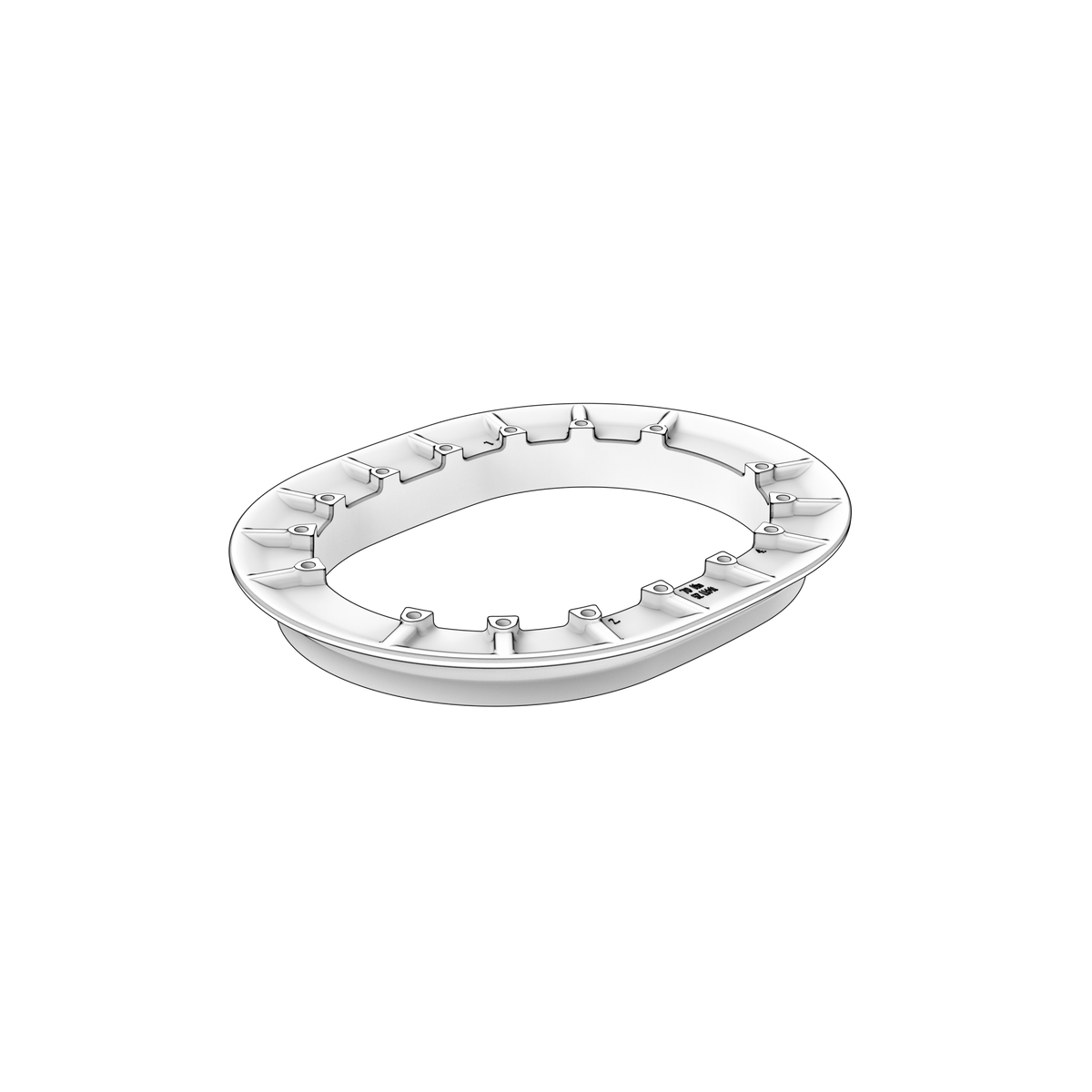

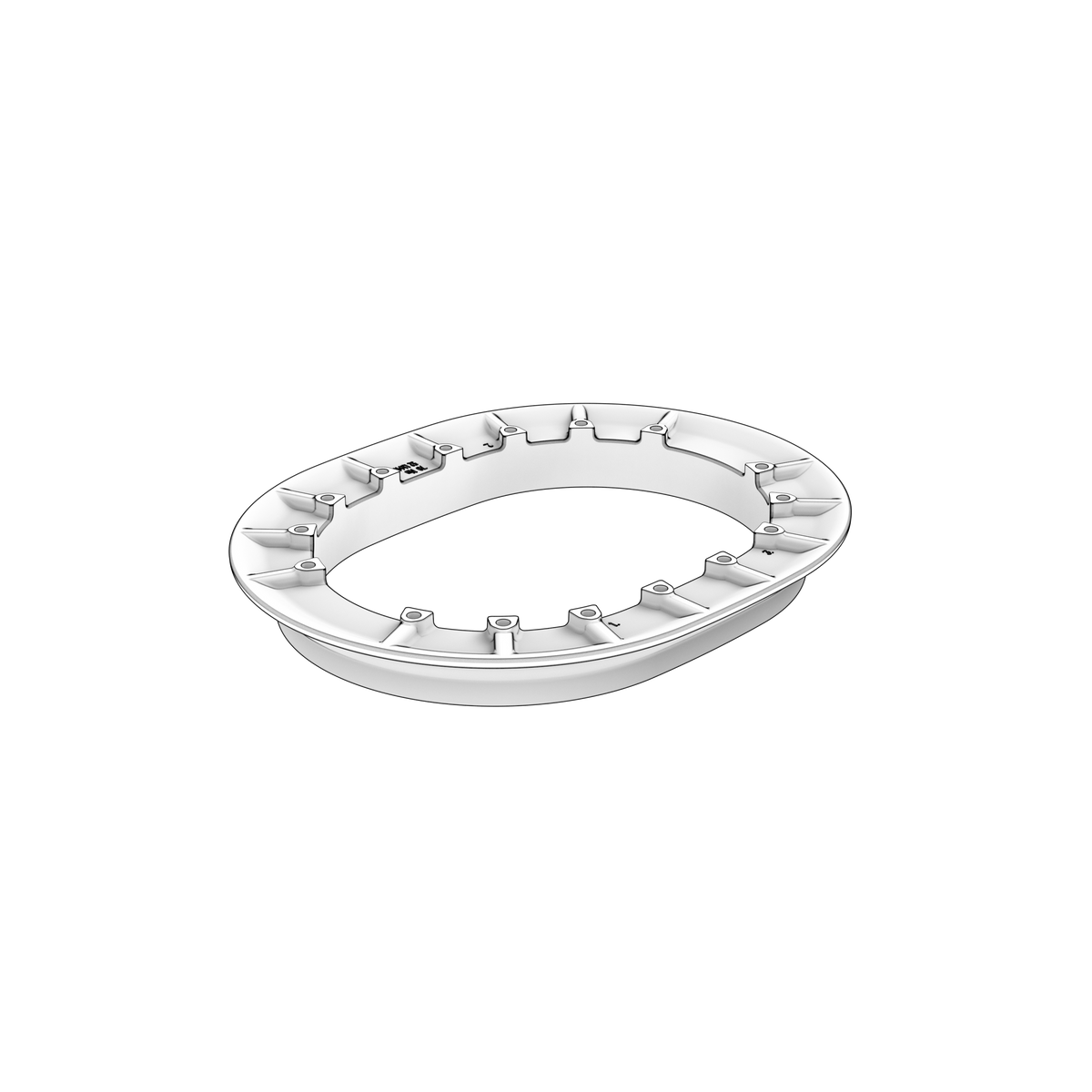

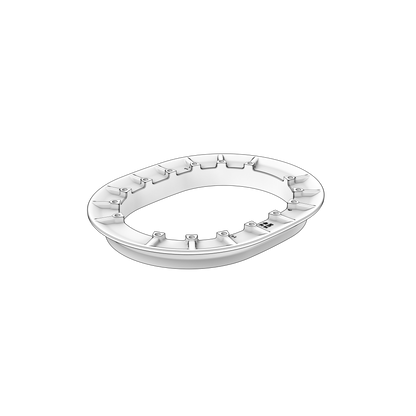

23804176 Clamping Ring | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta clamping ring from the Marine Propulsion group, weighing 10.75 kg and listed for six applications across D series engines and IPS pod drives. It supersedes 22490672. Even tightening around the ring maintains uniform clamping load.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta IPS10-B

• Engine Family: D, IPS
• HP Range: 300-480 HP

⚙️ Key Features

• Clamping ring from the Marine Propulsion group
• 10.75 kg
• Supersedes 22490672
• Listed for six applications across D series engines and IPS pod drives

🔌 Function

Clamps the drive to its mounting, spreading the load evenly around the joint so the unit stays sealed and located under thrust.

⚠️ Common Signs of Failure

• Water in the boat traced to the drive mounting joint
• Ring or its fixings corroded or visibly wasted
• Uneven gap around the joint, showing the clamp load is not even
• Cracks at the fixing points or the split in the ring
• The drive working or moving against its mounting

🛠️ Service Notes

• Tighten evenly and in stages around the ring so the clamping load stays uniform
• Renew the seal at the joint whenever the ring is disturbed
• Replace corroded fixings rather than reusing them - this joint keeps the sea out

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23804176 → Supersedes 22490672 → Supersedes 21534715 → Supersedes 3808239

OEM / Related Numbers

• 22490672 earlier number superseded by this part
• 21534715 earlier number superseded by this part
• 3808239 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
