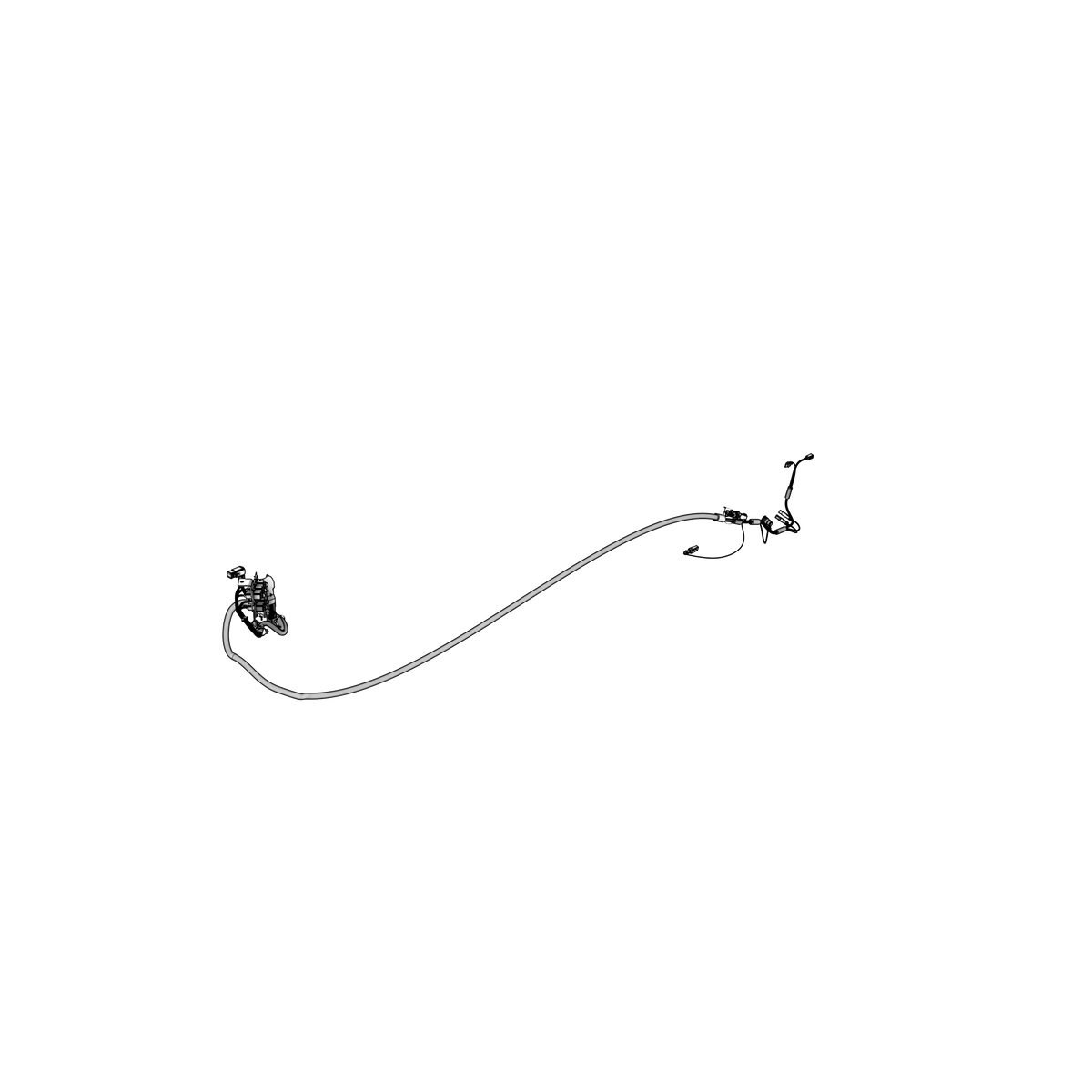

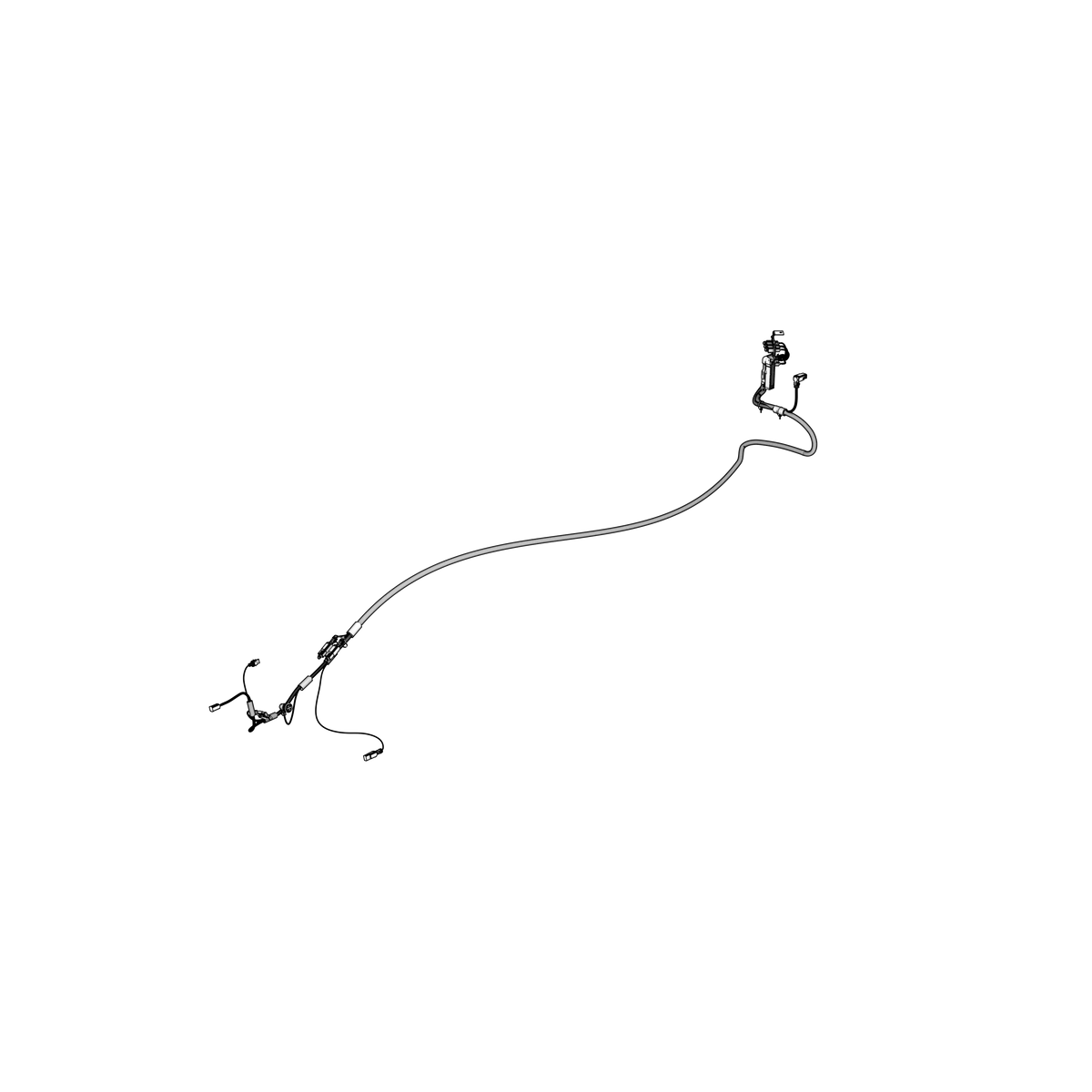

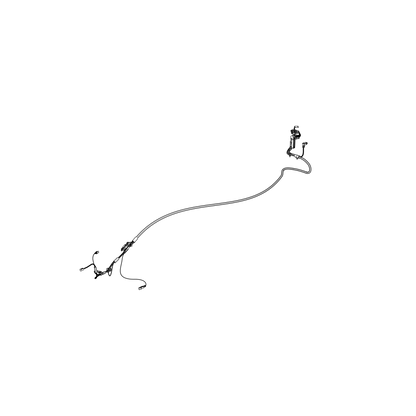

23809771 Wiring Harness | Genuine Volvo Penta Part
23809771 Wiring Harness | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Genuine Volvo Penta wiring harness weighing 3.465 kg. It supersedes part number 22732913 and covers its 36 applications across D series engines and IPS pod drives.
⚙️ Key Features
- Wiring harness from the Cables and Fuses group
- 3.465 kg
- Supersedes 22732913
- Covers 36 applications across D series engines and IPS pod drives
🔌 Function
Carries power and signal between the engine, its control units and the helm equipment through one pre-terminated loom, so every circuit lands on the right pin without hand-wiring.
⚠️ Common Signs of Failure
- Gauges or warning lamps that come and go with engine vibration
- Fault codes that clear when a connector is moved by hand
- Green or white corrosion inside a connector housing
- Outer sheathing chafed or cracked where the loom crosses a bracket or edge
- Pins pushed back or spread in the connector body on strip-down
🛠️ Service Notes
- Check the connector pins, seals and engine earth before condemning the loom - harness faults are usually at the terminations
- Harness 23809772 at 4.836 kg is the heavier loom in this group, so confirm the number against the installation before ordering
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 23809771 → Supersedes 22732913 → Supersedes 22350401 → Supersedes 22094171
OEM / Related Numbers
- 22732913 earlier number superseded by this part
- 22350401 earlier number superseded by this part
- 22094171 earlier number superseded by this part
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
