23847637 Mercury MerCruiser Bushing | Genuine Quicksilver OEM Part

23847637 Mercury MerCruiser Bushing | Genuine Quicksilver OEM Part

$69.65 AUD
$69.65 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

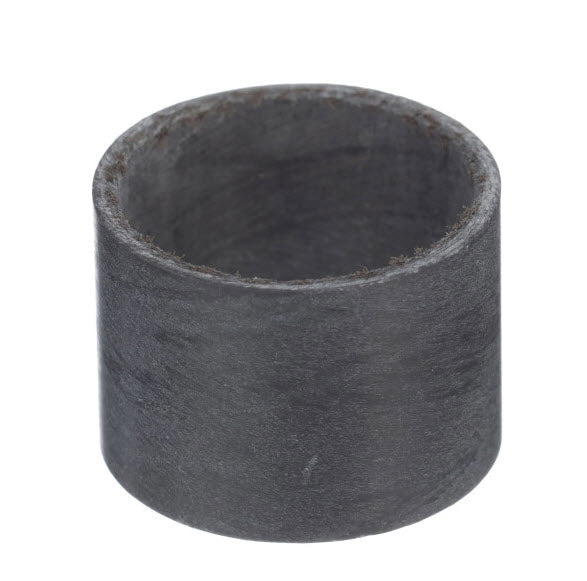

Genuine Quicksilver Gimbal Ring / Hinge Pin Bushing - Part Number: 23-847637

A genuine Quicksilver bushing used in MerCruiser gimbal ring, bell housing and hinge pin pivot assemblies. This bushing supports the hinge / pivot area on Alpha One Gen II, Bravo, Blackhawk and high-performance transom assemblies where the parts diagram specifies 23-847637.

⚙️ Key Features

  • Genuine Quicksilver OEM bushing
  • Correct Mercury part number 23-847637
  • Used in gimbal ring and hinge pin pivot areas
  • Fits Alpha One Gen II, Bravo, Blackhawk and high-performance transom assemblies where specified
  • Important service part during bell housing, gimbal ring or hinge pin repairs

🚤 Compatibility

Commonly used on

  • MerCruiser Alpha One Gen II gimbal assemblies
  • MerCruiser Bravo gimbal ring and bell housing assemblies
  • MerCruiser Blackhawk transom assemblies
  • MerCruiser high-performance transom assemblies using smooth hinge pin / bushing locations

Typically suits

  • Drive / transom models:
  • MerCruiser Alpha One Gen II - 1998 and newer, serial 0L100040 and up
  • MerCruiser Blackhawk - 1994-1995
  • MerCruiser Bravo Drives - serial 0B664190 to 0F729999
  • MerCruiser Bravo Sterndrives - serial 0F730000 to 0M100000
  • MerCruiser Bravo - serial 0M100001 to 0W249999
  • MerCruiser Bravo One - serial 0W250000 and up
  • MerCruiser Bravo Two - serial 0B664190 to 0F729999
  • MerCruiser Bravo Two - serial 0F730000 to 0M100000
  • MerCruiser Bravo Two - serial 0M100001 to 0W249999
  • MerCruiser Bravo Two - serial 0W250000 and up
  • MerCruiser Bravo Three - serial 0B664190 to 0F729999
  • MerCruiser Bravo Three - serial 0F730000 to 0M100000
  • MerCruiser Bravo Three - serial 0M100001 to 0W249999
  • MerCruiser Bravo Three - serial 0W250000 and up
  • MerCruiser Bravo X / XR / XZ transom assemblies where 23-847637 is specified
  • MerCruiser high-performance transom assemblies where the hinge pin / bell housing diagram specifies 23-847637
  • Drive Type: MerCruiser Alpha One Gen II, Bravo, Blackhawk and high-performance transom assemblies
  • System Type: Gimbal ring / bell housing hinge pin bushing

🔌 Function

The bushing supports the hinge or pivot shaft in the gimbal ring / bell housing area. It helps maintain proper alignment and reduces looseness in the steering and drive pivot assembly.

⚠️ Common Signs of Failure

  • Excessive side play at bell housing or gimbal ring
  • Steering looseness or clunking
  • Worn hinge pin pivot area
  • Bushing seized, cracked or missing
  • Corrosion around hinge pin bore
  • Replacement required during steering shaft or gimbal ring repairs

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 23-847637 current OEM service reference

OEM / Related Numbers

  • 23-847637
  • 847637
  • 23847637
  • Mercury 23-847637
  • Quicksilver 23-847637
  • 923001 aftermarket / related bushing reference
  • 3-923001 aftermarket / related bushing reference
  • 98230A1 related upper steering shaft assembly
  • 866718A01 related upper steering shaft assembly
  • 12-861854 related washer
  • 11-8M2008293 related nut
  • 10-807204 related steering shaft screw

Aftermarket / Verified Equivalents

  • Aftermarket gimbal ring / trim sender bushing equivalents exist under 923001 / 3-923001 style references

📦 Condition

  • Genuine Quicksilver part
  • Brand new
  • Supplied in original or equivalent packaging
