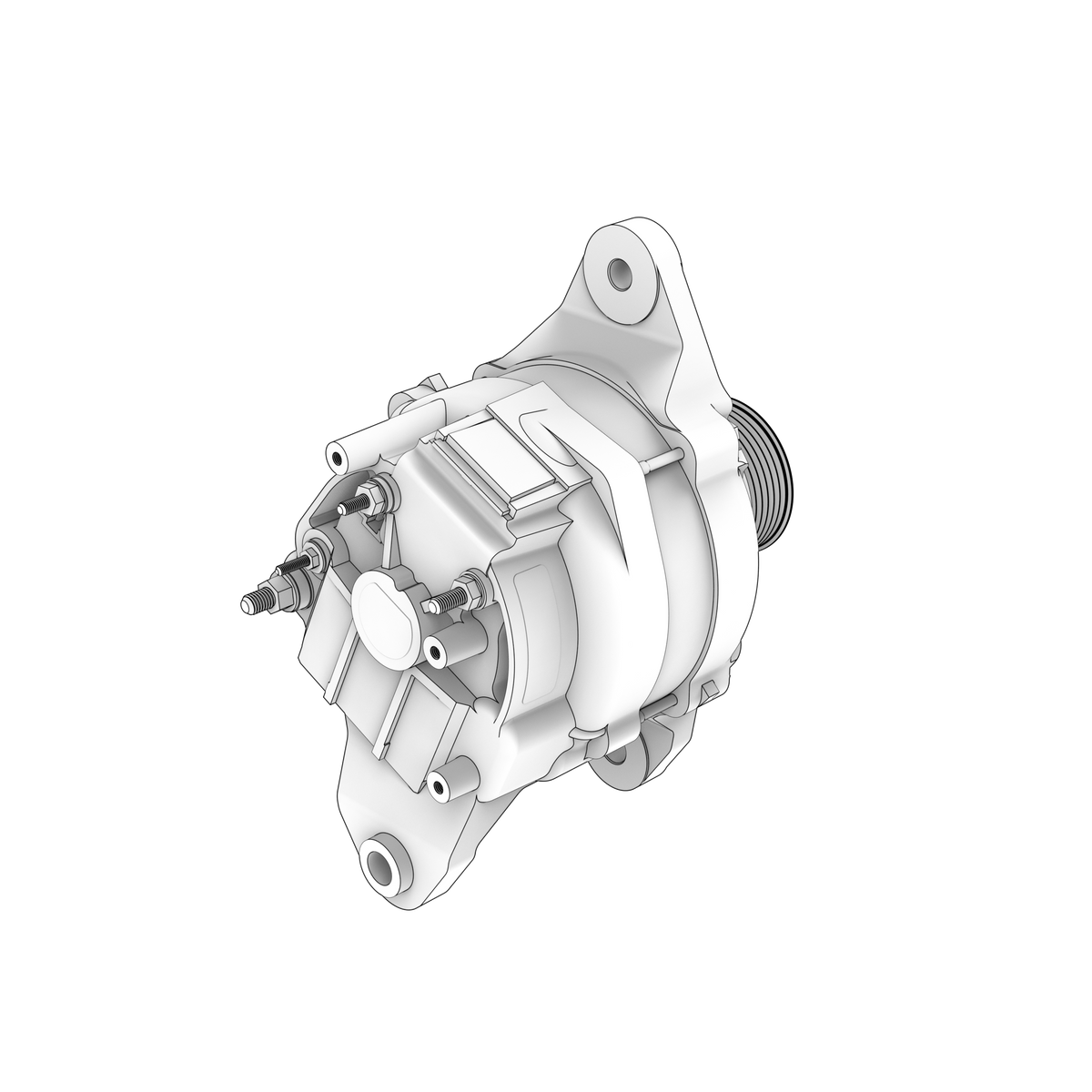

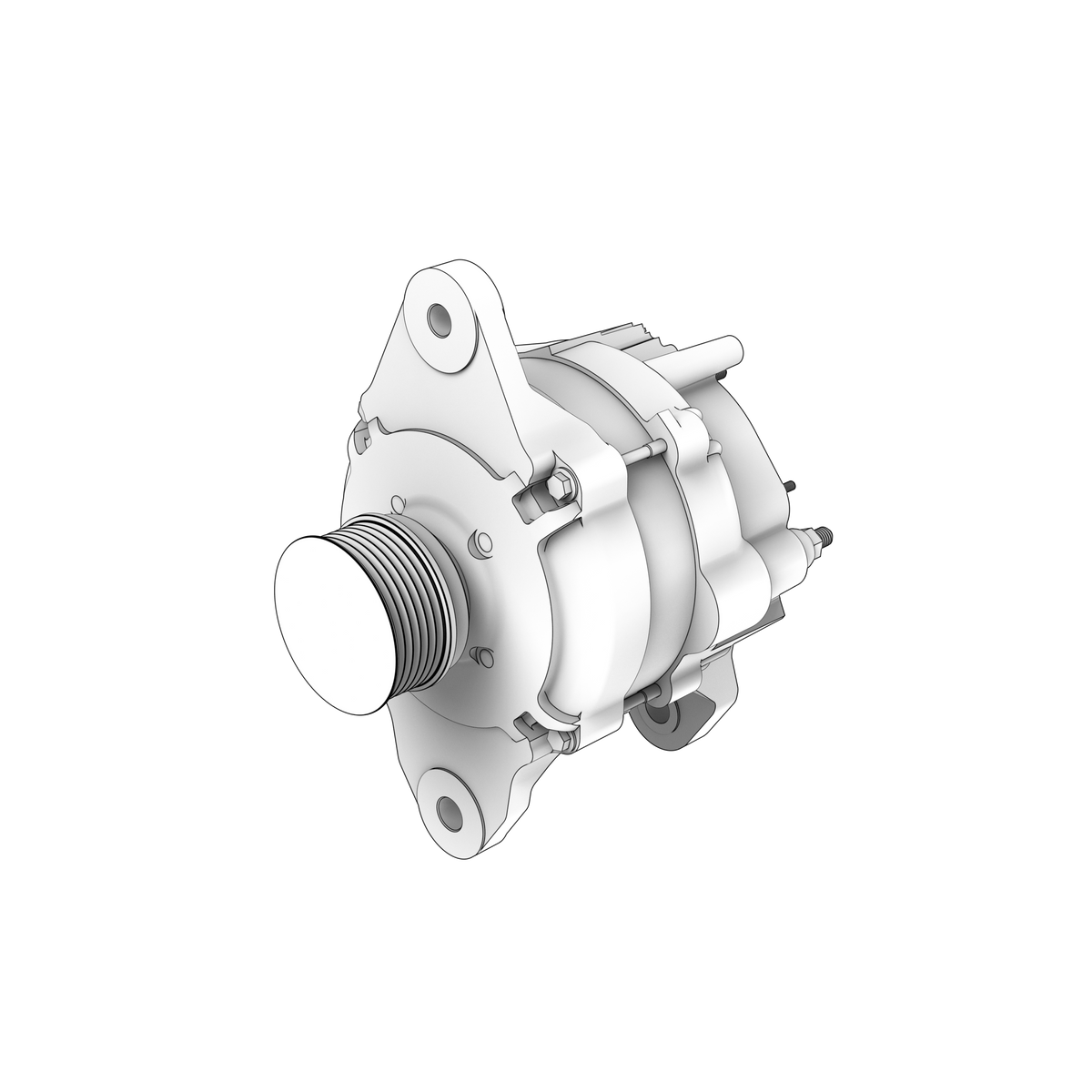

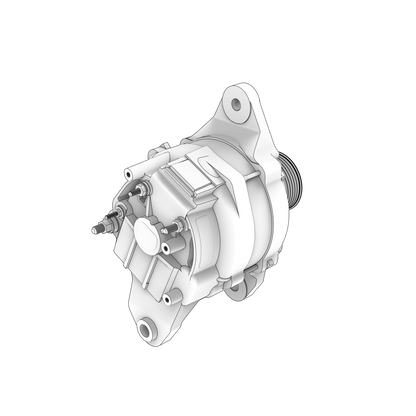

23892806 Alternator | Genuine Volvo Penta Part

🔧 Product Description

This is a 115-amp, 12-volt alternator for Volvo Penta diesel inboard engines. A marine parts retailer lists it as the factory replacement for the earlier Volvo Penta alternators 3803911, 3840181 and 21697753, fitting the D4 (180-300 hp) and D6 (280-435 hp) engine ranges built 2003-2007, as well as the IPS350-IPS600 drive packages.

⚙️ Key Features

• 115 Amp output at 12V
• Supersedes earlier Volvo Penta alternators 3803911, 3840181 and 21697753
• Fits Volvo Penta D4 (180-300 hp) and D6 (280-435 hp) engines, 2003-2007, and IPS350-IPS600 drive packages

🔌 Function

Charges the engine's starting and house batteries and supplies the vessel's electrical loads while the engine is running.

⚠️ Common Signs of Failure

• Charge warning lamp lit or flickering, or an alarm or fault code for charging voltage
• Batteries going flat in normal use, or gassing and boiling from overcharging
• Lights dimming or pulsing, and system voltage dropping away as electrical load is added
• Bearing rumble or squeal from the alternator, a smell of hot varnish, or a belt that keeps going slack and leaves black dust behind

🛠️ Service Notes

• Isolate the batteries before you start, and never disconnect the alternator or battery cables with the engine running — that will destroy the diodes
• Reconnect exactly as it came off, correct polarity, terminals clean and tight, and check the earth path through the mountings and engine is sound
• Check the pulleys line up and the belt runs true; renew a glazed, cracked or oil-contaminated belt at the same time and tension it by the procedure in the manual for your engine
• Support the alternator while you fit and tighten the mounting and adjusting bolts to the manual's figures, and never lever against the alternator body or end covers
• After fitting, confirm the charge warning goes out and charging voltage is correct, and recheck belt tension after the first running period

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Recmar: REC874502

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
