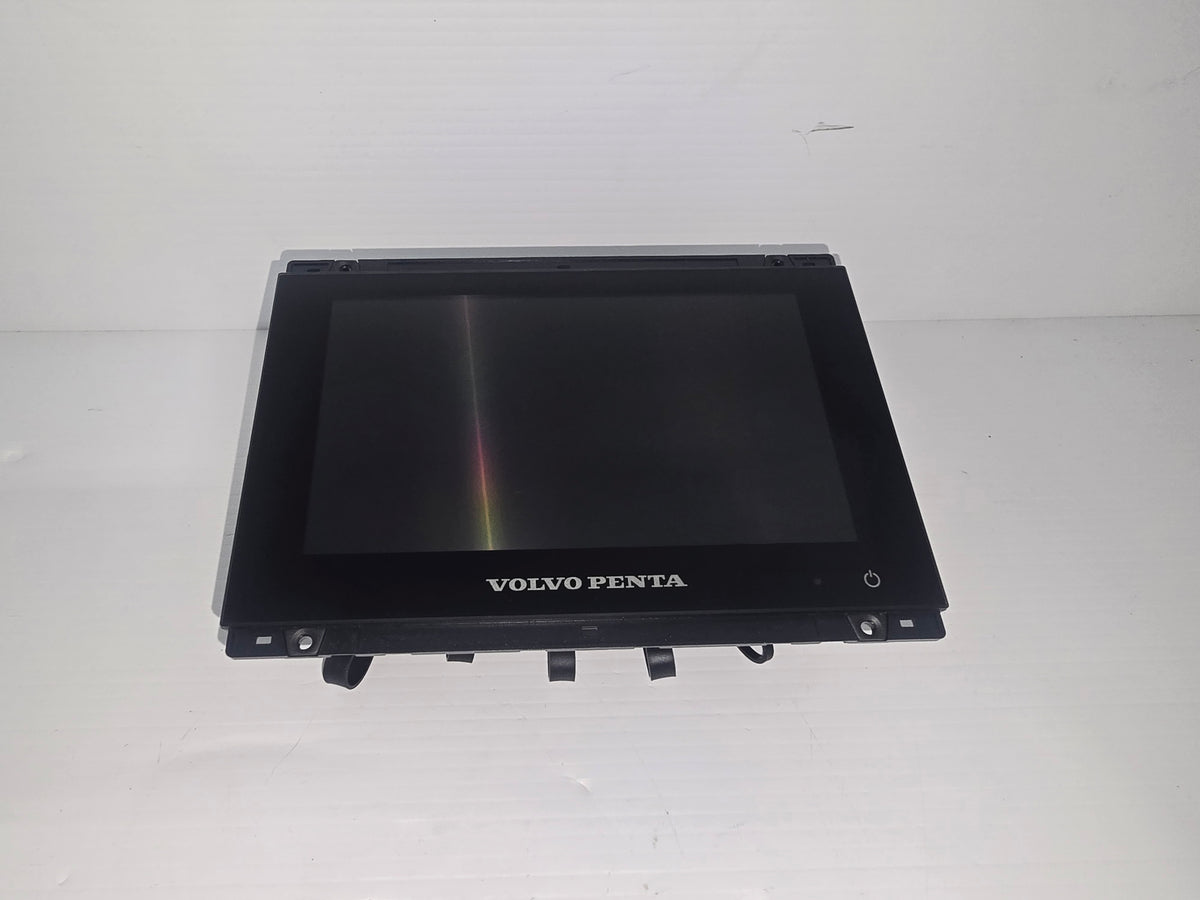

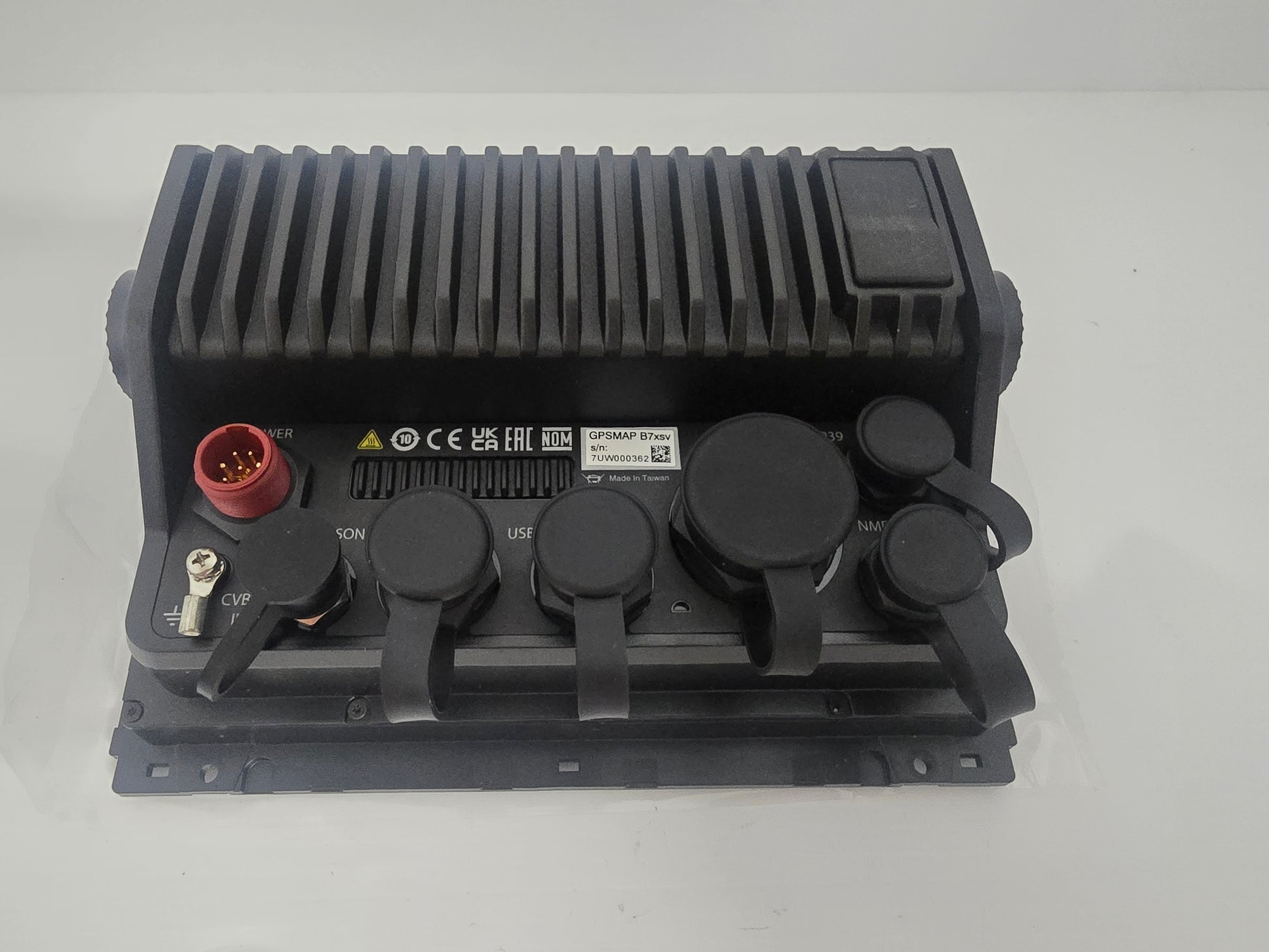

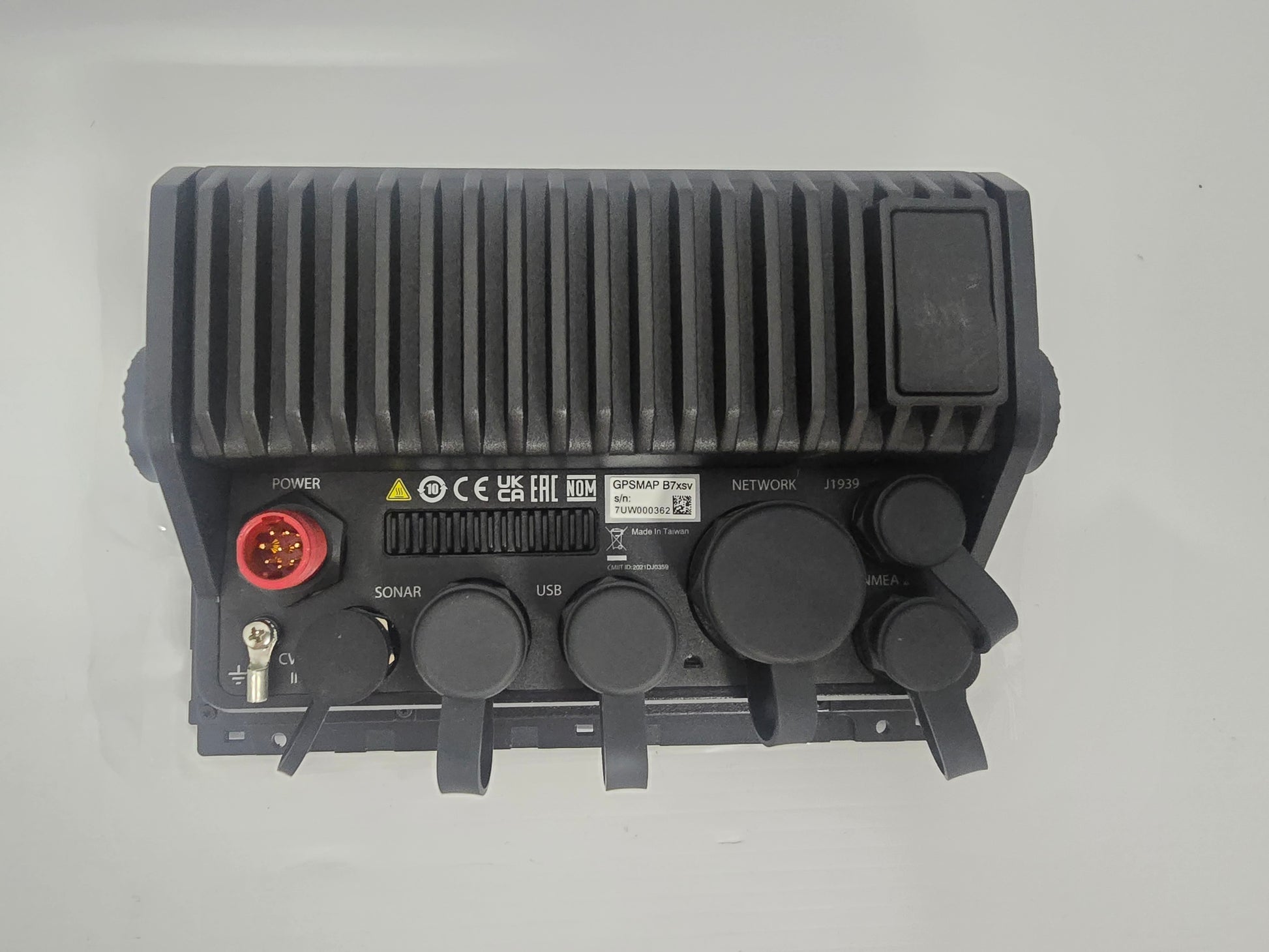

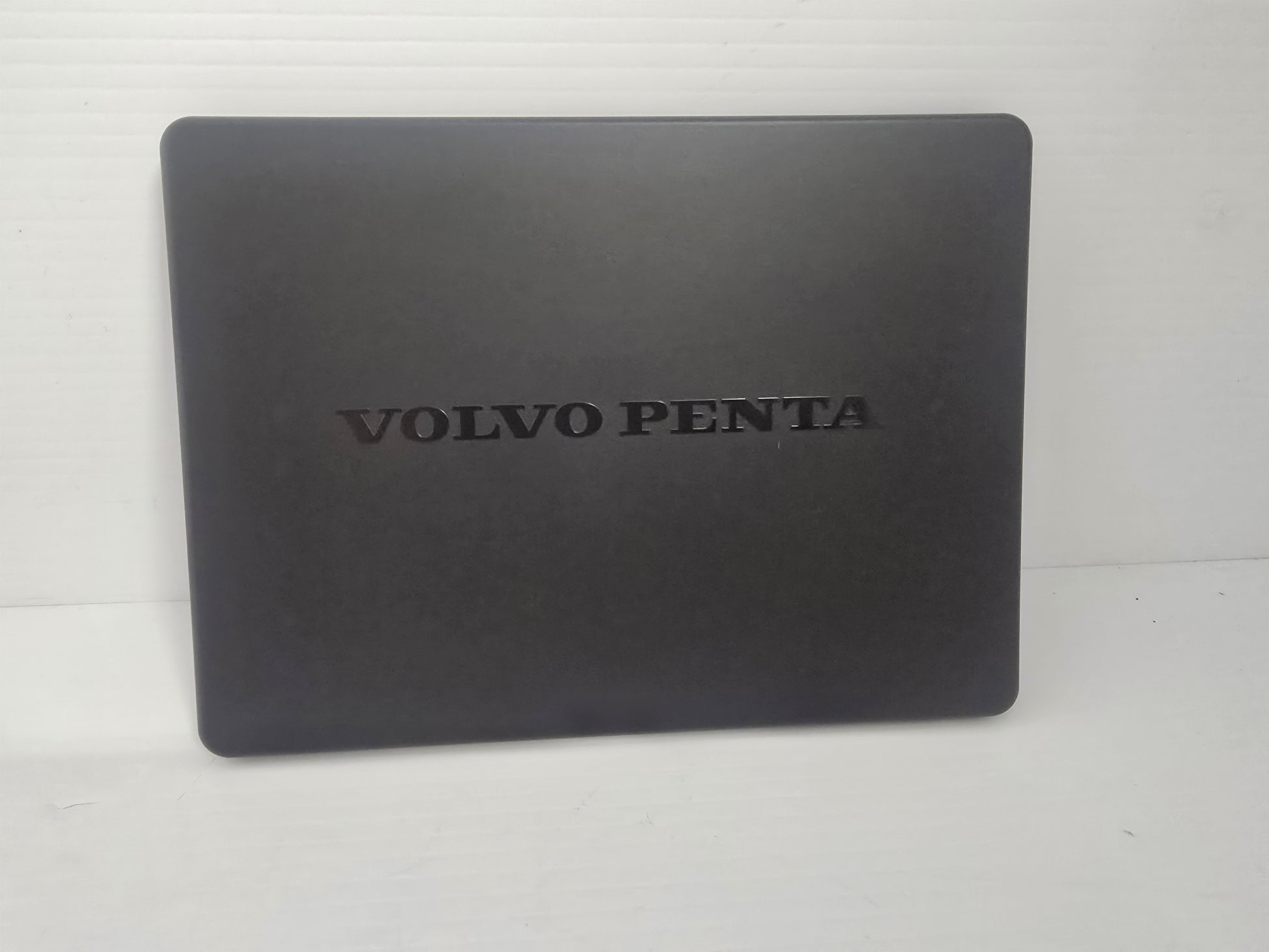

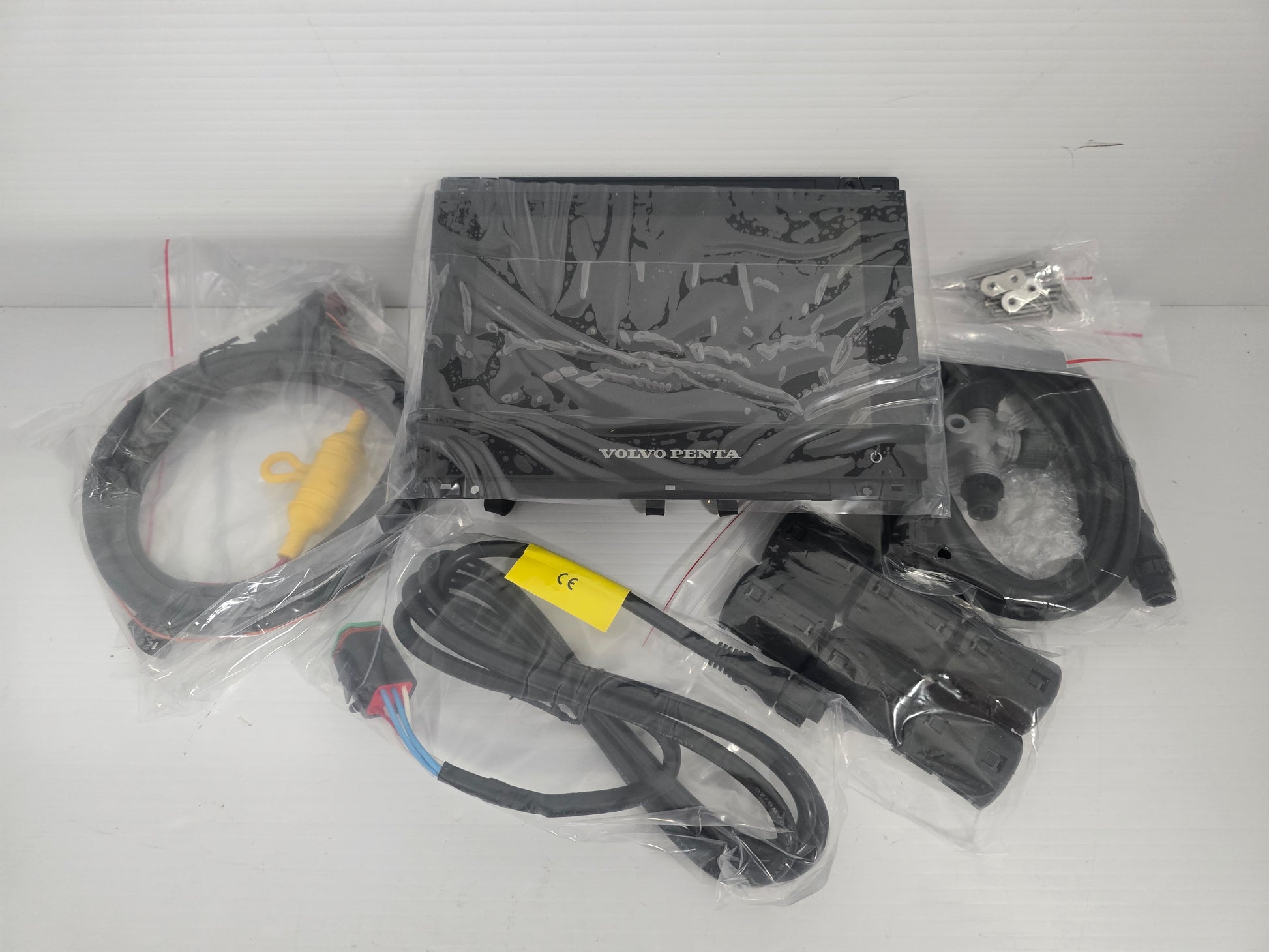

23975324 Monitor | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 7-inch multi-function touchscreen display, the version with sonar functionality, listed for the EVC-E and EVC2 generations. It weighs 2.855 kg, is listed for 60 applications across D and V series engines, and supersedes 23316609. The 7-inch screen is the stand-alone unit of the range: an all-in-one solution with a built-in GPS antenna and SD-card reader, pinch-to-zoom and other multi-touch controls, integrated NMEA 2000 and Wi-Fi, simplified SOS calling, and a US detailed and worldwide base map included, with heading and position refreshed ten times per second.

🚤 Compatibility

• Engine Family: D, V
• HP Range: 110-430 HP

Full model list at the end of this description.

⚙️ Key Features

• 7-inch touchscreen display with sonar functionality
• For EVC-E and EVC2 generation systems
• 2.855 kg
• Built-in GPS antenna and SD-card reader, with integrated NMEA 2000 and Wi-Fi
• US detailed and worldwide base map included
• Fully integrated with EVC monitoring features such as the Dynamic Positioning System, Interceptors and Autopilot
• Listed for 60 applications across D and V series engines
• Supersedes part number 23316609
• 7 inch touchscreen
• Listed for EVC-E and EVC2 systems
• All-in-one unit with built-in GPS antenna and SD-card reader
• Pinch-to-zoom and other multi-touch controls
• Fully integrated with Volvo Penta Electronic Vessel Control (EVC), with monitoring features such as the Dynamic Positioning System, Interceptors and Autopilot available through the display
• Heading and position refreshed 10 times per second
• Simplified SOS calling
• View and control the device from a smartphone or tablet
• Screen size: 7 inch
• Sonar: yes
• Evc generation: EVC-E, EVC2
• Fits: EVC-E and EVC2 installations

🔌 Function

Displays engine, navigation and system information at the helm and gives the operator the controls to work through it.

⚠️ Common Signs of Failure

• Screen dark, dim, or slow to come on
• Touch response drifting, or dead in places
• Display freezing or restarting on its own
• Moisture or fogging behind the glass
• Connector or seal found corroded on removal

🛠️ Service Notes

• Mounting kit 23988378 is the 7-inch kit and is ordered separately
• 23989003 is the 7-inch screen without sonar functionality, so settle whether sonar is wanted before ordering - the two are the same size in the panel
• Check the network wiring and the supply before condemning a dark screen
• The mounting kit is a separate order: 23988378 for 7 inch, 23988939 for 9 inch and 23988974 for 12 inch
• The variant is the product - size and sonar functionality are what separate the five displays: 9" with sonar is 23975342, 12" with sonar is 23975345, 7" without sonar is 23989003, 9" without sonar is 23989056

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23975324 → Supersedes 23316609 → Supersedes 23093413 → Supersedes 22799781

OEM / Related Numbers

• 23316609 earlier number superseded by this part
• 23093413 earlier number superseded by this part
• 22799781 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-380-CE-J, V8-430-CE-J, V8-350-CE-J, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-J, V8-380-CE-N, V8-430-CE-N
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-280-CE-N, V6-250-CE-O, V6-240-CE-J
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C5-A MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta D16C-D MH, D16C1-E MH
