23983553 Complete 300mm Trim Tab Kit Trimming Raft | Genuine Volvo Penta Part

🔧 Product Description

A complete electronic interceptor trim-system package for a single installation with one helm station. The compact 300 mm interceptors mount across the transom and provide rapid control of both pitch and heel, helping a planing boat reach the plane sooner, run with a more level attitude and maintain improved comfort and efficiency. The system uses self-contained electric interceptor actuators rather than external hydraulic cylinders. It is suitable for boats powered by outboards, sterndrives or inboard shafts and is not restricted to a particular engine brand.

🚤 Compatibility

• Engine Family: D, V
• HP Range: 110-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Complete 300 mm Boat Trim System installation package
• Fast electronic response for pitch and heel correction
• Compact transom-mounted interceptor design
• No external hydraulic pump, hoses or cylinders
• Automatic interceptor retraction when the installation is shut down
• Also supersedes Volvo part number 21175616

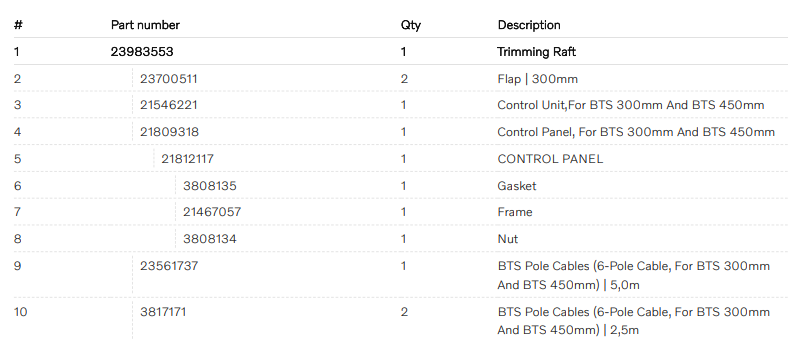

📋 Kit Contents

• Interceptor kit, 300mm, one helm station

🔌 Function

The interceptors extend vertically into the water flow to generate lift at the stern. Independent port and starboard control corrects vessel list, while simultaneous movement adjusts running trim and pitch.

⚠️ Common Signs of Failure

• One interceptor does not deploy or retract
• Port and starboard response becomes uneven
• Control panel is unresponsive or displays a system fault
• Interceptors move intermittently because of cable, power or control-unit faults
• Vessel develops persistent list, slow planing or excessive bow rise
• Interceptors fail to retract when the system is shut down

🛠️ Service Notes

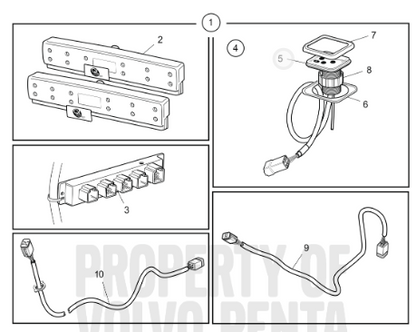

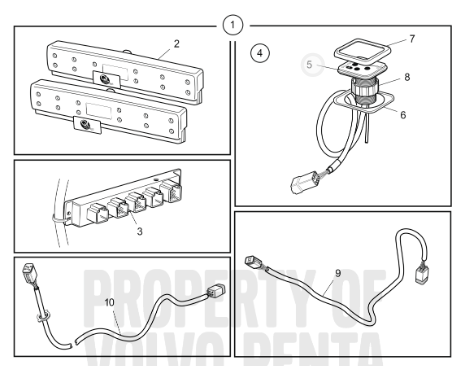

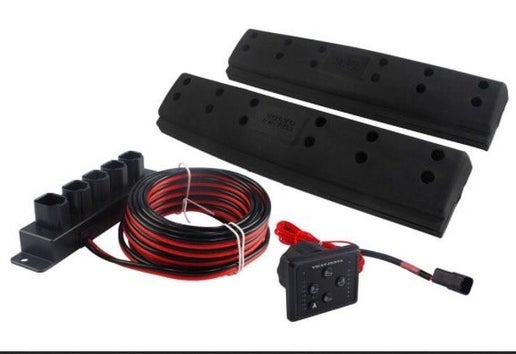

• This 300 mm BTS kit packages the two interceptor units, control panel, control unit and cabling for one helm station — check what a prior installer left in place before ordering a second kit, and confirm you hold the current 23983553 number rather than one of the superseded 21914554, 21534532, 21248221, 21175615, 3593903 or 3841717 packages
• The interceptors are self-contained electric actuators, not hydraulic rams, so there is no fluid to bleed or top up — if trim response is slow or uneven, check the actuator wiring, connectors and control unit rather than looking for trapped air as you would on a hydraulic trim system

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23983553 → Supersedes 21914554 → Supersedes 21534532 → Supersedes 21248221 → Supersedes 21175615 → Supersedes 3593903 → Supersedes 3841717

OEM / Related Numbers

• 21914554 earlier number superseded by this part
• 21534532 earlier number superseded by this part
• 21248221 earlier number superseded by this part
• 21248220 earlier number superseded by this part
• 21175615 earlier number superseded by this part
• 3593903 earlier number superseded by this part
• 3841717 earlier number superseded by this part

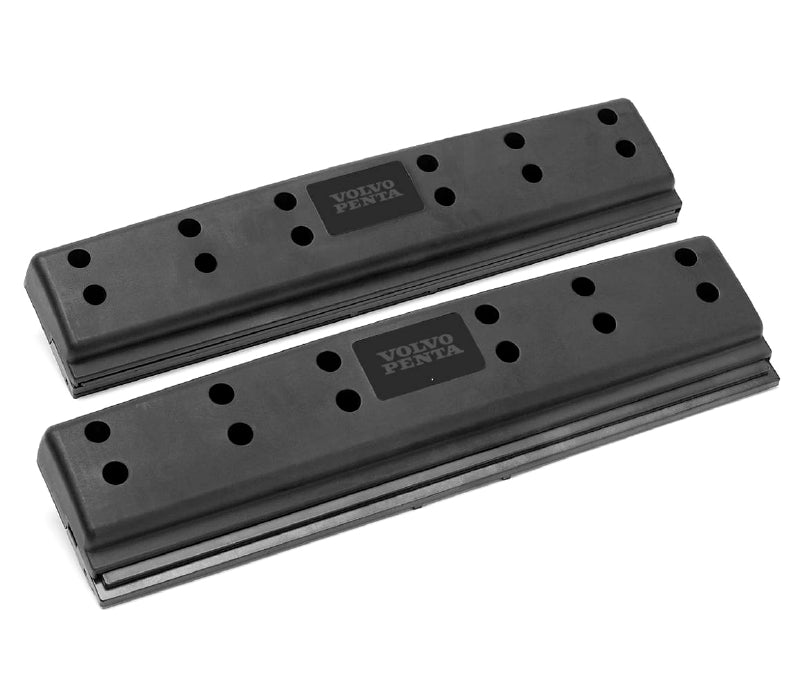

• 22656800 - 300 mm interceptor unit

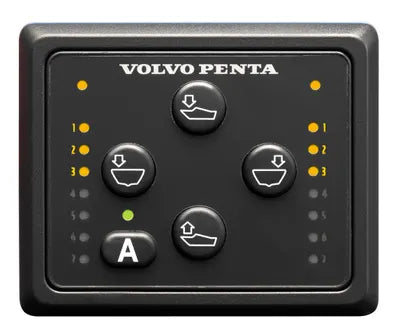

• 21809318 - control panel
• 21546221 - control unit
• 3817171 - 2.5 m cable
• 23561737 - 5 m cable
• 21561103 - optional Automatic Boat Trim module

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-250-P, V6-250-C-P, V6-280-P, V6-280-C-P, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-280-R, V6-280-C-R
• Volvo Penta V8-350-C-R, V8-380-C-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-350-C-P, V8-380-C-P, V8-430-C-P, V8-300-C-J, V8-300-CE-J, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-300-C-S, V8-350-C-S
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11B3-A MP, D11B1-A MP
