23988974 Mounting Kit | Genuine Volvo Penta Part

🔧 Product Description

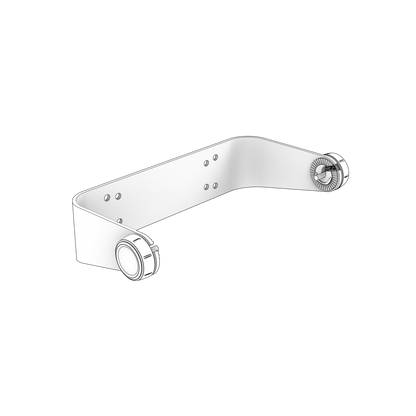

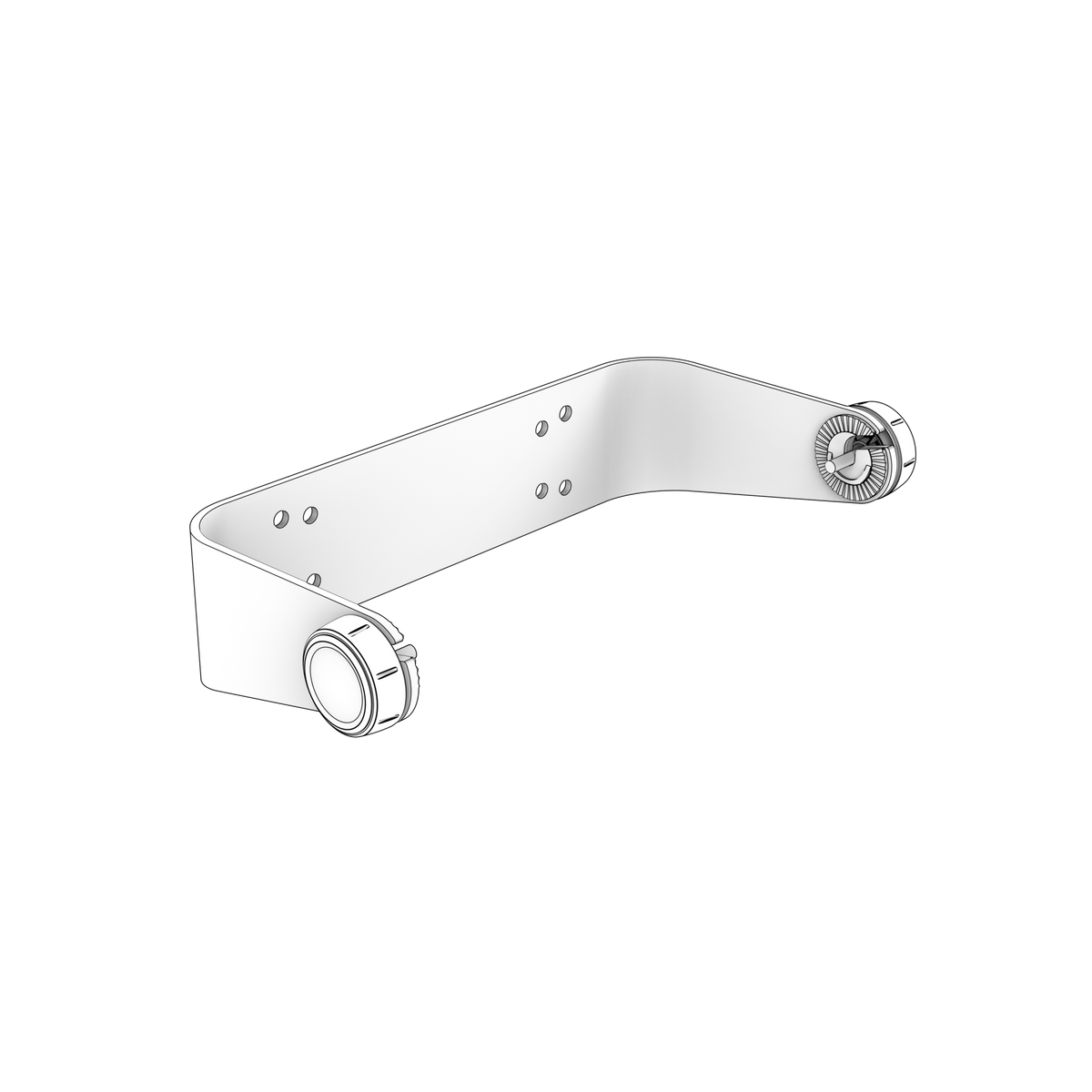

Genuine Volvo Penta B12XSV Bail and Flush Mounting Kit - Part Number: 23988974

A genuine mounting-hardware package for installing the 12-inch Volvo Penta Glass Cockpit B12XSV display. The kit supports either an adjustable bail-bracket installation or an integrated flush-mount installation, allowing the display to be fitted correctly into a helm console or instrument panel.

Kit Contents:

• B12XSV bail-and-flush mounting hardware assembly - Part Number: 23988974

The individual bracket, flush-mount and retaining-hardware pieces are serviced together under part number 23988974; separate component part numbers are not assigned in the Volvo Penta service listing. Display, cover, cables, network connector and any separate bezel or mounting plate are not included.

⚙️ Key Features

• Genuine Volvo Penta Glass Cockpit mounting hardware

• Supports bail-bracket and flush-mount installation

• Designed for the 12-inch B12XSV display housing

• Maintains the correct support, alignment and viewing position

• Suitable for new installations and replacement of damaged or missing mounting hardware

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 23988974 (current OEM mounting-kit reference)

OEM / Related Numbers:

• 23975345 - complete B12XSV monitor kit

• 23975344 - B12XSV monitor

• 23988955 - sun cover

• 23316641 - power cable

• 21812194 - 2 m NMEA 2000 cable

• 21640400 - display/network cable

• 21812195 - NMEA 2000 T-connector

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Volvo Penta Glass Cockpit B12XSV 12-inch displays

• Volvo Penta EVC installations using the corresponding Glass Cockpit monitor

• Bail-mounted and flush-mounted helm-console installations

Typically suits:

• Engine models commonly catalogued with this display:

• D11B1-A MP

• D11B2-A MP

• D11B3-A MP

• D11B4-A MP

• D11C1-A MP

• D11C2-A MP

• D11C3-A MP

• D11C4-A MP

• D13B-N MH

• D13B-N MH (FE)

• D13C1-A MH

• D13C1-A MP

• D13C2-A MH

• D13C2-A MP

• D13C2-B MP

• D13C3-A MP

• D13C4-A MP

• D13C4-B MP

• D13C5-A MP

• D13C6-A MP

• D13C7-B MP

• D13C8-B MP

• D16C-D MH

• D16C1-E MH

• D16C1-F MH

• D16C2-E MH

• D16C2-F MH

• D3-110I-H

• D3-140A-H

• D3-150I-H

• D3-170A-H

• D3-170I-H

• D3-200A-H

• D3-200I-H

• D3-220A-H

• D3-220I-H

• D4-145I-G

• D4-150A-G

• D4-175I-G

• D4-230A-G

• D4-230I-G

• D4-270A-G

• D4-270I-G

• D4-300A-G

• D4-300I-G

• D4-320A-G

• D4-320I-G

• D6-300A-G

• D6-300D-G

• D6-300I-G

• D6-340A-G

• D6-340D-G

• D6-340I-G

• D6-380A-G

• D6-380D-G

• D6-380I-G

• D6-400A-G

• D6-440A-G

• D6-440D-G

• D6-440I-G

• D6-440I-WJ-G

• D6-480D-G

• D6-480I-G

• D6-480I-WJ-G

• D8A1-A MP

• D8A2-A MP

• D8A3-A MP

• D8A4-A MP

• D8A5-A MH

• D8A6-A MH

• Display Size: 12 inch

• Engine Type: Volvo Penta electronically controlled marine installations

• HP Range: Determined by the connected engine package rather than the mounting kit

• Serial Applicability: Match the exact display designation, housing generation and helm cut-out before installation

🔌 Function

The mounting kit secures the Glass Cockpit display to the helm, controls its position and viewing angle in a bail installation, or retains it correctly within the panel during flush mounting.

Common signs of failure:

• Display vibrates, shifts or rattles at the helm

• Bail bracket no longer holds the selected viewing angle

• Mounting hardware is cracked, bent, corroded or missing

• Flush-mounted display becomes loose in the panel

• Fasteners repeatedly loosen because the original hardware is damaged

• Poor seating allows water to collect around the display opening

📦 Condition

• Genuine Volvo Penta part

• Brand new

• Supplied in original or equivalent packaging
