23989056 Monitor | Genuine Volvo Penta Part

🔧 Product Description

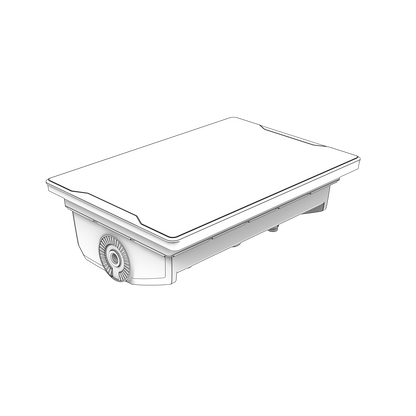

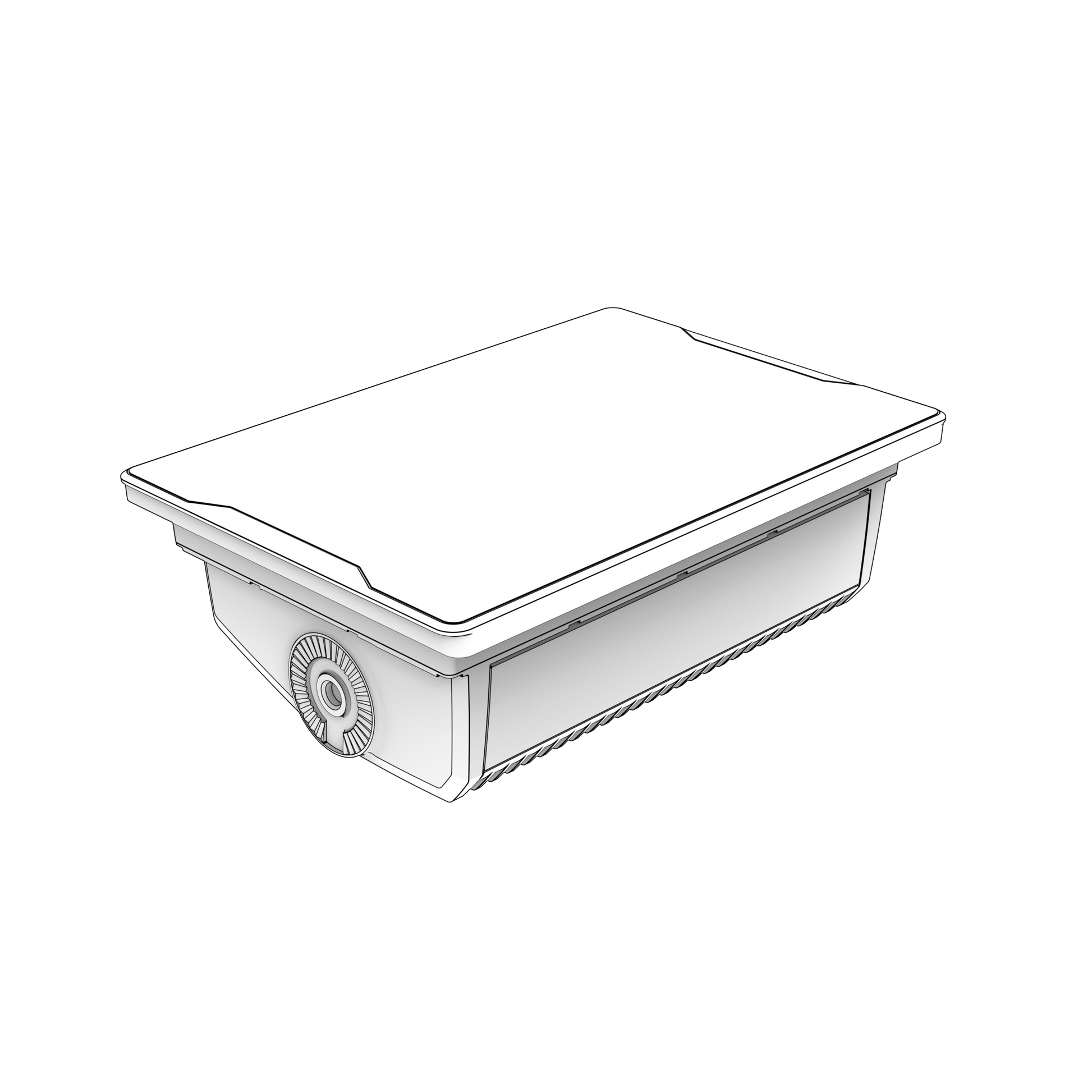

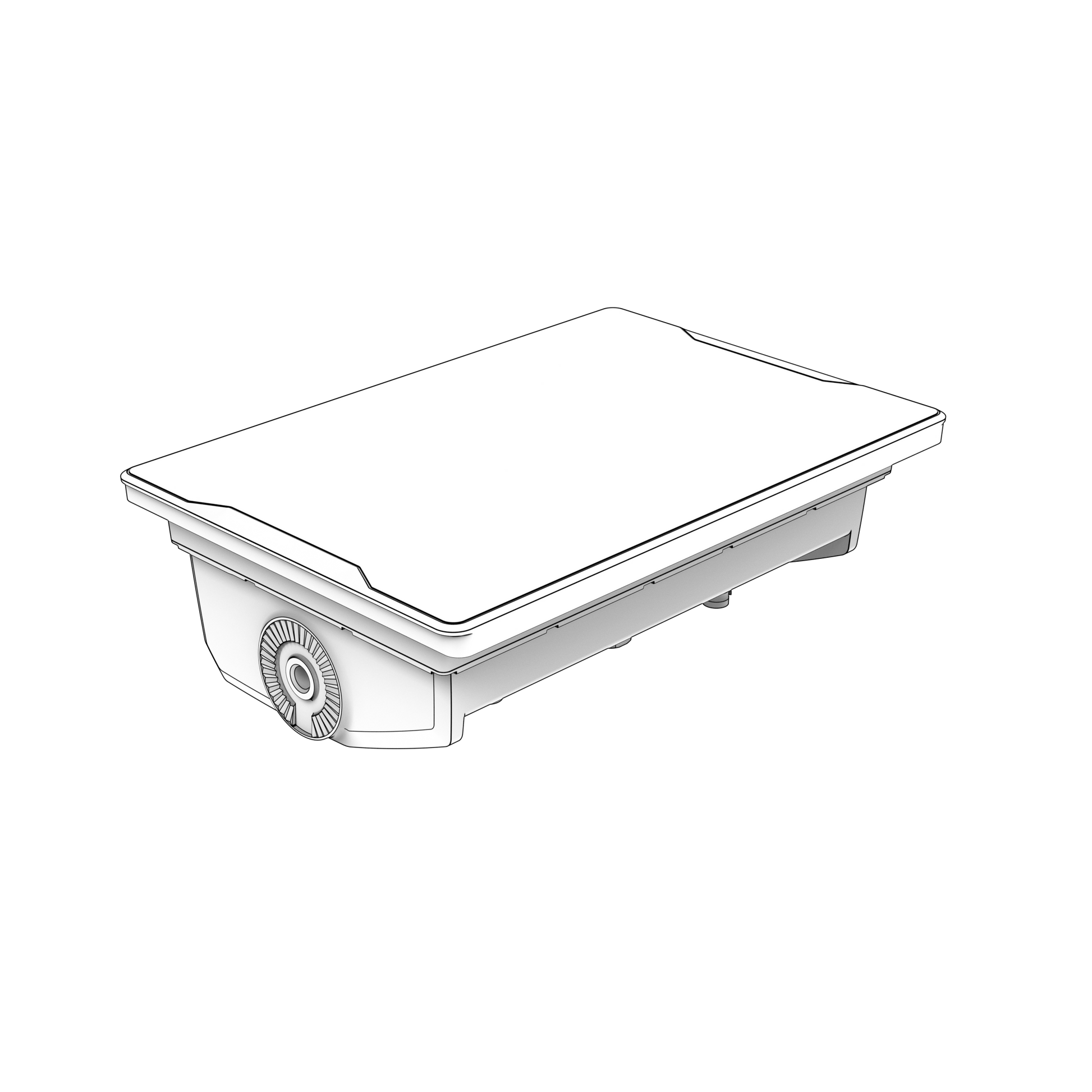

Genuine Volvo Penta 9-inch multi-function touchscreen display, the version without sonar functionality, listed for the EVC-E and EVC2 generations. It weighs 3.257 kg and is listed for 39 applications across V and D series engines. It shows navigation, engine data, warnings, alarms and the smart boating features on one screen at the helm, with a US detailed and worldwide base map included.

🚤 Compatibility

• Engine Family: V, D
• HP Range: 110-430 HP

Full model list at the end of this description.

⚙️ Key Features

• 9-inch touchscreen display without sonar functionality
• For EVC-E and EVC2 generation systems
• 3.257 kg
• US detailed and worldwide base map included
• Listed for 39 applications across V and D series engines
• 9 inch touchscreen
• Listed for EVC-E and EVC2 systems
• All-in-one unit with built-in GPS antenna and SD-card reader
• Pinch-to-zoom and other multi-touch controls
• Fully integrated with Volvo Penta Electronic Vessel Control (EVC), with monitoring features such as the Dynamic Positioning System, Interceptors and Autopilot available through the display
• Heading and position refreshed 10 times per second
• Simplified SOS calling
• View and control the device from a smartphone or tablet
• Integrated NMEA 2000 and Wi-Fi connection
• Screen size: 9 inch
• Sonar: no
• Evc generation: EVC-E, EVC2
• Fits: EVC-E and EVC2 installations

🔌 Function

Presents engine, drive and navigation information at the helm, combining the instrument display with chart plotting from its preloaded basemap.

⚠️ Common Signs of Failure

• Screen blank or dim, or the backlight failed while the unit still powers up
• Touch or key input not registering, or registering in the wrong place
• Display washed out, discoloured, or showing lines and blotches
• Condensation inside the glass after water has got past the seal
• Unit resetting, freezing, or losing its link to the engine network

🛠️ Service Notes

• Mounting kit 23988939 is the 9-inch kit and is ordered separately
• 23975342 is the same 9-inch size with sonar functionality, and 23989003 is the 7-inch screen in this non-sonar pair
• Check the supply and network connections behind the unit before condemning a monitor - a corroded plug behaves exactly like a dead screen
• The mounting kit is a separate order: 23988378 for 7 inch, 23988939 for 9 inch and 23988974 for 12 inch
• The variant is the product - size and sonar functionality are what separate the five displays: 7" with sonar is 23975324, 9" with sonar is 23975342, 12" with sonar is 23975345, 7" without sonar is 23989003

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C5-A MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-430-CE-M, V8-380-CE-N, V8-430-CE-N
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta D11B3-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta V6-200-CE-N, V6-280-CE-N, V6-250-CE-O
• Volvo Penta D16C-D MH
