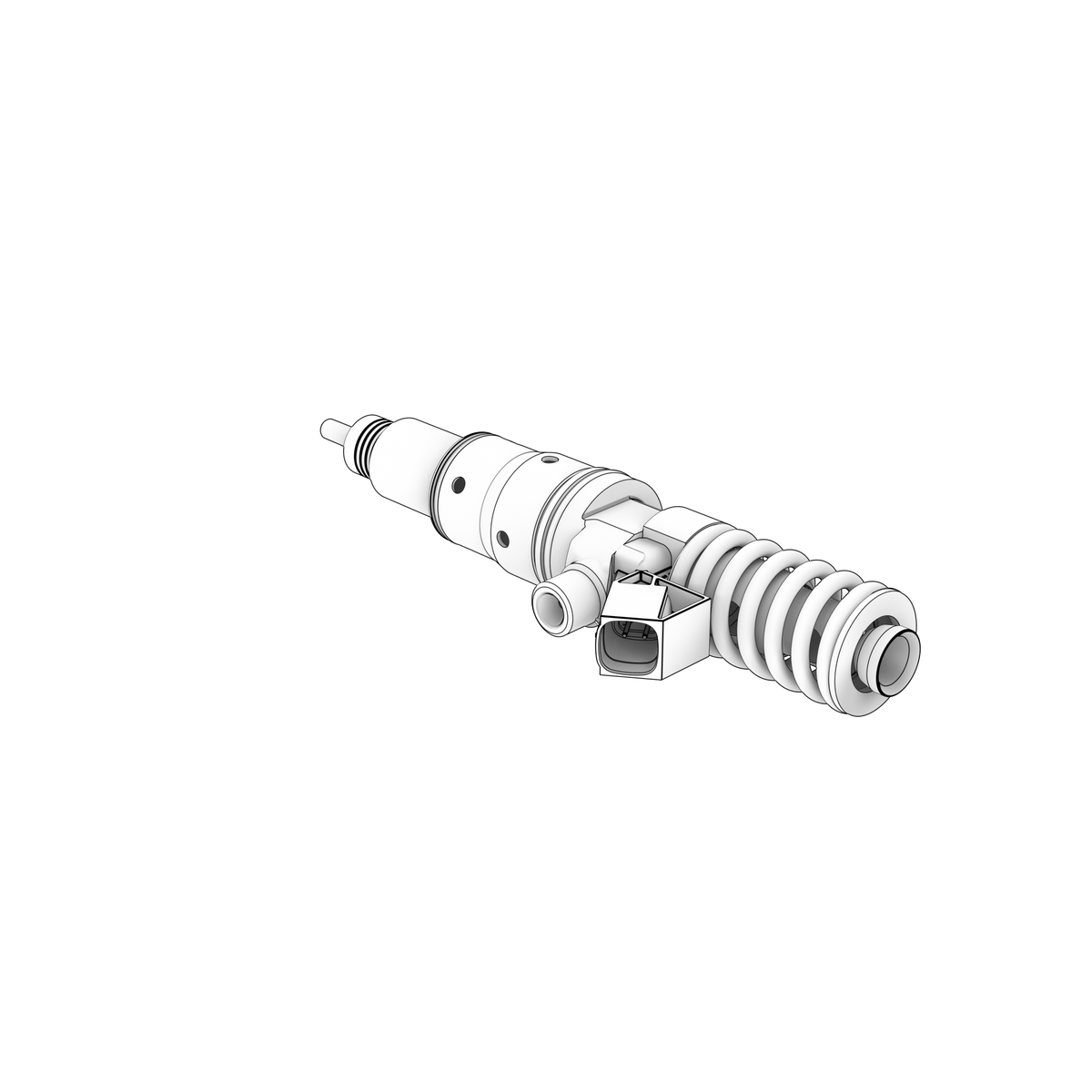

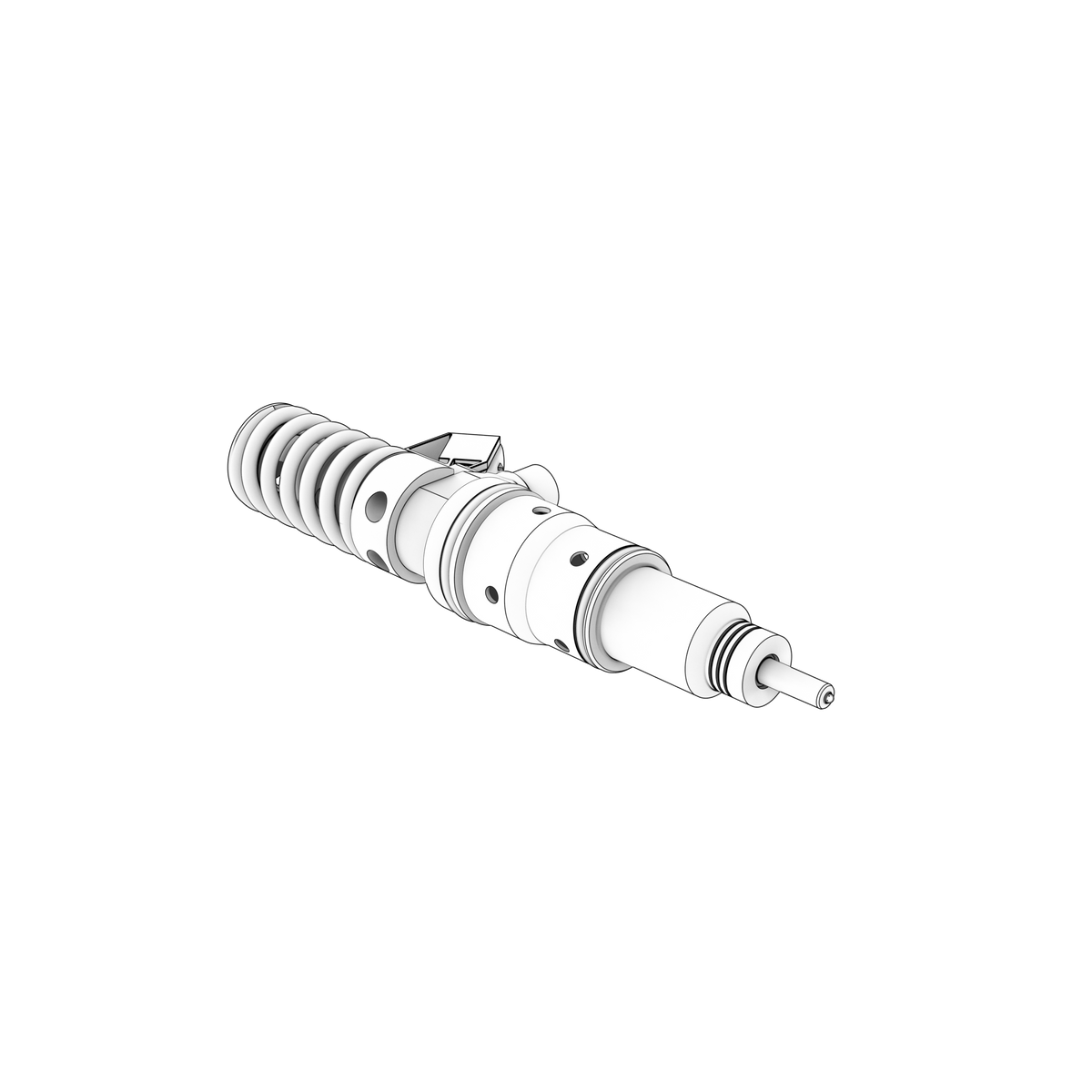

24014553 Injector | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta injector from the Fuel System group, weighing 1.134 kg. It supersedes part number 23238954 and covers its TWD series engine application. Injectors are matched to the engine's fuelling calibration.

⚙️ Key Features

• Injector from the Fuel System group
• 1.134 kg
• Supersedes 23238954
• Covers the TWD series engine application listed against the superseded number
• Matched to the engine's fuelling calibration

🔌 Function

Delivers a metered, atomised spray of diesel into the cylinder at exactly the right moment, and seals the combustion chamber where it passes through the head.

⚠️ Common Signs of Failure

• Rough running, a misfire, or a knock from one cylinder
• Black or white smoke and heavy fuel consumption
• Hard starting, particularly from cold
• Excessive back-leakage measured on the return line
• Injector tip coked or eroded, with carbon tracking round the seat

🛠️ Service Notes

• Renew the copper sealing washer and the o-rings with the injector - a reused crushed washer is a common cause of blow-by
• Clean the injector bore in the head before fitting and tighten the clamp evenly
• Code or calibrate the new injector to the control unit where the engine requires it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24014553 → Supersedes 23238954

OEM / Related Numbers

• 23238954 earlier number superseded by this part

Other-Brand OEM Numbers

• Delphi: 42019747

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
