24044444 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

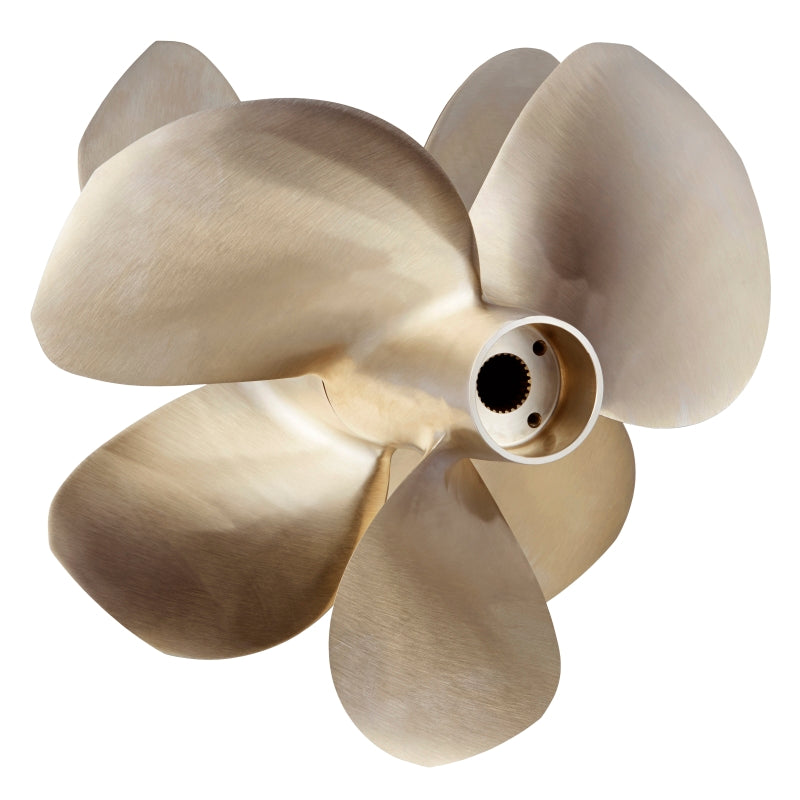

Genuine Volvo Penta four-blade nibral propeller for Volvo Penta IPS 1, IPS 10, the rear half of the type TS4 counter-rotating pair. It is machined from the specially developed nibral (nickel-bronze-aluminium) alloy Volvo Penta uses for its IPS propellers, which gives minimum growth, excellent durability and corrosion resistance. Volvo Penta IPS turns the propellers round to a forward-facing position, so the twin counter-rotating propellers pull the boat through the water rather than push it, and optimal interaction between the front and rear propeller holds performance and fuel efficiency across the whole speed range. The rear propeller carries the patented flow deflector, which controls the water flow and minimizes pressure and wear on the propeller shaft seals.

⚙️ Key Features

• Type TS4 rear propeller for IPS 1 and IPS 10
• Nibral nickel-bronze-aluminium alloy, the Type T/TS series for IPS with D4 and D6 engines
• 10.095 kg
• Pairs with Type TS4 front propeller 24044394; complete set is 23442964
• Forward-facing counter-rotating pair - the drive pulls the boat through the water rather than pushing it
• Type TS4 rear propeller, four-blade.
• Extremely strong and specially developed nibral (nickel-bronze-aluminium) alloy.
• Minimum growth, excellent durability and corrosion resistance.
• Fully CNC machined and precisely balanced.
• Patented flow deflector minimizes pressure and wear on propeller shaft seals.
• Material: nibral
• Fits: Volvo Penta IPS 1, IPS 10 (D4 and D6 engines)
• Type: TS4
• Set contains: set 23442964, front 24044394

📋 Kit Contents

• 1 × Type TS4 4-blade rear Nibral propeller - Part Number: 24044444
• Matching front propeller 24044394, complete propeller set 23442964, cone hardware and installation consumables are serviced separately.

🔌 Function

Runs behind the front propeller and turns the opposite way, recovering the swirl left in its wake as further thrust and cancelling the sideways pull a single propeller would produce. It is also the propeller the line cutter mounts to, and its TS4 designation has to match the front propeller for the engine to be loaded correctly.

⚠️ Common Signs of Failure

• A grumble or buzz from the drive that comes and goes with load
• Slow acceleration and a boat reluctant to lift onto the plane
• Blade edges nicked, bent back or eaten away by cavitation erosion
• Rope, netting or fishing line wrapped between the propeller and the drive housing, sometimes with oil weeping from the seal behind it
• On a twin installation, one drive pulling different engine speed or load from the other at the same throttle

🛠️ Service Notes

• This number is one propeller of a pair - order the Type TS4 front 24044394 with it, or the complete TS4 set 23442964, because a mismatched pair will not let the engine reach its rated speed
• The TS4 front 24044394 and rear 24044444 are published at 13.146 kg and 10.095 kg, 1.524 kg more than the 21.717 kg published for the set, so the figures do not reconcile - order by the TS4 designation, never by weight
• Check the shaft seal and clear any line from behind the hub while the propeller is off, and confirm wide-open-throttle speed against the engine rating after any propeller change
• Fit front and rear to the same type code - complete set 23442964.
• Line cutter 23062729 is the one listed for Volvo Penta IPS 1, IPS 10.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24044444 → Supersedes 23443004 → Supersedes 21368018 → Supersedes 21368019

OEM / Related Numbers

• 23443004 earlier number superseded by this part
• 21368018 earlier number superseded by this part
• 21368019 earlier number superseded by this part
• 23442964 - Complete Type TS4 front-and-rear propeller set
• 24044394 - Matching Type TS4 3-blade front propeller
• 21368016 - Earlier Type TS4 complete propeller-set reference
• 21368017 - Earlier Type TS4 front-propeller reference
• 23779449 - Propeller cone kit
• 22072153 - Propeller cone
• 963699 - Hex-socket screw
• 3861088 - Front lock plate
• 21293480 - Front propeller nut
• 3861209 - Rear lock ring
• 3861087 - Rear lock nut
• 23062729 - Optional IPS 1 line cutter
• 3862454 - Flow deflector
• 23284156 - Locking fluid, 10 ml

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
