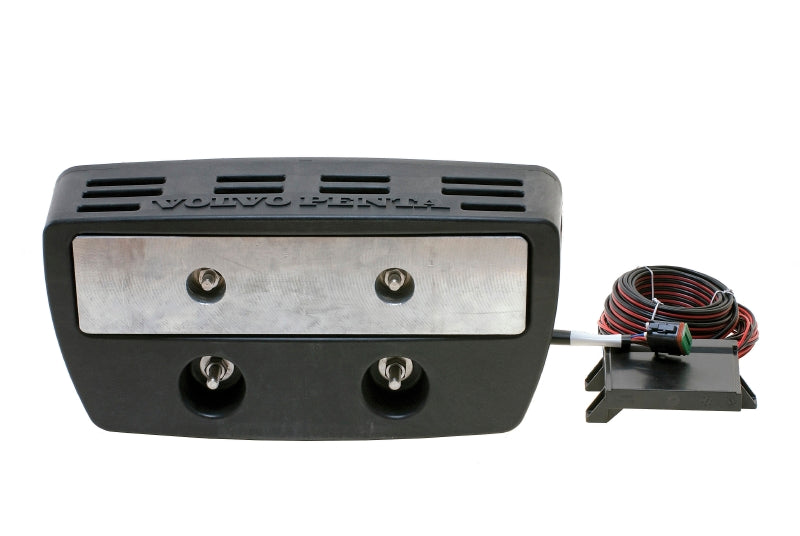

24050634 Anode | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta Active Corrosion Protection is an impressed current cathodic protection system for Aquamatic sterndrives and Volvo Penta IPS. It continuously measures the electrical potential of the drive and automatically adjusts the electrical output to hold the drive within safe potential levels, in both salt and brackish water. Because the protection is generated electrically rather than consumed from a block of metal, no anodes are used up while the system is active, and the protection status is shown in the engine displays at the helm.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11A-C MP
• Volvo Penta D11A-D MP
• Volvo Penta D11A-E MP
• Volvo Penta IPS20-D
• Volvo Penta IPS2-C
• Volvo Penta D8A4-A MP
• Volvo Penta IPS2-A
• Volvo Penta IPS2-B

• Engine Family: D, IPS

⚙️ Key Features

• Active Corrosion Protection anode for Volvo Penta IPS
• Listed for EVC generation C2 to EVC E
• 16.275 kg
• Listed for 12 applications across D series engines and IPS pod drives
• Supersedes 22564286
• Impressed current cathodic protection (ICCP) with a much higher protection capacity than conventional zinc or aluminium sacrificial anodes
• Fully automated and integrated with the Electronic Vessel Control (EVC) system, with protection status shown on the existing engine displays - no extra display needed
• Replaces the sacrificial anodes on the drive for Aquamatic sterndrives, and the standard transom mounted sacrificial anodes on Volvo Penta IPS installations
• Supplied complete with control unit, transom unit and back-up zinc anode, and with installation instructions
• Current capacity of 3 A, with typical consumption under most conditions below 50 mA for a single Aquamatic sterndrive
• Listed for IPS15, triple installation, on EVC C2 to EVC E
• Installation: Triple
• Evc generation: EVC C2 to EVC E
• Current capacity: 3 A
• Fits: Volvo Penta IPS15, triple installation

📋 Kit Contents

• Control unit
• Transom unit
• Back-up zinc anode
• Wiring and installation instructions

🔌 Function

Part of the drive's corrosion protection package: on IPS installations the active system takes over from the standard transom mounted sacrificial anodes, and the anode carries the protection when the system is not driving current.

⚠️ Common Signs of Failure

• Anode eaten away far more than expected for the hours run
• Anode untouched after a season, which points to a broken bonding path
• Pitting or blistering appearing on the drive housing
• Fouling or coating over the anode surface
• Corroded, seized fixings when the anode is unbolted

🛠️ Service Notes

• The EVC generation is the selection detail - check what the installation runs before ordering, since the EVC2 kits carry different numbers
• Clean the mounting face back to bright metal so the anode is electrically connected, and leave it unpainted
• Triple and quad IPS installations need extra bonding cable 21200402 between the pods, one for a triple and two for a quad
• Requirements: a Volvo Penta IPS or an Aquamatic DPI, DPH, DPS, SX, OX, FWD or DPR sterndrive; Electronic Vessel Control generation C2 or later; a 2.5in, 4in or 7in EVC display or Glass Cockpit; and a fibreglass hull
• Twin Aquamatic sterndrive installations are supplied with two back-up anodes
• Extra bonding cable is needed between IPS units on triple and quad installations - one for a triple, two for a quad
• Volvo Penta recommends keeping shore power connected while berthed
• Below 75% battery state of charge with no shore power the system enters a monitor-only mode: status is still visible at the helm but protection comes from the back-up sacrificial anodes
• Below 50% battery state of charge the system is inactive and protection comes entirely from the back-up anodes
• Typical consumption is under 350 mA for a triple IPS1/10 installation with unpainted drives; with painted drives that can fall below 50 mA
• Always follow Volvo Penta's instructions for painting IPS drives, and the legislation governing antifouling paints where the boat is used

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24050634 → Supersedes 22564286 → Supersedes 22045544 → Supersedes 21430283

OEM / Related Numbers

• 22564286 earlier number superseded by this part
• 22045544 earlier number superseded by this part
• 21430283 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
