24078952 Volvo Penta Charge Cooler Housing | Genuine Used Part

🔧 Product Description

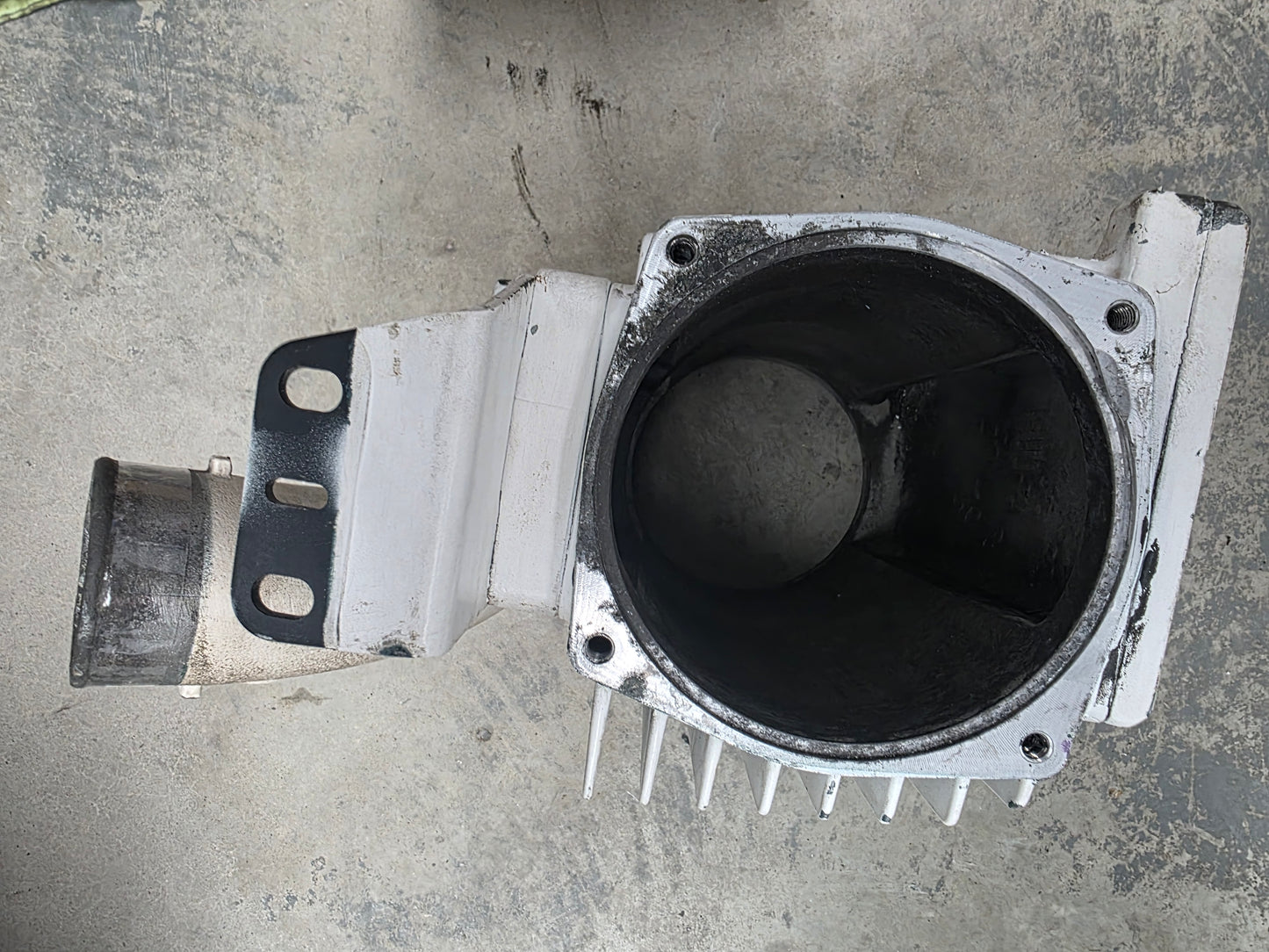

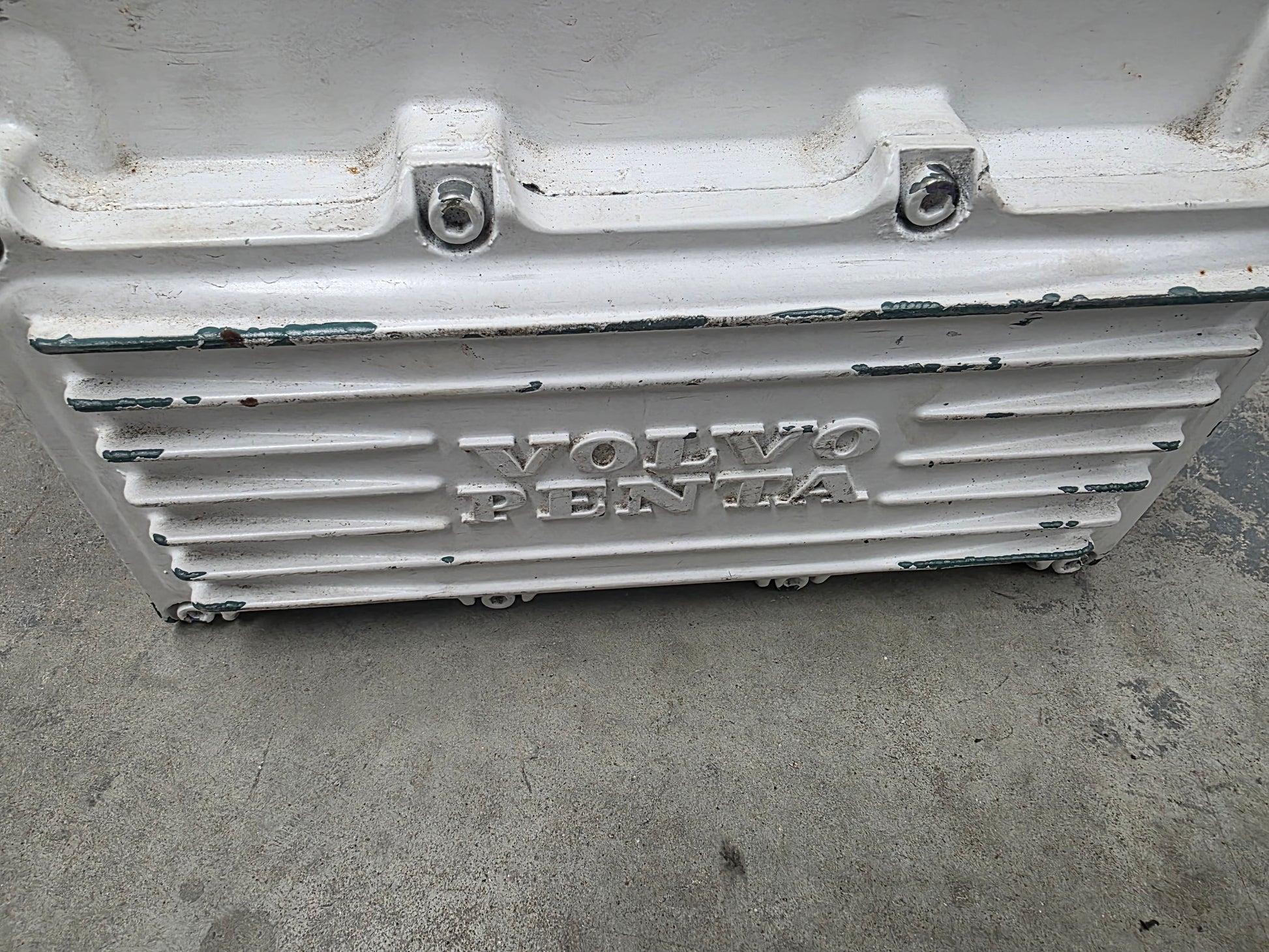

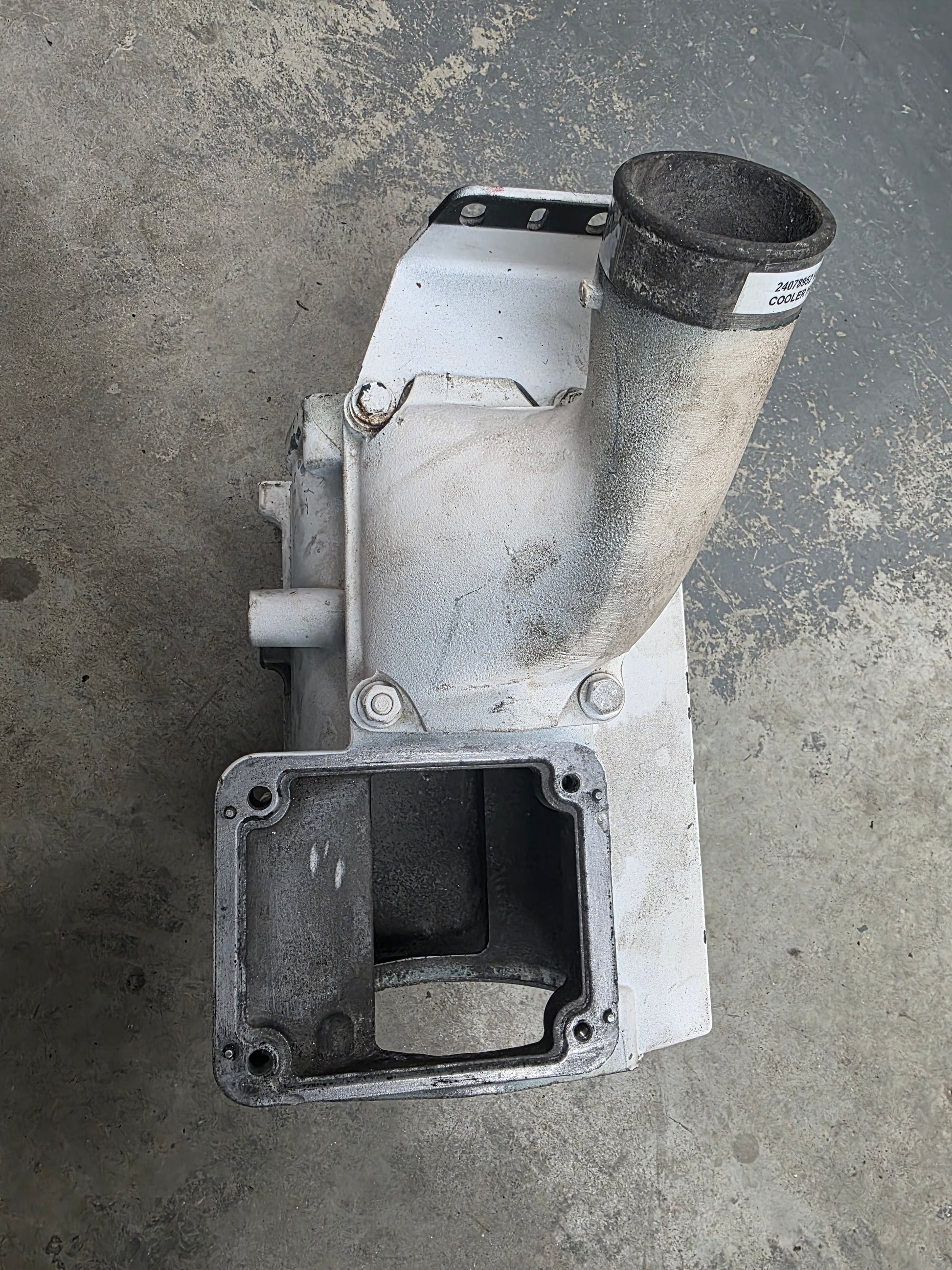

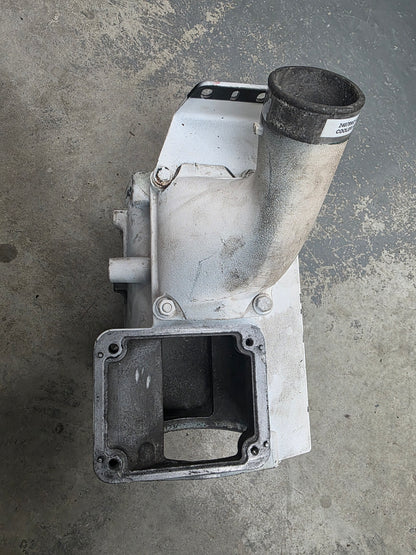

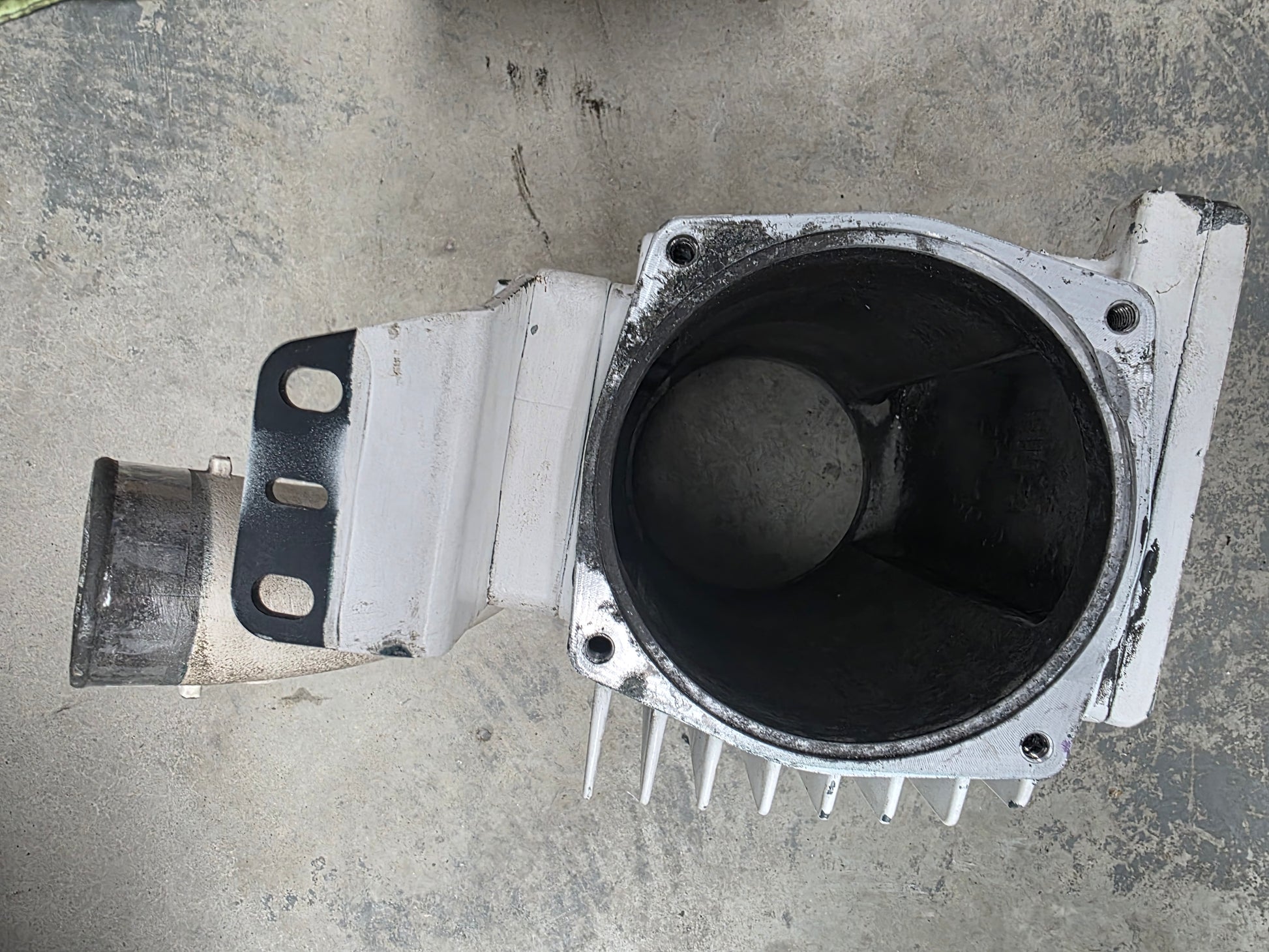

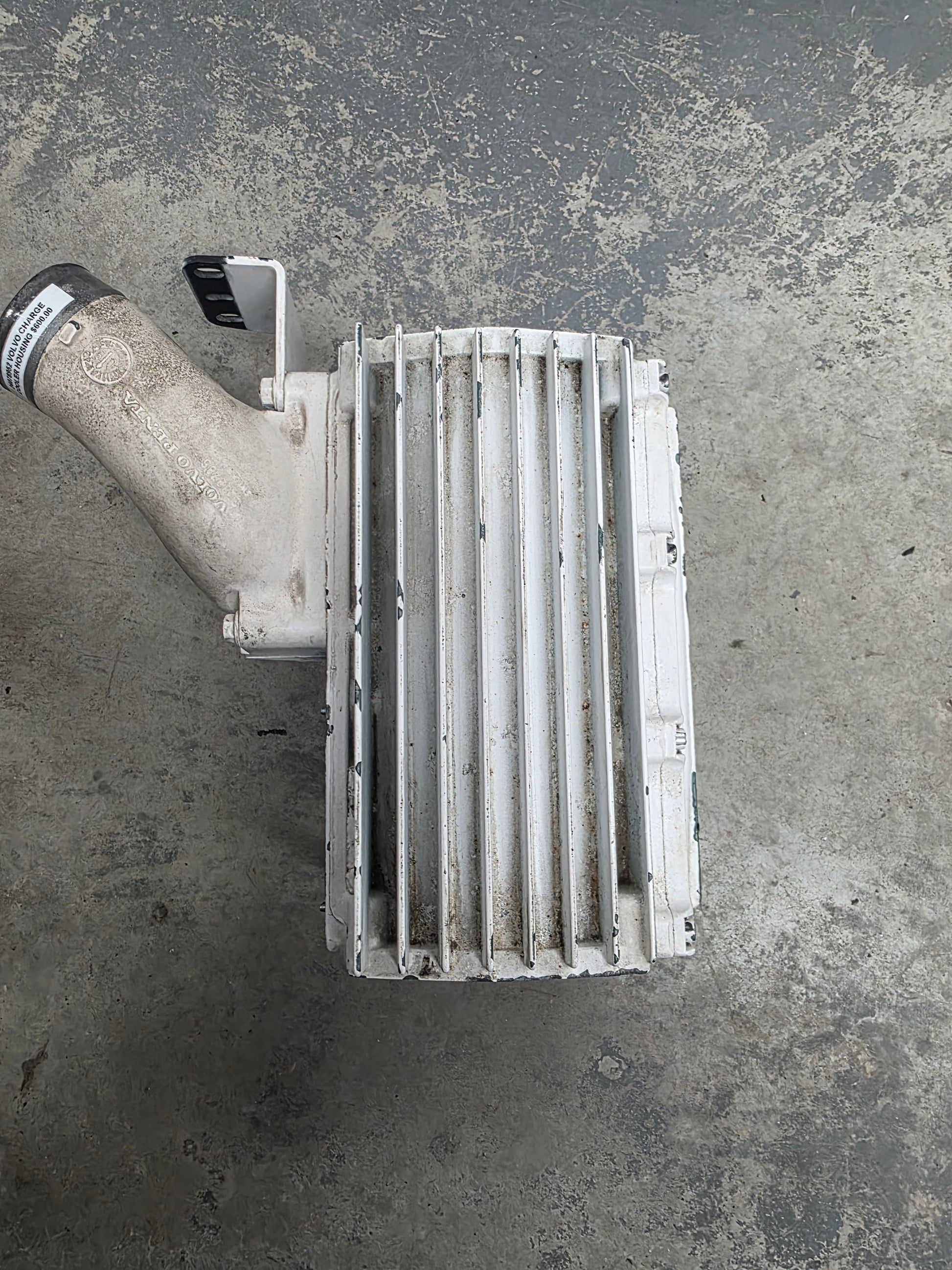

Genuine Volvo Penta D4 / D6 Charge-Air Cooler Housing - Part Number: 24078952

A genuine Volvo Penta charge-air cooler or aftercooler housing for selected D4 and D6 common-rail marine diesel engines. The housing surrounds the cooler core and routes compressed turbocharger air and cooling water through their separate passages before the cooled charge air enters the intake system.

⚙️ Key Features

• Genuine Volvo Penta OEM housing
• Correct current part number 24078952
• Supersedes 21692360
• Used on selected D4 and D6 diesel engines
• Forms the outer housing of the charge-air cooler assembly

🚤 Compatibility

• Selected Volvo Penta D4 common-rail marine diesels
• Selected Volvo Penta D6 common-rail marine diesels
• Documented applications include D6-280A-E and related D4 / D6 charge-air-cooler systems
• Fitment is controlled by engine model, serial number and charge-cooler assembly

🔌 Function

The housing contains the charge-air cooler core so raw water can remove heat from turbo-compressed air without mixing with the intake-air stream.

⚠️ Common Signs of Failure

• Internal corrosion or pitting
• Raw water leaks into the intake-air side
• Boost-air leak from a cracked housing
• Damaged end-cover sealing surfaces
• Salt or scale restricts cooling flow
• Loss of power, smoke or coolant / water leakage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24078952 → Supersedes 21692360
• 21692360 is the earlier Volvo Penta housing reference
• No additional confirmed supersession has been identified

OEM / Related Numbers

• 24078952
• 21692360
• Related charge-air cooler core
• Related end covers, O-rings and gaskets
• Related zinc anodes where specified
• Related turbocharger outlet and intake hoses

Aftermarket / Verified Equivalents

• No verified branded complete aftermarket housing with a distinct cross-reference
• D6Parts and specialist marine suppliers offer replacements under Volvo references 24078952 / 21692360
• Aftermarket or remanufactured cooler cores, seals and end-cover kits are available separately
• The housing must match the engine's cooler-core and hose configuration

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
