24210-ZW1-010 Click Spring | Genuine Used Part

🔧 Product Description

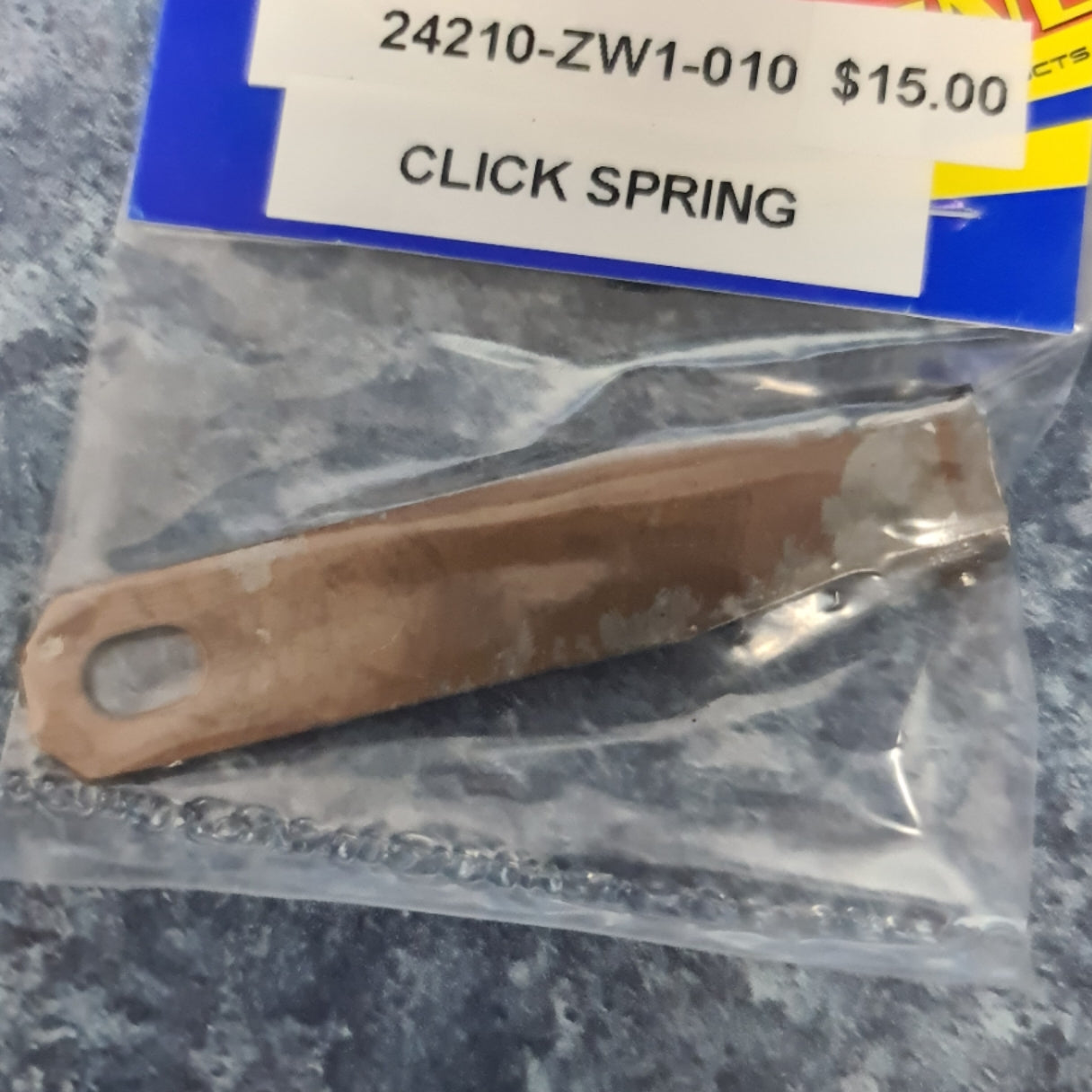

Genuine Honda Outboard Shift Detent Click Spring - Part Number: 24210-ZW1-010

A genuine used Honda Marine shift-detent spring used across numerous medium and large four-stroke outboard shift-shaft assemblies.

Honda describes the component as Spring Comp., Click. It loads the detent mechanism that provides positive feel and retention at the forward, neutral and reverse shift positions.

⚙️ Key Features

• Genuine used Honda Marine click spring
• Correct OEM part number 24210-ZW1-010
• Shift-detent spring assembly
• Used across multiple Honda four-stroke engine families
• Factory spring rate and shape

🚤 Compatibility

Commonly used on

• Honda four-stroke shift-shaft and detent assemblies

Verified model families include

• BF75A, BF75D and BF80A groups
• BF90A, BF90D and BF100A groups
• BF115A, BF115D, BF130A, BF135A and BF150A groups
• BF175A / D, BF200A / D and BF225A / D groups
• BF250A / D groups where the shift-shaft diagram specifies 24210-ZW1-010
• Official BF175 / BF200 / BF225 AK2 and AK3 diagrams include this spring
• HP Range: Approximately 75HP-250HP
• Engine Type: Honda EFI four-stroke outboard
• Fitment Note: Verify the complete model and frame serial because surrounding linkage differs

🔌 Function

The spring loads the shift detent so the linkage positively locates and remains in forward, neutral or reverse.

⚠️ Common Signs of Failure

• Shift lever lacks a positive detent feel
• Gear selection moves out of position
• Spring is broken or distorted
• Shifting becomes unusually light or vague
• Detent mechanism binds
• Spring tension is weak
• Linkage does not centre correctly in neutral

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24210-ZW1-010 current long-running click-spring reference

OEM / Related Numbers

• 24210-ZW1-010
• 24210ZW1010
• 24221-ZY3-000 related click-assist spring
• 24327-ZW1-000 related stopper ring
• Related shift shaft, detent arm, ball and linkage hardware

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
