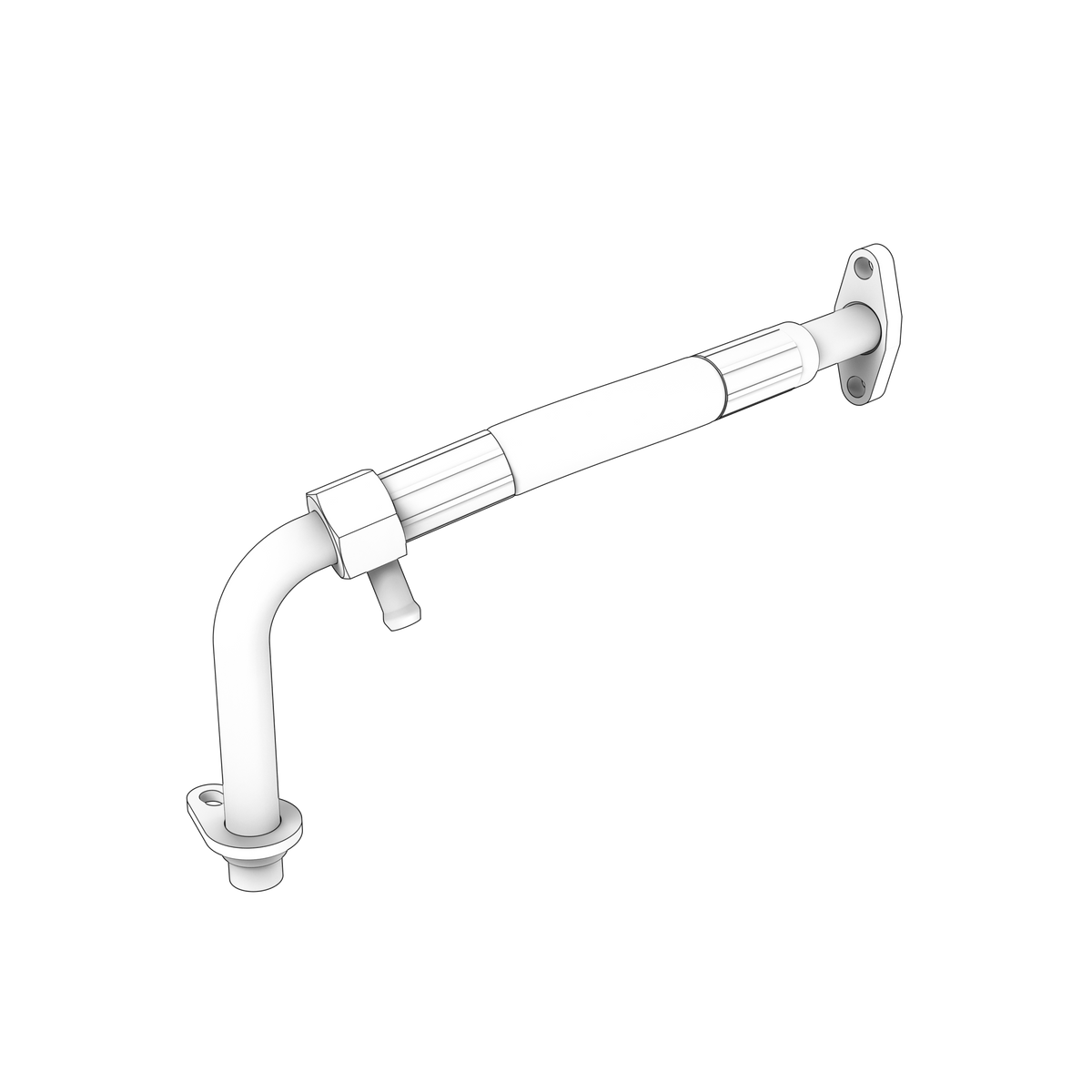

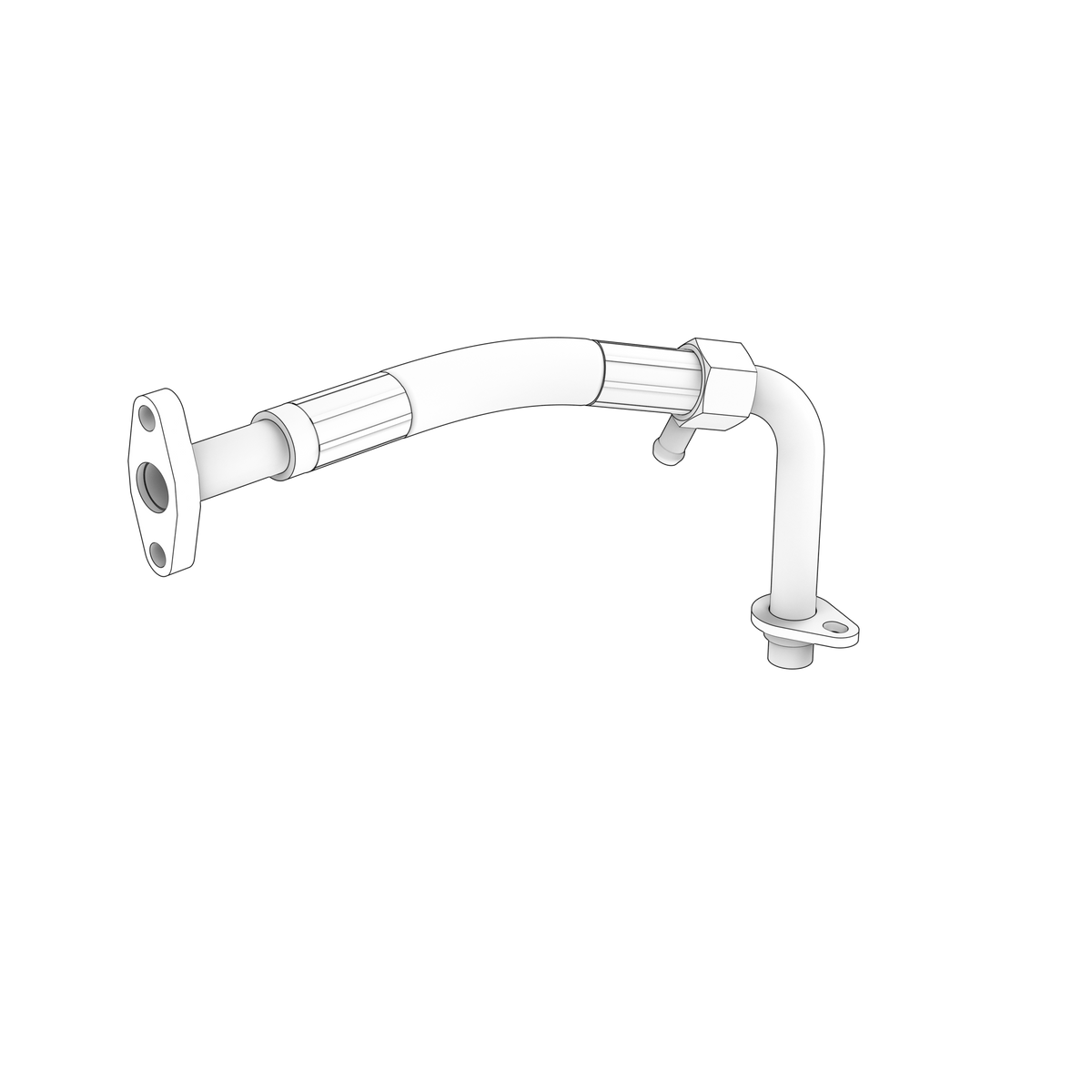

24244404 Oil Return Pipe | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta oil return pipe weighing 0.384 kg. It supersedes part number 23268211 and covers its four applications across TAD and TADH series engines.

⚙️ Key Features

• Oil return pipe from the Lubricating and Oil System group
• 0.384 kg
• Supersedes 23268211
• Covers the four applications that number carried across TAD and TADH series engines

🔌 Function

Drains oil from the turbocharger bearing housing back to the sump under gravity, so oil does not back up and force its way past the seals.

⚠️ Common Signs of Failure

• Blue smoke with oil found in the charge pipework
• Oil weeping at the drain flange
• Oil consumption up with no external leak
• Pipe coked, restricted or kinked on strip-down
• Turbocharger seals passing oil although the shaft is sound

🛠️ Service Notes

• Check the pipe is clear before condemning a turbocharger - a restricted drain will push oil past good seals
• Renew the gaskets or o-rings at both ends and keep the drain falling with no traps

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24244404 → Supersedes 23268211

OEM / Related Numbers

• 23268211 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
