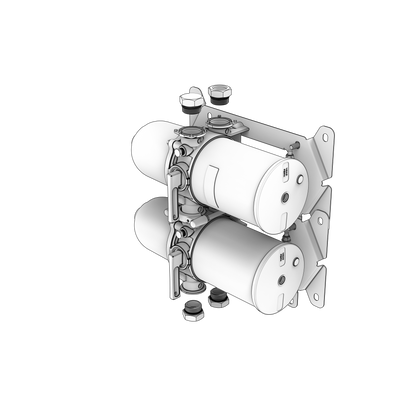

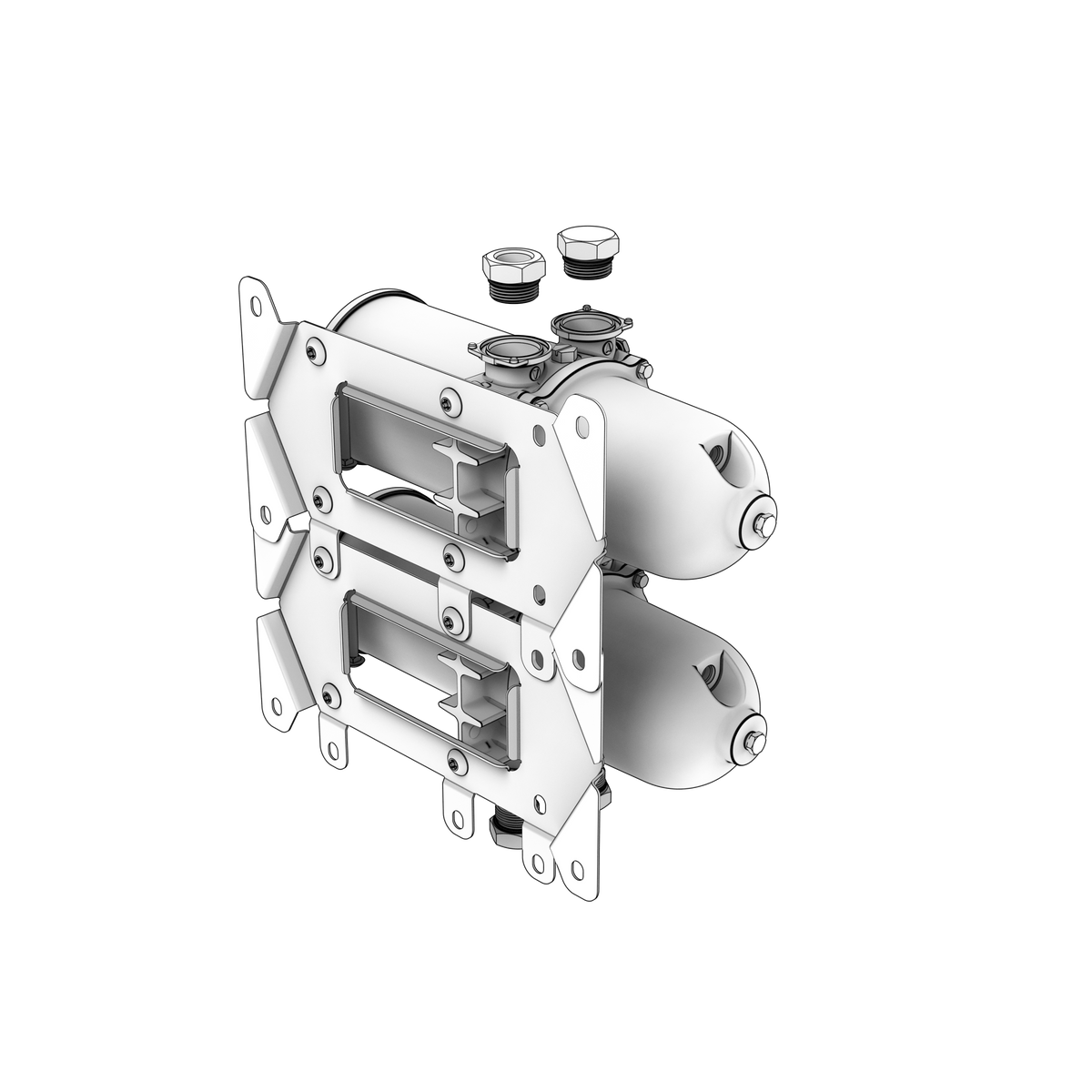

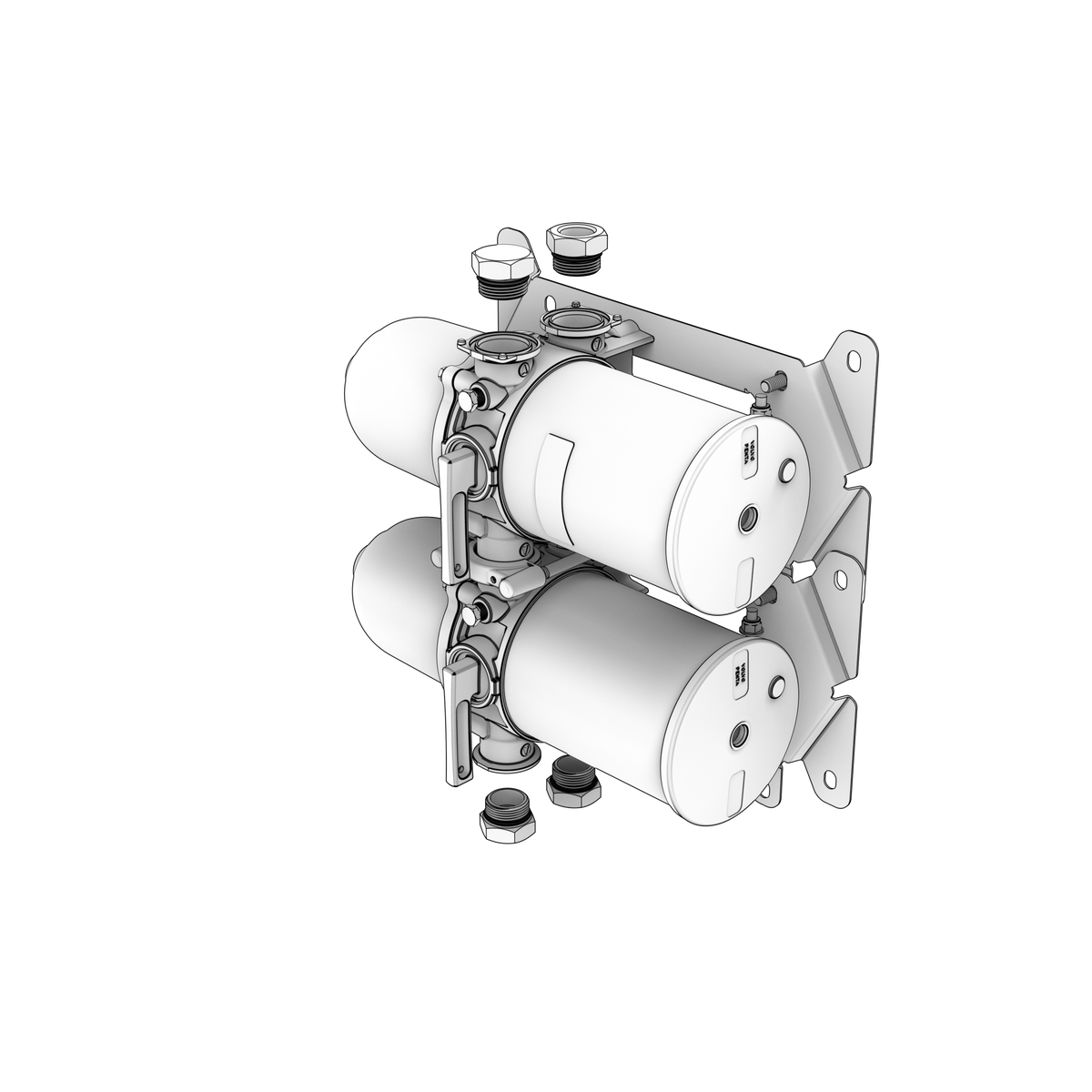

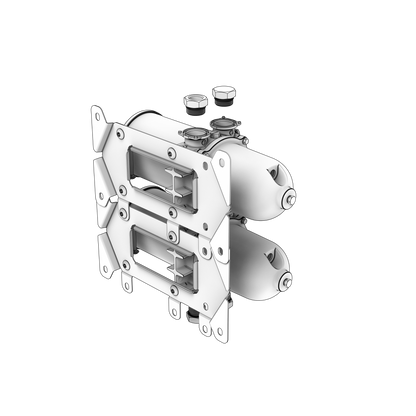

24293060 Fuel Filter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta double fuel filter and water separator for diesel engines, weighing 11.91 kg and listed for 71 D series engine applications. It supersedes part number 877770.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 11.91 kg
• Double filter and water separator arrangement
• 71 D series engine applications
• Supersedes 877770

🔌 Function

Provides two filter and separator stages so one can be serviced or isolated while the engine continues to run.

⚠️ Common Signs of Failure

• Power loss as one or both elements block
• Water accumulating in a separator bowl
• Uneven restriction between the two stages
• Air drawn in at a loose housing joint
• Rising suction-side vacuum

🛠️ Service Notes

• Change both elements together — leaving one in place negates the benefit of the twin arrangement
• Drain both water traps at every service
• This is the twin unit; the single-stage filters in this range are separate part numbers

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24293060 → Supersedes 877770 → Supersedes 3825022 → Supersedes 848045 → Supersedes 846733

OEM / Related Numbers

• 877770 earlier number superseded by this part
• 3838844 earlier number superseded by this part
• 3825022 earlier number superseded by this part
• 848045 earlier number superseded by this part
• 846733 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Parker Racor: 75900MAX

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C3-A MP, D13C4-A MP, D13B-E MG, D13B-E MG (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP, D8A7-A MP, D8A8-A MP
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP
• Volvo Penta D3-110I-H
