24453427 Heat Exchanger | Genuine Volvo Penta Part

🔧 Product Description

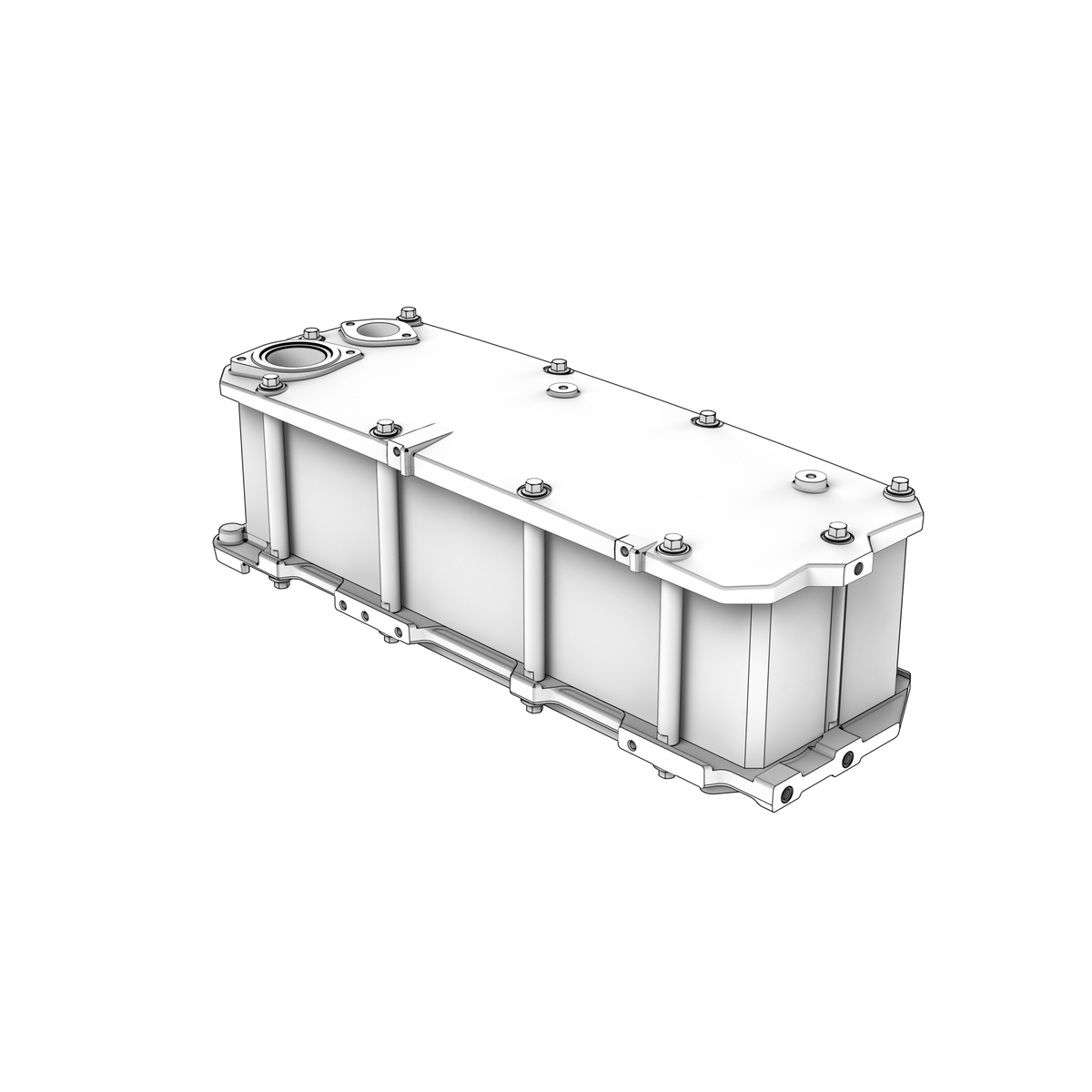

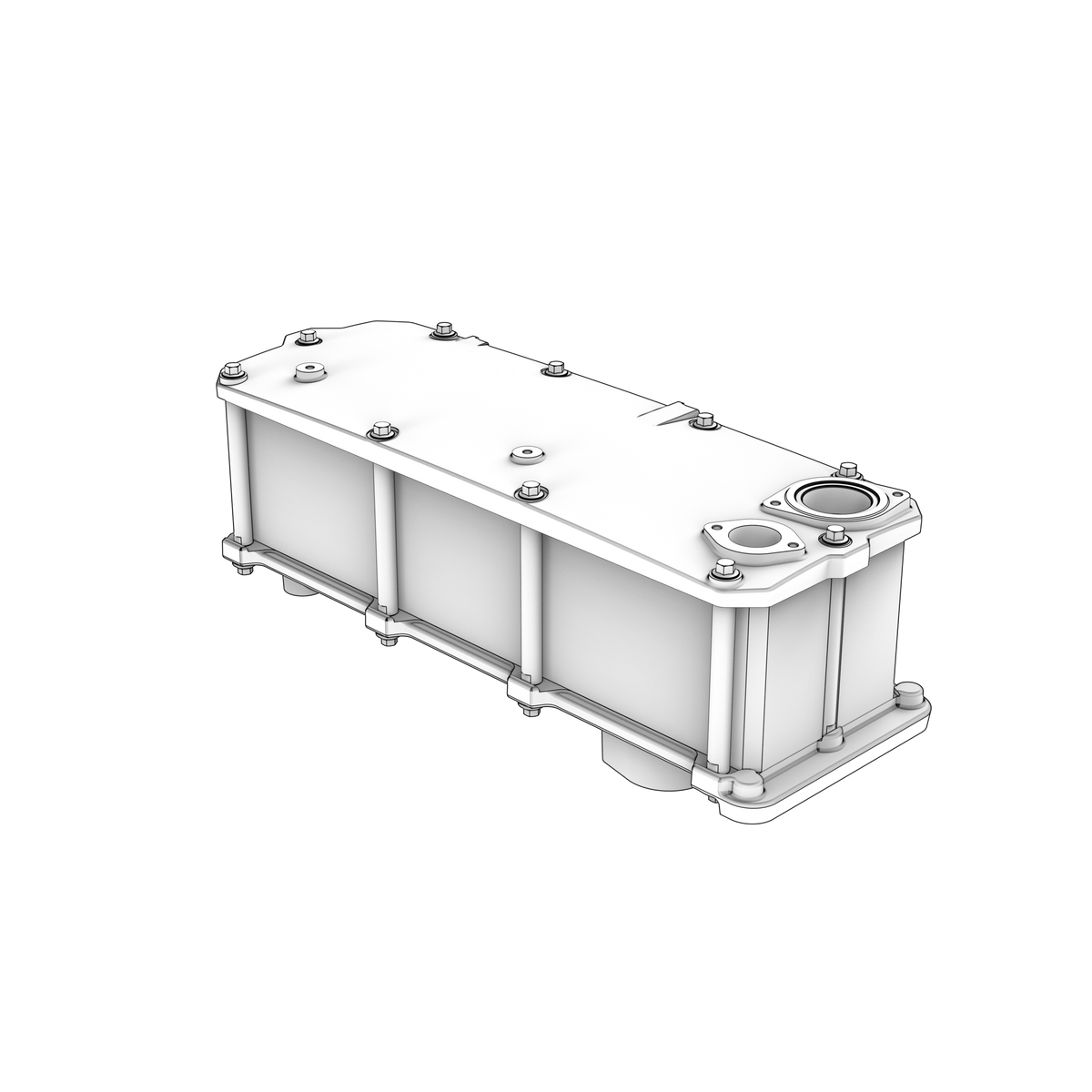

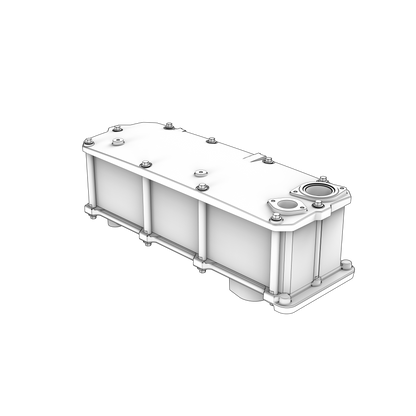

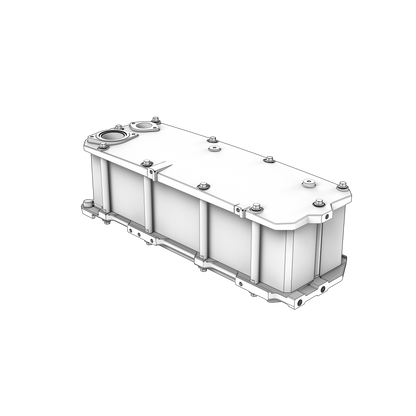

Genuine Volvo Penta shell-and-tube heat exchanger from the Cooling System group, weighing 60.0 kg and built as a closed-coolant to raw-water unit. Its configuration is serial-specific, so confirm the engine serial number before ordering. It supersedes part number 21346489 and covers its 12 D series engine applications.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C3-B MH
• Volvo Penta D13C1-B MH
• Volvo Penta D13B-E MG
• Volvo Penta D13B-E MG (FE)
• Volvo Penta D13B-E MH
• Volvo Penta D13B-E MH (FE)
• Volvo Penta D13B-N MH
• Volvo Penta D13B-N MH (FE)
• Volvo Penta D13C1-A MH
• Volvo Penta D13C1-B MG
• Volvo Penta D13C3-B MG
• Volvo Penta D13C1-A MG

• Engine Family: D

⚙️ Key Features

• 60.0 kg
• Shell-and-tube closed-coolant to raw-water construction
• Serial-specific configuration
• Supersedes 21346489
• 12 D series engine applications
• Also supersedes Volvo part number 3889766

🔌 Function

Transfers heat from the engine coolant into the raw seawater passing through it.

⚠️ Common Signs of Failure

• Overheating under load with the raw water pump working correctly
• Coolant loss into the seawater side, or seawater in the coolant
• Tube stack fouled with scale, silt or shed impeller vanes
• External corrosion at the end covers
• Weeping at the end seals

🛠️ Service Notes

• Confirm the engine serial number before ordering, since the configuration varies between builds
• Shed impeller vanes collect here - check the tube stack whenever a seawater pump has failed
• At 60 kg this needs lifting equipment, and the end seals should be renewed on reassembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24453427 → Supersedes 21346489 → Supersedes 21404010

OEM / Related Numbers

• 21346489 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
