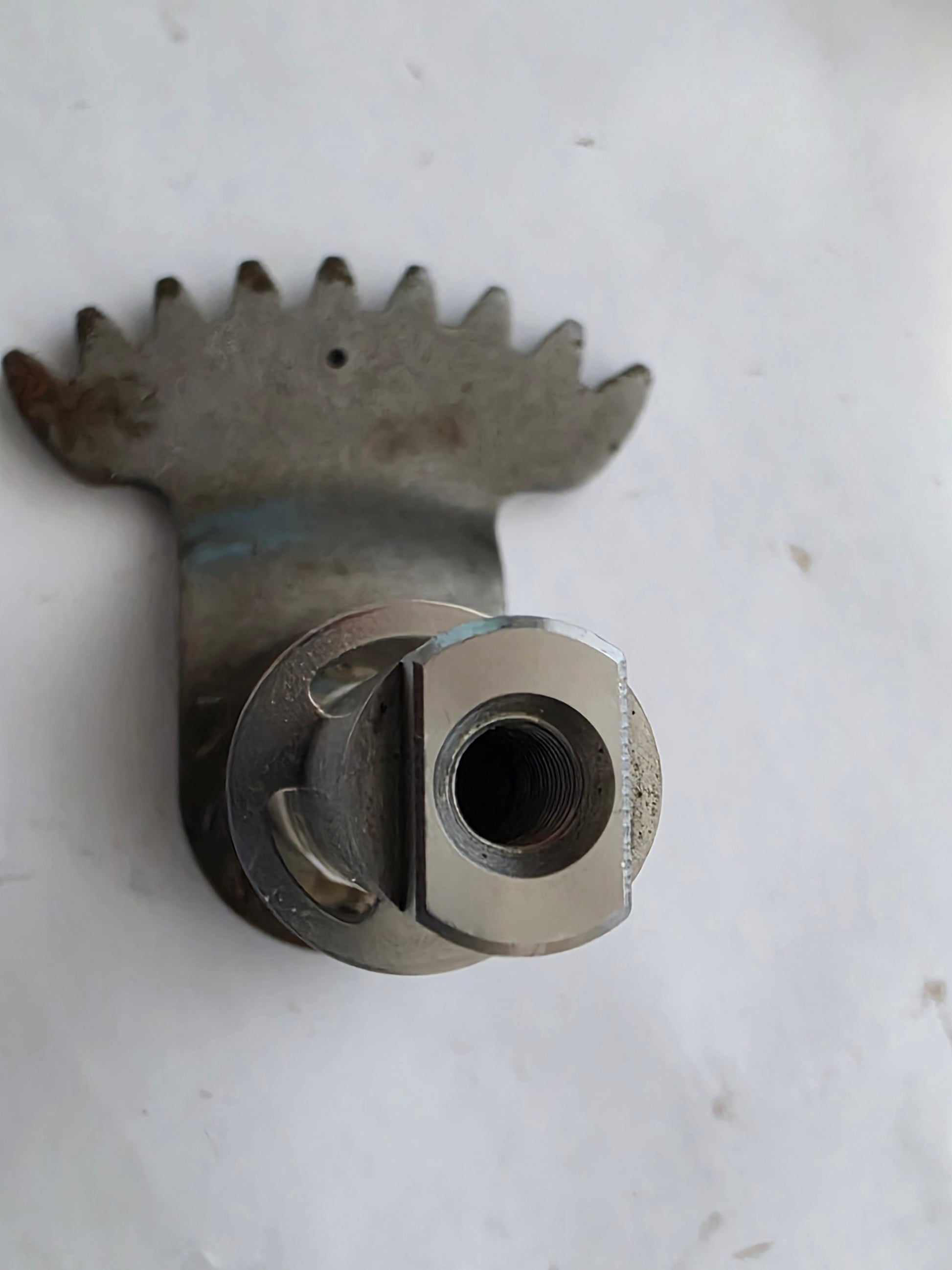

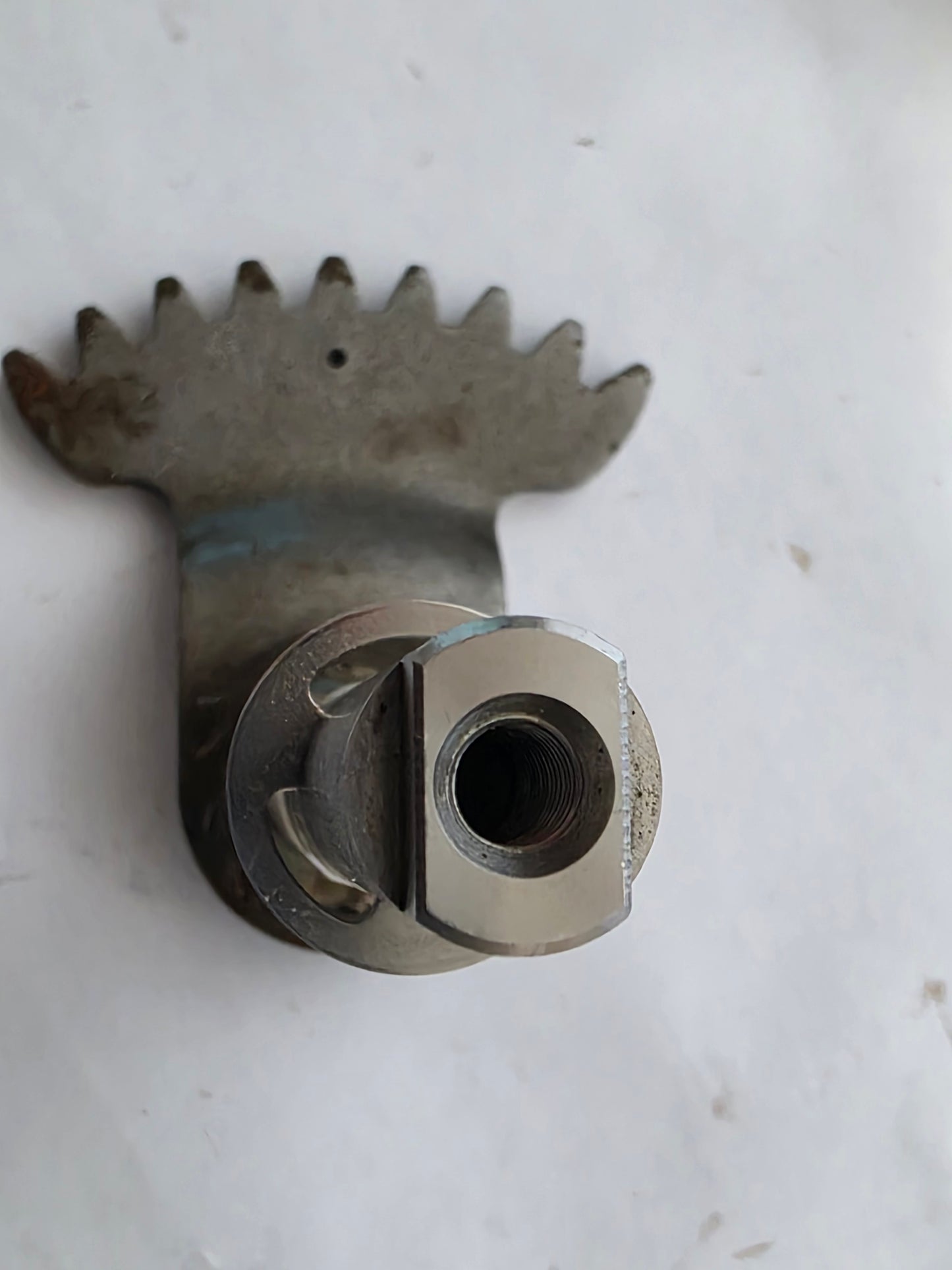

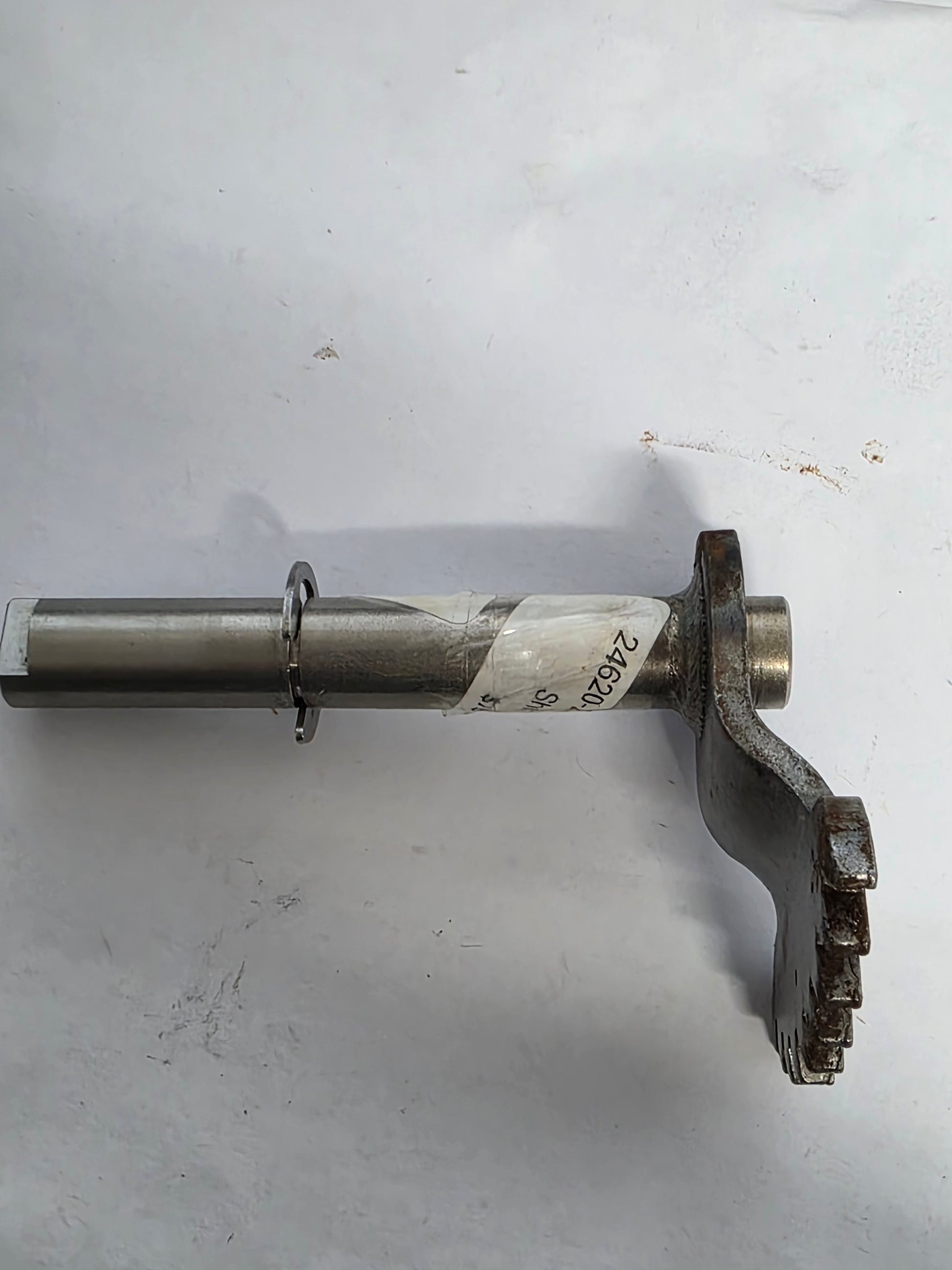

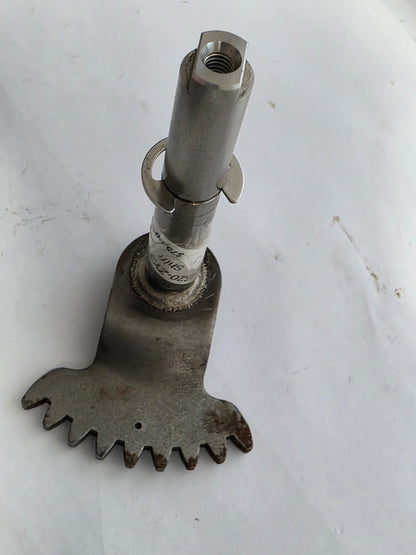

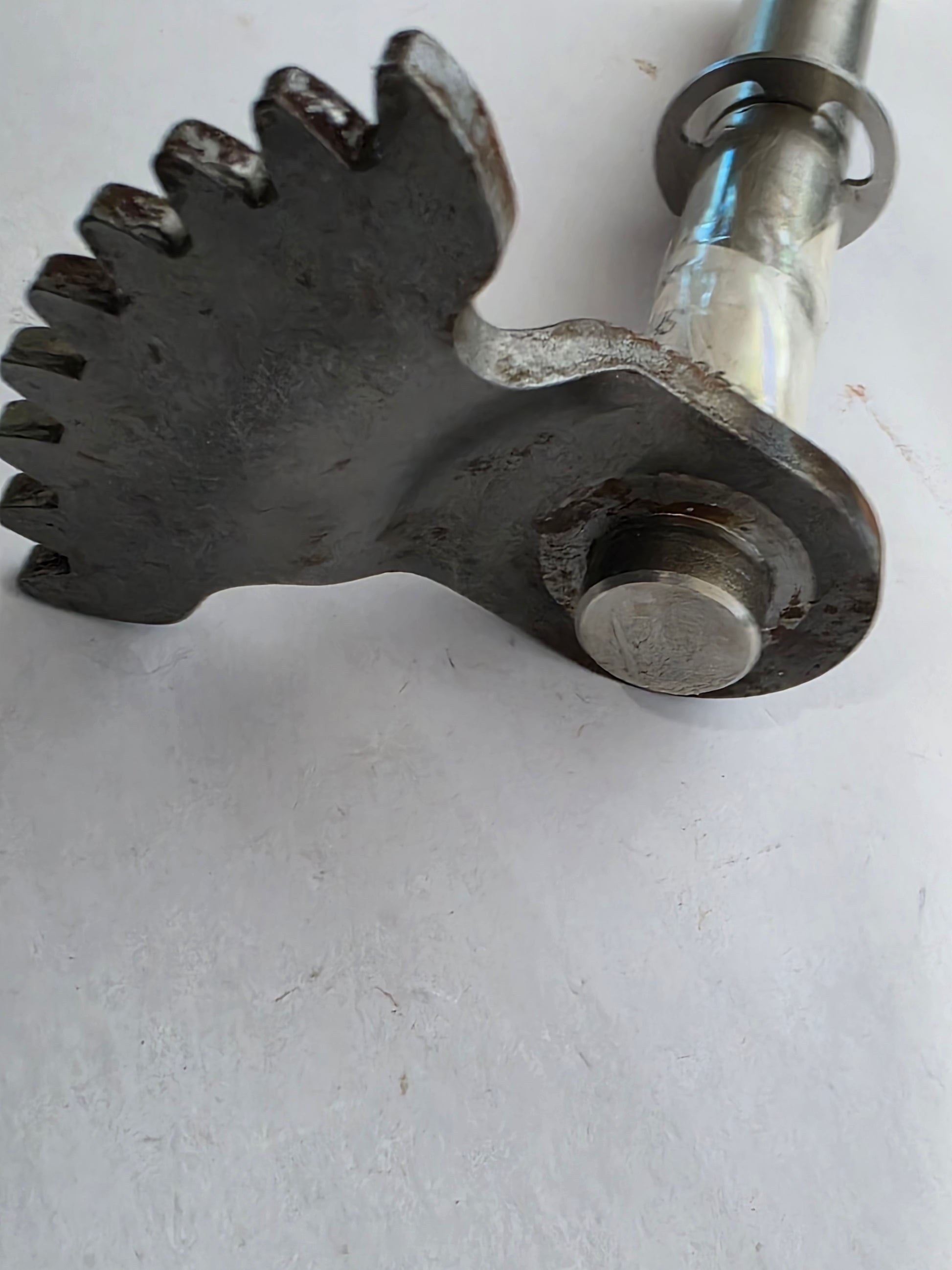

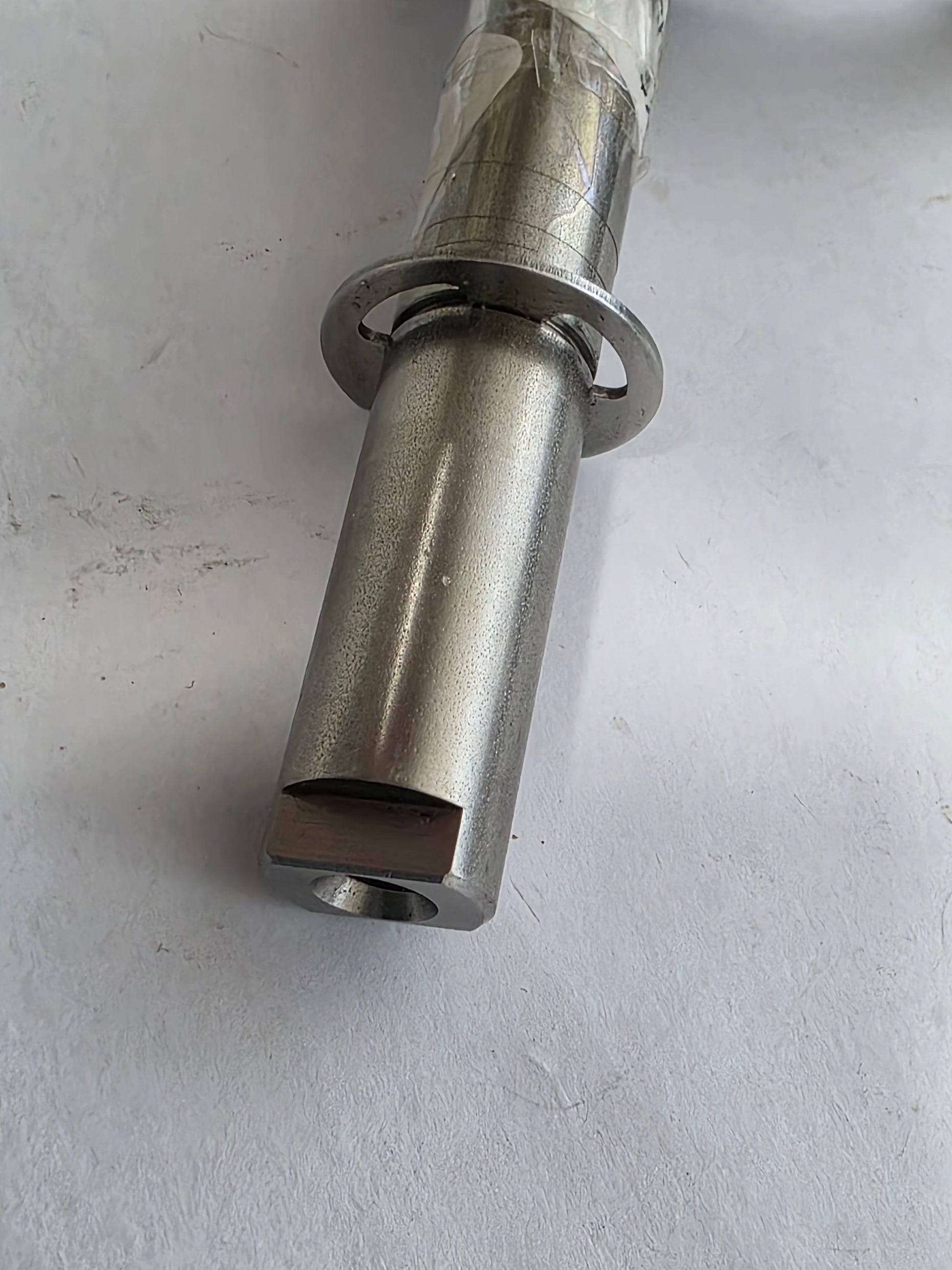

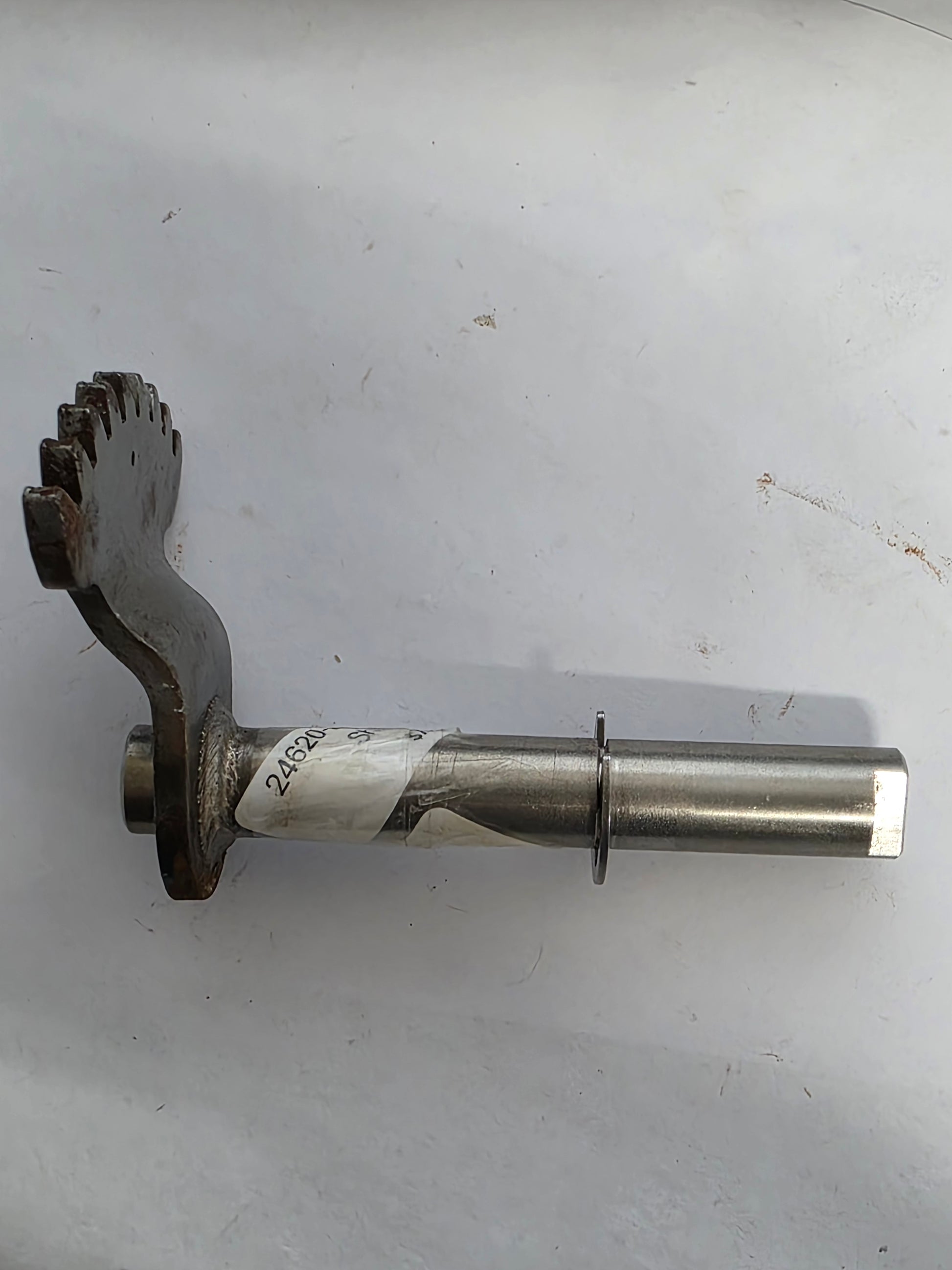

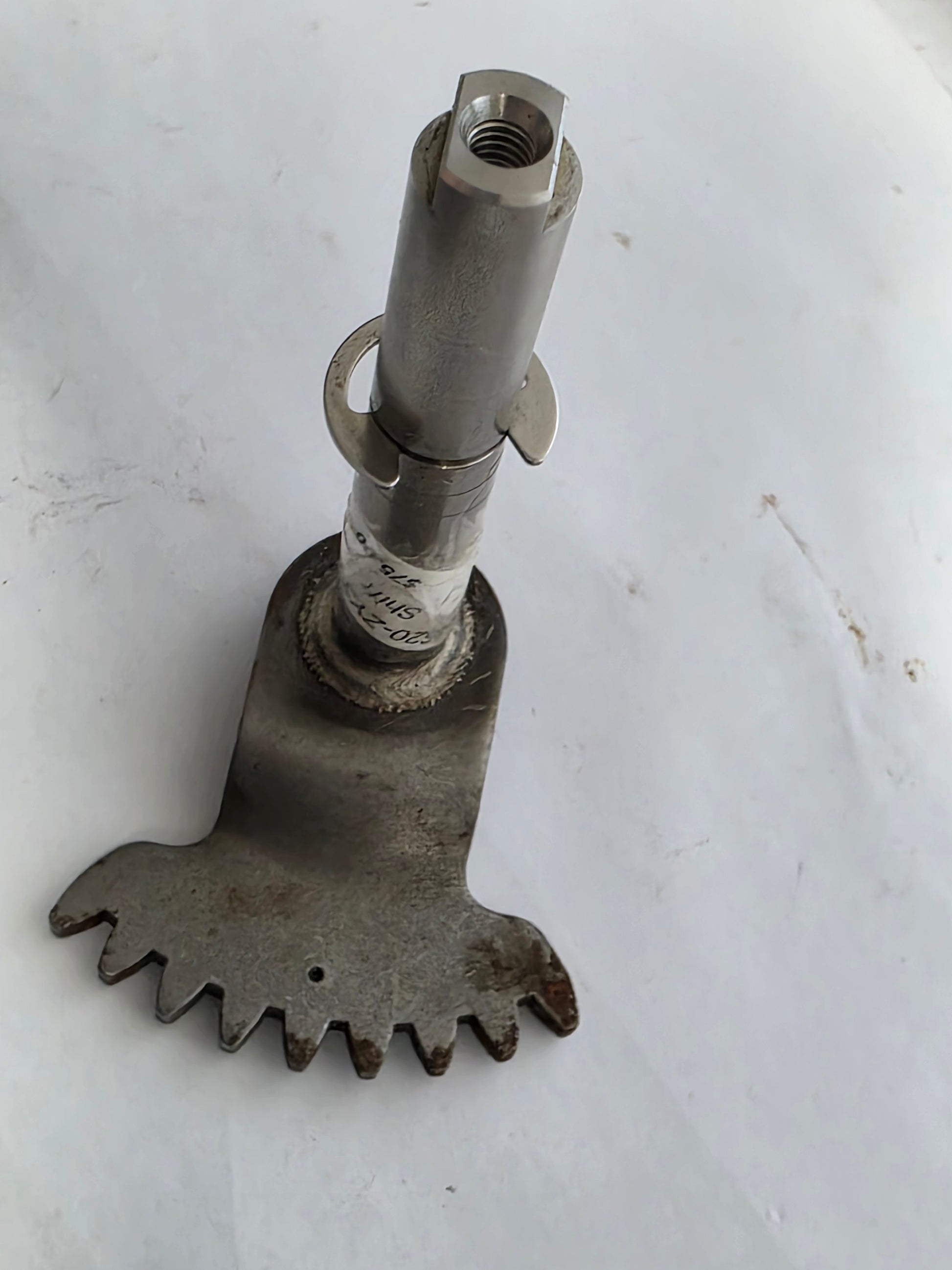

24620-ZY3-000 Honda Shift Shaft | Genuine Used Part

🔧 Product Description

Genuine Honda BF175 BF200 BF225 BF250 Shift Shaft B - Part Number: 24620-ZY3-000

A genuine used Honda Marine shift shaft B for selected large-displacement V6 four-stroke outboard motors.

The shaft forms part of the upper powerhead shift-linkage assembly and transfers movement between the shift arm, link rod and lower shift rod. Its indexed position and pivot geometry are critical for full engagement of forward, neutral and reverse.

⚙️ Key Features

• Genuine used Honda Marine shift shaft B
• Correct OEM part number 24620-ZY3-000
• Factory description: Shaft Comp., Shift B
• Used on selected Honda V6 outboards
• Original splines, pivots and linkage geometry

🚤 Compatibility

Commonly used on

• Honda large V6 shift-shaft assemblies

Verified model families include

• BF175A and BF175D
• BF200A and BF200D
• BF225A and BF225D
• BF250A and BF250D
• Official BF175 / BF200 / BF225 AK2 and AK3 parts diagrams specify 24620-ZY3-000
• Standard and counter-rotation versions where the same shift-shaft diagram is used
• HP Range: 175HP-250HP
• Engine Type: Honda V6 EFI four-stroke outboard
• Fitment Note: Verify model suffix and frame serial before installation

🔌 Function

The shaft transfers and redirects shift-linkage movement so the lower rod and gearcase can select forward, neutral and reverse.

⚠️ Common Signs of Failure

• Shaft is bent or seized
• Splines or pivot surfaces are worn
• Gear selection is incomplete
• Excessive linkage free play develops
• Shift adjustment will not remain correct
• Corrosion restricts movement
• Linkage does not return to neutral

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24620-ZY3-000 current original shift-shaft-B reference

OEM / Related Numbers

• 24620-ZY3-000
• 24620ZY3000
• 24610-ZY3-A00 related shift shaft A
• 24612-ZY3-010 related shift arm
• 24613-ZY3-000 related link rod
• 24617-ZY3-000 related slider collar
• 24618-ZY3-000 related pivots
• 24619-ZY3-000 related lock plates
• 24623-ZY3-000 related bush
• 24628-ZY3-000 related shift-link bracket
• 24629-ZW1-000 related seal holder

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
