24627-ZVL-900 24640-ZVL-900 Honda Guide & Link | Genuine Used Part

🔧 Product Description

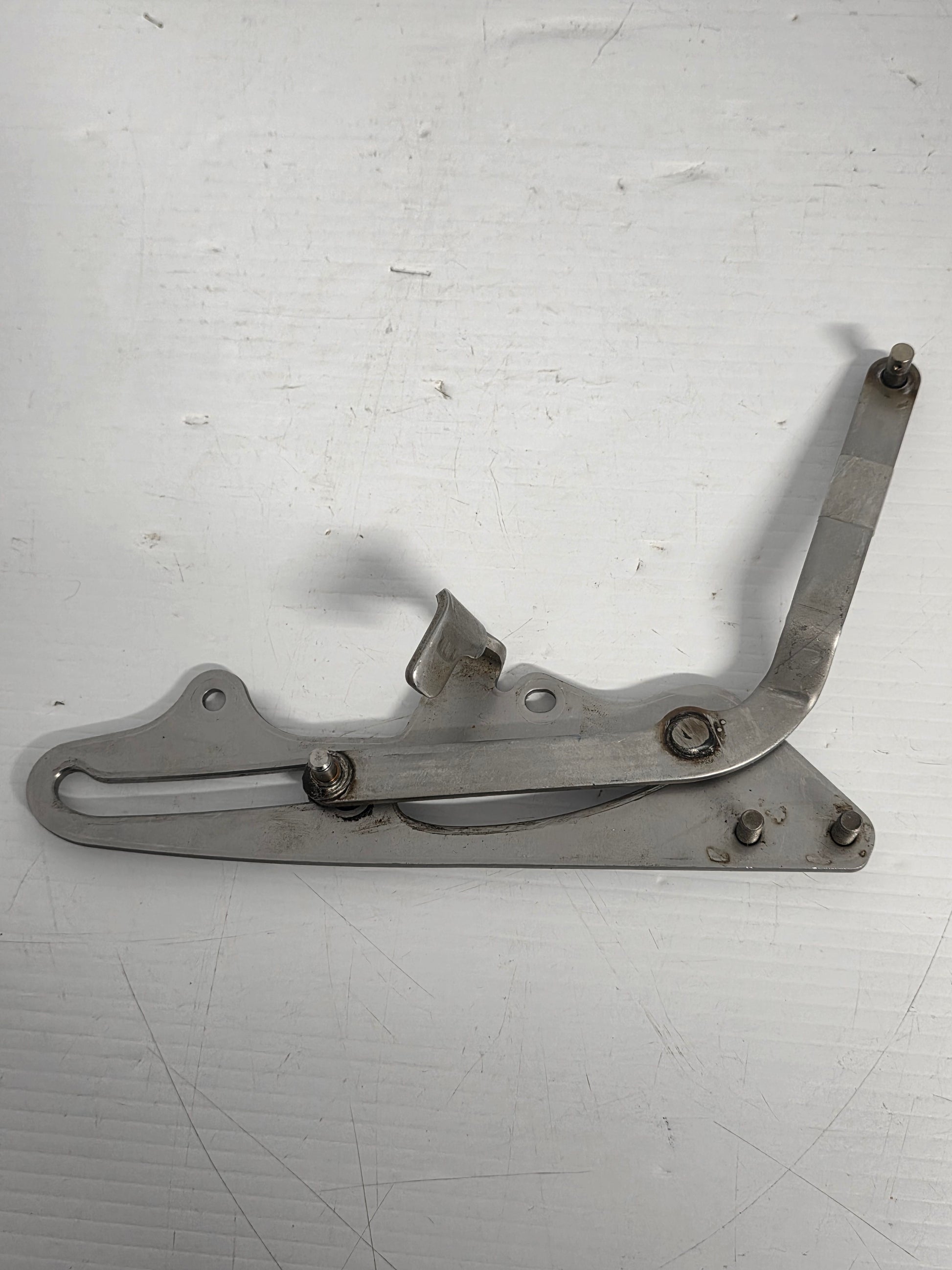

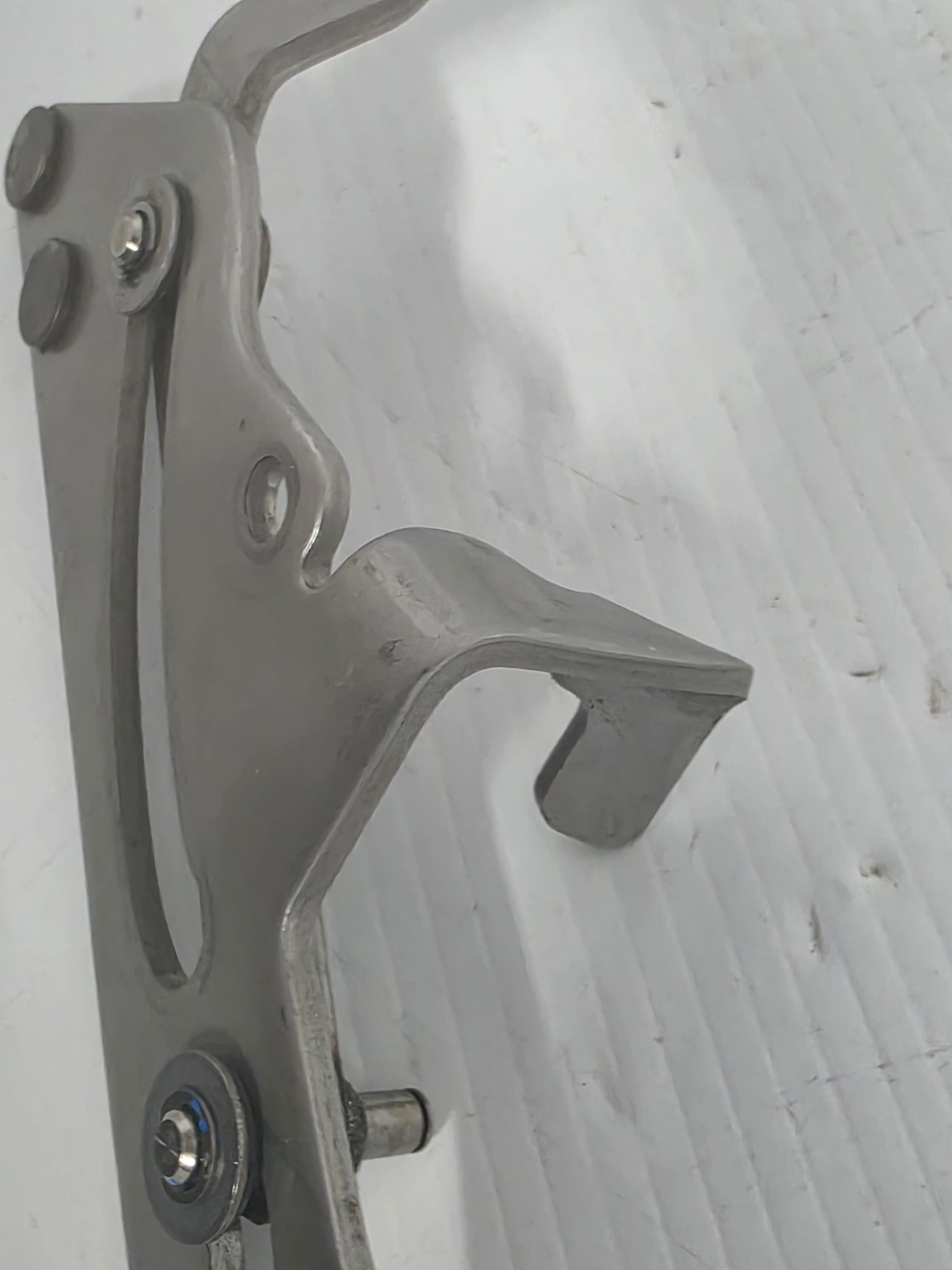

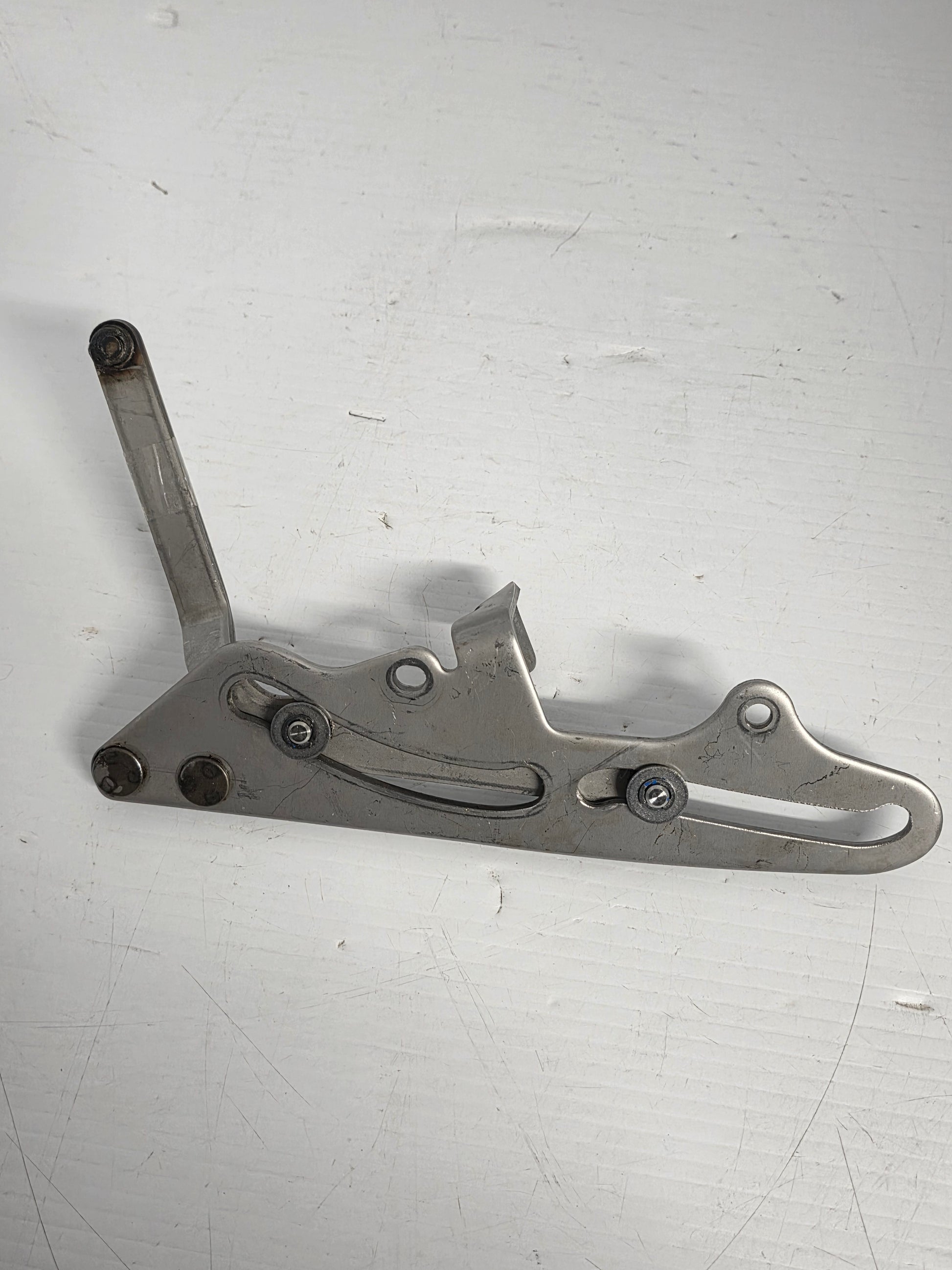

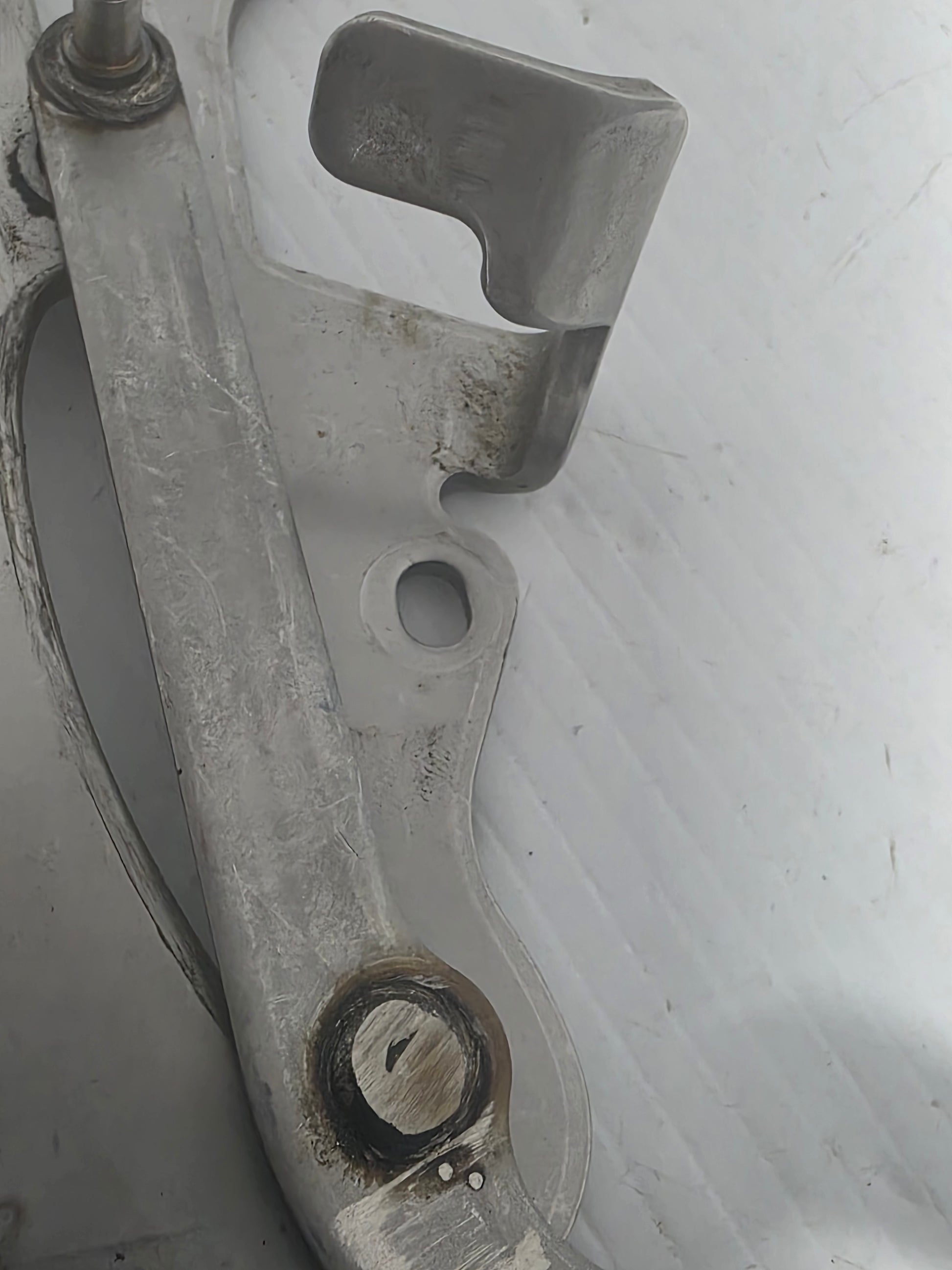

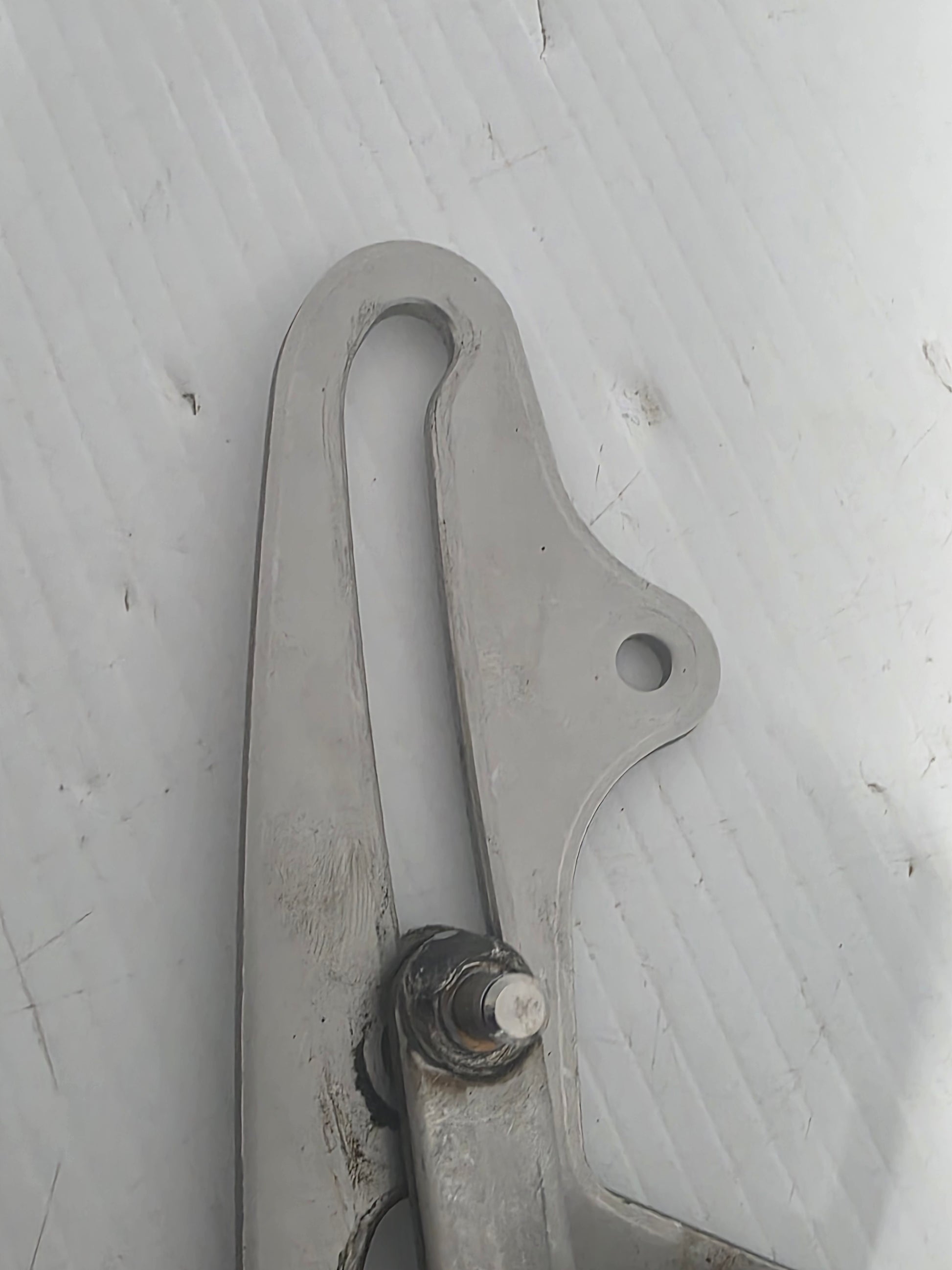

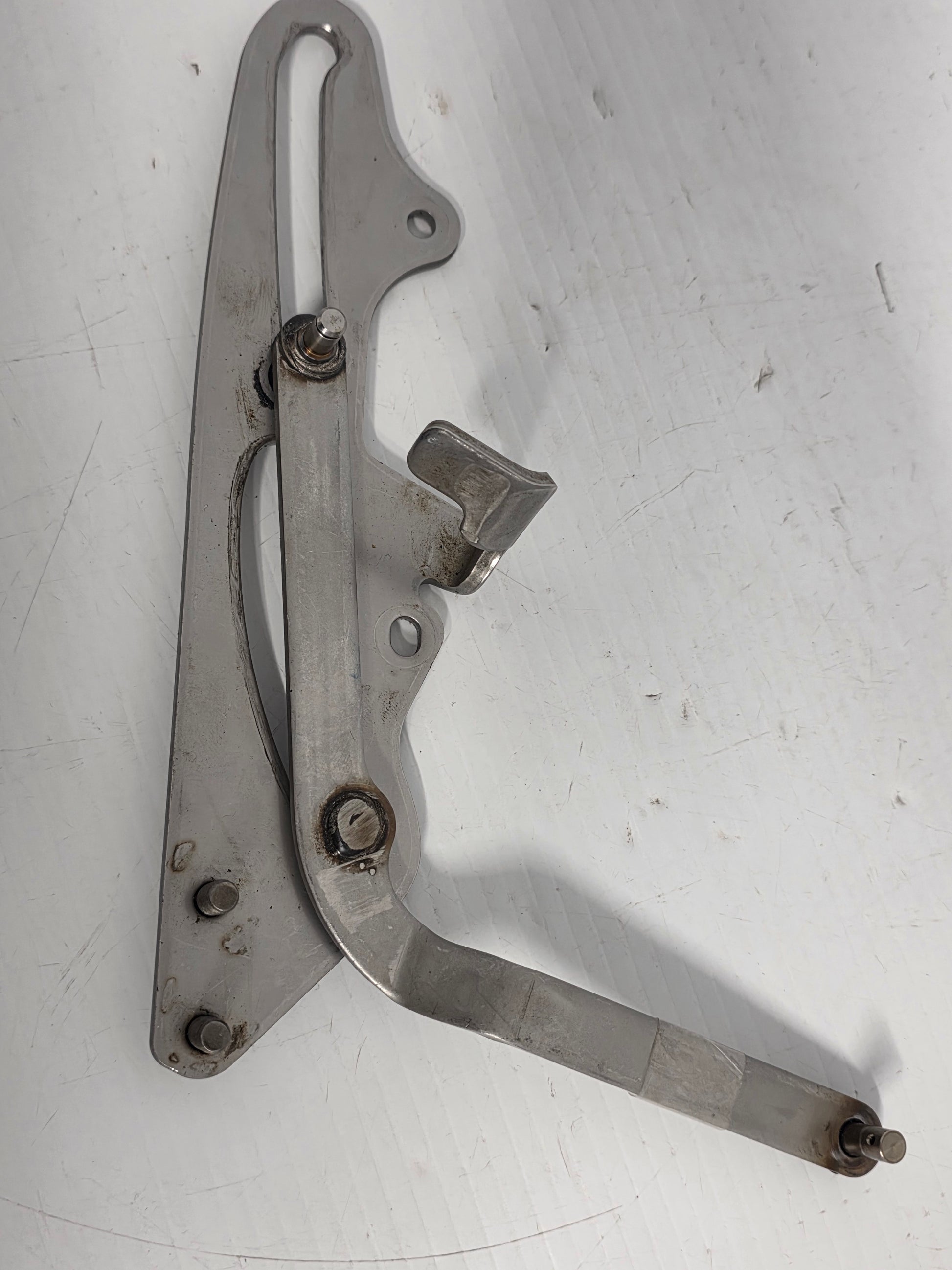

Genuine Honda Mechanical Shift Guide and Link Assembly - Part Number: 24627-ZVL-900 / 24640-ZVL-900

A genuine used Honda mechanical shift-guide and link set for selected BF200D, BF225D and BF250D outboards.

The set consists of the mechanical shift-link guide and the shift-link assembly. Together they control the path and travel of the engine-side linkage between the control connection and shift shaft.

⚙️ Key Features

• Genuine Honda Marine OEM guide and link components
• Includes guide 24627-ZVL-900 and link assembly 24640-ZVL-900
• Designed for mechanical-control D-series V6 outboards
• Maintains correct shift-link alignment and travel
• Suitable for complete linkage repair where both pieces are required

🚤 Compatibility

Commonly used on

• Honda BF200D, BF225D and BF250D mechanical-control shift linkages
• Honda V6 D-series engine-side shift systems

Typically suits

• Engine models:
• Honda BF200D mechanical-control models
• Honda BF225D mechanical-control models
• Honda BF250D mechanical-control models
• HP Range: 200HP - 250HP
• Engine Type: Honda V6 four-stroke outboard with mechanical shift control
• Year Range: Approximately 2018 onward

🔌 Function

The guide keeps the link moving through its designed path, while the link transfers control movement into the shift-shaft mechanism. Together they provide the travel needed to select forward, neutral and reverse.

⚠️ Common Signs of Failure

• Guide is cracked, distorted or worn
• Link pivots have excess free play
• Shift linkage binds or contacts surrounding parts
• Control travel does not fully engage the selected gear
• Corrosion or damaged hardware restricts movement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24627-ZVL-900 current Honda mechanical shift-link guide reference
• 24640-ZVL-900 current Honda mechanical shift-link assembly reference

OEM / Related Numbers

• 24627-ZVL-900
• 24627ZVL900
• 24640-ZVL-900
• 24640ZVL900
• Honda description: Guide, Shift Link (Mech)
• Honda description: Link Assy., Shift

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
