24628-ZVL-900 Honda Shift Bracket & Cables | Genuine Used Part

🔧 Product Description

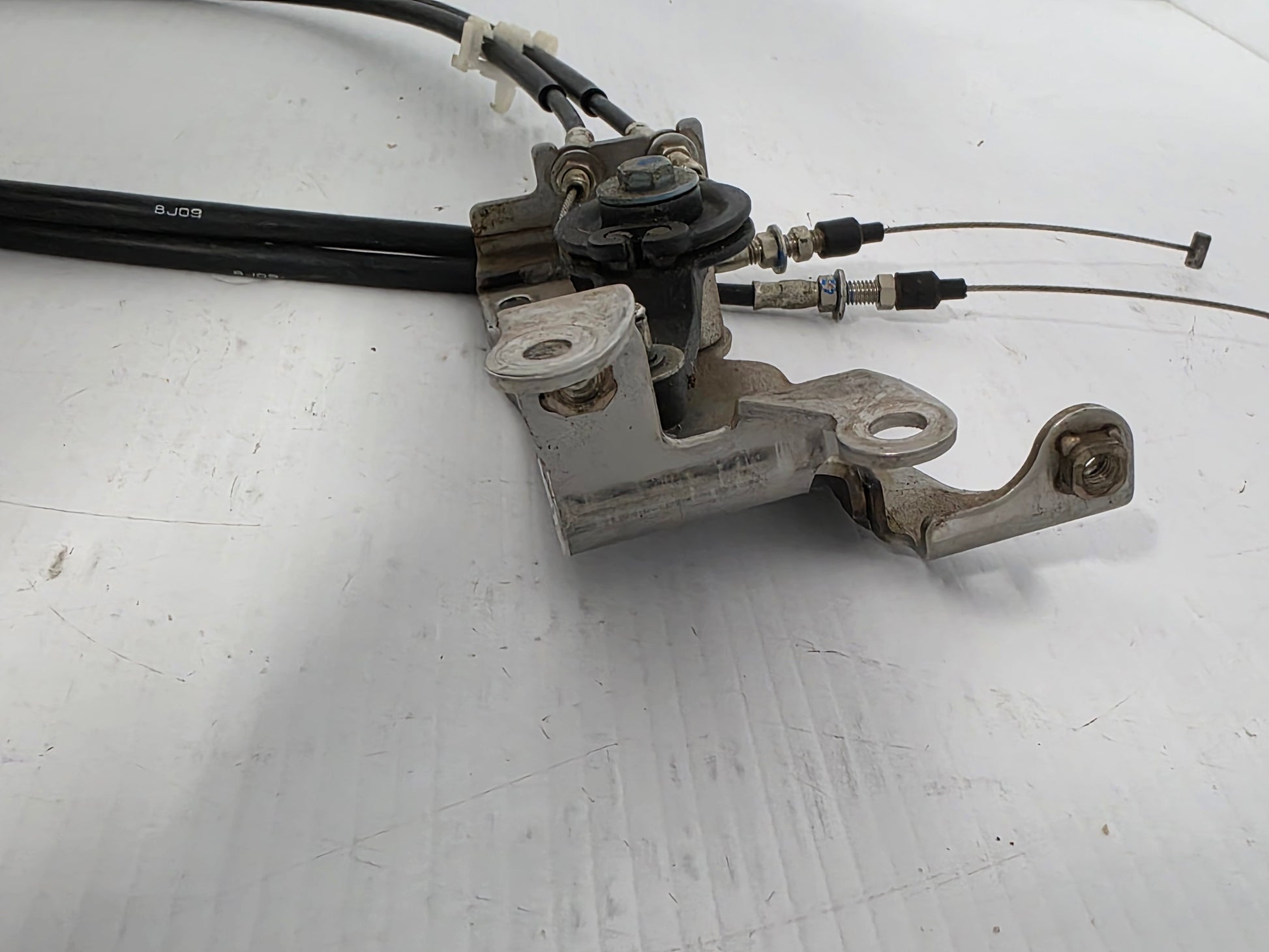

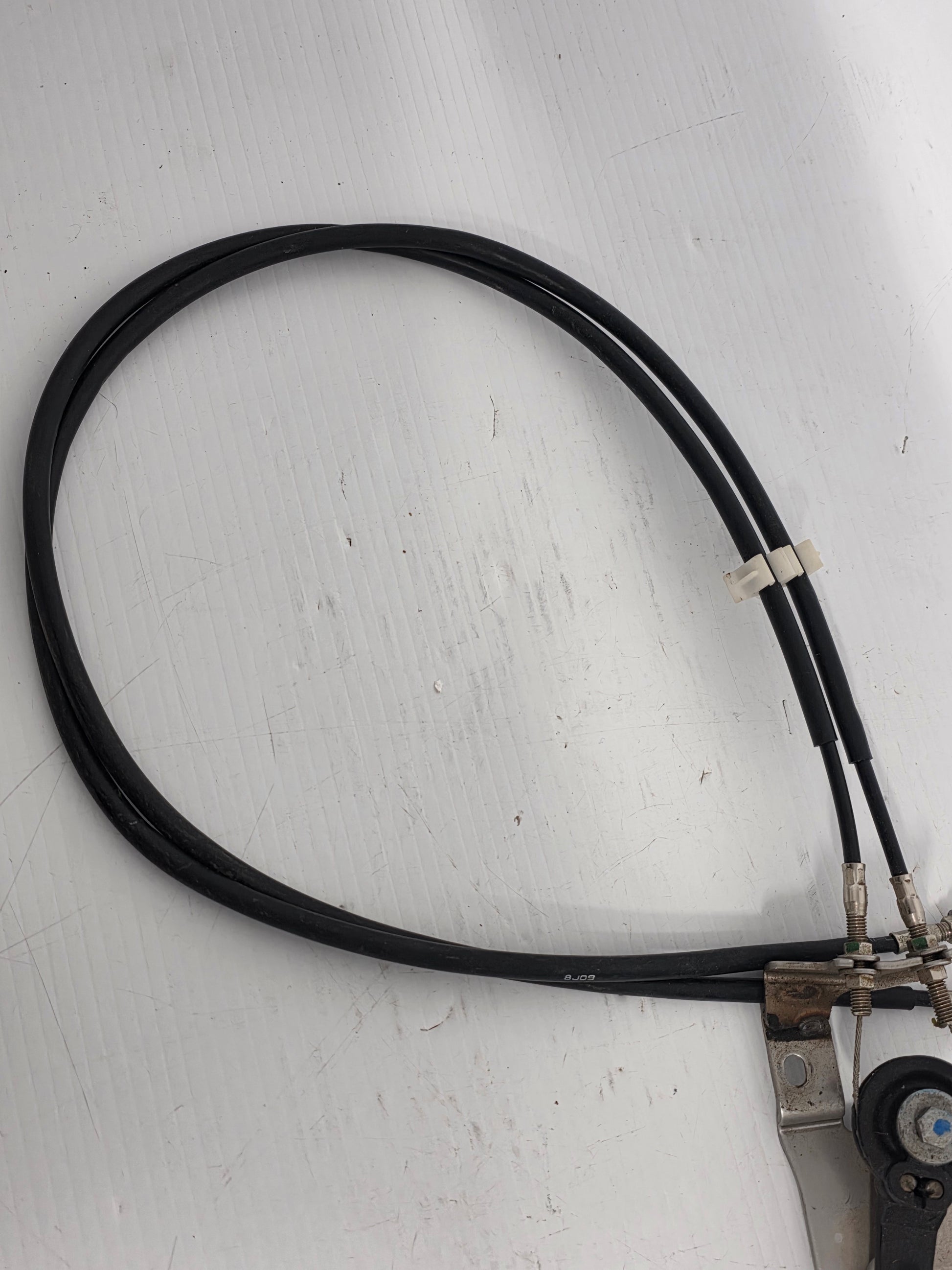

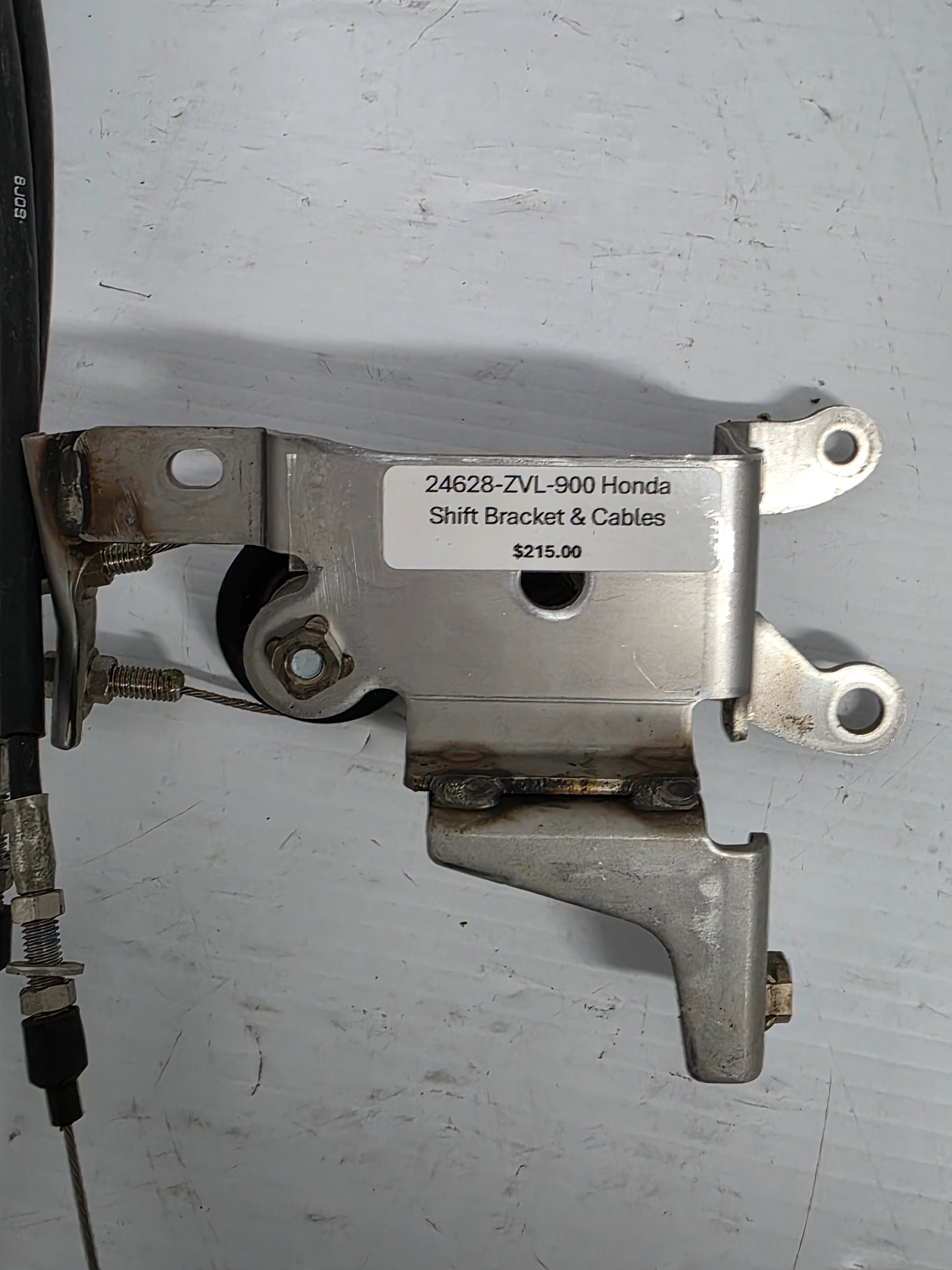

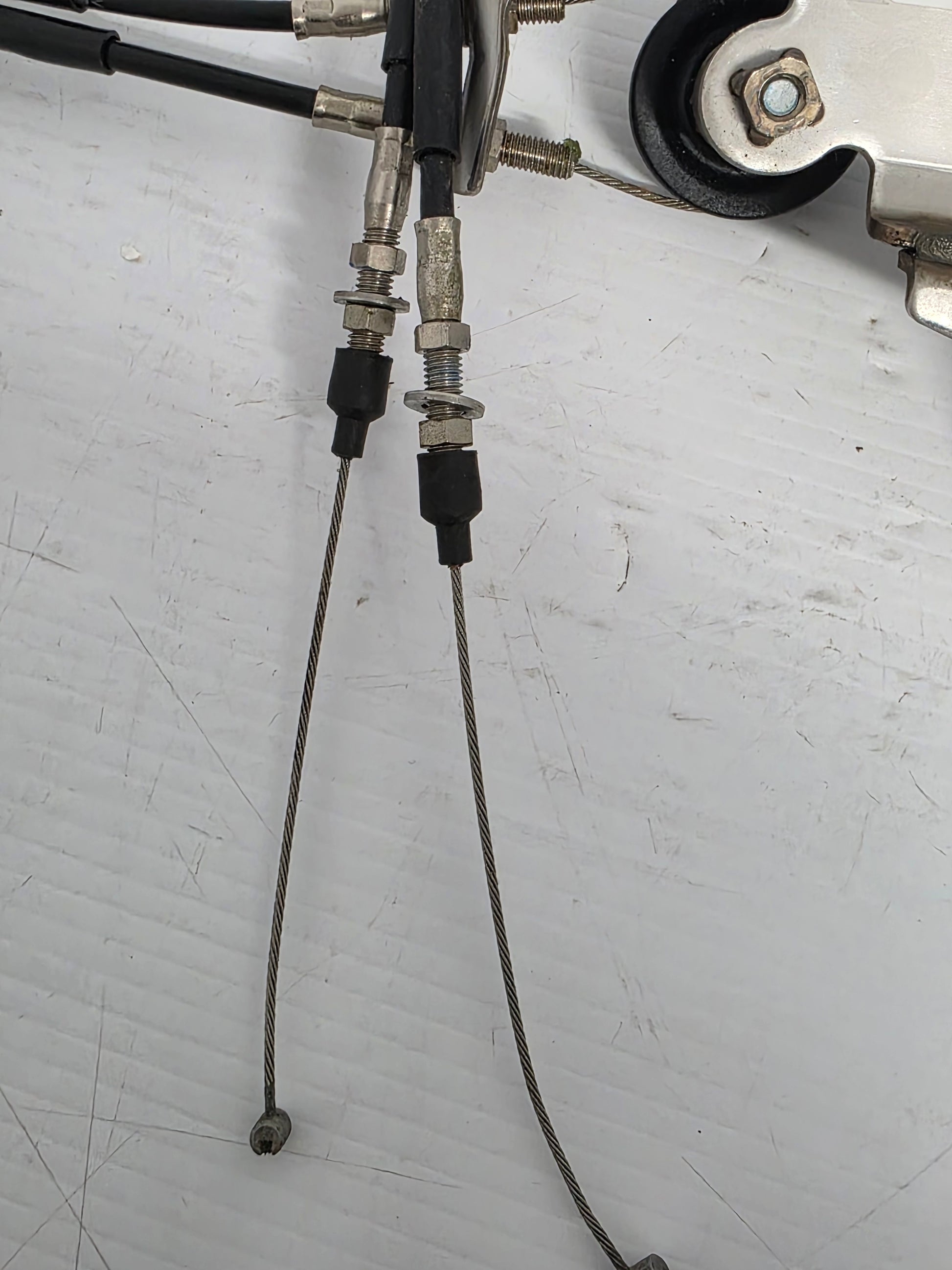

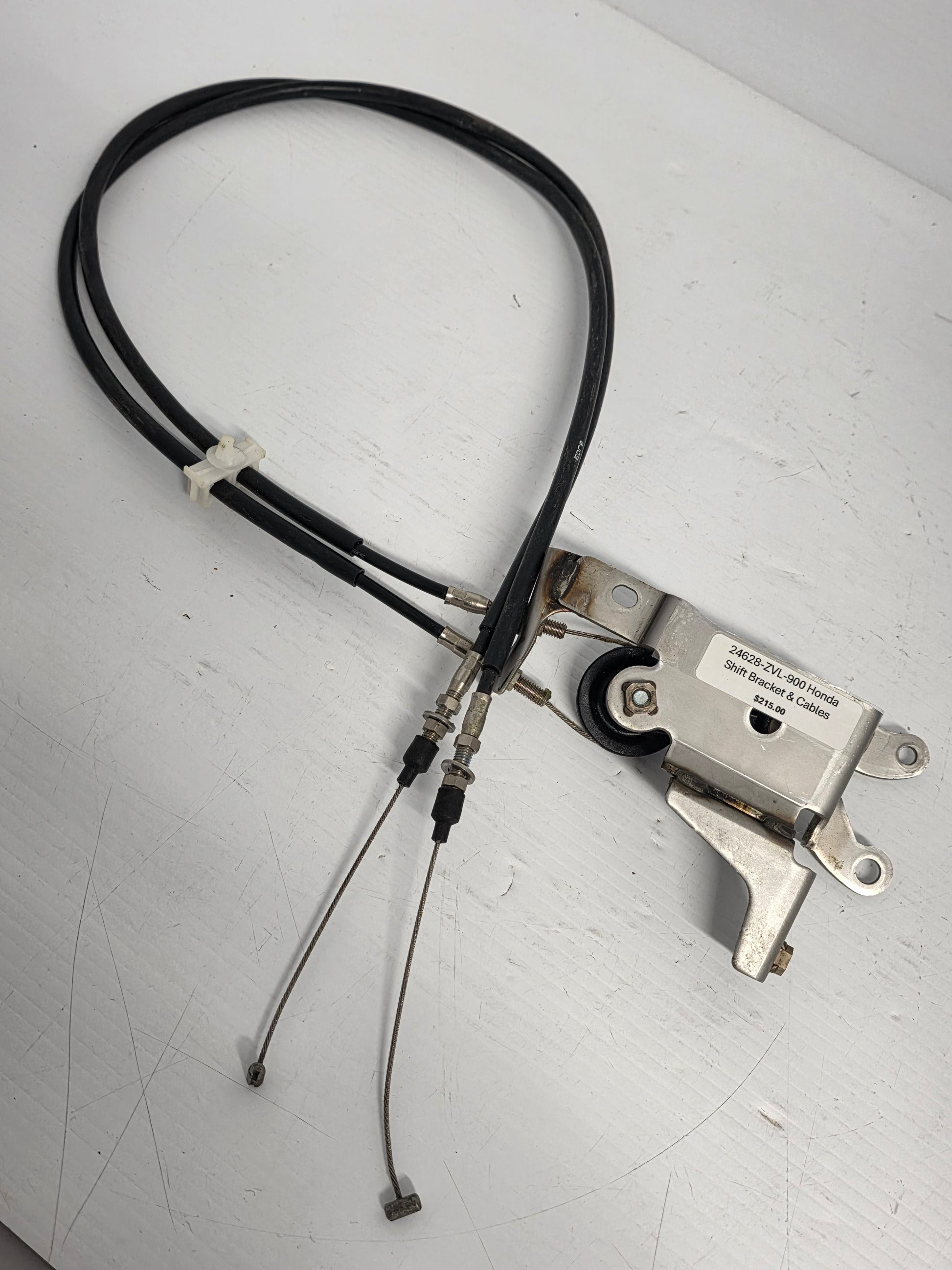

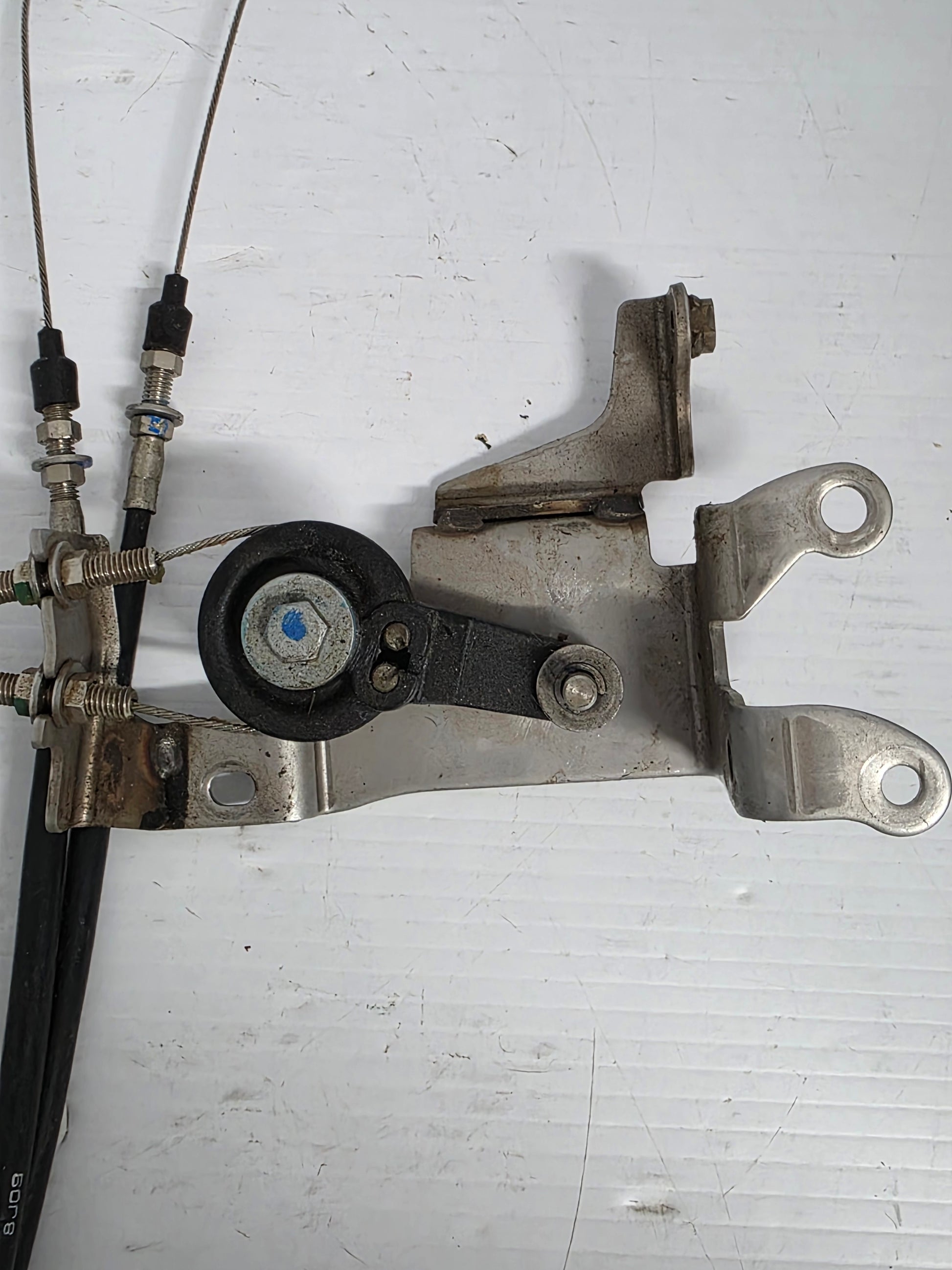

Genuine Honda Mechanical Shift Link Bracket - Part Number: 24628-ZVL-900

A genuine used Honda mechanical shift-link bracket for selected BF175D, BF200D, BF225D and BF250D V6 four-stroke outboards.

The bracket supports and guides the mechanical shift linkage at the shift-shaft assembly. It helps maintain the correct relationship between the remote-control cable mechanism and the engine shift shaft so that forward, neutral and reverse can be selected accurately.

⚙️ Key Features

• Genuine Honda Marine mechanical shift-link bracket
• Correct Honda part number 24628-ZVL-900
• Used in mechanical shift-shaft and remote-control cable assemblies
• Maintains shift-linkage alignment and cable travel
• Suitable for selected Honda 175HP to 250HP V6 four-stroke outboards

🚤 Compatibility

Commonly used on

• Honda V6 mechanical shift-shaft assemblies
• Honda remote-control cable and shift-linkage systems
• Mechanically shifted BF175D to BF250D outboards

Typically suits

• Engine models:
• Honda BF175D
• Honda BF200D
• Honda BF200DK1
• Honda BF225D
• Honda BF225DK1
• Honda BF250D
• Honda BF250DK1
• Honda BF200D applications from serial BBRJ-1000001 and above
• Honda BF250D applications from serial BBNJ-1000001 and above
• Honda BF250D applications from serial BBNJ-8000001 and above
• Honda BF250D applications from serial BBNJ-1100001 and above
• Honda BF250D applications from serial BBNJ-8100001 and above
• HP Range: 175HP - 250HP
• Engine Type: Honda V6 four-stroke outboard with mechanical shift control
• Year Range: Approximately 2012 onward, dependent on model and frame serial number

🔌 Function

The bracket supports the shift link and keeps the control-cable movement aligned with the shift shaft. This allows the gearbox to engage forward, neutral and reverse with the correct amount of travel.

⚠️ Common Signs of Failure

• Excessive free play in the shift control
• Difficulty selecting forward or reverse
• Gearbox does not fully engage
• Shift cable sits out of alignment
• Bracket is cracked, bent or worn at a mounting point

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24628-ZVL-900 current Honda OEM service reference

OEM / Related Numbers

• 24628-ZVL-900
• 24628ZVL900
• 24627-ZVL-900 shift-link guide
• 17877-ZVL-900 remote-control cable plate
• 24622-ZVL-000 shift lock plate
• 24623-ZY3-000 shift-arm bush

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
