24629-ZW1-000 Seal Holder | Genuine Used Part

24629-ZW1-000 Seal Holder | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$5.00 AUD
$10.00 AUD $5.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

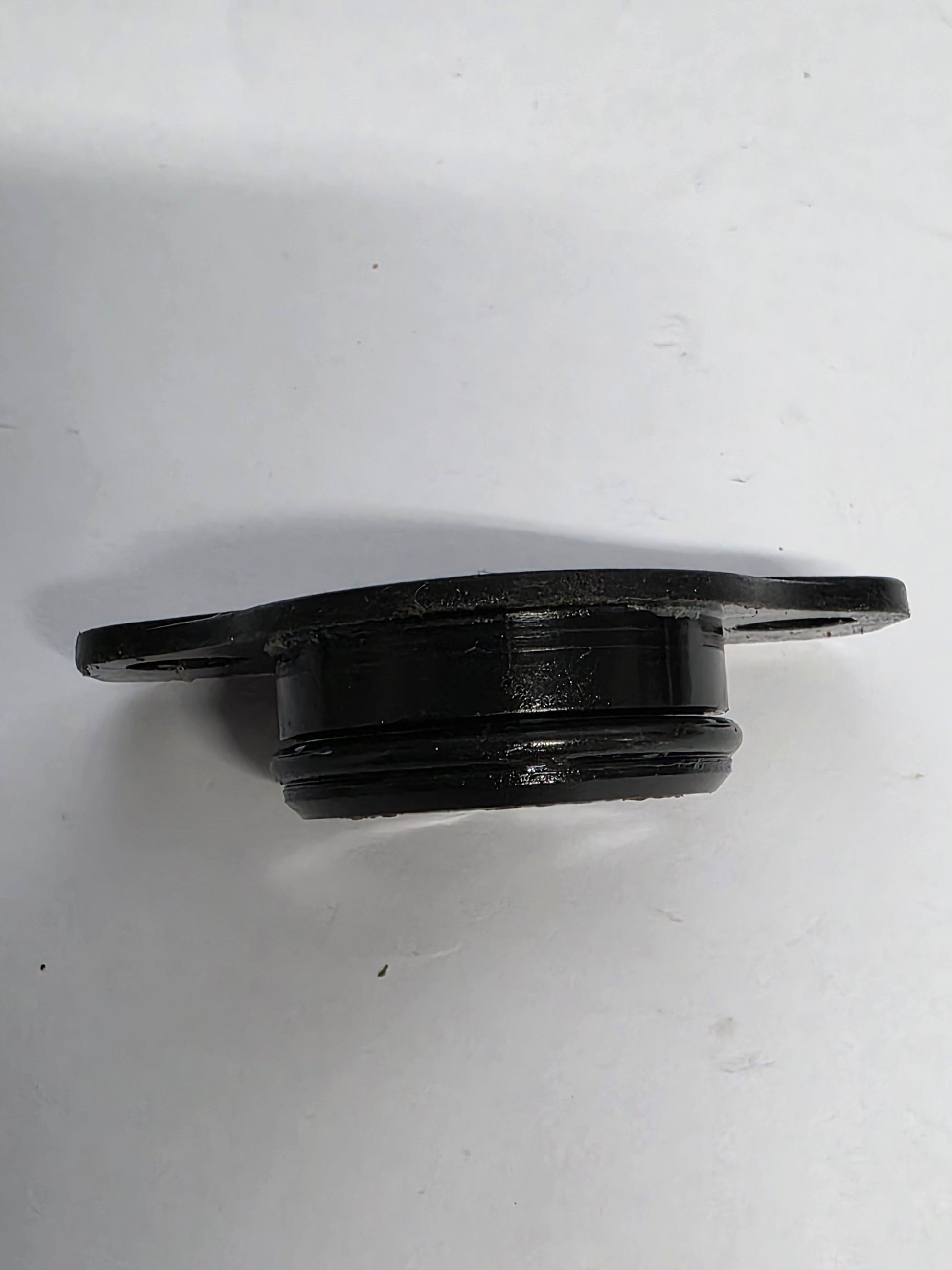

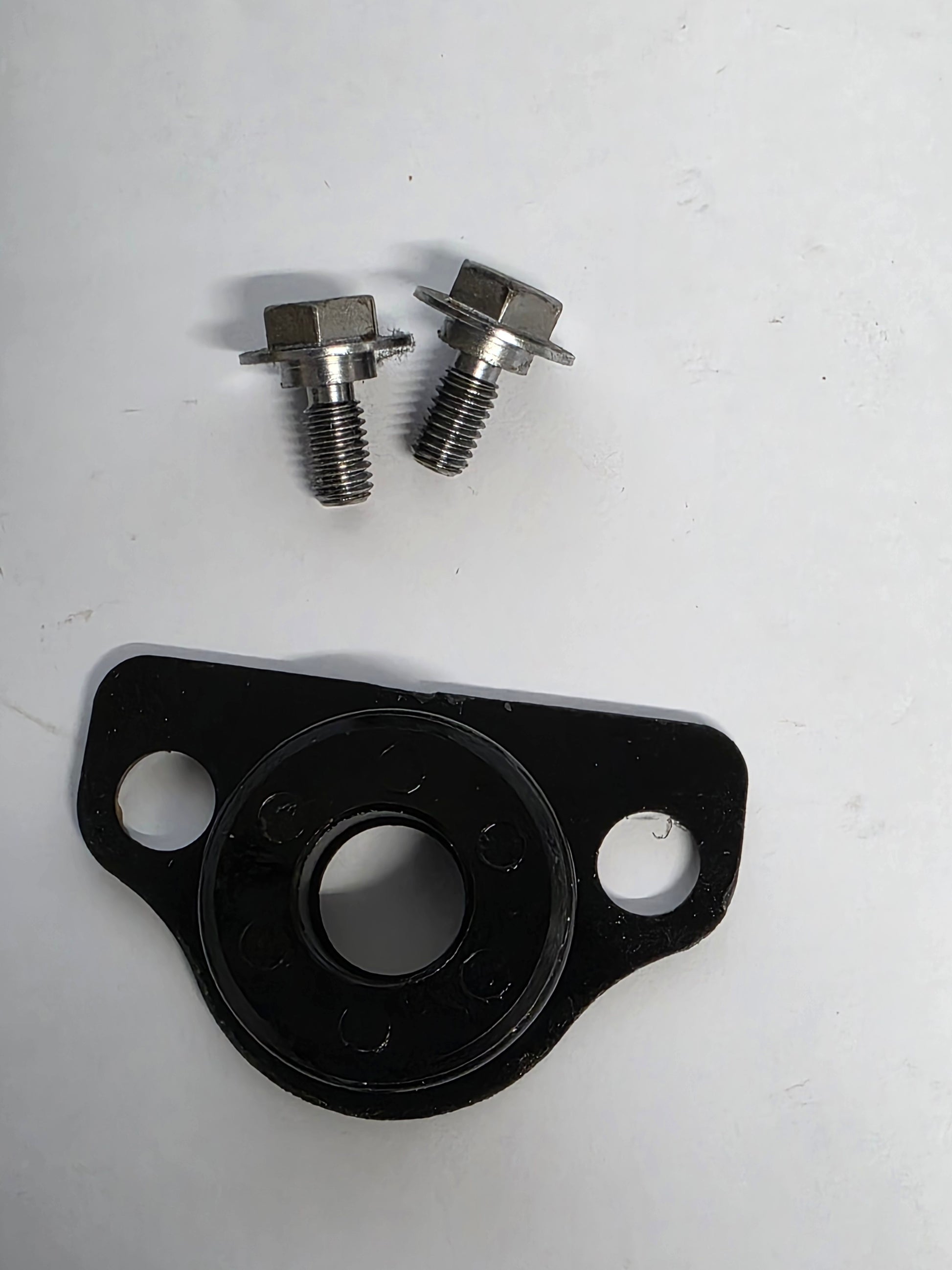

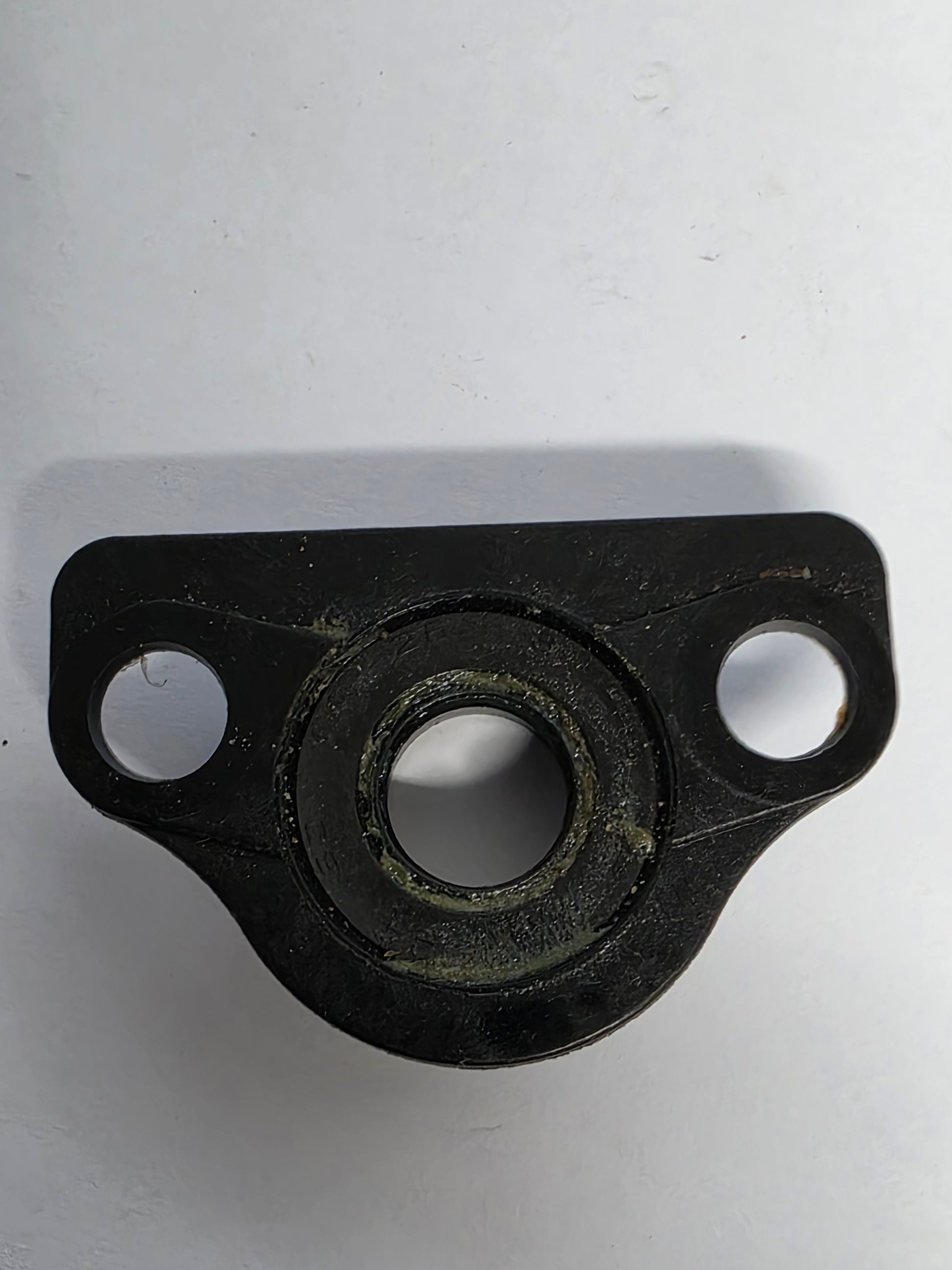

Genuine Honda Shift-Shaft Seal Holder - Part Number: 24629-ZW1-000

A genuine used Honda Marine seal holder for the upper shift-shaft assembly used on numerous medium and large four-stroke outboard motors.

The holder retains the shift-shaft oil and water seals and supports the shaft where it passes through the engine or extension-case assembly. Correct sealing prevents water entry and lubricant leakage around the moving shift shaft.

⚙️ Key Features

  • Genuine used Honda Marine shift-shaft seal holder
  • Correct OEM part number 24629-ZW1-000
  • Retains the shift-shaft oil and water seals
  • Broad Honda four-stroke application
  • Original bore and seal-seat dimensions

🚤 Compatibility

Commonly used on

  • Honda shift-shaft sealing assemblies

Verified model families include

  • BF75A and BF90A
  • BF90D and related BF75D groups
  • BF115A and BF130A
  • BF175A / D, BF200A / D and BF225A / D
  • BF250A / D
  • Official BF175 / BF200 / BF225 AK2 and AK3 diagrams specify 24629-ZW1-000
  • HP Range: Approximately 75HP-250HP
  • Engine Type: Honda EFI four-stroke outboard
  • Fitment Note: Confirm the seal combination and surrounding housing by model and frame serial

🔌 Function

The holder keeps the shift-shaft seals correctly positioned and supports the shaft while allowing it to rotate or move through the linkage.

⚠️ Common Signs of Failure

  • Water leaks past the shift shaft
  • Oil or grease appears around the holder
  • Seal bore is corroded or scored
  • Holder is cracked
  • Shift shaft binds
  • Seals repeatedly fail
  • O-ring groove is damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 24629-ZW1-000 current long-running seal-holder reference

OEM / Related Numbers

  • 24629-ZW1-000
  • 24629ZW1000
  • 91251-ZW5-003 related 14x26x6 oil seal
  • 91255-ZY3-003 related 14x26x8 water seal
  • 91302-PF0-003 related 26.9x2.4 O-ring
  • Related shift shaft, bush and mounting hardware

Aftermarket / Verified Equivalents

  • No aftermarket equivalent for the holder
  • Individual seals may be available from Honda or seal manufacturers when matched exactly by dimensions, material and rotation requirements

📦 Condition

  • New oil seal, water seal and O-ring are recommended during installation
  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
