24744842 3593655 Volvo Penta Water Pump | Genuine Used Part

🔧 Product Description

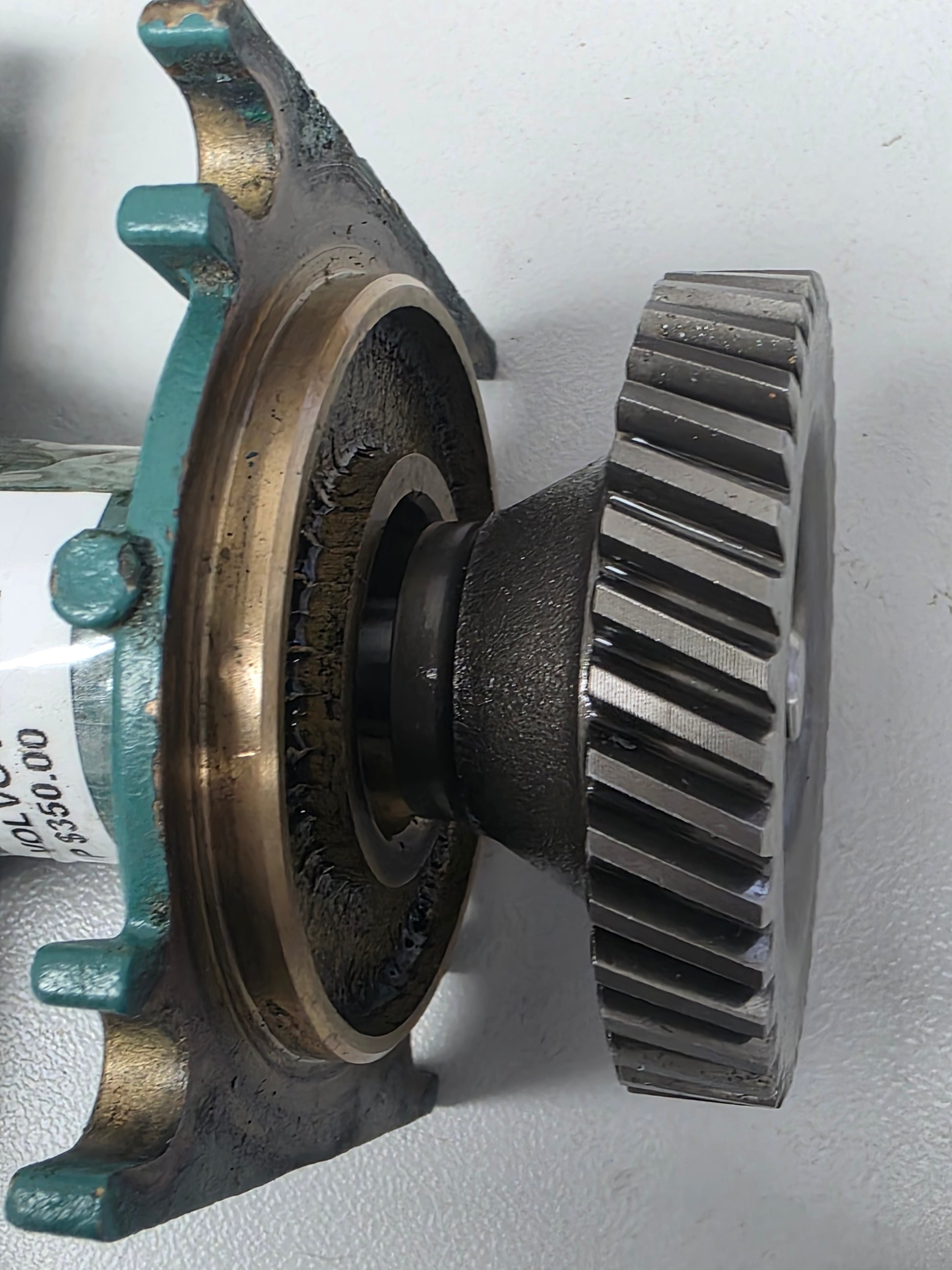

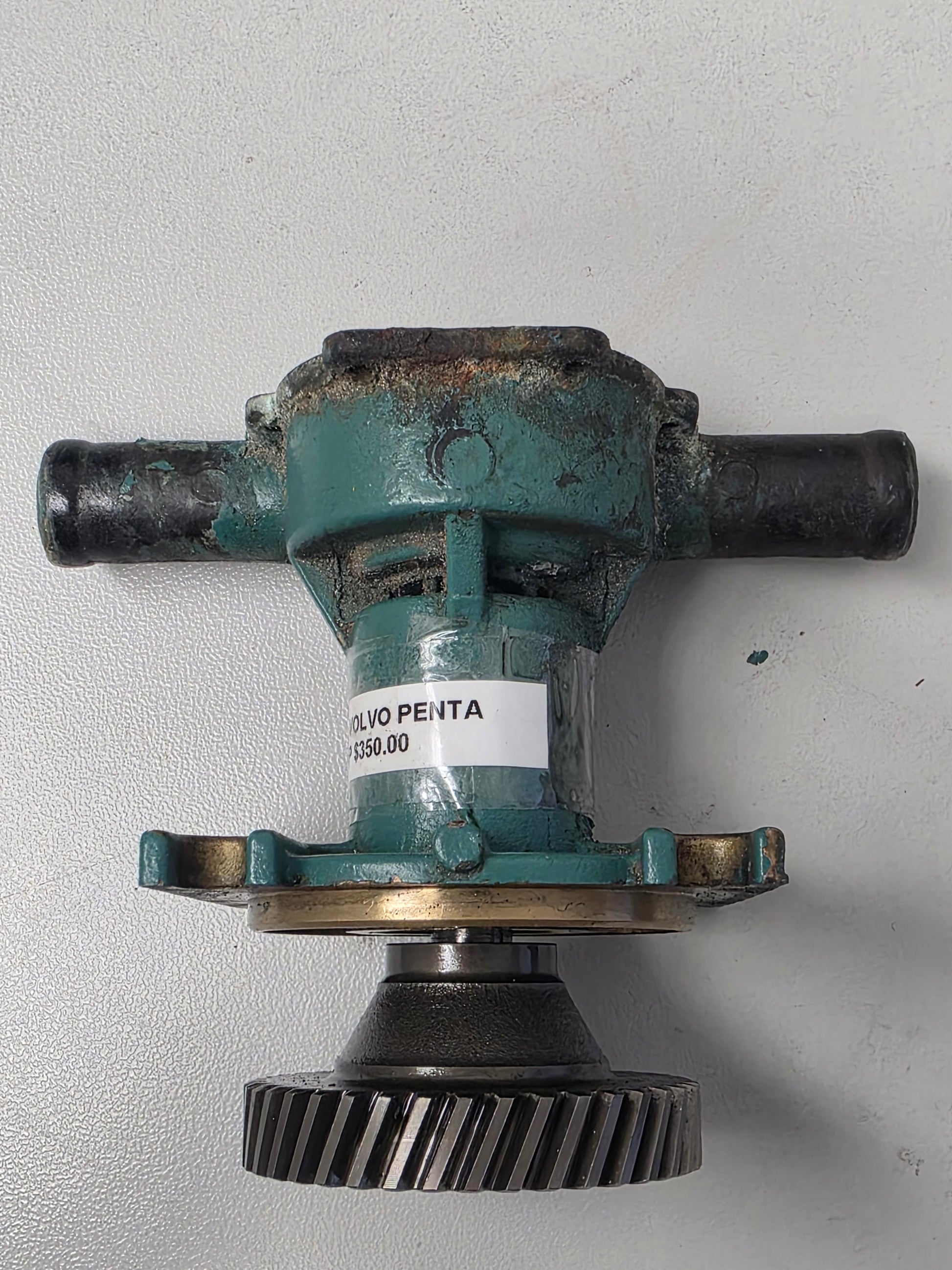

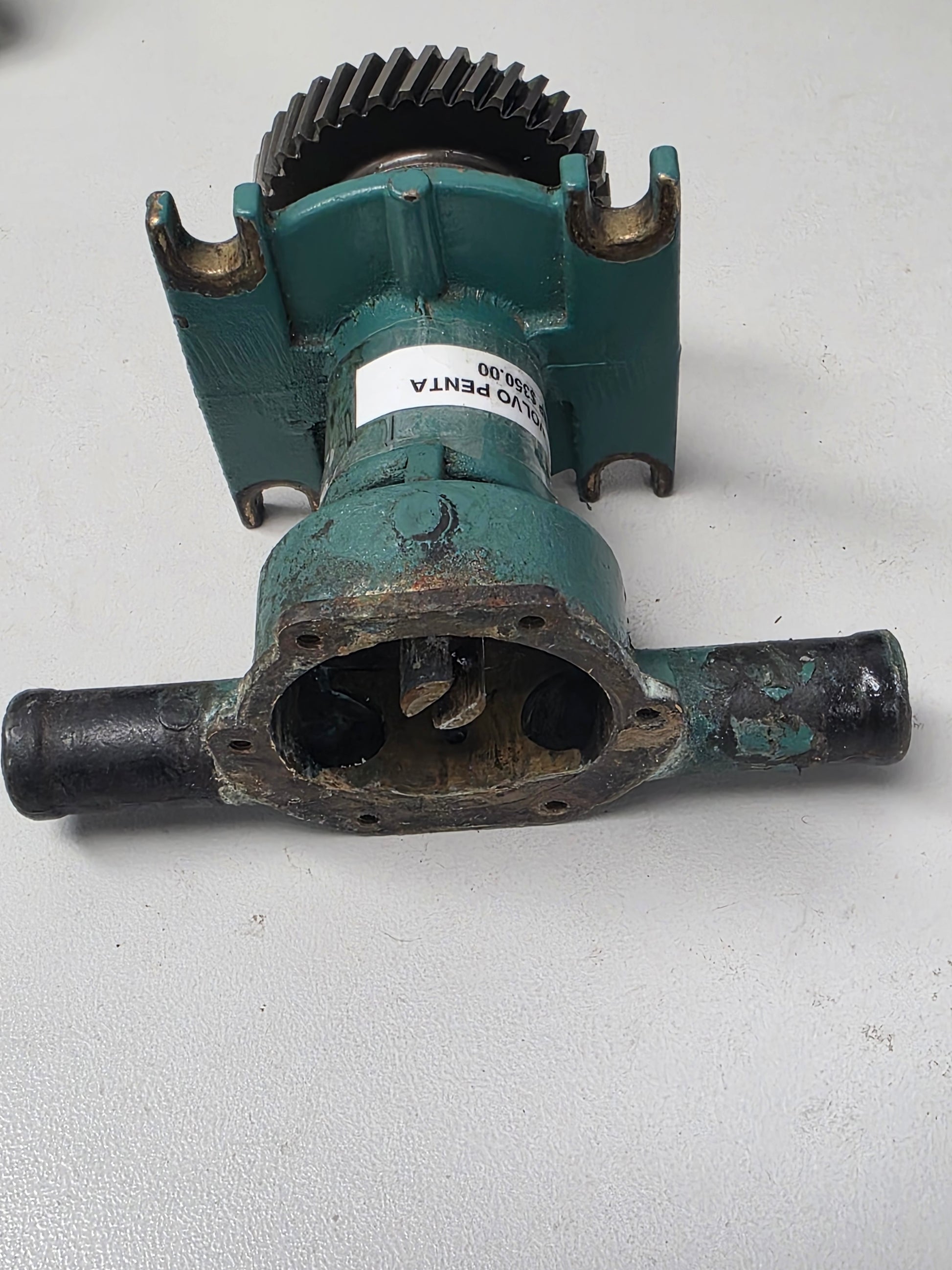

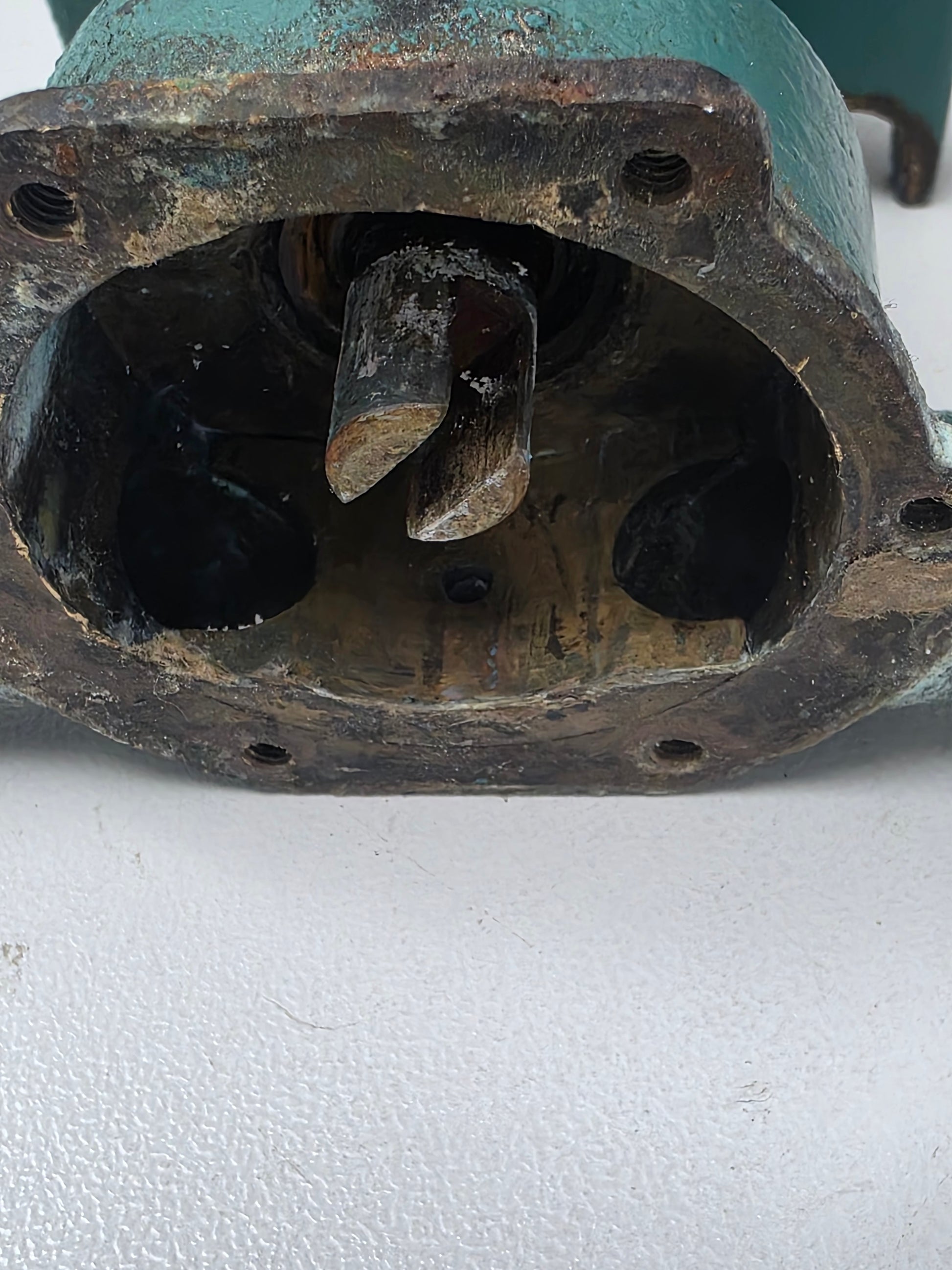

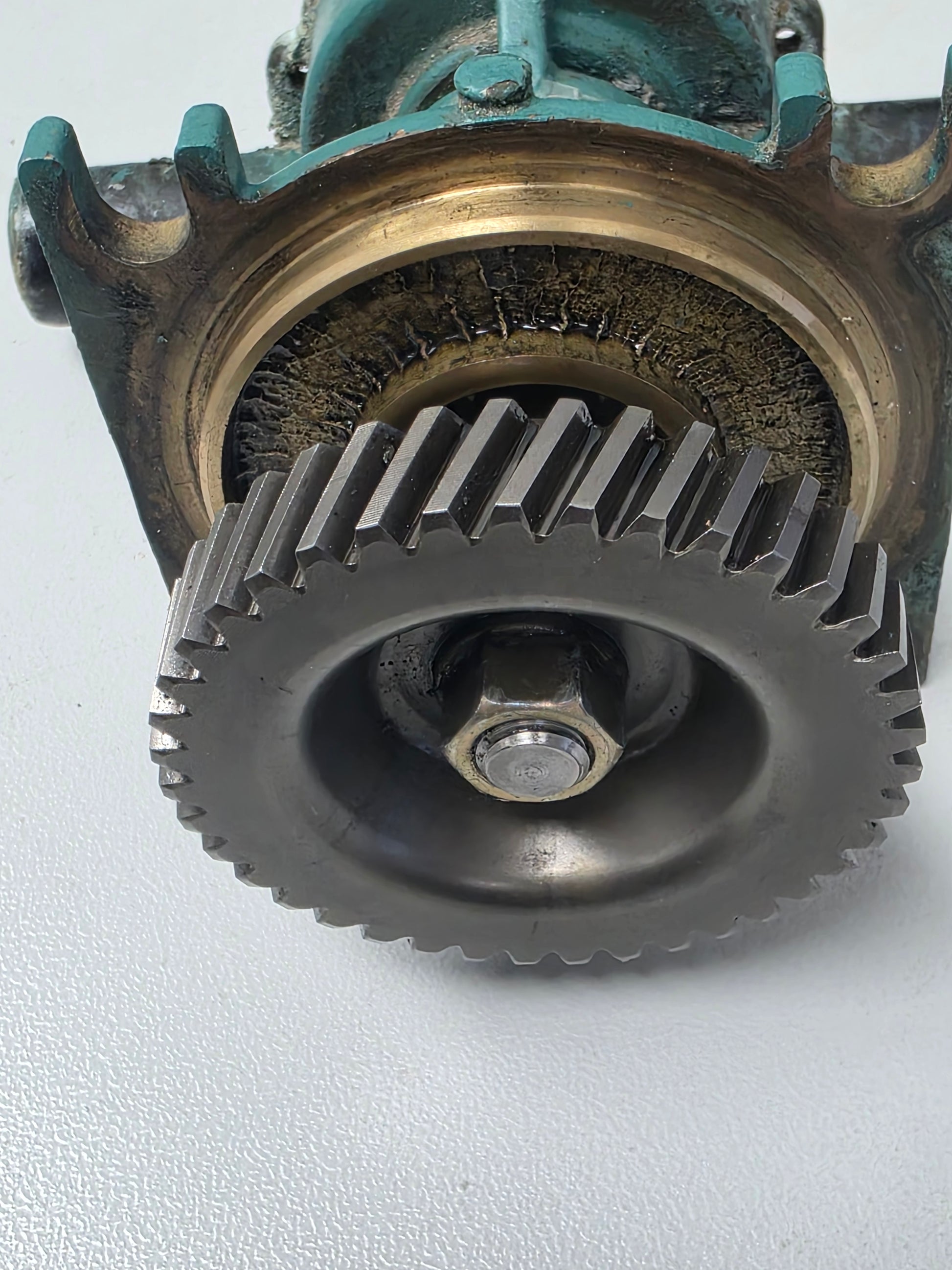

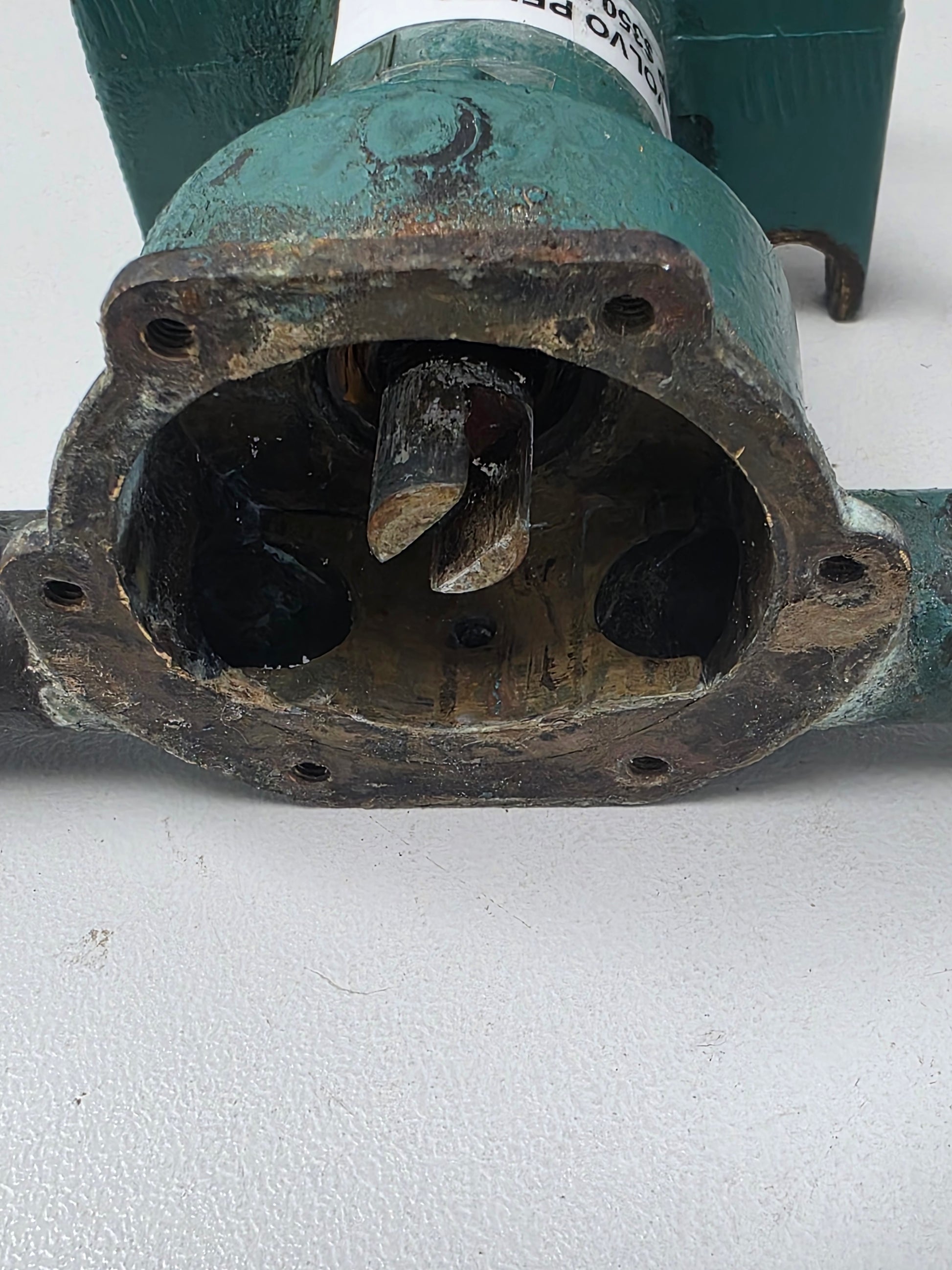

Genuine Volvo Penta Flexible-Impeller Sea Water Pump - Part Numbers: 24744842 / 3593655

A genuine used Volvo Penta raw-water pump for selected MD2030, MD2040, D1-30 and D2-40 marine diesel engines. The flange-mounted F4B-9 pump draws seawater through the inlet strainer and circulates it through the heat exchanger and exhaust system.

Part number 24744842 replaces the earlier 3593655 and 3580945 pump references. The pump uses a 3/4-inch hose-port arrangement and the Johnson Pump F4B-9 design.

⚙️ Key Features

• Genuine Volvo Penta flexible-impeller seawater pump
• Current part number 24744842 with earlier reference 3593655
• F4B-9 flange-mounted design with 19mm / 3/4-inch ports
• Used on MD2030, MD2040, D1-30 and D2-40 diesel engines
• Direct cross-reference to Johnson Pump, Recmar, JMP and Jabsco replacements

🚤 Compatibility

Commonly used on

• Volvo Penta MD2030 and MD2040 raw-water cooling systems
• Volvo Penta D1-30 and D2-40 heat-exchanger cooling systems
• Saildrive and reverse-gear installations using the central-position F4B-9 seawater pump

Typically suits

• Engine models:
• Volvo Penta MD2030
• Volvo Penta MD2030A
• Volvo Penta MD2030B
• Volvo Penta MD2030C
• Volvo Penta MD2030D
• Volvo Penta MD2040
• Volvo Penta MD2040A
• Volvo Penta MD2040B
• Volvo Penta MD2040C
• Volvo Penta MD2040D
• Volvo Penta D1-30
• Volvo Penta D1-30A
• Volvo Penta D1-30B
• Volvo Penta D1-30F
• Volvo Penta D2-40
• Volvo Penta D2-40A
• Volvo Penta D2-40B
• Volvo Penta D2-40F
• HP Range: Approximately 29HP - 40HP
• Engine Type: Volvo Penta naturally aspirated inline 3-cylinder and inline 4-cylinder marine diesel
• Year Range: Approximately 1993 onward, dependent on engine generation

🔌 Function

The pump's flexible impeller draws seawater from the hull or saildrive inlet and pushes it through the heat exchanger. The discharged water then cools and mixes with the exhaust before leaving the vessel.

⚠️ Common Signs of Failure

• Weak or absent exhaust-water discharge
• Engine overheating under load
• Water leakage from the shaft seal or pump cover
• Impeller blades cracked, missing or permanently bent
• Bearing noise, shaft play or scoring inside the pump body

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24744842 → Supersedes 3593655
• 3593655 → Supersedes 3580945
• 3580945 earlier Volvo Penta seawater-pump reference

OEM / Related Numbers

• 24744842
• 3593655
• 3580945
• 3580222
• 3580223
• 3580910
• 3580920
• 21951344
• Johnson Pump: 10-24752-11
• Johnson Pump: 10-24752-01
• Johnson Pump: 10-24465-01
• Jabsco: 29450-1231
• 22222936 / 3593659 - Related impeller kit

Aftermarket / Verified Equivalents

• Johnson Pump: 10-24752-11 F4B-9
• Recmar: REC3593655
• JMP: JPR-VP0010DB
• Jabsco: 29450-1231
• Trickett Marine: ST123
• Aftermarket pump referencing VP0010DB / 24744842 / 3593655

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
