24800-ZW4-H14 Honda Control Box | Genuine Used Part

🔧 Product Description

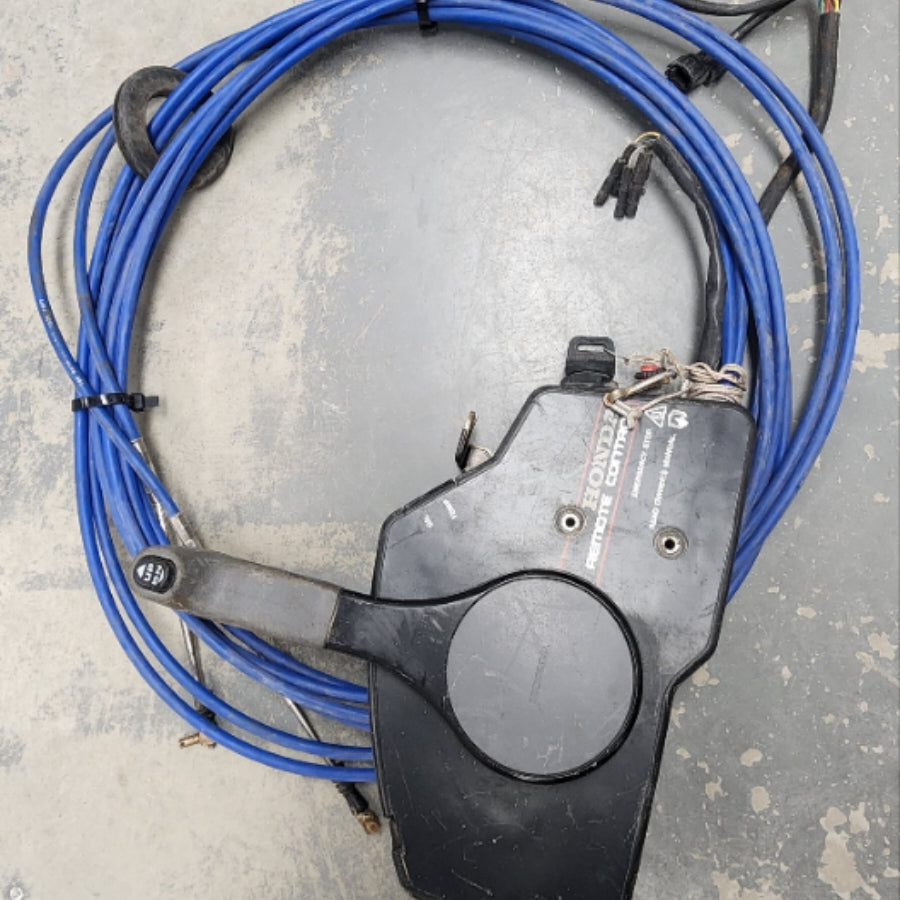

Genuine Honda Side-Mount Remote Control Box - Part Number: 24800-ZW4-H14

A genuine used Honda Marine side-mount control box for mechanically controlled outboard motors.

The assembly incorporates a single throttle-and-shift lever, ignition key, neutral-safety switch, emergency-stop circuit and handle-mounted power trim and tilt control.

⚙️ Key Features

• Genuine used Honda Marine remote-control box
• Correct original part number 24800-ZW4-H14
• Side-mount single-lever configuration
• Integrated key switch and power-trim switch
• Uses standard mechanical throttle and shift cables

🚤 Compatibility

Commonly used on

• Honda mechanically controlled four-stroke outboards
• Side-mount installations using Honda engine wiring and standard control cables

Typically suits

• Engine models:
• Honda BF40A
• Honda BF45A
• Honda BF50A
• Honda BF75A
• Honda BF90A
• Honda BF115A
• Honda BF115A1
• Honda BF115AK0
• Honda BF130A
• Honda BF130A2
• Honda BF50A LRTA
• Honda BF115AK0 LA
• Honda BF115AY LCA
• Honda BF130A2 XA
• BF130A2 applications from frame serial 1302131 where specified
• HP Range: 40HP - 130HP
• Engine Type: Honda mechanically controlled four-stroke outboard
• Year Range: Approximately 1997-2007

🔌 Function

The control box operates engine throttle, forward, neutral and reverse while providing ignition, emergency-stop, neutral-safety and power-trim control.

⚠️ Common Signs of Failure

• Control lever binds or becomes loose
• Engine does not fully engage gear
• Ignition key switch operates intermittently
• Engine will not crank because of the neutral-safety switch
• Trim switch fails in one or both directions
• Internal cable pivots are worn
• Control harness terminals are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 24800-ZY3-010 later Honda remote-control assembly
• 24800-ZW4-H14 earlier OEM control-box reference
• 24800-ZW2-A02 related earlier Honda side-control reference

OEM / Related Numbers

• 24800-ZW4-H14
• 24800ZW4H14
• 24800-ZY3-010
• 24800ZY3010
• 24800-ZW2-A02
• 24820-ZV5-000 related control-box housing
• 24841-ZV5-000 related internal control component

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
