2643036 Mercury MerCruiser Oil Seal | Genuine Quicksilver OEM Part

🔧 Product Description

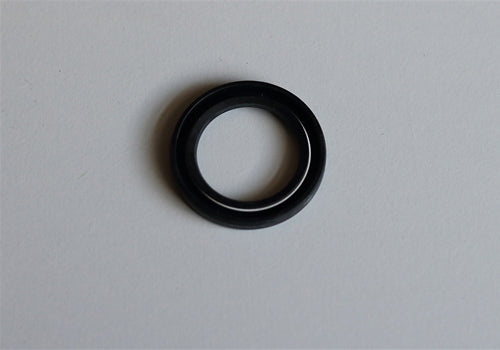

Genuine Quicksilver Lower Driveshaft Oil Seal - Part Number: 26-43036

A genuine Quicksilver lower-unit driveshaft oil seal for selected Mercury and Mariner outboard gearcases.

The seal is installed beneath the water-pump base around the driveshaft. It separates the gear-lubricated lower-unit cavity from the water-pump area, retaining gear oil and preventing cooling water from entering the gear housing.

⚙️ Key Features

• Genuine Quicksilver OEM lower driveshaft seal

• Correct Mercury part number 26-43036

• Installs beneath the water-pump base

• Approximate dimensions: 1.045-inch shaft, 1.474-inch outside diameter and 0.187-inch width

• Cross-references with Sierra, GLM, Recmar, Honda and OMC replacements

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 26-43036 current OEM service reference

• 43036 original Mercury base reference

OEM / Related Numbers:

• 26-43036

• 43036

• 2643036

• 28618401

• 2861-8401

• 62-3719

Aftermarket / Verified Equivalents:

• Sierra: 18-0522

• GLM: 85170

• Recmar: REC26-43036

• Honda Marine: 91254-ZW1-003

• OMC / Johnson / Evinrude: 0509228

🚤 Compatibility

Commonly used on:

• Mercury and Mariner outboard lower-unit driveshaft sealing assemblies

• Water-pump base and upper gearcase sealing locations

• 3-cylinder and 4-cylinder gearcases using seal 26-43036

Typically suits:

• Engine models:

• Mercury / Mariner 30HP gearcase applications using 26-43036

• Mercury / Mariner 40HP 2-cylinder, 3-cylinder and 4-cylinder

• Mercury / Mariner 45HP 4-cylinder

• Mercury / Mariner 50HP carburetted and EFI

• Mercury / Mariner 50HP EFI four-stroke - serial 0P401000 to 0P515896

• Mercury / Mariner 55HP and 55 SeaPro

• Mercury / Mariner 60HP carburetted and EFI

• Mercury / Mariner 60HP EFI four-stroke - serial 1C000001 to 1C050251

• Mercury / Mariner 65HP 3-cylinder

• Mercury / Mariner 70HP 3-cylinder

• Mercury / Mariner 75HP 2-stroke

• Mercury / Mariner 75HP four-stroke - serial 0T801000 to 1B226999

• Mercury / Mariner 80HP 3-cylinder

• Mercury / Mariner 90HP 3-cylinder and four-stroke

• Mercury / Mariner 100HP 4-cylinder

• Mercury / Mariner 100HP 2-stroke - serial 0B209468 and above

• Mercury / Mariner 115HP 4-cylinder

• Mercury / Mariner 115HP EFI four-stroke - serial 0T178500 to 0T800999

• Mercury / Mariner 115HP 2-stroke - serial 0B209468 and above

• Mercury / Mariner 120HP Force-based gearcase applications

• Mercury / Mariner 125HP 2-stroke - USA serial 0B209468 and above

• Mercury / Mariner 125HP international - serial 9793577 to 0P016999

• HP Range: 30HP - 125HP

• Engine Type: Mercury / Mariner 2-stroke, EFI and four-stroke outboard

• Year Range: Approximately 1987-2010s, dependent on gearcase and serial number

🔌 Function

The seal closes the driveshaft opening beneath the water pump. It keeps lower-unit gear lubricant inside the gearcase and prevents water from passing into the gear-lubricated bearing and gear assembly.

Common signs of failure:

• Gear oil visible beneath the water-pump base

• Milky or contaminated lower-unit lubricant

• Gearcase fails a pressure or vacuum test

• Corrosion around the driveshaft seal surface

• Seal damage found during water-pump servicing

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
