267000917 Sea-Doo Wear Ring | Genuine OEM BRP Part

🔧 Product Description

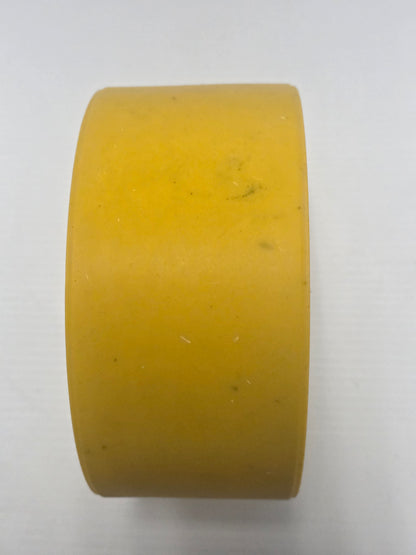

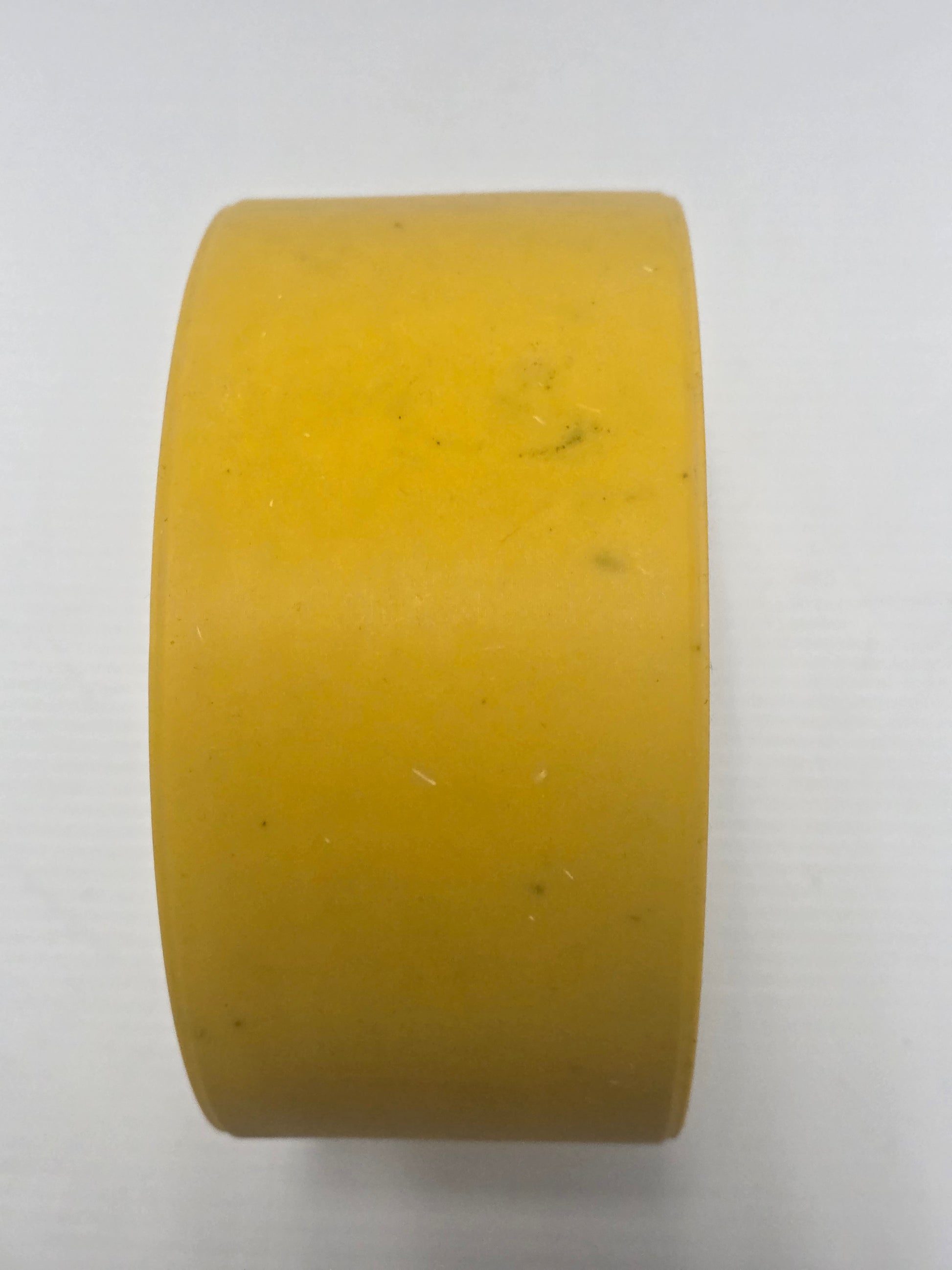

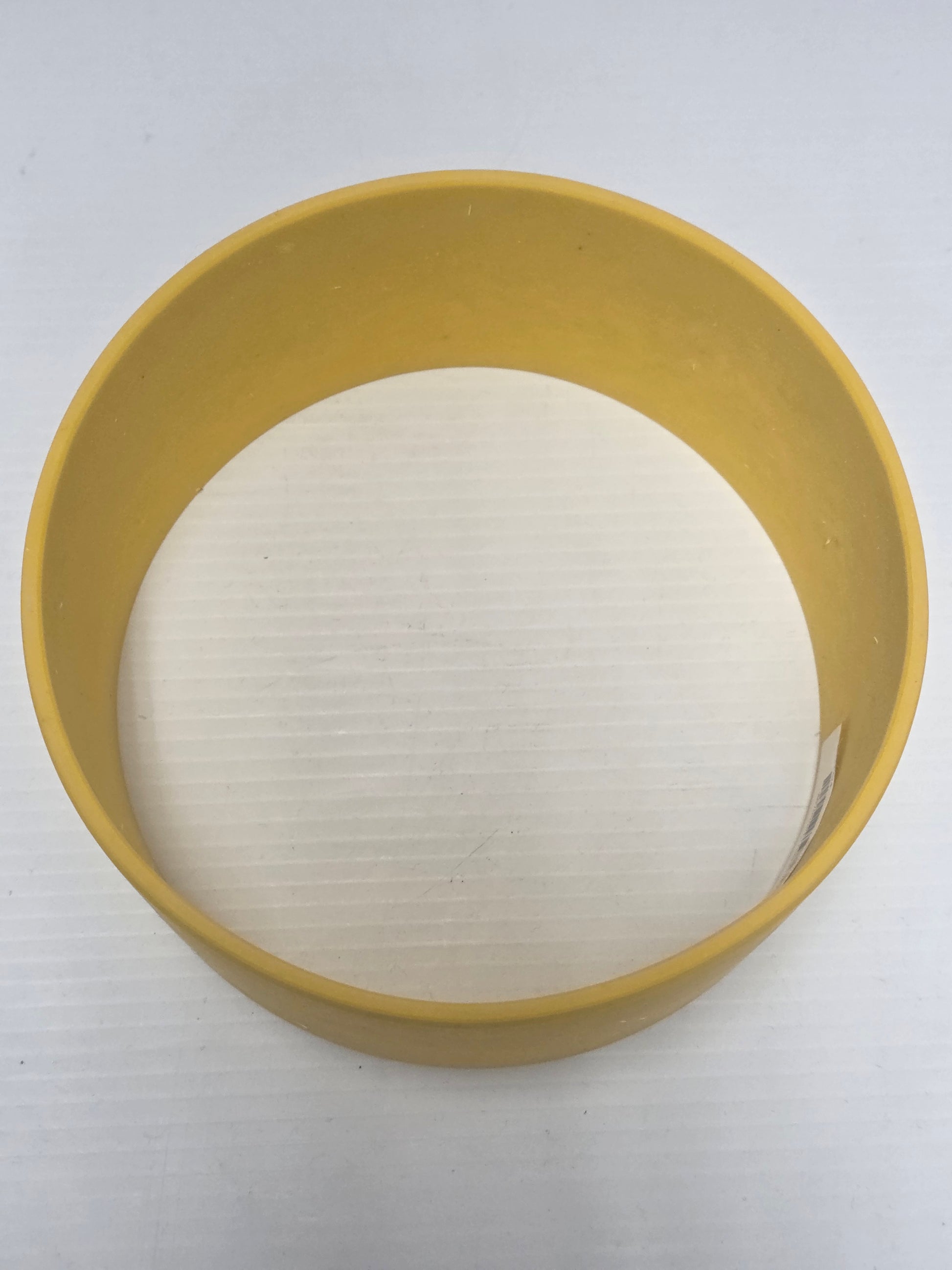

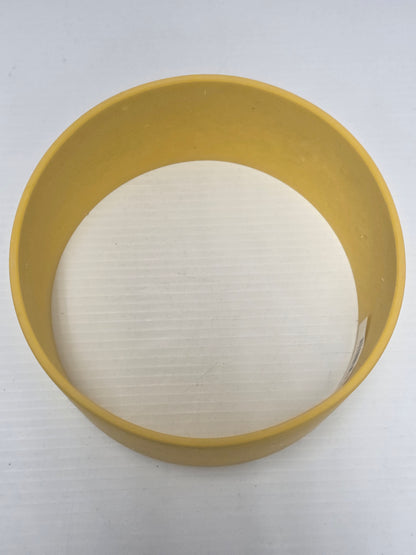

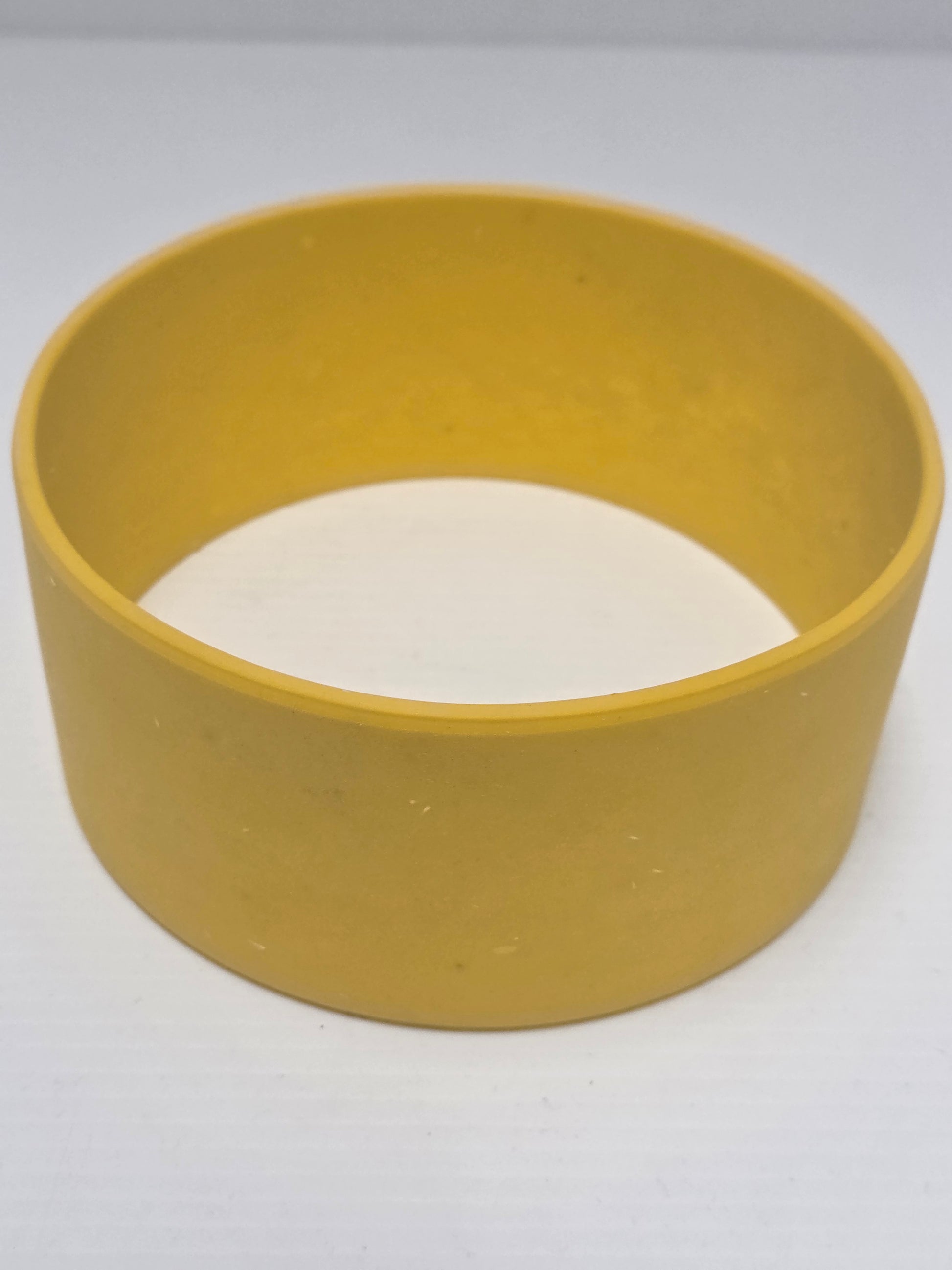

Genuine Sea-Doo 161 mm Jet Pump Wear Ring - Part Number: 267000917

A genuine BRP Sea-Doo 161 mm jet-pump wear ring for selected late-model high-output personal watercraft. It forms the close-clearance liner around the impeller, helping the pump convert engine power into clean water flow and forward thrust.

⚙️ Key Features

• Genuine BRP moulded jet-pump wear ring
• Nominal 161 mm pump-family application
• Factory inside diameter and impeller-clearance profile
• Designed for the applicable late-model Sea-Doo pump housing
• Should be matched by pump assembly and original wear-ring number rather than horsepower alone

🚤 Compatibility

Commonly used on

• Selected late-model GTR and GTR-X models using the 161 mm pump
• Selected GTX and GTX Limited models using the 161 mm pump
• Selected RXP-X and RXT-X models using the 161 mm pump
• Selected Wake Pro models using the 161 mm pump
• Selected 1630 ACE and later high-output Sea-Doo propulsion assemblies whose parts diagram specifies 267000917

Typically suits

• HP Range: Model dependent; principally late-model high-output Sea-Doo applications
• Engine / Drive Type: Sea-Doo direct-drive axial-flow jet-pump propulsion system
• Year Range: Approximately 2017 onward, pump and model dependent
• Serial / Model Identification: Confirm the complete watercraft model, hull identification number and pump housing. Sea-Doo uses multiple visually similar wear rings with different diameters and profiles.

🔌 Function

Maintains the designed clearance between the impeller blade tips and pump housing. Tight, even clearance limits water recirculation and cavitation so the pump can produce strong acceleration and efficient thrust.

⚠️ Common Signs of Failure

• Engine revs rise without matching acceleration
• Cavitation or slipping sensation during hard take-off
• Reduced top speed or poor towing performance
• Deep grooves, swelling, cracking or melted material inside the ring
• Excessive impeller-to-ring clearance caused by sand, stones or debris

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 267000917 - current verified BRP service reference
• 267000638 - related earlier 161 mm wear-ring reference on selected pump assemblies; interchange must be confirmed by pump housing

OEM / Related Numbers

• 267000917
• 267000638

Aftermarket / Verified Equivalents

• WSM / SBT 161 mm Sea-Doo wear-ring family
• Aftermarket rings listing both 267000638 and 267000917 require pump-housing verification before fitting

📦 Condition

• Genuine Sea-Doo / BRP OEM part
• Brand new
• Supplied in genuine BRP or equivalent protective packaging
