26816575A2 Mercury MerCruiser Seal Kit | Genuine Quicksilver OEM Part
26816575A2 Mercury MerCruiser Seal Kit | Genuine Quicksilver OEM Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

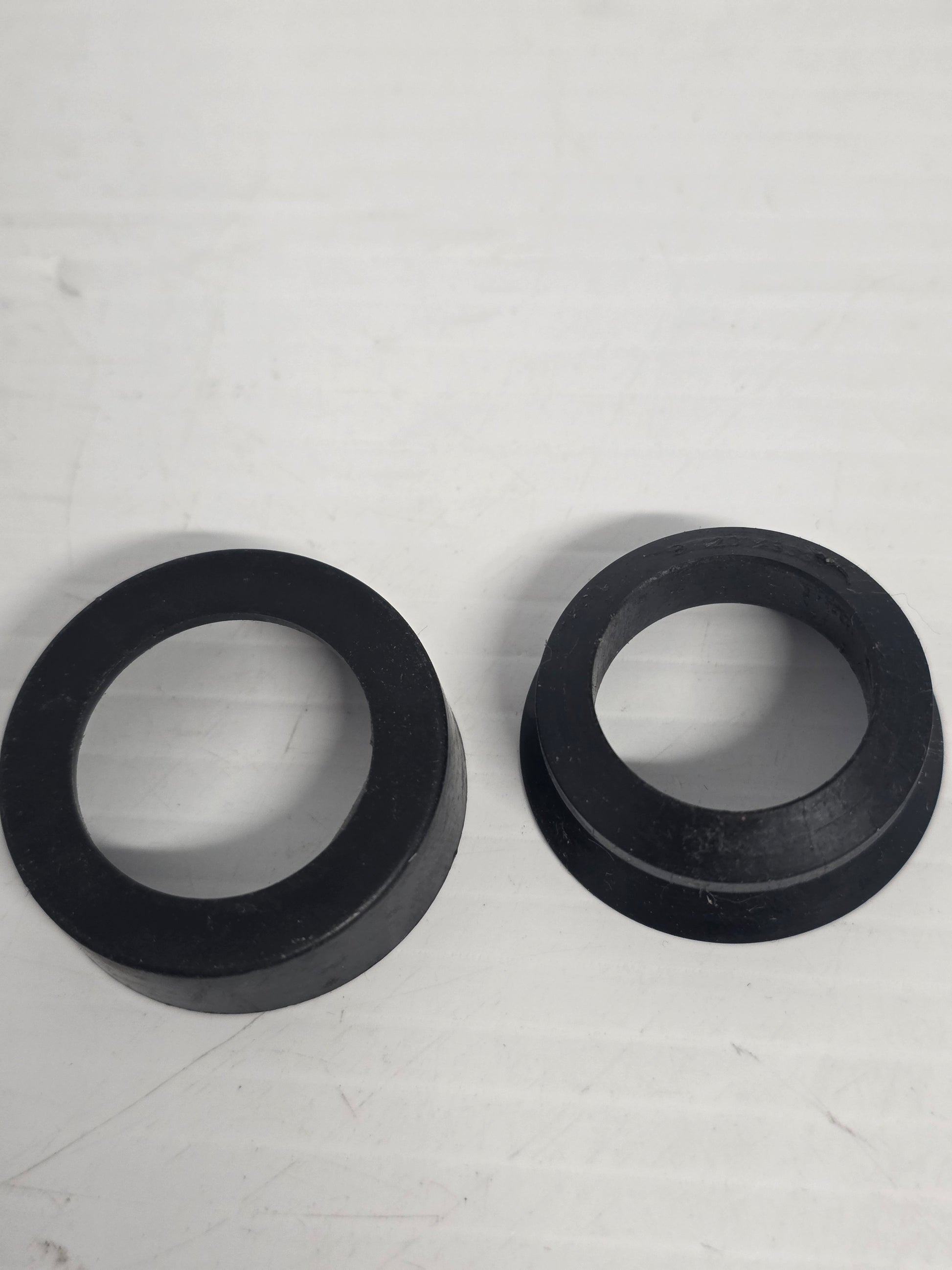

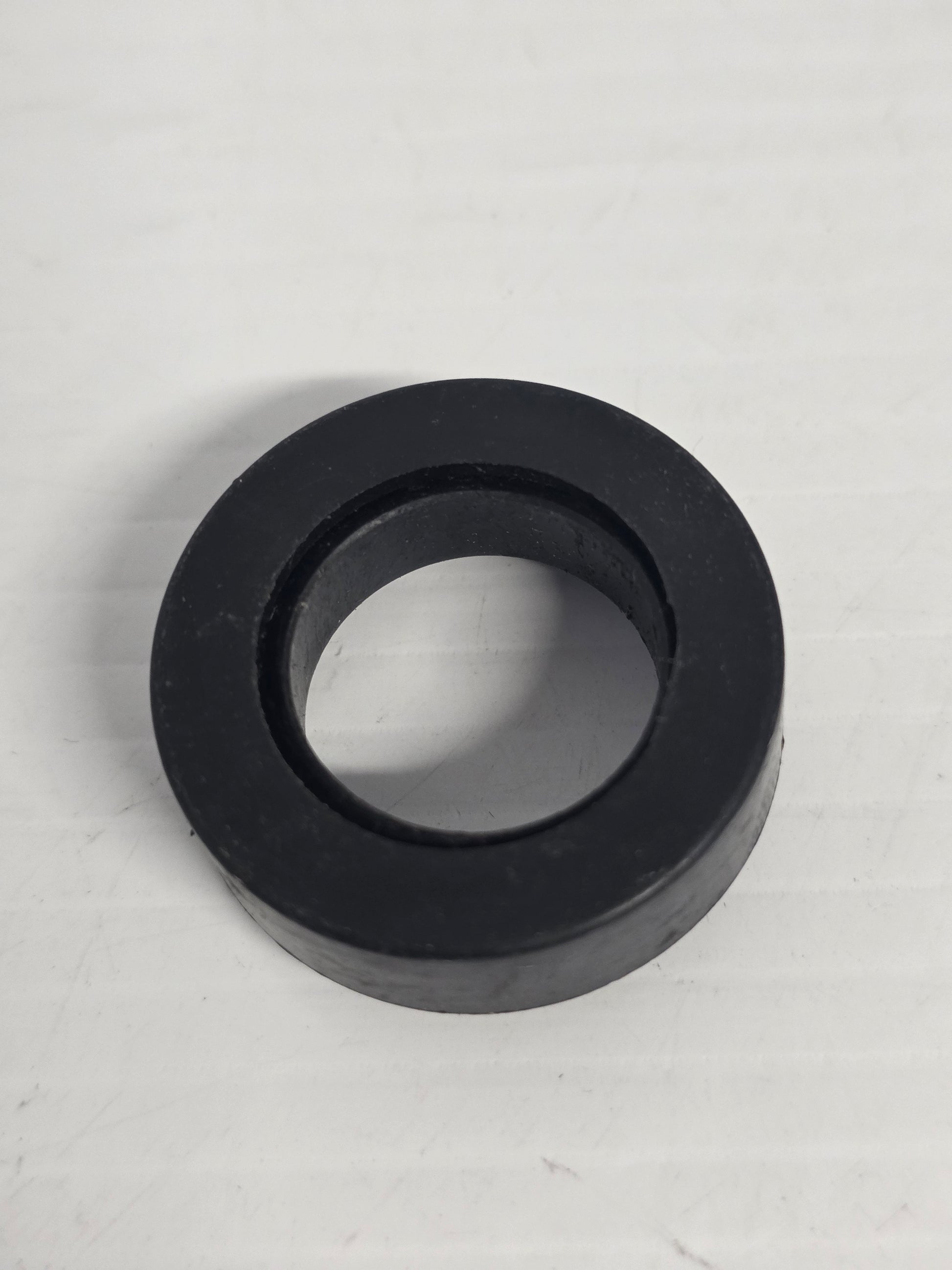

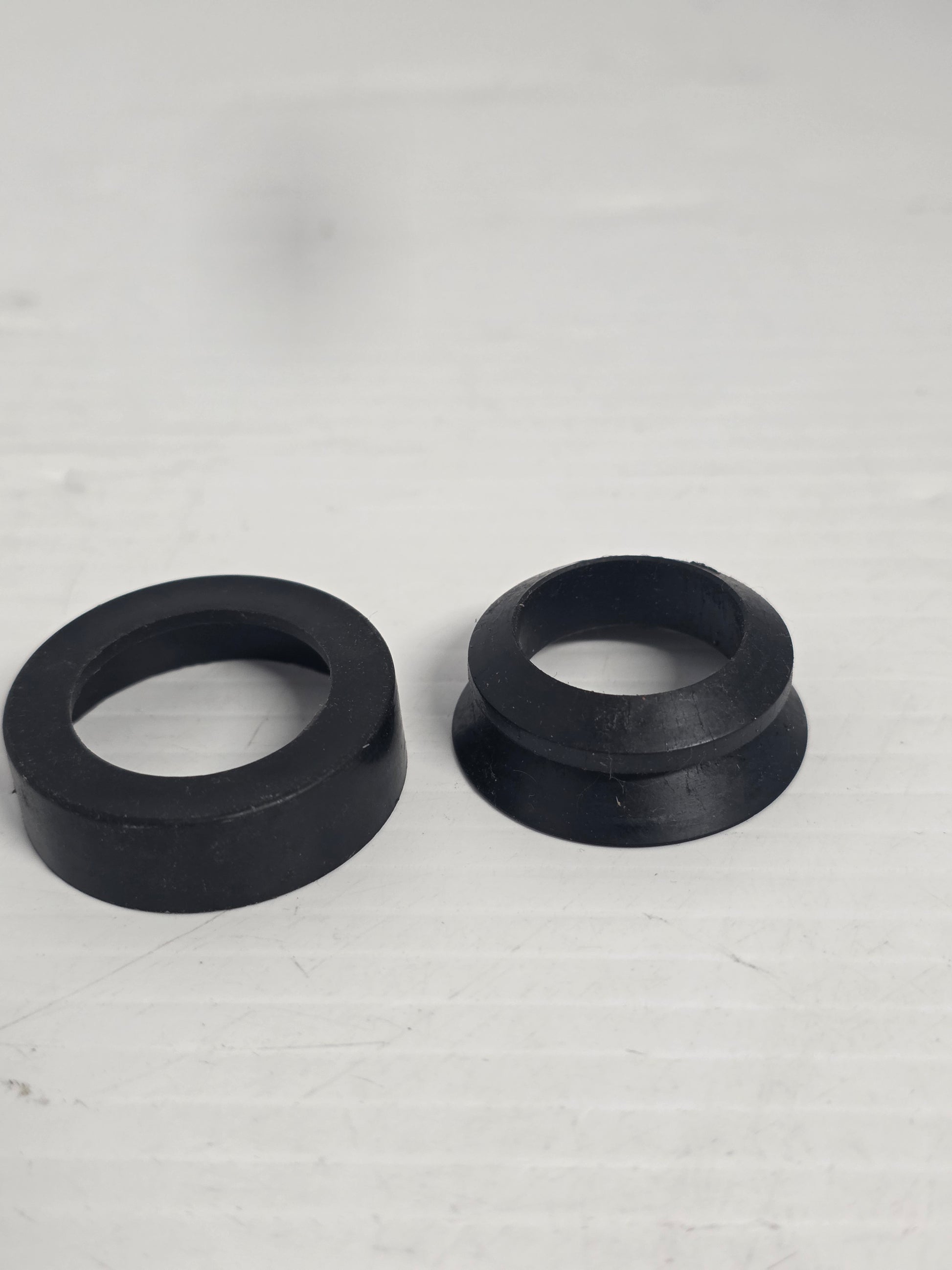

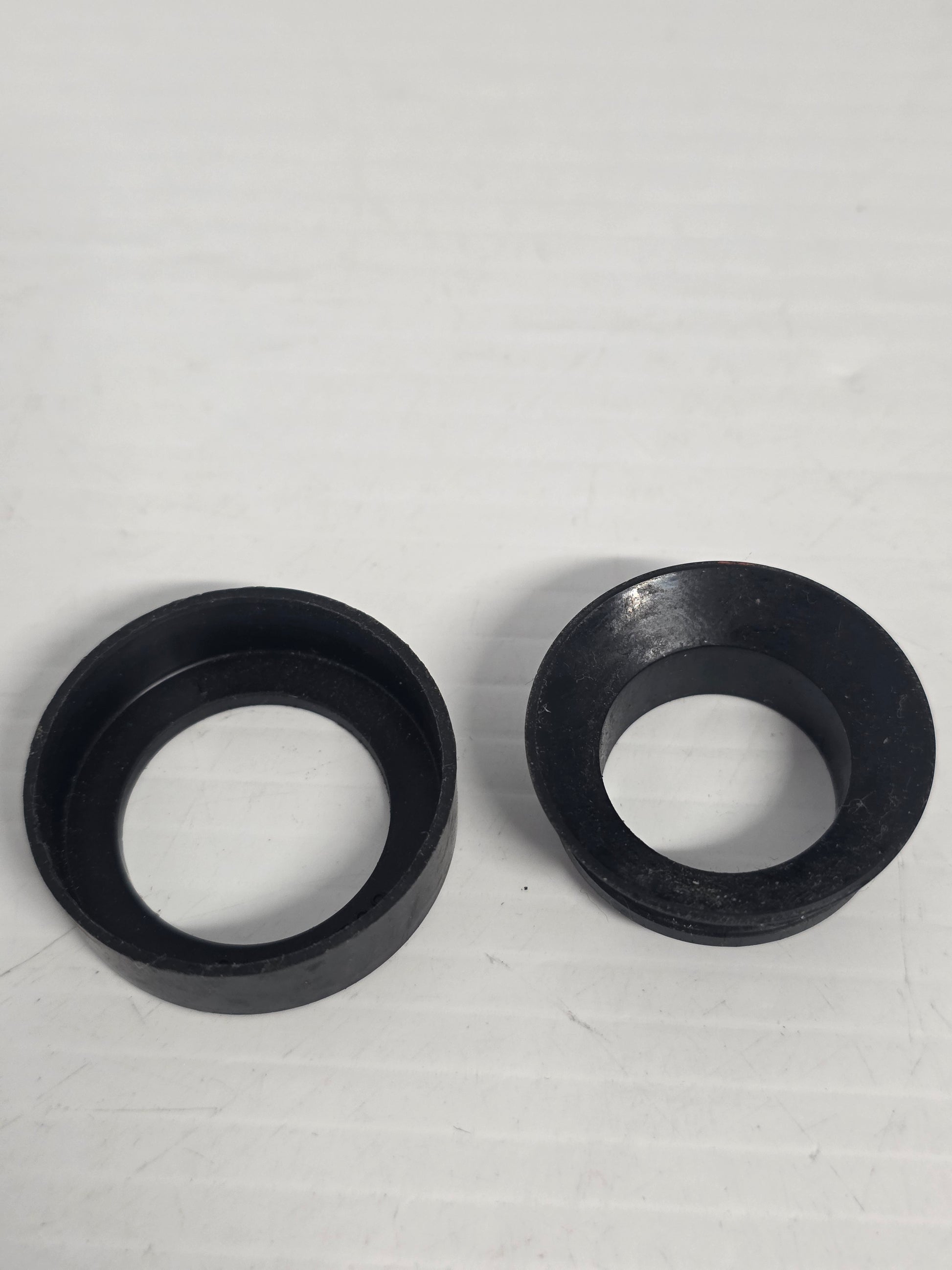

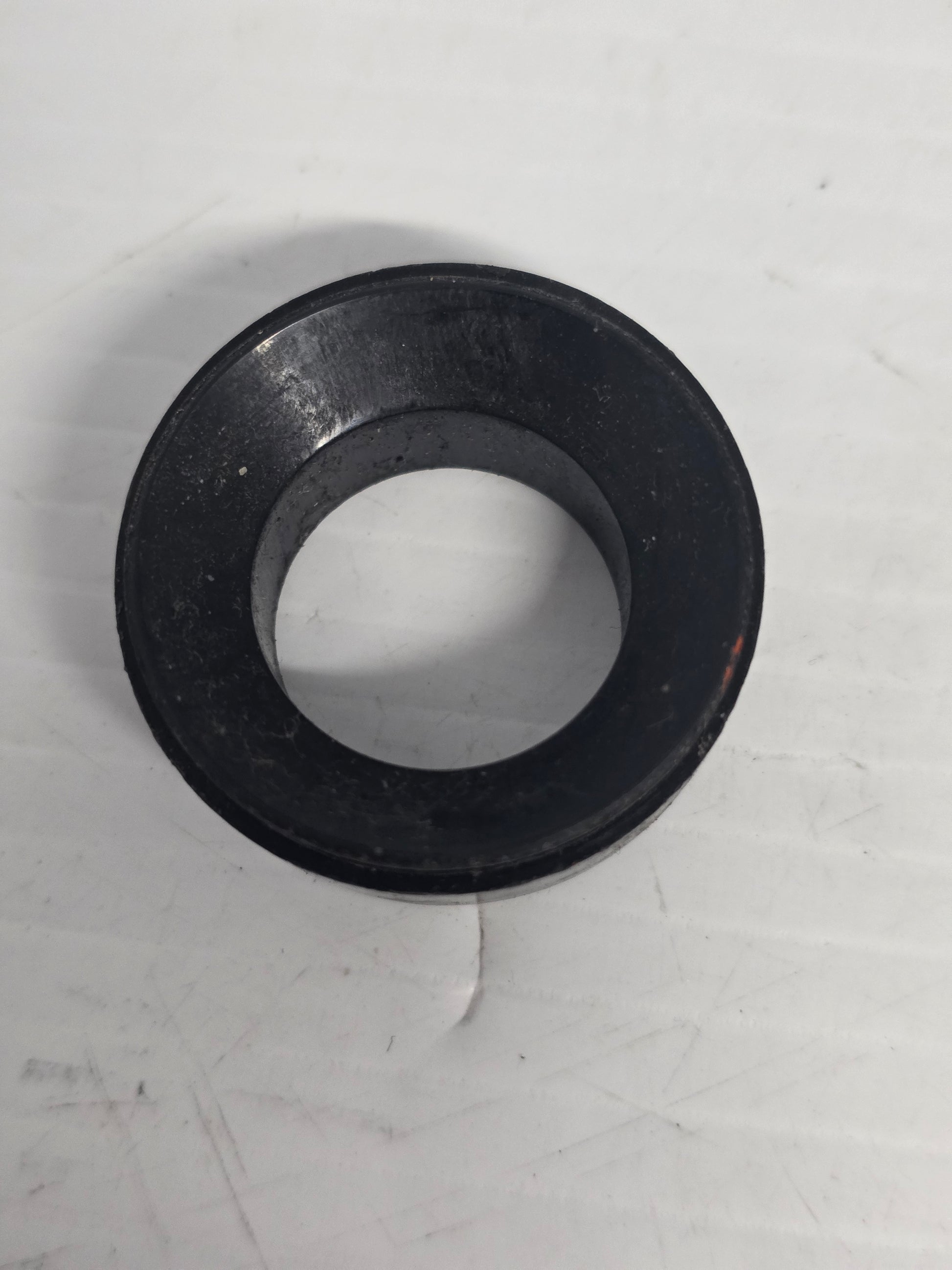

Genuine Quicksilver Water Pump Face Seal and Installation Tool Kit - Part Number: 26-816575A2
A genuine Quicksilver water-pump face-seal service kit for Mercury MerCruiser Alpha One Gen II sterndrives and selected Mercury / Mariner gearcases.
This is a face-seal kit rather than a complete lower-unit gasket set. It includes the moulded face seal and the special installation tool required to position the seal correctly during water-pump assembly.
⚙️ Key Features
- Genuine Quicksilver OEM water-pump face-seal kit
- Correct Mercury part number 26-816575A2
- Includes face seal and installation tool
- Used on Alpha One Gen II and selected outboard gearcases
- Sierra, GLM and Recmar replacements available
🚤 Compatibility
Commonly used on
- MerCruiser Alpha One Gen II water-pump assemblies
- Selected Mercury and Mariner outboard driveshaft face-seal applications
Typically suits
- Drive / engine models:
- MerCruiser Alpha One Gen II - 1991 and later
- Alpha One Gen II standard-rotation lower units
- Alpha One Gen II counter-rotation lower units where the face seal is specified
- Mercury / Mariner 65HP through V225HP gearcases using face seal 816575A2
- Mercury XR4 and XR6 gearcase applications
- Mercury 3.0L EFI and DFI lower-unit applications where the diagram specifies 26-816575A2
- HP Range: Approximately 65HP - 225HP for applicable outboards
- Drive Type: MerCruiser Alpha One Gen II
- System Type: Water-pump face seal and installation tool
🔌 Function
The seal closes the water-pump face and driveshaft area, helping prevent cooling-water leakage and ensuring the pump housing remains correctly sealed.
⚠️ Common Signs of Failure
- Weak cooling-water flow
- Engine overheats after water-pump service
- Face seal is split, flattened or incorrectly installed
- Water leaks around the pump housing
- Seal damaged because the installation tool was not used
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 26-816575A2 current OEM face-seal service-kit reference
- 816575A2 original OEM kit reference
OEM / Related Numbers
- 26-816575A2
- 816575A2
- 26816575A2
- 8M2014338 face seal
- 91-818769 installation tool
- 23-29804
- 29804T
- 861415
Aftermarket / Verified Equivalents
- Sierra: 18-2599
- GLM: 85590
- Recmar: REC26-816575A2
- Hardin Marine: 700-85590
📦 Condition
- Genuine Quicksilver part
- Brand new
- Supplied in original or equivalent packaging
