276000415 Sea-Doo Intercooler Assembly | Genuine OEM BRP Part

🔧 Product Description

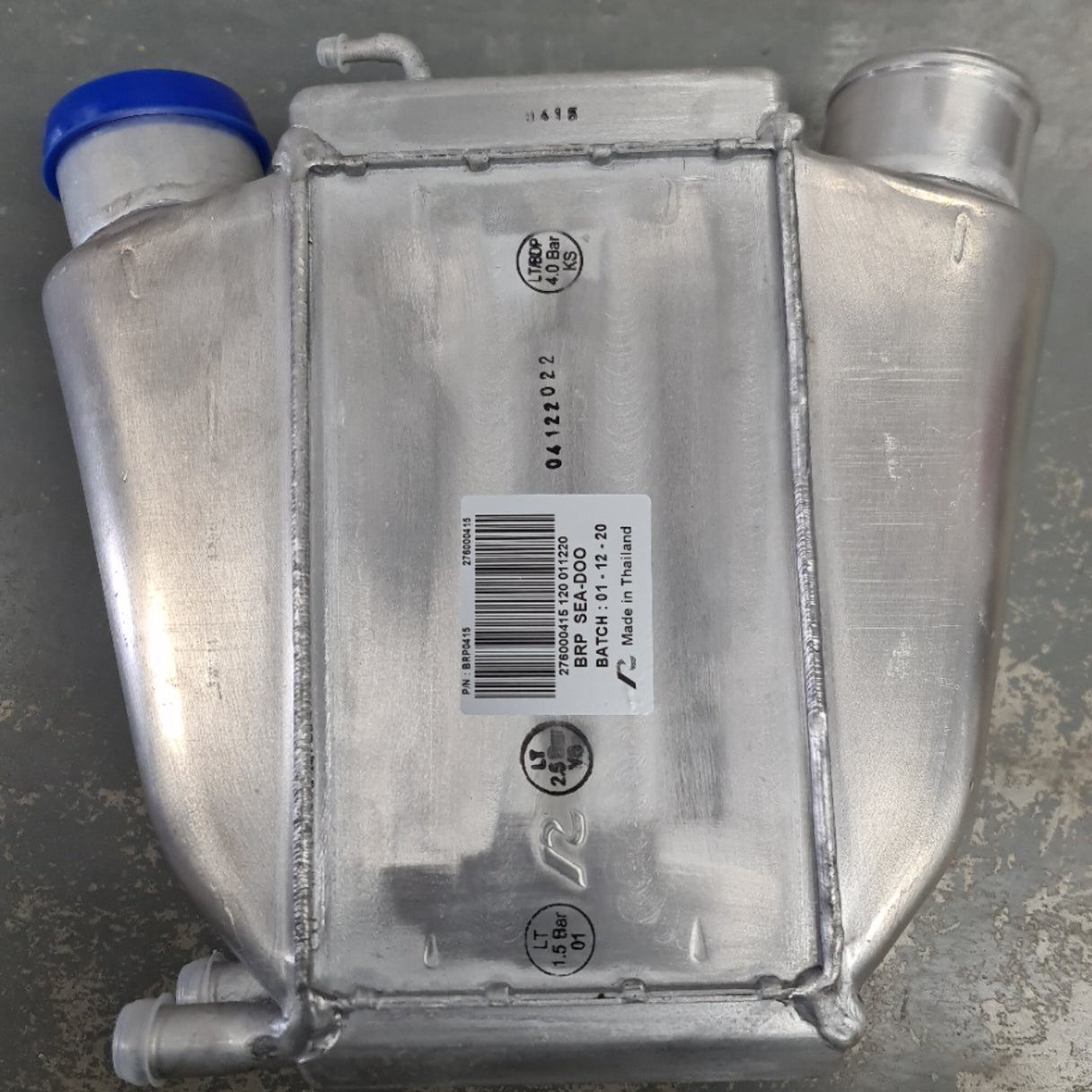

Genuine Sea-Doo Supercharged 4-TEC Intercooler Assembly - Part Number: 276000415

A genuine BRP water-cooled charge-air intercooler for selected supercharged 1503 and 1630 4-TEC Sea-Doo applications. It removes heat generated by the supercharger before the compressed air enters the intake manifold.

⚙️ Key Features

• Genuine BRP aluminium charge-air cooler assembly
• Water-cooled core for supercharged 4-TEC applications
• Factory air-hose and cooling-water connection layout
• Direct service replacement for the supported later intercooler family
• External hoses, clamps and mounting hardware are transferred or ordered separately unless included

📋 Kit / Assembly Contents

• 1 × complete intercooler core and end-tank assembly - 276000415
• 2 × integrated cooling-water connection ports - included as part of assembly 276000415
• Charge-air hoses, water hoses, clamps and mounting fasteners are not separately identified as included with the assembly

🚤 Compatibility

Commonly used on

• RXP-X 255 - 2008-2011
• RXP-X 260 - 2012-2015
• RXT-X 255 - 2008-2009
• RXT-X 260 - 2010-2015
• RXT-X aS 260 - 2011-2016
• RXT 260 - 2011-2017
• RXT iS 255 - 2009
• RXT iS 260 - 2010-2012
• GTX Limited iS 255 - 2009
• GTX Limited iS 260 - 2010-2016
• GTR-X 230, GTX Limited 230/300, GTX S Limited 260 and Wake Pro 230 - selected 2017 applications
• Selected Challenger, Speedster, Wake and SP jet boats using one of the listed OEM intercooler references

Typically suits

• HP Range: Principally 230-300 HP on the direct-fit listed applications
• Engine / Drive Type: Supercharged 1503 cc or 1630 cc Rotax 4-TEC marine engine
• Year Range: Principally 2008-2017
• Serial / Model Identification: Match the complete model, hull identification number and original intercooler number. Earlier conversions can require model-specific hose or vent updates.

🔌 Function

Transfers heat from the compressed intake charge into the cooling-water circuit. Lower charge temperature increases air density, helps control detonation and supports consistent supercharged performance.

⚠️ Common Signs of Failure

• Loss of acceleration or top-end power
• Performance fades as the intake system heats up
• Boost leak or hissing from the charge-air circuit
• Water appears in the intake tract
• Internal corrosion, restricted core passages or external leakage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 276000415 → later service reference associated with 276000332
• 276000332 → related replacement for 276000319
• 276000319 → related replacement for 276000179
• 276000273 - related intercooler reference on selected applications; verify hose and mounting arrangement

OEM / Related Numbers

• 276000415
• 276000332
• 276000319
• 276000179
• 276000273

Aftermarket / Verified Equivalents

• WSM: 010-7000K
• SBT: 33-113-1
• MOTA: 106144 - black finish
• MOTA: 106144BE - blue finish
• RIVA Racing Gen-3 Power Cooler service family

📦 Condition

• Genuine Sea-Doo / BRP OEM part
• Brand new
• Supplied in genuine BRP or equivalent protective packaging
