295501200 Sea-Doo Carbon Ring Kit | Genuine OEM BRP Part

🔧 Product Description

Genuine Sea-Doo Early 4-TEC Carbon Ring Seal Kit - Part Number: 295501200

A genuine BRP driveshaft carbon-seal service package for earlier 1503 4-TEC Sea-Doo personal watercraft and jet boats. It renews the carbon sealing face, stainless support ring, retaining clip and shaft O-rings used with the compatible seal bellows.

⚙️ Key Features

• Genuine BRP early-generation 4-TEC carbon-ring package

• Matched carbon and stainless sealing faces

• Includes the shaft retaining clip and twin support-ring O-rings

• Designed for the compatible 272000183 bellows arrangement

• Bellows and driveshaft are serviced separately unless supplied under another package

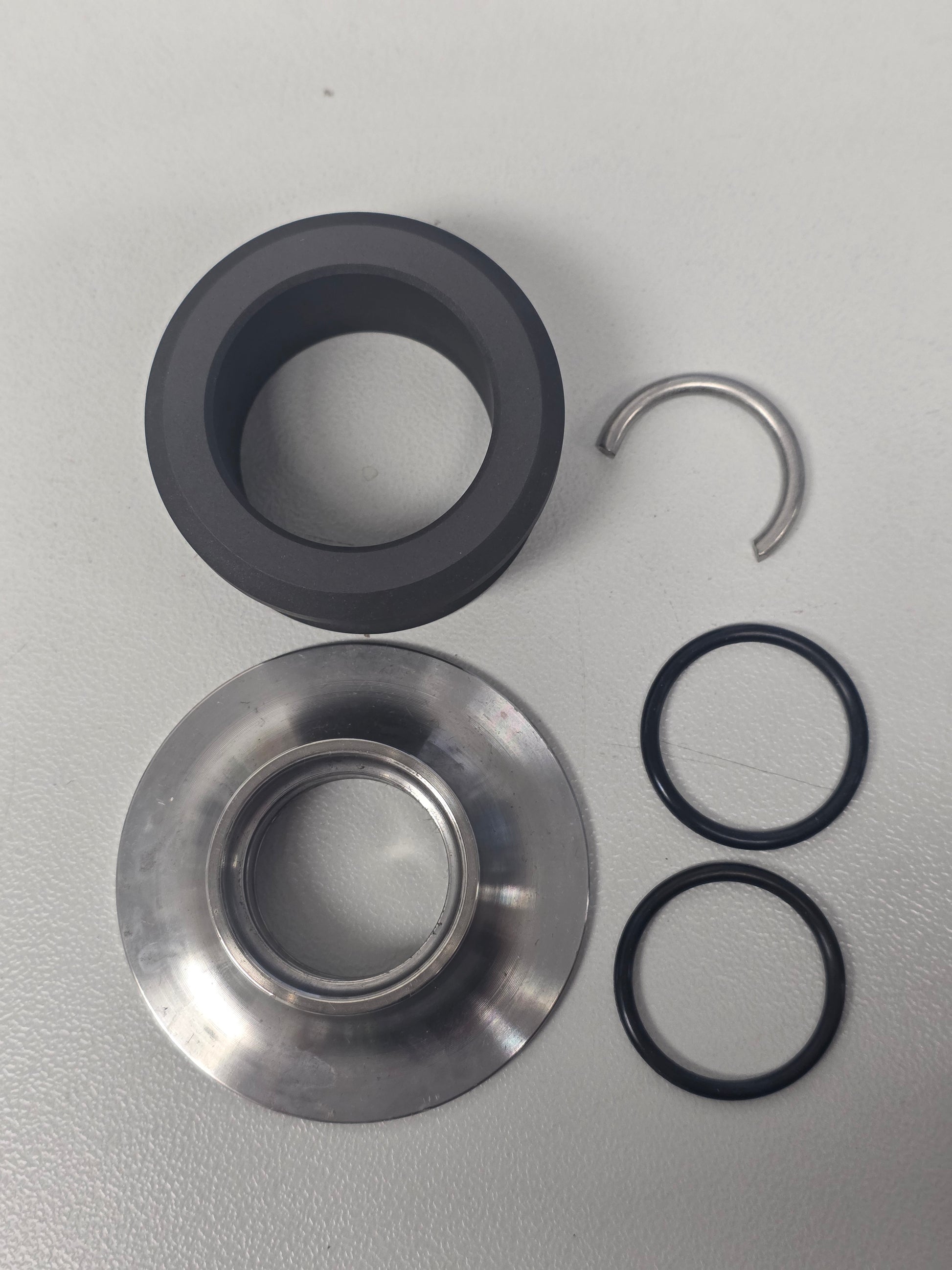

📋 Kit / Assembly Contents

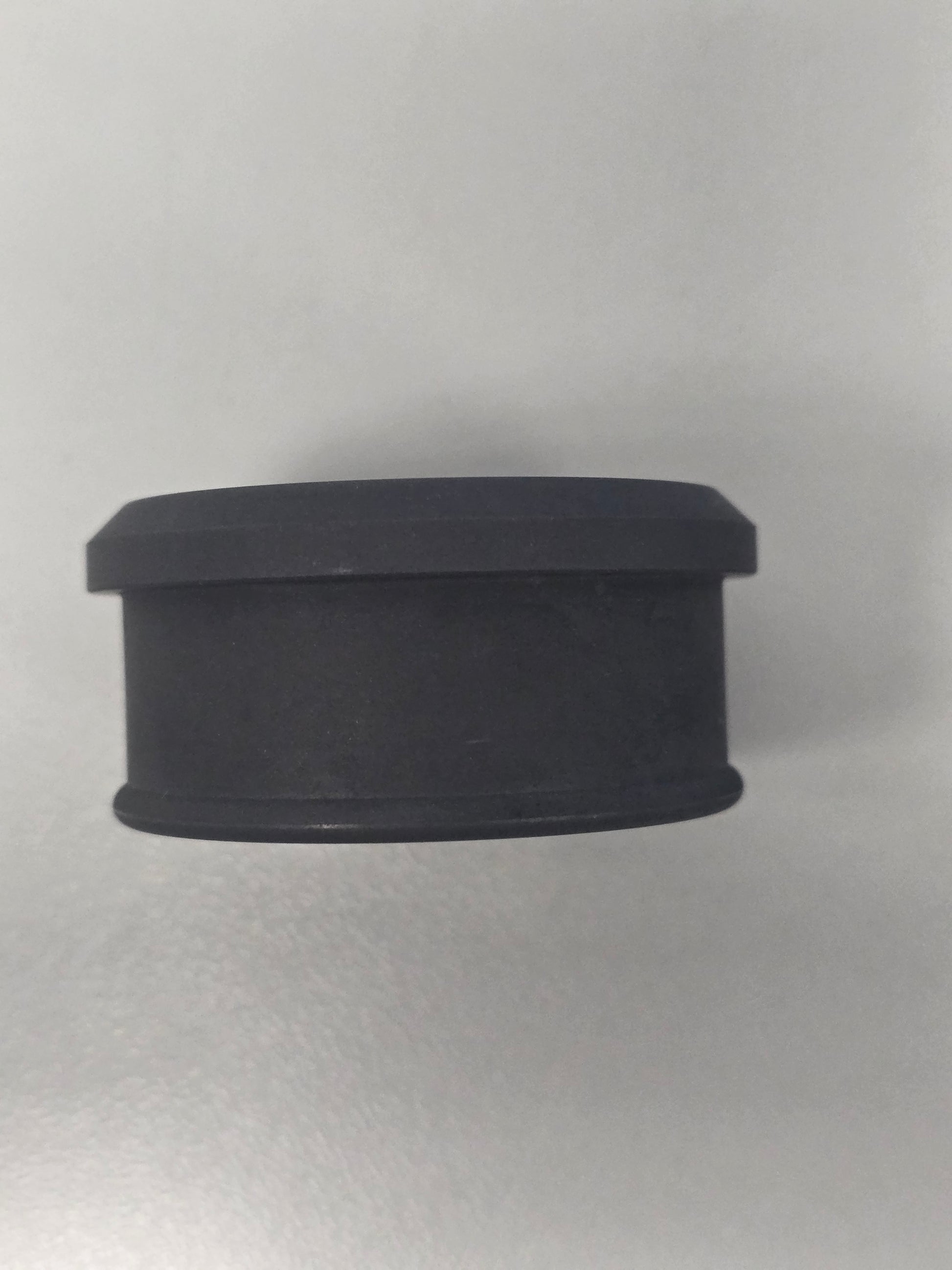

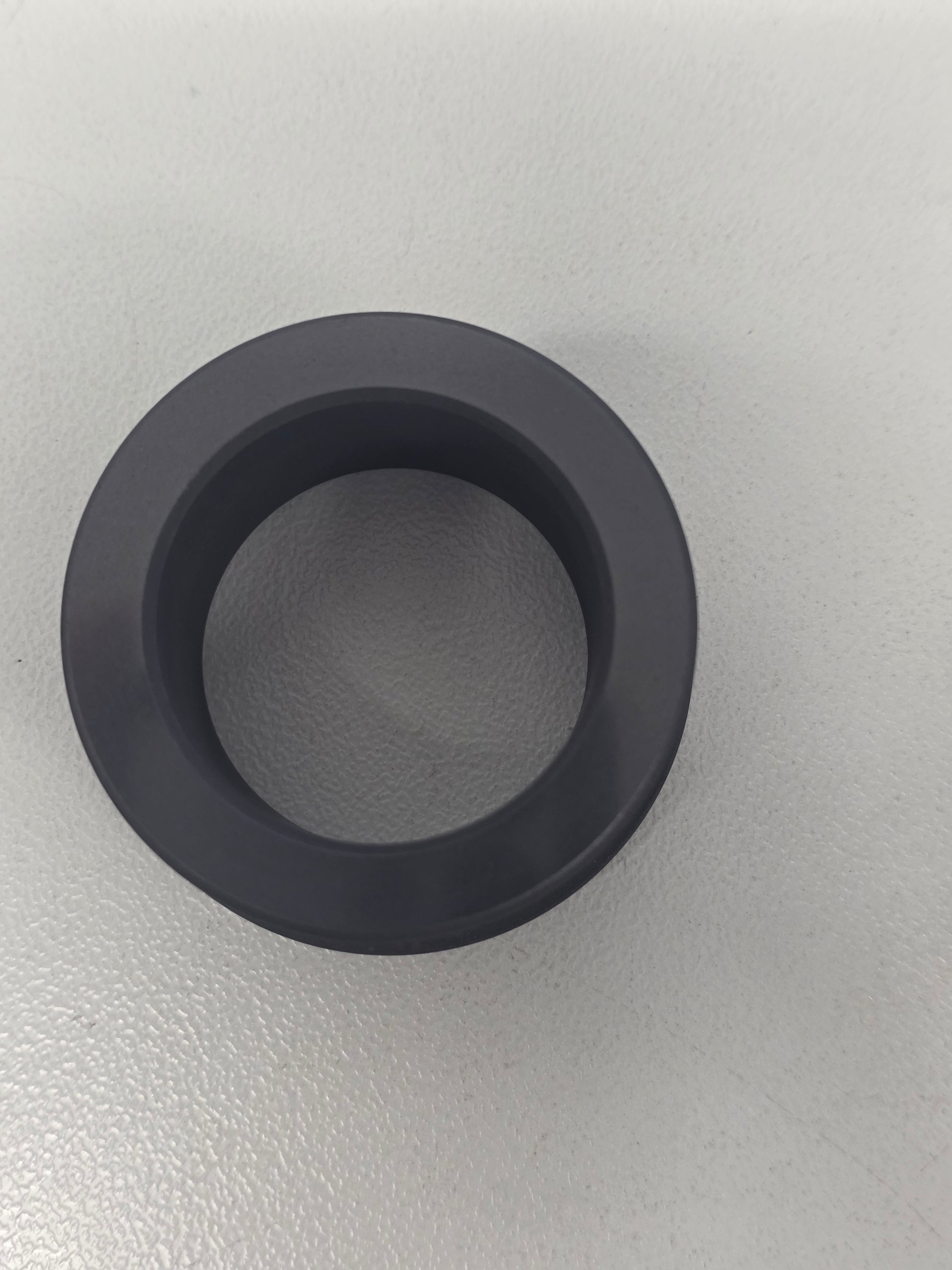

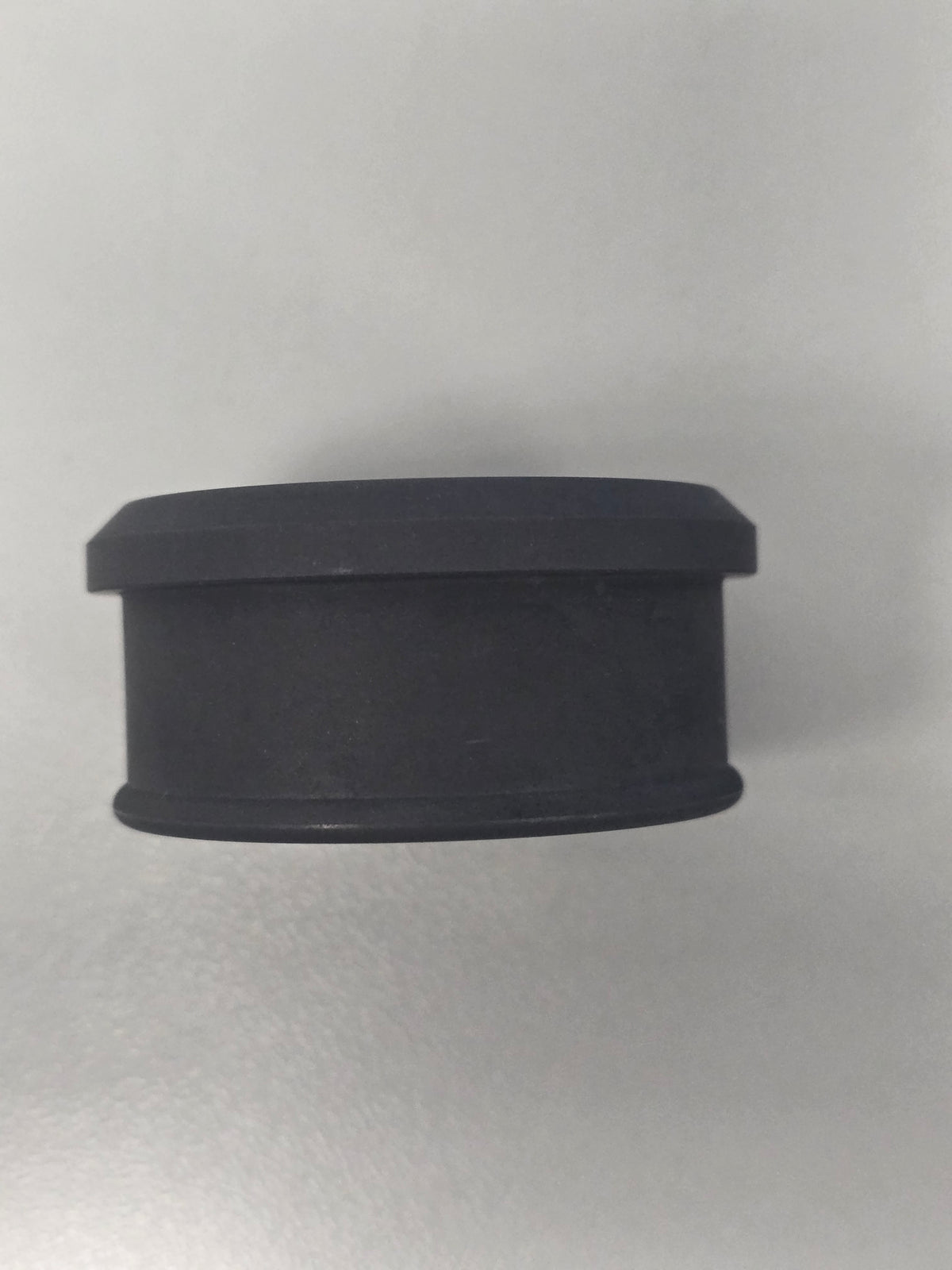

• 1 × carbon ring - 272000177

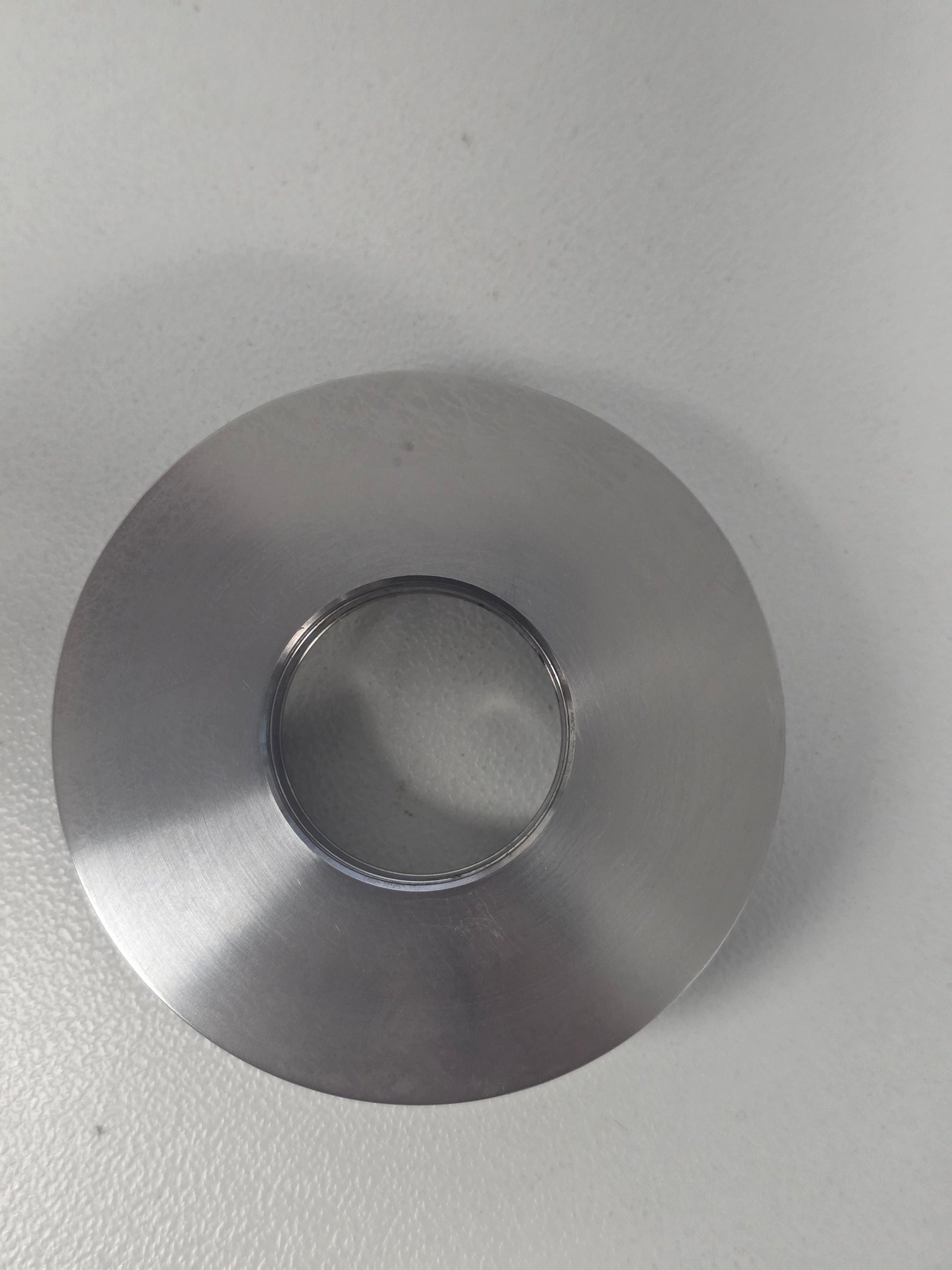

• 1 × stainless support / floating ring - 272000176

• 1 × retaining C-clip - 271001577

• 2 × support-ring O-rings - 293300220

• 271001433 appears as a related earlier clip reference on selected assemblies; verify by shaft groove

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 295501200 → later service package replacing earlier carbon-seal kit 295501143 on supported driveline assemblies

• 295501143 → earlier carbon-ring service-kit reference

OEM / Related Numbers:

• 295501200

• 295501143

• 272000177

• 272000176

• 271001577

• 271001433

• 293300220

• 272000183 - related seal bellows

Aftermarket / Verified Equivalents:

• WSM / SBT early 1503 4-TEC carbon-seal service-kit family

• RMS early 4-TEC carbon-ring replacement-kit family

🚤 Compatibility

Commonly used on:

• GTI, GTS and GTX 1503 4-TEC model families

• RXP, RXT and Wake 1503 4-TEC model families

• Sportster, Speedster and Challenger 4-TEC jet boats

• Selected Islandia and Utopia 4-TEC applications

• Principally earlier driveline assemblies whose diagram specifies 295501200 or 295501143

Typically suits:

• HP Range: Approximately 130-260 HP across supported 1503 4-TEC models

• Engine / Drive Type: 1503 cc Rotax 4-TEC direct-drive propulsion system

• Year Range: Approximately 2002-2015, driveline dependent

• Serial / Model Identification: Confirm the driveshaft groove, support-ring diameter, carbon-ring number and propulsion diagram. It is not interchangeable with later 295501204 assemblies solely by model name.

🔌 Function

Creates the rotating mechanical seal around the driveshaft where it passes through the hull. The bellows pushes the stationary carbon ring against the stainless rotating ring to exclude water.

Common signs replacement or service is required:

• Water enters the hull around the driveshaft

• Black carbon dust or excessive heat is present at the seal

• Carbon face is cracked, chipped or grooved

• Stainless ring or O-rings are worn, corroded or loose

• Retaining clip is damaged or the ring moves on the shaft

📦 Condition

• Genuine Sea-Doo / BRP OEM part

• Brand new

• Supplied in genuine BRP or equivalent protective packaging
