295501204 Sea-Doo Carbon Ring Kit | Genuine OEM BRP Part

🔧 Product Description

Genuine Sea-Doo Later-Generation Carbon Ring Seal Kit - Part Number: 295501204

A genuine BRP later-generation driveshaft carbon-seal package used on selected modern Sea-Doo propulsion systems. It contains the rotary ring, retaining clip, twin O-rings and matched carbon-ring assembly identified in the factory drive diagram.

⚙️ Key Features

• Genuine BRP later-generation carbon-ring service package

• Matched rotary and stationary sealing faces

• Includes the correct retaining clip and two rotary-ring O-rings

• Used across selected current 130-325 HP driveline assemblies

• Seal bellows is shown separately in the factory propulsion diagram and is not assumed included

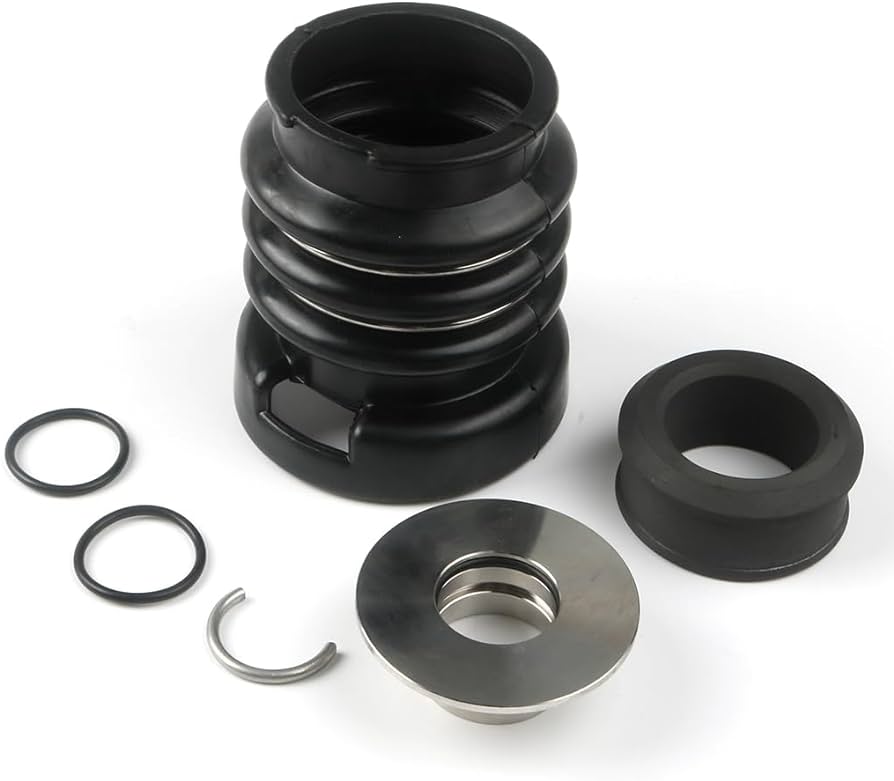

📋 Kit / Assembly Contents

• 1 × rotary ring - 271002215

• 1 × retaining C-clip - 271001577

• 2 × rotary-ring O-rings - 293300220

• 1 × carbon ring assembly - 271002109

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 295501204 → later/current carbon-ring service package

• 295501176 and 295501198 - related preceding kit references on selected propulsion revisions; verify complete shaft assembly before substitution

OEM / Related Numbers:

• 295501204

• 295501176

• 295501198

• 271002215

• 271001577

• 293300220

• 271002109

Aftermarket / Verified Equivalents:

• WSM / SBT later-generation Sea-Doo carbon-seal service-kit family

• Aftermarket kits must match the 271002215 rotary ring and 271002109 carbon assembly

🚤 Compatibility

Commonly used on:

• GTX Pro 130

• GTI 130/170 and selected GTI SE models

• GTR 230 and GTR-X/GTR 300 applications

• GTX 170/230/300 and GTX Limited models

• RXP-X and RXT-X 300/325 models

• Wake 170 and Wake Pro 230

• Explorer Pro and FishPro model families

• Selected 2024-onward Spark and Spark Trixx propulsion assemblies where 295501204 is listed

Typically suits:

• HP Range: Approximately 130-325 HP across supported late-model applications

• Engine / Drive Type: Sea-Doo ACE/4-TEC direct-drive propulsion system

• Year Range: Principally 2021 onward, with earlier related kit references on selected models

• Serial / Model Identification: Confirm the complete model, hull identification number and propulsion diagram. Later iDF, non-iDF and performance pump assemblies can use different shafts and seal hardware.

🔌 Function

Forms the mechanical water seal around the rotating driveshaft. The carbon and rotary faces run together under bellows pressure to prevent water entering the hull.

Common signs replacement or service is required:

• Water leakage around the driveshaft

• Carbon face is chipped, cracked or overheated

• Rotary ring is loose, scored or corroded

• O-rings are flattened or allow the rotary ring to move

• C-clip is damaged or not seated in the driveshaft groove

📦 Condition

• Genuine Sea-Doo / BRP OEM part

• Brand new

• Supplied in genuine BRP or equivalent protective packaging
